Net pricing — not eligible for volume discounts. Extreema® products are sold at net price. SlingCenter volume discount tiers do not apply, so the price shown is the price per piece at any quantity. For project or multi-site quantities, email sales@slingcenter.com.
Specifications — EXC/5
| Part number | EXC/5 |
| Vertical WLL | 15,000 lbs |
| Basket WLL (legs vertical) | 30,000 lbs |
| Choker WLL | Not published by the manufacturer — do not use in choker |
| Design factor | 5:1 |
| Core diameter | 0.67 in (single leg, without sleeve) |
| Weight | approx. 0.60 lbs per ft |
| Eyes | 2 ft eye at each end, lined with Extreema® Protect EP-L sleeve |
| Body construction | Dyneema® (HMPE) core in an Extreema® L-series sleeve, with an Extreema® XXL sleeve over both strands |
| Lengths listed | 6 ft to 20 ft in 1 ft steps; other lengths made to order |
| Standard | Manufactured to EN 1492-2; ISO 9001:2015 plant |
| Certification | Manufacturer’s certificate of conformity |
| Country of origin | Netherlands |
| Lead time | Made to order, 4 to 6 weeks |
EXC coil sling family — capacity chart
Click a part number to open that size.
| Part no. | Vertical WLL | Basket WLL (legs vertical) | Core dia. | Weight (lbs/ft) |
|---|---|---|---|---|
| EXC/3 | 10,000 lbs | 20,000 lbs | 0.59 in | 0.55 |
| EXC/5 (this page) | 15,000 lbs | 30,000 lbs | 0.67 in | 0.60 |
| EXC/6 | 20,000 lbs | 40,000 lbs | 0.75 in | 0.64 |
| EXC/8 | 25,000 lbs | 50,000 lbs | 0.79 in | 0.77 |
| EXC/10 | 30,000 lbs | 60,000 lbs | 0.87 in | 0.80 |
| EXC/11 | 35,000 lbs | 70,000 lbs | 0.95 in | 0.91 |
| EXC/13 | 40,000 lbs | 80,000 lbs | 1.04 in | 1.00 |
| EXC/15 | 45,000 lbs | 90,000 lbs | 1.14 in | 1.07 |
| EXC/16 | 50,000 lbs | 100,000 lbs | 1.22 in | 1.20 |
Rated at a 5:1 design factor. Basket rating applies with both legs vertical; reduce it for any leg angle. Weight per foot is approximate.
Protect the sling at the coil — recommended accessories
The fastest way to shorten any sling’s life is the coil edge. Pair the EXC with DICA LiftGuard® magnetic coil sling protectors: a Top unit where the sling wraps over the outer edge and a Center unit inside the bore. 270 lb magnets hold them in place, and the cast-nylon face will not mark the coil. The 6 in size (max sling width 4 in) fits every EXC from EXC/3 to EXC/16.
- LiftGuard® Top Coil Protector — 6 in
- LiftGuard® Center Coil Protector — 6 in, 20 in bore
- LiftGuard® 4-Piece Kit (2 Top + 2 Center) — 6 in, 20 in bore
- All LiftGuard® sizes, including 16 in bore
Features
- Light and flexible — far lighter than chain or wire rope slings of the same rating
- High cut and abrasion resistance
- Does not absorb water and floats
- Resistant to chemicals
- Repairable sleeve and a long service life
Cut resistant is not cut proof. Never pull the sling out from under a load, and never let it slide or drag across a sharp edge under tension. Set the sling, lift straight, and land the load before removing the sling. Where the sling bears on a sharp edge, add Extreema® corner protection or a protective sleeve. Inspect before every use and remove from service if the cover is cut through to the core.
Sizes & part numbers
| Part number | Size / length | Vertical WLL | Weight | Price | Qty | Add to cart |
|---|---|---|---|---|---|---|
| EXC/5/06HD | 6 ft | 15,000 lb | 3.6 lb | $1,136.86 | ||
| EXC/5/07HD | 7 ft | 15,000 lb | 4.2 lb | $1,314.29 | ||
| EXC/5/08HD | 8 ft | 15,000 lb | 4.8 lb | $1,491.71 | ||
| EXC/5/09HD | 9 ft | 15,000 lb | 5.4 lb | $1,669.14 | ||
| EXC/5/10HD | 10 ft | 15,000 lb | 6.0 lb | $1,846.57 | ||
| EXC/5/11HD | 11 ft | 15,000 lb | 6.6 lb | $2,024.00 | ||
| EXC/5/12HD | 12 ft | 15,000 lb | 7.2 lb | $2,201.43 | ||
| EXC/5/13HD | 13 ft | 15,000 lb | 7.8 lb | $2,378.86 | ||
| EXC/5/14HD | 14 ft | 15,000 lb | 8.4 lb | $2,556.29 | ||
| EXC/5/15HD | 15 ft | 15,000 lb | 9.0 lb | $2,733.71 | ||
| EXC/5/16HD | 16 ft | 15,000 lb | 9.6 lb | $2,911.14 | ||
| EXC/5/17HD | 17 ft | 15,000 lb | 10.2 lb | $3,088.57 | ||
| EXC/5/18HD | 18 ft | 15,000 lb | 10.8 lb | $3,266.00 | ||
| EXC/5/19HD | 19 ft | 15,000 lb | 11.4 lb | $3,443.43 | ||
| EXC/5/20HD | 20 ft | 15,000 lb | 12.0 lb | $3,620.86 |

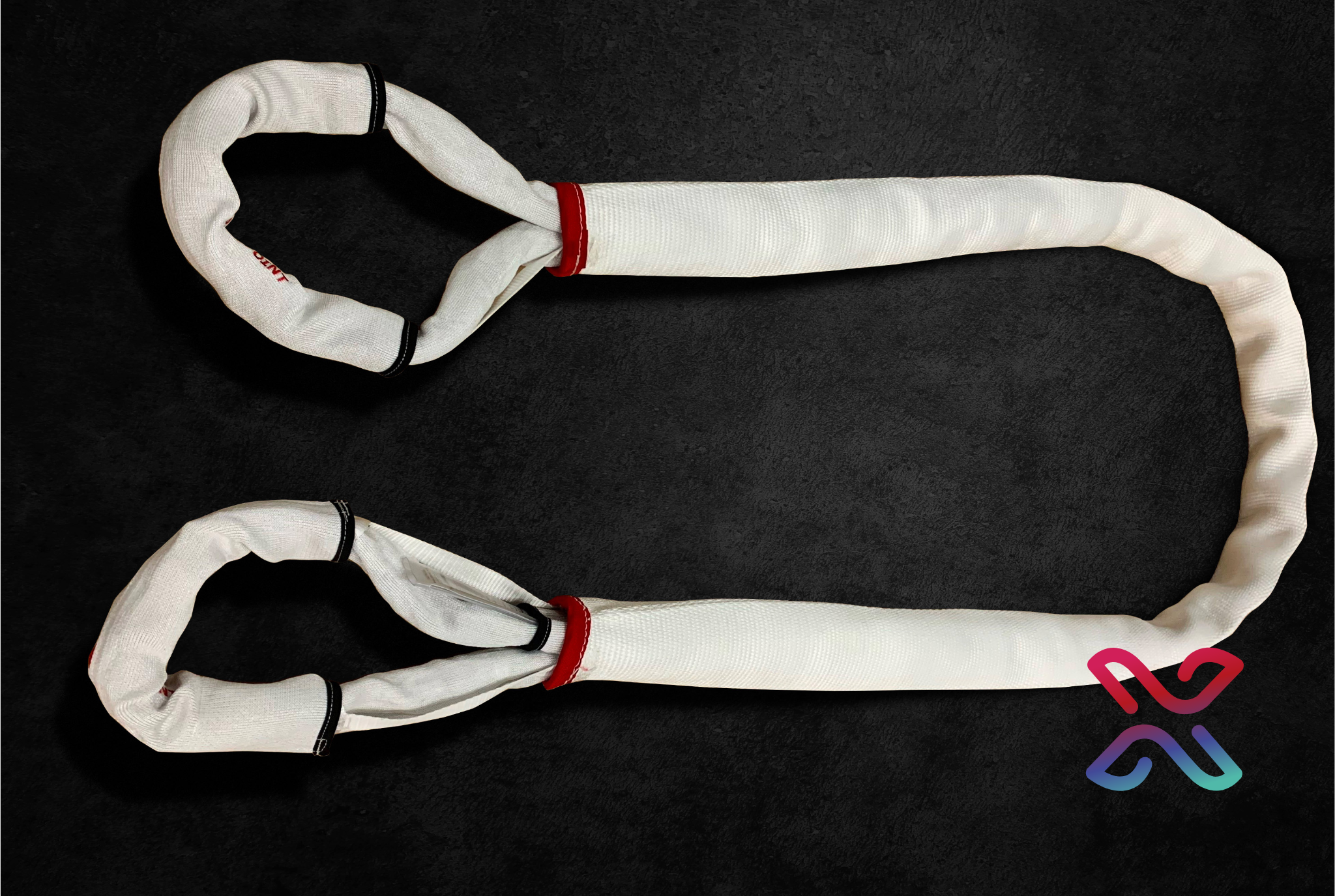

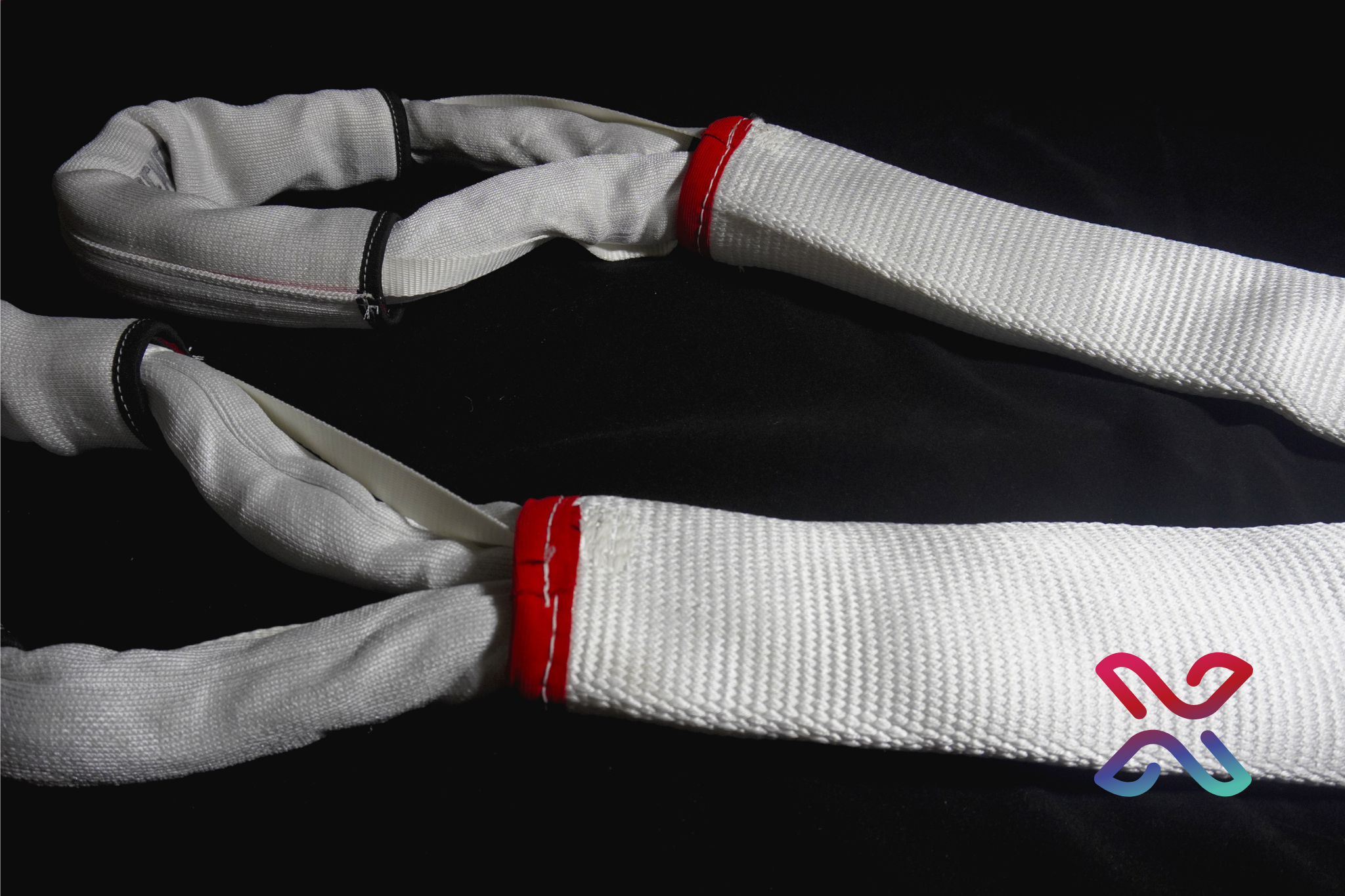

The Extreema Coil Handling Sling Eye & Eye (EXC/5 / 15,000 lbs Vertical WLL) is a specialized cut-resistant sling designed for handling steel coils in service centers, mills, and processing facilities. The Eye & Eye configuration is sized for specific coil diameters, while the Extreema Dyneema construction resists the sharp edges and abrasive surfaces that destroy standard slings in coil handling applications.
Key Features
- 15,000 lbs vertical working load limit
- Eye & Eye configuration for C-hook and coil lifter compatibility
- Dyneema cut-resistant construction — dramatically outlasts polyester in coil handling
- Flexible enough to conform to coil surfaces without damaging finish
Common Applications
- Steel coil handling in service centers and mills
- Aluminum and metal coil processing and transport
- C-hook and coil lifter sling applications
- Any coil handling operation where standard slings are failing from edge cuts
Why Extreema for Coils?
Steel coils have some of the sharpest edges in industrial material handling. Standard polyester slings can be destroyed in a single lift. Extreema's Dyneema construction resists cutting at the point of contact, delivering dramatically longer service life and lower total cost of ownership in coil handling operations.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Protect the Sling at the Coil
The coil edge is what retires slings. DICA LiftGuard® magnetic coil sling protectors sit between the sling and the coil: a Top unit where the sling wraps over the outer edge and a Center unit inside the bore. 270 lb magnets hold them in place and the cast-nylon face will not mark the coil. The 6 in size (max sling width 4 in) fits every EXC.
Coil protectors carry no working load limit of their own and do not change the rating of the sling. Other sizes, including 16 in bore center units, are on the LiftGuard® page.
Order Sheet — 15 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Weight ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|---|
| 6 ft | EXC/5/06HD | $1,136.86 | 3.6 lb | ✓ In Stock | ||
| 7 ft | EXC/5/07HD | $1,314.29 | 4.2 lb | ✓ In Stock | ||
| 8 ft | EXC/5/08HD | $1,491.71 | 4.8 lb | ✓ In Stock | ||
| 9 ft | EXC/5/09HD | $1,669.14 | 5.4 lb | ✓ In Stock | ||
| 10 ft | EXC/5/10HD | $1,846.57 | 6.0 lb | ✓ In Stock | ||
| 11 ft | EXC/5/11HD | $2,024.00 | 6.6 lb | ✓ In Stock | ||
| 12 ft | EXC/5/12HD | $2,201.43 | 7.2 lb | ✓ In Stock | ||
| 13 ft | EXC/5/13HD | $2,378.86 | 7.8 lb | ✓ In Stock | ||
| 14 ft | EXC/5/14HD | $2,556.29 | 8.4 lb | ✓ In Stock | ||
| 15 ft | EXC/5/15HD | $2,733.71 | 9.0 lb | ✓ In Stock | ||
| 16 ft | EXC/5/16HD | $2,911.14 | 9.6 lb | ✓ In Stock | ||
| 17 ft | EXC/5/17HD | $3,088.57 | 10.2 lb | ✓ In Stock | ||
| 18 ft | EXC/5/18HD | $3,266.00 | 10.8 lb | ✓ In Stock | ||
| 19 ft | EXC/5/19HD | $3,443.43 | 11.4 lb | ✓ In Stock | ||
| 20 ft | EXC/5/20HD | $3,620.86 | 12.0 lb | ✓ In Stock |
Weights are approximate shipping weights.
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
