Extreema / EXC/3 / Coil Handling Sling Eye & Eye / 10,000 lbs Vertical / 20,000 lbs Basket WLL

ExtreemaSKU: EXC/3/06HD

Net pricing — not eligible for volume discounts. Extreema® products are sold at net price. SlingCenter volume discount tiers do not apply, so the price shown is the price per piece at any quantity. For project or multi-site quantities, email sales@slingcenter.com.

Specifications — EXC/3

Part numberEXC/3
Vertical WLL10,000 lbs
Basket WLL (legs vertical)20,000 lbs
Choker WLLNot published by the manufacturer — do not use in choker
Design factor5:1
Core diameter0.59 in (single leg, without sleeve)
Weightapprox. 0.55 lbs per ft

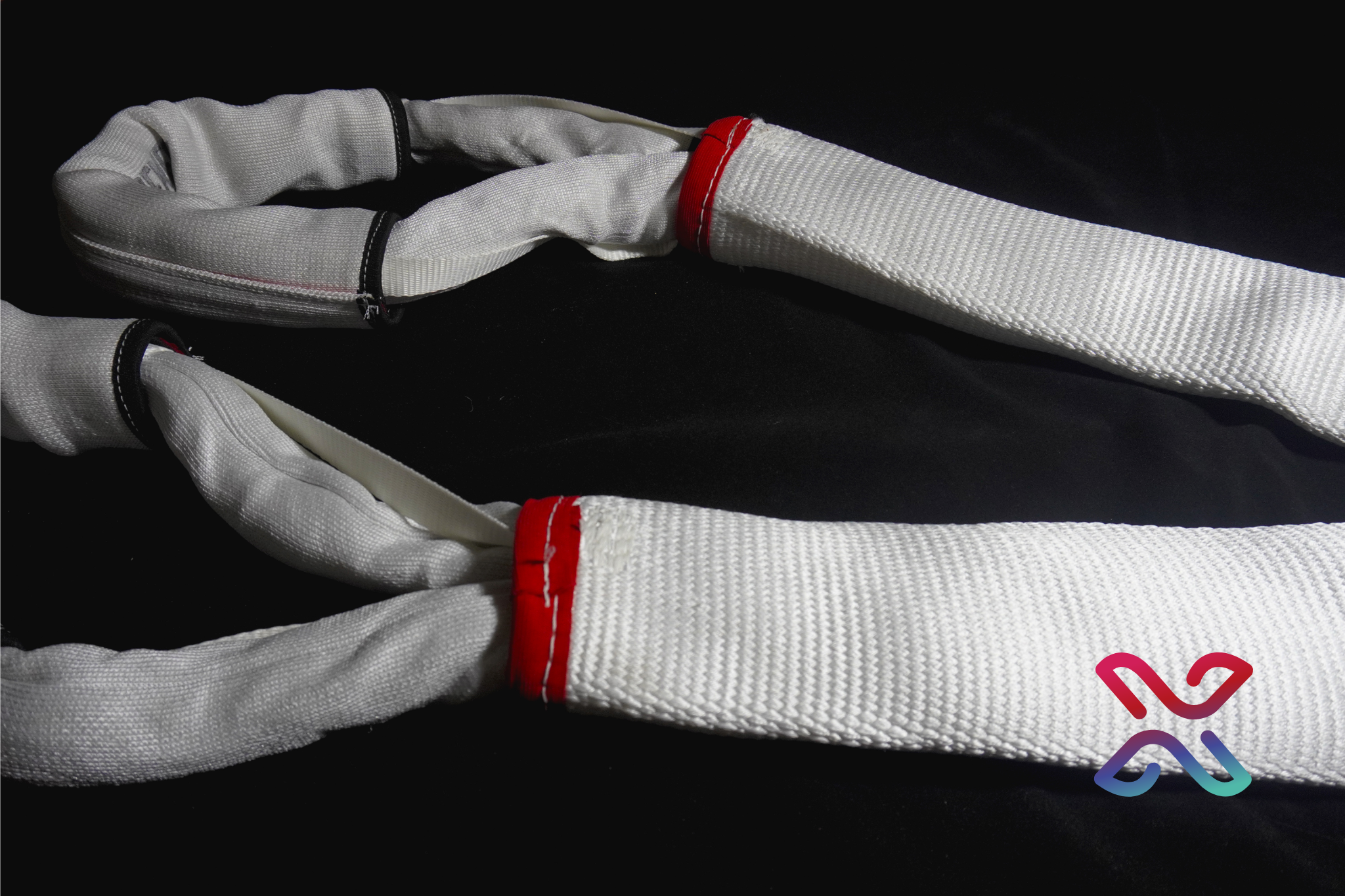

Eyes2 ft eye at each end, lined with Extreema® Protect EP-L sleeve
Body constructionDyneema® (HMPE) core in an Extreema® L-series sleeve, with an Extreema® XXL sleeve over both strands
Lengths listed6 ft to 20 ft in 1 ft steps; other lengths made to order
StandardManufactured to EN 1492-2; ISO 9001:2015 plant
CertificationManufacturer’s certificate of conformity
Country of originNetherlands
Lead timeMade to order, 4 to 6 weeks

EXC coil sling family — capacity chart

Click a part number to open that size.

Part no.Vertical WLLBasket WLL (legs vertical)Core dia.Weight (lbs/ft)
EXC/3 (this page)10,000 lbs20,000 lbs0.59 in0.55
EXC/515,000 lbs30,000 lbs0.67 in0.60
EXC/620,000 lbs40,000 lbs0.75 in0.64
EXC/825,000 lbs50,000 lbs0.79 in0.77
EXC/1030,000 lbs60,000 lbs0.87 in0.80
EXC/1135,000 lbs70,000 lbs0.95 in0.91
EXC/1340,000 lbs80,000 lbs1.04 in1.00
EXC/1545,000 lbs90,000 lbs1.14 in1.07
EXC/1650,000 lbs100,000 lbs1.22 in1.20

Rated at a 5:1 design factor. Basket rating applies with both legs vertical; reduce it for any leg angle. Weight per foot is approximate.

Protect the sling at the coil — recommended accessories

The fastest way to shorten any sling’s life is the coil edge. Pair the EXC with DICA LiftGuard® magnetic coil sling protectors: a Top unit where the sling wraps over the outer edge and a Center unit inside the bore. 270 lb magnets hold them in place, and the cast-nylon face will not mark the coil. The 6 in size (max sling width 4 in) fits every EXC from EXC/3 to EXC/16.

Features

  • Light and flexible — far lighter than chain or wire rope slings of the same rating
  • High cut and abrasion resistance
  • Does not absorb water and floats
  • Resistant to chemicals
  • Repairable sleeve and a long service life

Cut resistant is not cut proof. Never pull the sling out from under a load, and never let it slide or drag across a sharp edge under tension. Set the sling, lift straight, and land the load before removing the sling. Where the sling bears on a sharp edge, add Extreema® corner protection or a protective sleeve. Inspect before every use and remove from service if the cover is cut through to the core.

Sizes & part numbers

Part numberSize / lengthVertical WLLWeightPriceQtyAdd to cart
EXC/3/06HD6 ft10,000 lb3.3 lb$1,113.86
EXC/3/07HD7 ft10,000 lb3.85 lb$1,284.71
EXC/3/08HD8 ft10,000 lb4.4 lb$1,455.57
EXC/3/09HD9 ft10,000 lb4.95 lb$1,626.43
EXC/3/10HD10 ft10,000 lb5.5 lb$1,797.29
EXC/3/11HD11 ft10,000 lb6.05 lb$1,968.14
EXC/3/12HD12 ft10,000 lb6.6 lb$2,139.00
EXC/3/13HD13 ft10,000 lb7.15 lb$2,309.86
EXC/3/14HD14 ft10,000 lb7.7 lb$2,480.71
EXC/3/15HD15 ft10,000 lb8.25 lb$2,651.57
EXC/3/16HD16 ft10,000 lb8.8 lb$2,822.43
EXC/3/17HD17 ft10,000 lb9.35 lb$2,993.29
EXC/3/18HD18 ft10,000 lb9.9 lb$3,164.14
EXC/3/19HD19 ft10,000 lb10.45 lb$3,335.00
EXC/3/20HD20 ft10,000 lb11.0 lb$3,505.86

The Extreema Coil Handling Sling Eye & Eye (EXC/3 / 10,000 lbs Vertical WLL) is a specialized cut-resistant sling designed for handling steel coils in service centers, mills, and processing facilities. The Eye & Eye configuration is sized for specific coil diameters, while the Extreema Dyneema construction resists the sharp edges and abrasive surfaces that destroy standard slings in coil handling applications.

Key Features

  • 10,000 lbs vertical working load limit
  • Eye & Eye configuration for C-hook and coil lifter compatibility
  • Dyneema cut-resistant construction — dramatically outlasts polyester in coil handling
  • Flexible enough to conform to coil surfaces without damaging finish

Common Applications

  • Steel coil handling in service centers and mills
  • Aluminum and metal coil processing and transport
  • C-hook and coil lifter sling applications
  • Any coil handling operation where standard slings are failing from edge cuts

Why Extreema for Coils?

Steel coils have some of the sharpest edges in industrial material handling. Standard polyester slings can be destroyed in a single lift. Extreema's Dyneema construction resists cutting at the point of contact, delivering dramatically longer service life and lower total cost of ownership in coil handling operations.

Using this sling in a bridle or a basket? Work out the leg length, headroom, sling angle and tension in each leg with our free Sling Calculator — it also shows the smallest sling and the shackle that fit the lift.Leg lengths are bearing point to bearing point and do not include master links or other in-line hardware.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Protect the Sling at the Coil

The coil edge is what retires slings. DICA LiftGuard® magnetic coil sling protectors sit between the sling and the coil: a Top unit where the sling wraps over the outer edge and a Center unit inside the bore. 270 lb magnets hold them in place and the cast-nylon face will not mark the coil. The 6 in size (max sling width 4 in) fits every EXC.

DICA LiftGuard® Steel Coil Sling Protectors - Top, Center & 4-Piece Kits
DICA LiftGuard® Top Coil Protector
6" (Max Sling Width: 4")
SKU LG-6-3-270 C TOP
$242.00
DICA LiftGuard® Steel Coil Sling Protectors - Top, Center & 4-Piece Kits
DICA LiftGuard® Center Coil Protector
6" (Max Sling Width: 4") - 20" bore
SKU LG-6-3-270-10-C CTR
$259.00
DICA LiftGuard® Steel Coil Sling Protectors - Top, Center & 4-Piece Kits
DICA LiftGuard® 4-Piece Kit
6" (Max Sling Width: 4") - 20" bore
SKU LGSCKIT-6-20
$890.00

Coil protectors carry no working load limit of their own and do not change the rating of the sling. Other sizes, including 16 in bore center units, are on the LiftGuard® page.

Order Sheet — 15 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
6 ft EXC/3/06HD $1,113.86 3.3 lb ✓ In Stock
7 ft EXC/3/07HD $1,284.71 3.85 lb ✓ In Stock
8 ft EXC/3/08HD $1,455.57 4.4 lb ✓ In Stock
9 ft EXC/3/09HD $1,626.43 4.95 lb ✓ In Stock
10 ft EXC/3/10HD $1,797.29 5.5 lb ✓ In Stock
11 ft EXC/3/11HD $1,968.14 6.05 lb ✓ In Stock
12 ft EXC/3/12HD $2,139.00 6.6 lb ✓ In Stock
13 ft EXC/3/13HD $2,309.86 7.15 lb ✓ In Stock
14 ft EXC/3/14HD $2,480.71 7.7 lb ✓ In Stock
15 ft EXC/3/15HD $2,651.57 8.25 lb ✓ In Stock
16 ft EXC/3/16HD $2,822.43 8.8 lb ✓ In Stock
17 ft EXC/3/17HD $2,993.29 9.35 lb ✓ In Stock
18 ft EXC/3/18HD $3,164.14 9.9 lb ✓ In Stock
19 ft EXC/3/19HD $3,335.00 10.45 lb ✓ In Stock
20 ft EXC/3/20HD $3,505.86 11.0 lb ✓ In Stock

Weights are approximate shipping weights.

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.

Why SlingCenter

American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Enter your zip to see delivery estimates at checkout.

Go to Cart to Estimate

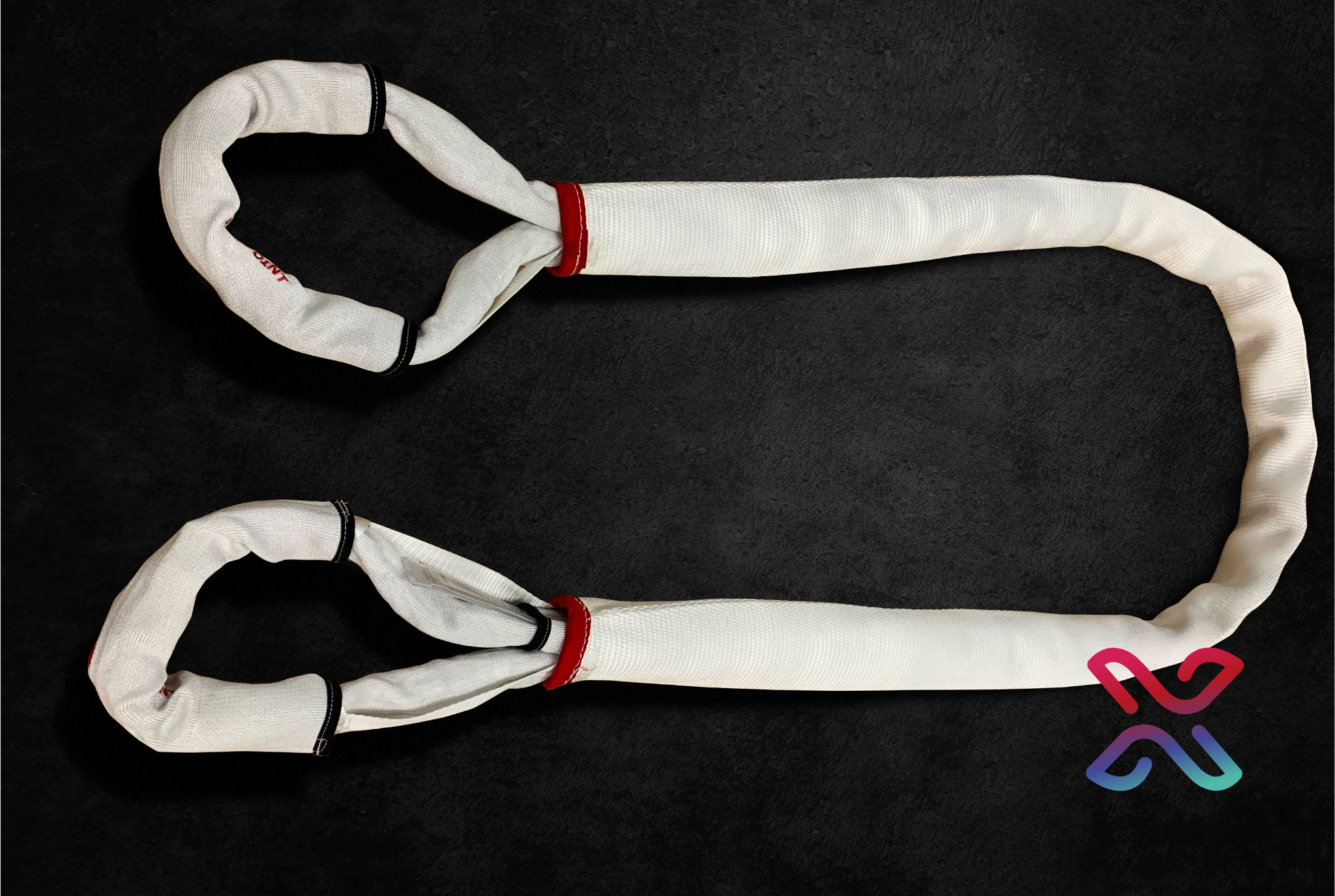

Extreema cut-resistant coil lifting sling Extreema® cut-resistant coil sling (Dyneema® core, cover and sleeves).
