Manufacturer Documents
- 📄 Catalog pages — imperial (PDF)
- 📄 Catalog pages — metric (PDF)
- ⚠ Applications & warnings (PDF)
- ↗ Manufacturer product page
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

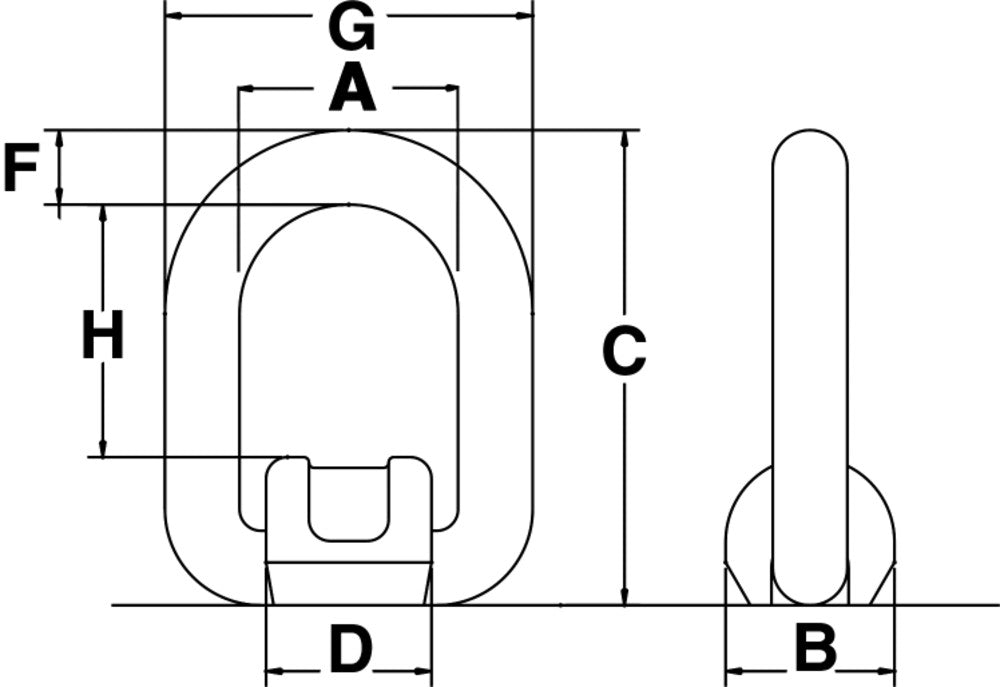

Specifications — Full Dimensions by Size
Open the catalog page (PDF)
| Size | WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.2 t | 2,6001.2 | 2,2001.0 | 0.90.41 | 1.743.2 | 1.5840.1 | 3.1179.0 | 1.4236.1 | 0.5113.0 | 2.7269.1 | 1.538.1 | 1290839 |
| 3.2 t | 7,0503.2 | 5,5002.5 | 1.80.82 | 1.9349.0 | 1.8948.0 | 3.7896.0 | 1.6241.1 | 0.7118.0 | 3.3585.1 | 1.7343.9 | 1290848 |
| 5.3 t | 11,6505.3 | 9,2504.2 | 3.31.5 | 2.2156.1 | 2.461.0 | 5.04128.0 | 1.8948.0 | 0.8722.1 | 3.94100.1 | 2.4863.0 | 1290857 |
| 8.0 t | 17,6008.0 | 14,1006.4 | 6.02.72 | 2.8873.2 | 2.8873.2 | 5.95151.1 | 2.5665.0 | 1.0225.9 | 4.92125.0 | 2.8873.2 | 1290866 |
| 15 t | 33,05015 | 26,45012 | 13.05.9 | 3.94100.1 | 3.5489.9 | 7.64194.1 | 3.5590.2 | 1.3434.0 | 6.62168.1 | 3.7495.0 | 1290875 |
Both Working Load Limit columns are published by the manufacturer for this part — neither is calculated by us. The 4:1 figure is the rating of record; the 5:1 column is the manufacturer’s lower rating for applications that require that design factor. Pound and metric figures are both as published — neither is converted from the other. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

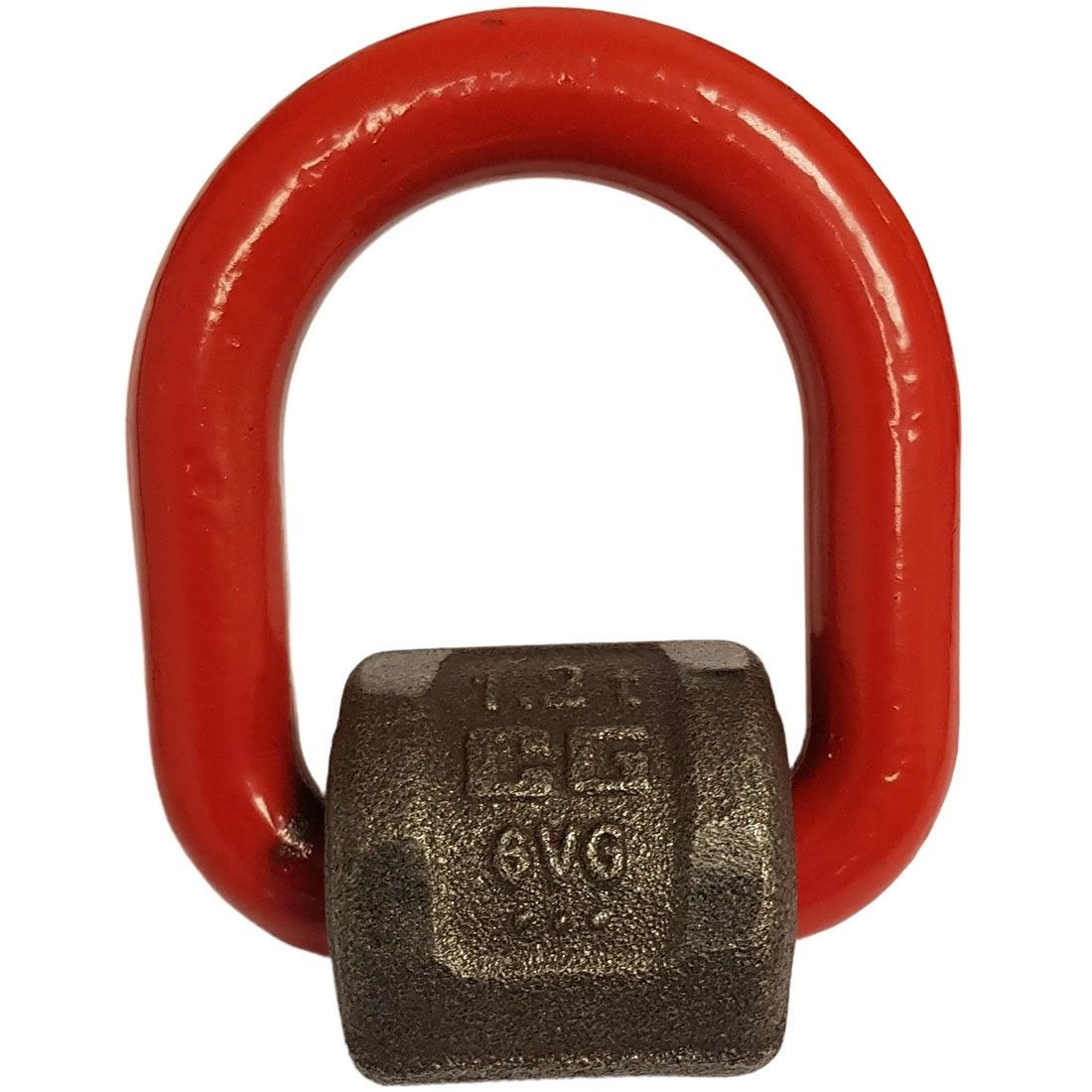

The Crosby S-265 forged link is a weld-on forged link and bracket that provides a permanent lifting/anchor point on structures and equipment. Quenched and tempered with excellent welding qualities, it is widely used on farm machinery, trucks, steel-hulled marine vessels, and material handling equipment.
Key Features
- Forged link and bracket — quenched & tempered
- Weld-on design for permanent installation
- Excellent welding qualities (reference AWS specifications for proper welding procedures)
- Working Load Limit: 2,200 lb up to 26,450 lb (1 t to 12 t) at 5:1 design factor
- Five sizes (Stock No. 1290839 through 1290875)
Common Applications
- Permanent weld-on lifting/anchor points
- Farm machinery, trucks, steel-hulled marine vessels, material handling equipment
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Compare & save — Green Pin® (Van Beest) equivalent
The closest equivalent from Van Beest. The capacity ladders are not identical — where they differ we pair to the next Green Pin size up, never down, and both capacities are shown below so you can confirm the one you need. From $16.30 against $61.80, saving 33–73%.
| Capacity | Green Pin capacity | This item (Crosby) |
Green Pin (Van Beest) |
You save | |
|---|---|---|---|---|---|
| 1.2 t / 2,600 lb (4:1) | 1.2 t / 2,645 lb | $61.80 | $16.30 | 73% | |
| 3.2 t / 7,050 lb (4:1) | 3.2 t / 7,055 lb | $73.50 | $30.65 | 58% | |
| 5.3 t / 11,650 lb (4:1) | 5.4 t / 11,905 lbHIGHER | $146.80 | $51.50 | 64% | |
| 8.0 t / 17,600 lb (4:1) | 8.2 t / 18,078 lbHIGHER | $212.00 | $88.00 | 58% | |
| 15 t / 33,050 lb (4:1) | 15.5 t / 34,172 lbHIGHER | $302.00 | $199.50 | 33% |
Van Beest's Green Pin PAS is the same class of weld-on forged link, made to the same lifting standards and certified by its own manufacturer. Prices and savings above are read from the live listings, so they stay correct as either price changes.A row marked HIGHER is a Green Pin part rated above the Crosby one, not below — we never substitute downward. Check the capacity column against your own requirement before switching. View full Green Pin listing & specs →
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1.2 t / 2,600 lb (4:1) | 1290839 | $61.80 | ✓ In Stock | ||
| 3.2 t / 7,050 lb (4:1) | 1290848 | $73.50 | ✓ In Stock | ||
| 5.3 t / 11,650 lb (4:1) | 1290857 | $146.80 | ✓ In Stock | ||
| 8.0 t / 17,600 lb (4:1) | 1290866 | $212.00 | ✓ In Stock | ||
| 15 t / 33,050 lb (4:1) | 1290875 | $302.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
