Manufacturer Documents
- 📄 Spec sheet (PDF)
- 🔨 Welding instructions (PDF)
- ⚠ Applications & warnings (PDF)
- ↗ Manufacturer product page
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

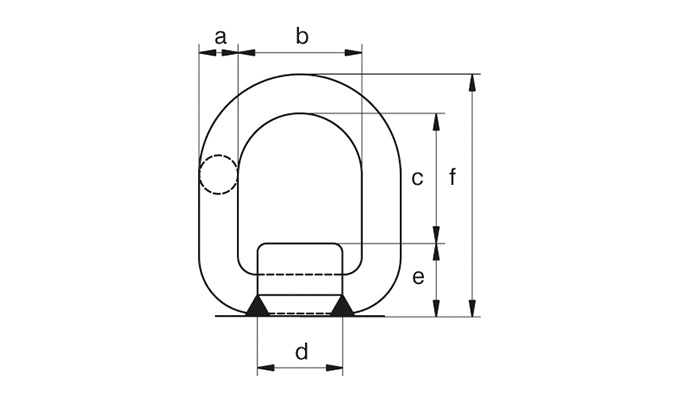

Specifications — Full Dimensions by Size
| Size | WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.2 t | 2,6451.2 | 2,1160.96 | 0.880.4 | 0.5113 | 1.5740 | 1.6141 | 1.3835 | 1.128 | 3.2382 | GPPAS1 |
| 3.2 t | 7,0553.2 | 5,6442.56 | 1.70.77 | 0.7118 | 1.7745 | 1.8547 | 1.6542 | 1.333 | 3.8698 | GPPAS3 |
| 5.4 t | 11,9055.4 | 9,5244.32 | 3.131.42 | 0.8722 | 2.1755 | 2.2457 | 1.9349 | 1.6542 | 4.76121 | GPPAS5 |
| 8.2 t | 18,0788.2 | 14,4626.56 | 5.512.5 | 1.0226 | 2.7670 | 2.6467 | 2.5264 | 1.9750 | 5.63143 | GPPAS8 |
| 12.8 t | 28,21912.8 | 22,57510.24 | 8.163.7 | 1.128 | 3.3585 | 3.5490 | 3.0778 | 2.1755 | 6.81173 | GPPAS12 |
| 15.5 t | 34,17215.5 | 27,33712.4 | 12.55.67 | 1.3434 | 3.999 | 3.6693 | 3.5490 | 2.4863 | 7.48190 | GPPAS15 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter, not published by the manufacturer: it is the same part’s capacity at a 5:1 design factor, provided only so this item can be compared against components rated at 5:1. It is always the lower of the two. We never restate a Working Load Limit upward. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

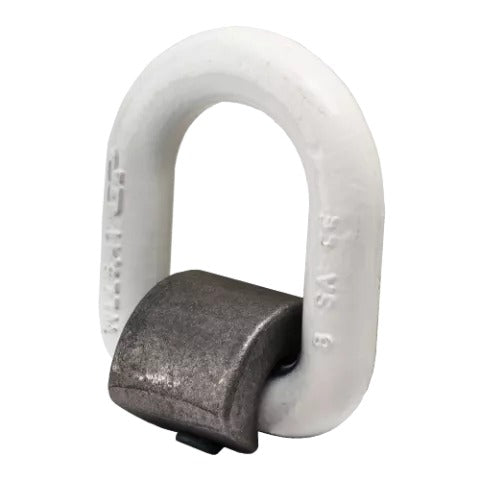

The Green Pin PAS Weld-On Transport Ring is a weld-on lashing ring designed for securing cargo during transport. Welded directly to truck beds, containers, or equipment surfaces, it provides a certified tie-down point rated for transport lashing loads.
Key Features
- Weld-on design for permanent installation
- Lay-flat ring design sits flush when not in use
- Forged alloy steel construction
- Designed for full-penetration welding
- Individually proof tested with certificate
Common Applications
- Truck bed and trailer tie-down points
- Container and freight securement
- Heavy equipment transport lashing
- Any welded surface requiring a certified lashing point
Why Green Pin?
Green Pin weld-on transport rings provide certified lashing points that sit flush when not in use. Van Beest's forged construction and individual proof testing ensure consistent quality for transport safety.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1.2 t / 2,645 lb (4:1) | GPPAS1 | $16.30 | ✓ In Stock | ||
| 12.8 t / 28,219 lb (4:1) | GPPAS12 | $131.00 | ✓ In Stock | ||
| 15.5 t / 34,172 lb (4:1) | GPPAS15 | $199.50 | ✓ In Stock | ||
| 3.2 t / 7,055 lb (4:1) | GPPAS3 | $30.65 | ✓ In Stock | ||
| 5.4 t / 11,905 lb (4:1) | GPPAS5 | $51.50 | ✓ In Stock | ||
| 8.2 t / 18,078 lb (4:1) | GPPAS8 | $88.00 | ✓ In Stock |
