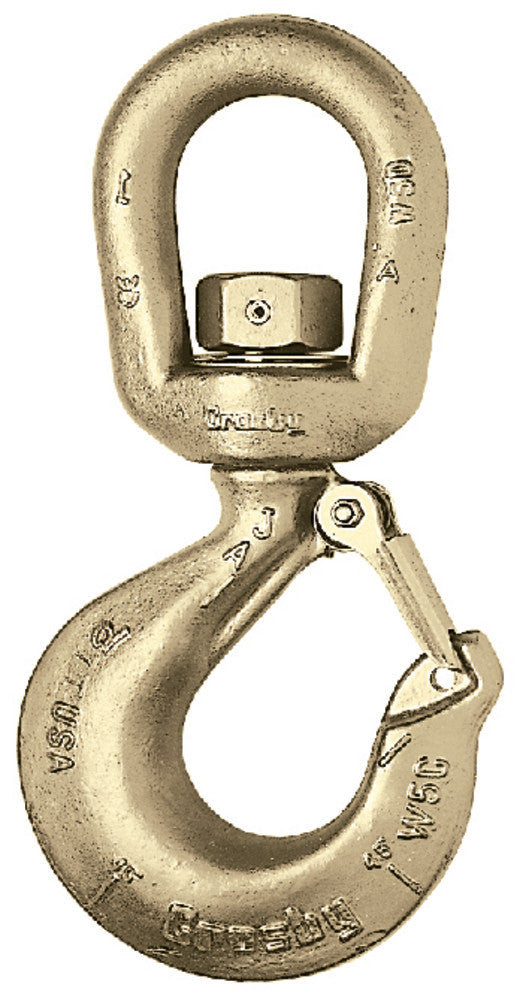

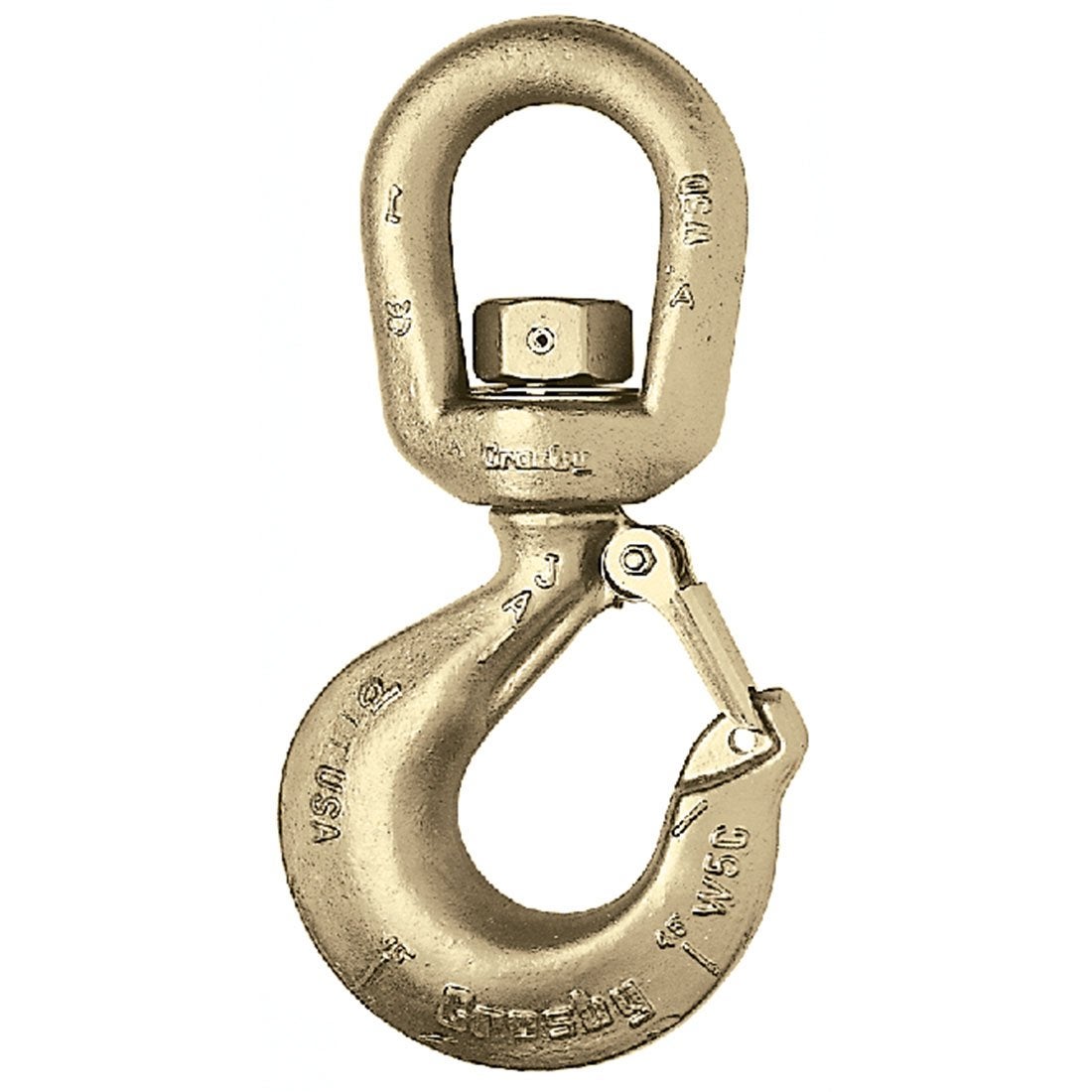

Crosby L-322AN Alloy Swivel Hook with Latch / #1049900

The Crosby L-322AN alloy swivel hook with latch features a 360-degree swivel with spring-loaded safety latch. The swivel prevents torsional loading while the latch ensures load security during overhead lifting operations.

Key Features

• 360-degree swivel prevents line twist
• Spring-loaded safety latch
• Forged alloy steel
• Proof tested at 2x WLL

Common Applications

• Overhead crane and hoist operations
• Construction rigging
• Industrial material handling

Standards & Compliance

Meets ASME B30.10. Made in the USA by Crosby.

Dimensional Specifications

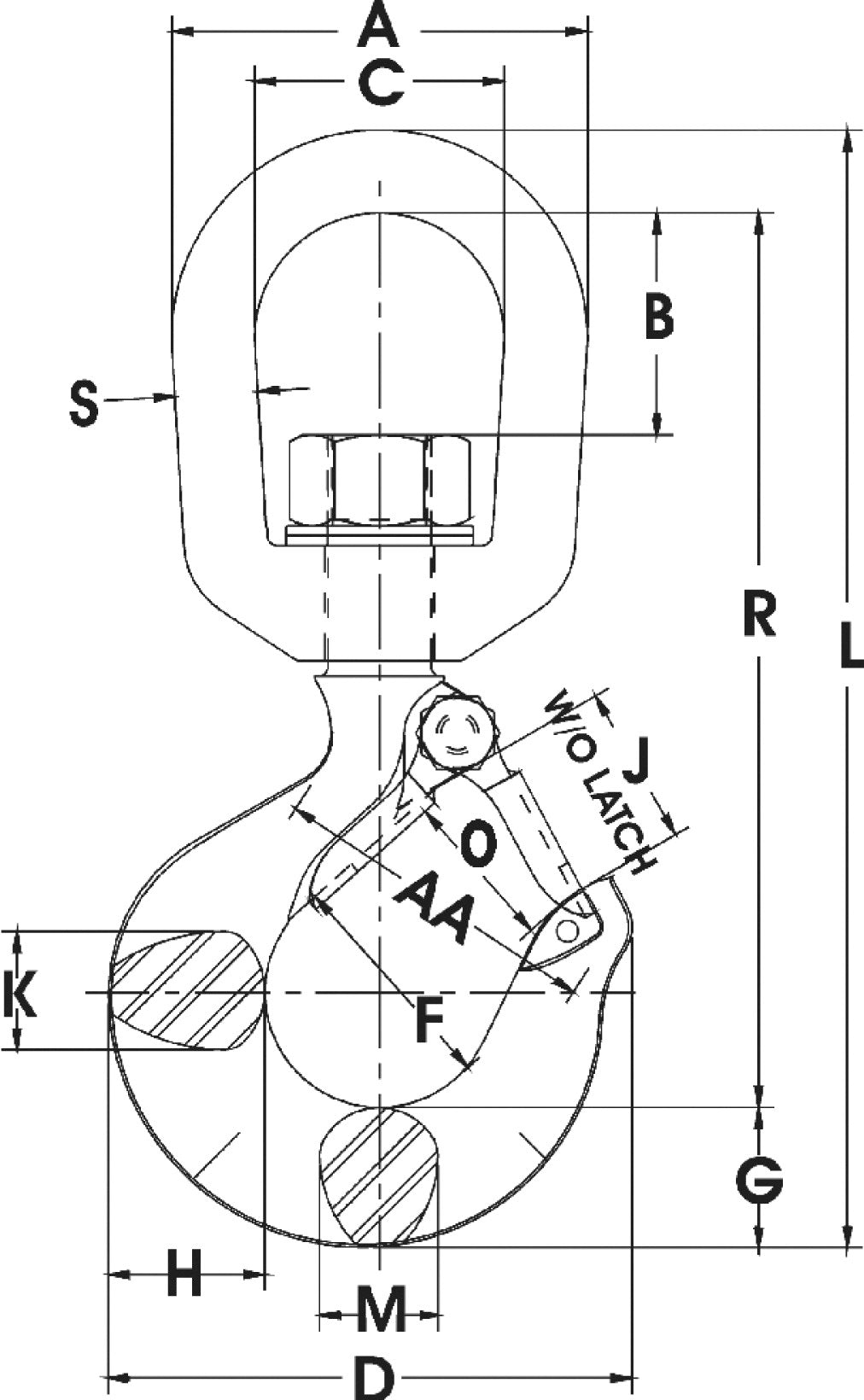

Dimensions below are keyed to the Crosby engineering drawing shown in the product images. All dimensions in inches and weight in pounds; WLL as listed.

Dimensions per the Crosby L-322CN / L-322AN Swivel Hooks catalog. Carbon hooks 5:1 design factor; alloy hooks 1–22 t 4.5:1 design factor. Proof load 2× WLL (carbon) or 2.5× WLL (alloy 1–22 t). Note: the 2 t alloy variant on this listing carries Crosby stock no. 1048825; the variant SKU shown in the store should be corrected from 1048816 (which is the 1.5 t stock no.).

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
