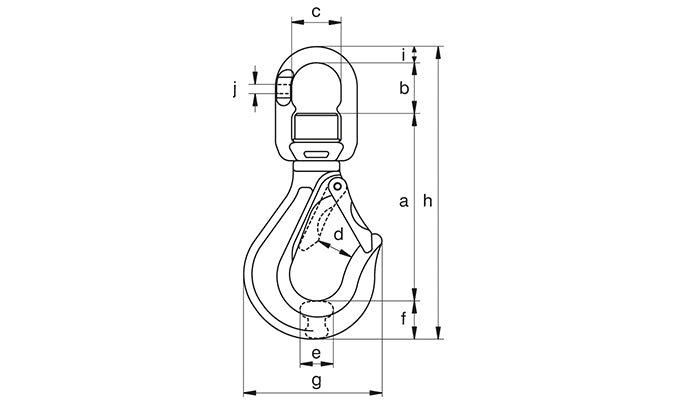

Green Pin CSE Swivel Sling Hook SE EN 1677-2

The Green Pin CSE Swivel Sling Hook SE is a Grade 8 swivel-type sling hook that rotates freely to prevent chain twist during lifting operations. The swivel action allows the hook and load to self-align naturally, reducing stress on chain legs and improving overall sling performance.

Key Features

• Integrated swivel prevents chain twist and sling distortion
• Grade 8 alloy steel for matched chain system capacity
• Wide hook throat with safety latch
• EN 1677-2 compliant
• Individually proof tested with certificate
• Smooth swivel action under load

Common Applications

• Chain sling assemblies where twist prevention is critical
• Lifting loads that tend to rotate during picks
• Multi-leg sling systems requiring free hook alignment
• Manufacturing and industrial overhead lifting

Why Green Pin?

The CSE swivel hook eliminates chain twist at the source — protecting both the sling and the load. Backed by Van Beest's individual proof testing and global reputation for quality.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
