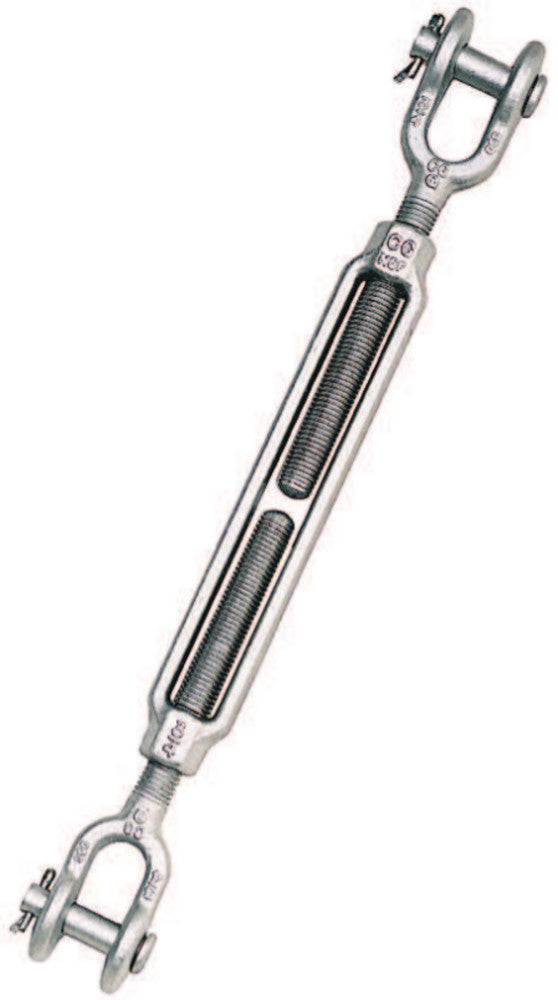

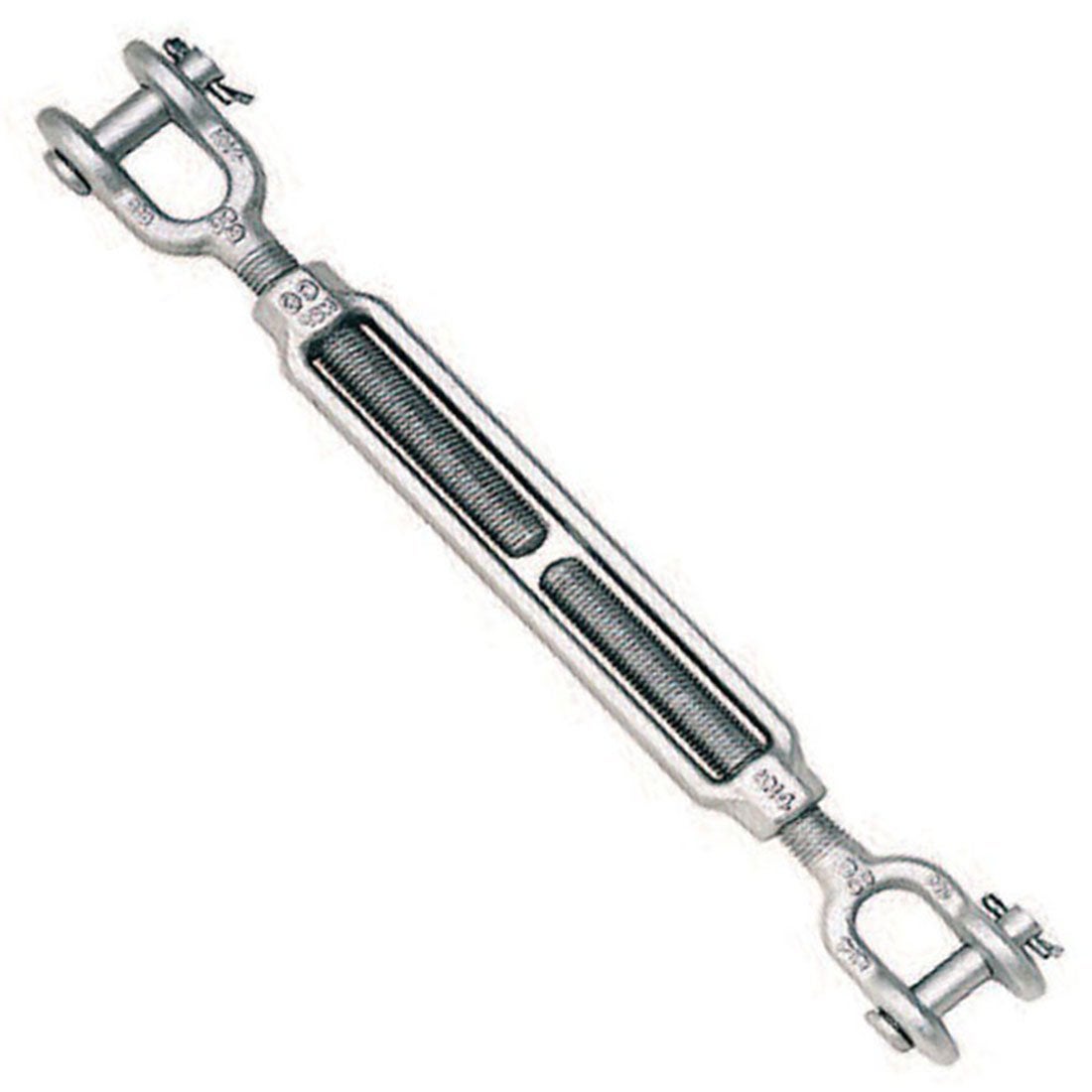

The Crosby HG-228 jaw & jaw turnbuckle has clevis (jaw) connections on both ends, ideal for connecting to flat plates, brackets, and gussets. The forged steel construction with galvanized finish provides adjustable tensioning for structural rigging applications.
Key Features
- Jaw and jaw configuration for flat plate connections
- Forged steel body and ends
- Hot-dip galvanized finish

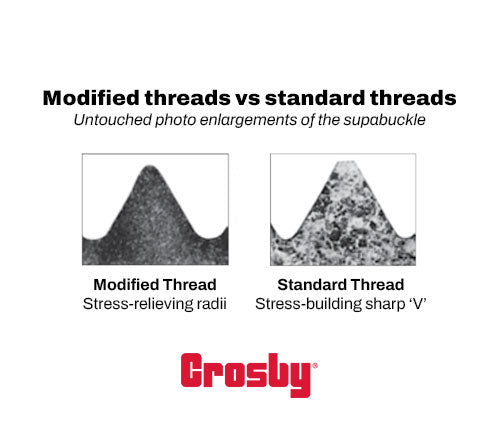

- Fine thread adjustment
- Proof tested at 2x WLL
Common Applications

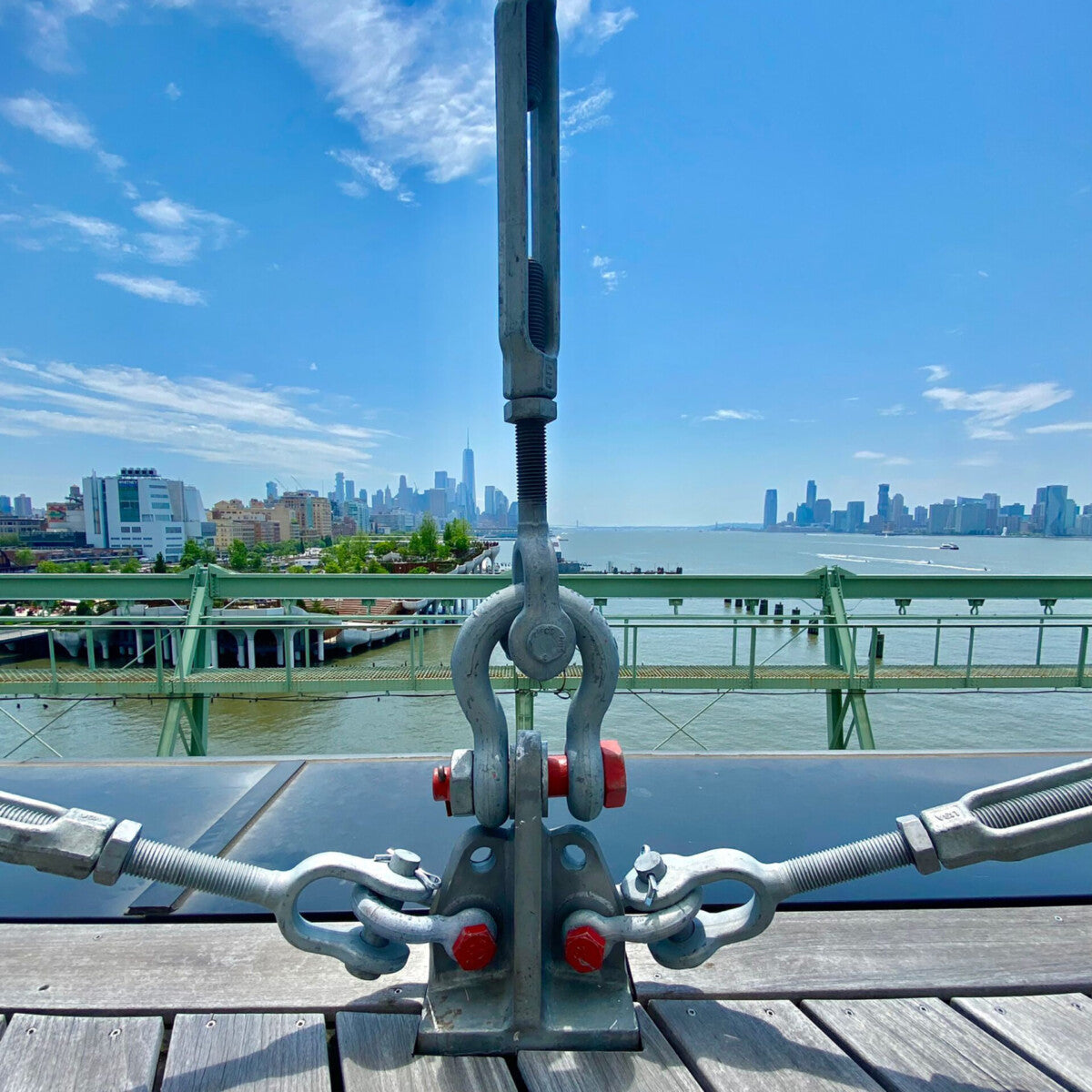

- Structural bracing and tensioning
- Guy wire systems with plate connections
- Construction rigging

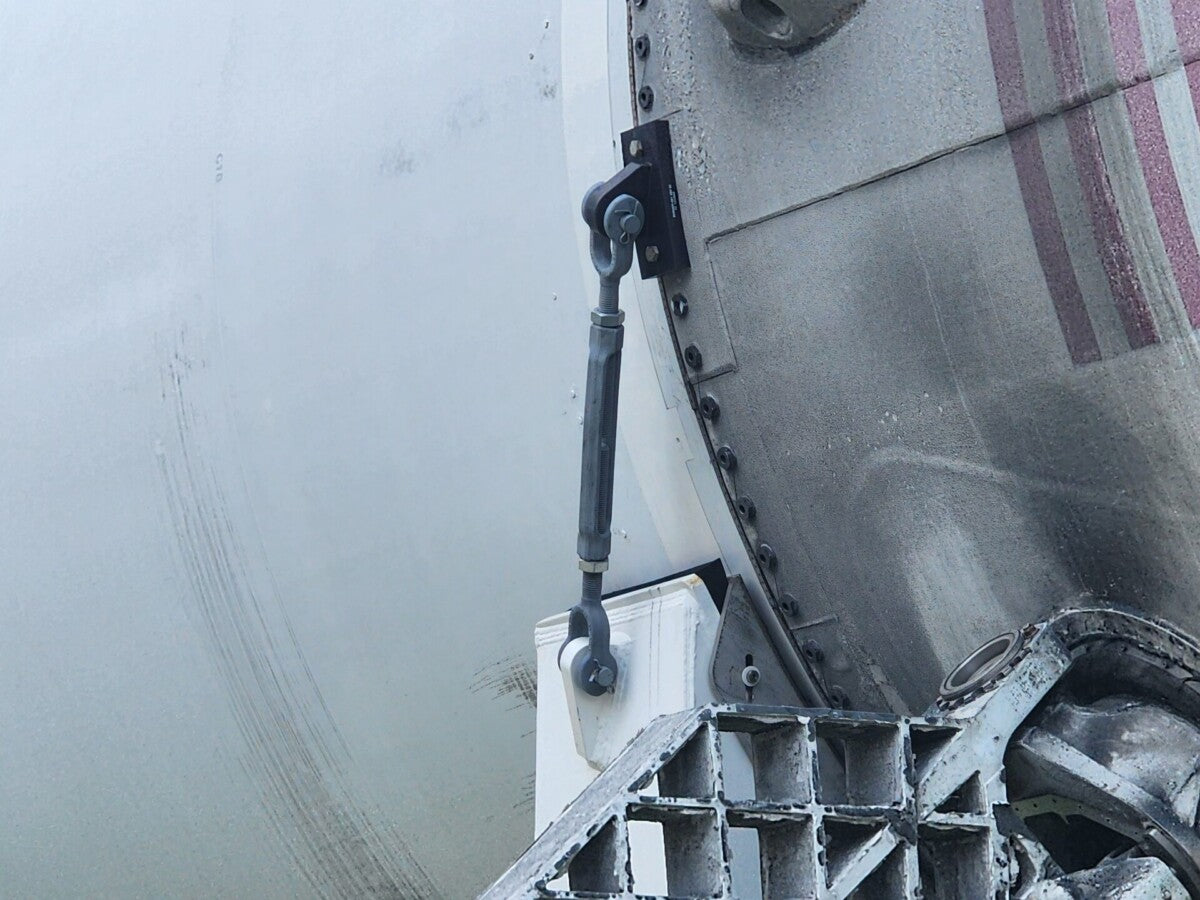

- Marine applications
Standards & Compliance
Meets Federal Specification FF-T-791b. Made in the USA by Crosby.
Product Specifications

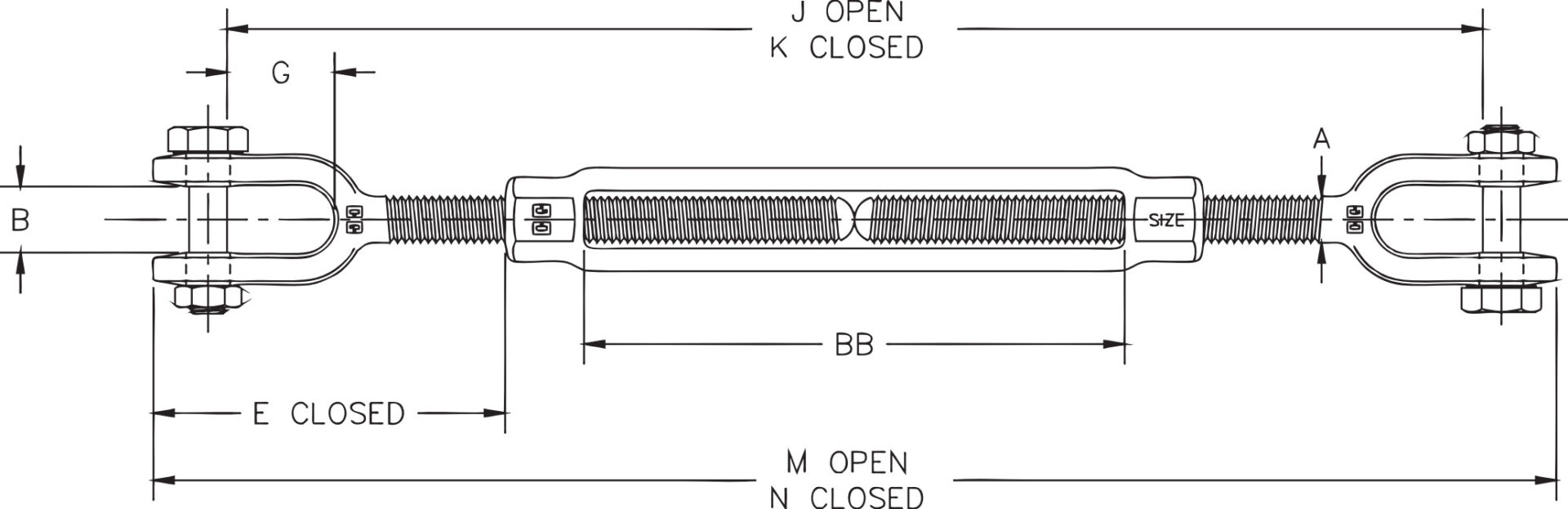

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 11 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/16" (WLL 800 lbs) | 1032518 | $83.15 | ✓ In Stock | ||
| 3/8" (WLL 1,200 lbs) | 1032536 | $93.93 | ✓ In Stock | ||
| 1/2" (WLL 2,200 lbs) | 1032554 | $98.69 | ✓ In Stock | ||
| 5/8" (WLL 3,500 lbs) | 1032616 | $142.64 | ✓ In Stock | ||
| 3/4" (WLL 5,200 lbs) | 1032670 | $191.23 | ✓ In Stock | ||
| 7/8" (WLL 7,200 lbs) | 1032750 | $352.54 | ✓ In Stock | ||
| 1" (WLL 10,000 lbs) | 1030333 | $385.01 | ✓ In Stock | ||
| 1-1/4" (WLL 15,200 lbs) | 1032876 | $690.00 | ✓ In Stock | ||
| 1-1/2" (WLL 21,400 lbs) | 1032938 | $1,100.52 | ✓ In Stock | ||
| 1-3/4" (WLL 28,000 lbs) | 1033018 | $2,312.37 | ✓ In Stock | ||
| 2" (WLL 37,000 lbs) | 1030333 | $385.01 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
