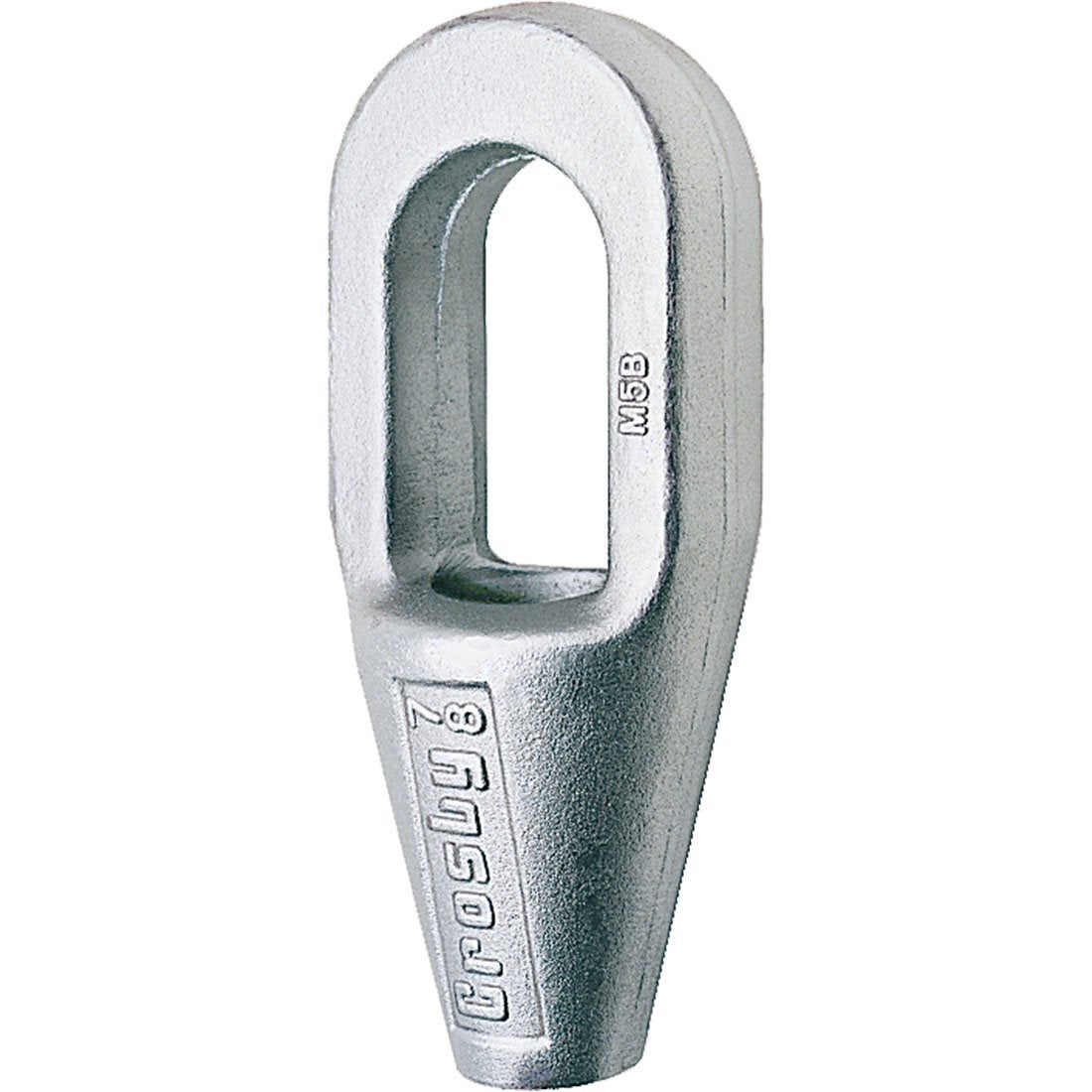

The Crosby G-417 closed spelter socket provides a streamlined wire rope termination with the basket completely enclosing the rope entry. This protects the spelter from environmental damage and provides a cleaner appearance. Achieves 100% wire rope efficiency when properly poured.
Key Features
- Closed basket protects spelter from environment
- 100% wire rope efficiency when properly installed
- Forged steel construction
- Streamlined design
Common Applications
- Structural cable systems
- Bridge and suspension cable terminations
- Crane and hoisting rope terminations
- Applications requiring protected termination
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

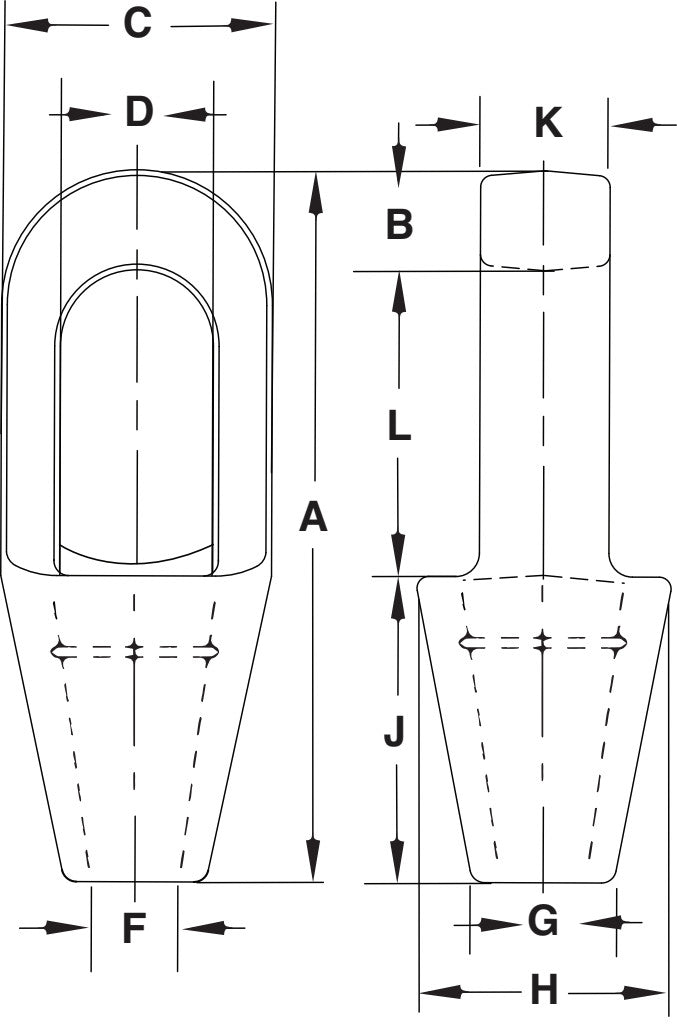

Specifications — Full Dimensions by Size
Request datasheet
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | J (in)(mm) | K (in)(mm) | L (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16-3/88-10 | 100% efficiency | 0.750.34 | 4.94125.5 | 0.6215.7 | 1.6942.9 | 0.9724.6 | 0.512.7 | 0.8120.6 | 1.6942.9 | 2.2557.1 | 0.6917.5 | 2.0652.3 | 1039913 | |
| 7/16-1/211-13 | 100% efficiency | 1.50.68 | 5.5139.7 | 0.6917.5 | 2.050.8 | 1.1629.5 | 0.5614.2 | 0.9423.9 | 2.050.8 | 2.563.5 | 0.8822.4 | 2.3158.7 | 1039931 | |
| 9/16-5/814-16 | 100% efficiency | 2.51.13 | 6.31160.3 | 0.8120.6 | 2.6366.8 | 1.4135.8 | 0.6917.5 | 1.1228.4 | 2.3860.5 | 3.076.2 | 1.025.4 | 2.563.5 | 1039959 | |
| 3/418 | 100% efficiency | 4.251.93 | 7.62193.5 | 1.0626.9 | 3.076.2 | 1.6642.2 | 0.8822.4 | 1.2531.8 | 2.7569.8 | 3.588.9 | 1.2531.8 | 3.0677.7 | 1039977 | |
| 7/820-22 | 100% efficiency | 7.253.29 | 8.75222.2 | 1.2531.8 | 3.6392.2 | 1.9449.3 | 1.025.4 | 1.538.1 | 3.2582.5 | 4.0101.6 | 1.538.1 | 3.588.9 | 1039995 | |
| 124-26 | 100% efficiency | 10.54.76 | 9.91251.7 | 1.4135.8 | 4.13104.9 | 2.358.4 | 1.1328.7 | 1.7544.4 | 3.7595.2 | 4.5114.3 | 1.7544.4 | 4.0101.6 | 1040019 | |
| 1-1/828-30 | 100% efficiency | 14.256.46 | 11.0279.4 | 1.538.1 | 4.5114.3 | 2.5665.0 | 1.2531.8 | 2.050.8 | 4.13104.9 | 5.0127.0 | 2.050.8 | 4.5114.3 | 1040037 | |
| 1-1/4-1-3/832-35 | 100% efficiency | 19.758.96 | 12.12307.8 | 1.6341.4 | 5.0127.0 | 2.8171.4 | 1.538.1 | 2.2557.1 | 4.75120.6 | 5.5139.7 | 2.2557.1 | 5.0127.0 | 1040055 | |
| 1-1/238 | 100% efficiency | 29.213.24 | 13.94354.1 | 1.9449.3 | 5.38136.7 | 3.1981.0 | 1.6341.4 | 2.7569.8 | 5.25133.3 | 6.0152.4 | 2.563.5 | 6.0152.4 | 1040073 | |
| 1-5/840-42 | 100% efficiency | 36.016.33 | 15.13384.3 | 2.1354.1 | 5.75146.0 | 3.2582.5 | 1.7544.4 | 3.076.2 | 5.5139.7 | 6.5165.1 | 2.7569.8 | 6.5165.1 | 1040091 | |
| 1-3/4-1-7/844-48 | 100% efficiency | 57.2525.97 | 17.25438.1 | 2.1955.6 | 6.75171.4 | 3.7595.2 | 2.050.8 | 3.1379.5 | 6.38162.1 | 7.5190.5 | 3.076.2 | 7.56192.0 | 1040117 | |
| 2-2-1/850-54 | 100% efficiency | 79.035.83 | 19.87504.7 | 2.4462.0 | 7.63193.8 | 4.38111.3 | 2.2557.1 | 3.7595.2 | 7.38187.5 | 8.5215.9 | 3.2582.5 | 8.81223.8 | 1040135 | |
| 2-1/4-2-3/856-60 | 100% efficiency | 105.047.63 | 21.5546.1 | 2.7569.8 | 8.5215.9 | 5.0127.0 | 2.6366.8 | 4.13104.9 | 8.25209.5 | 9.0228.6 | 3.6392.2 | 9.75247.6 | 1040153 | |
| 2-1/2-2-5/864-67 | 100% efficiency | 140.063.5 | 23.5596.9 | 3.1279.2 | 9.5241.3 | 5.5139.7 | 2.8873.2 | 4.5114.3 | 9.25234.9 | 9.75247.6 | 4.0101.6 | 10.62269.7 | 1041759 | |
| 2-3/4-2-7/870-73 | 100% efficiency | 220.099.79 | 25.38644.7 | 3.1279.2 | 10.75273.1 | 6.25158.8 | 3.1279.2 | 4.88124.0 | 10.19258.8 | 11.0279.4 | 4.88124.0 | 11.25285.8 | 1041777 | |
| 3-3-1/875-80 | 100% efficiency | 276.0125.19 | 27.12688.8 | 3.3785.6 | 11.5292.1 | 6.75171.4 | 3.3885.9 | 5.25133.3 | 11.5292.1 | 12.0304.8 | 5.25133.3 | 11.75298.4 | 1041795 | |
| 3-1/4-3-3/882-86 | 100% efficiency | 313.0141.97 | 29.25742.9 | 4.0101.6 | 12.25311.1 | 7.25184.1 | 3.6291.9 | 5.75146.0 | 12.25311.1 | 13.0330.2 | 5.75146.0 | 12.25311.1 | 1041811 | |
| 3-1/2-3-5/888-92 | 100% efficiency | 400.0181.44 | 31.0787.4 | 4.0101.6 | 13.0330.2 | 7.75196.8 | 3.8898.6 | 6.31160.3 | 13.0330.2 | 14.0355.6 | 6.25158.8 | 13.0330.2 | 1041839 | |
| 3-3/4-494-102 | 100% efficiency | 542.0245.85 | 33.25844.5 | 4.25107.9 | 14.25361.9 | 8.5215.9 | 4.25107.9 | 7.25184.1 | 14.25361.9 | 15.0381.0 | 7.0177.8 | 14.0355.6 | 1041857 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 19 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/16-3/8" | 1039913 | $96.30 | ✓ In Stock | ||
| 7/16-1/2" | 1039931 | $102.50 | ✓ In Stock | ||
| 9/16-5/8" | 1039959 | $135.00 | ✓ In Stock | ||
| 3/4" | 1039977 | $156.00 | ✓ In Stock | ||
| 7/8" | 1039995 | $225.00 | ✓ In Stock | ||
| 1" | 1040019 | $335.00 | ✓ In Stock | ||
| 1-1/8" | 1040037 | $490.00 | ✓ In Stock | ||
| 1-1/4-1" | 1040055 | $541.00 | ✓ In Stock | ||
| 1-1/2" | 1040073 | $1,166.00 | ✓ In Stock | ||
| 1-5/8" | 1040091 | $1,340.00 | ✓ In Stock | ||
| 1-3/4-1" | 1040117 | $1,538.00 | ✓ In Stock | ||
| 2-2" | 1040135 | $1,897.00 | ✓ In Stock | ||
| 2-1/4-2" | 1040153 | $2,346.00 | ✓ In Stock | ||
| 2-1/2-2" | 1041759 | $3,103.00 | ✓ In Stock | ||
| 2-3/4-2" | 1041777 | $4,434.00 | ✓ In Stock | ||
| 3-3" | 1041795 | $5,576.00 | ✓ In Stock | ||
| 3-1/4-3" | 1041811 | $7,861.00 | ✓ In Stock | ||
| 3-1/2-3" | 1041839 | $9,090.00 | ✓ In Stock | ||
| 3-3/4-4" | 1041857 | $19,596.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
