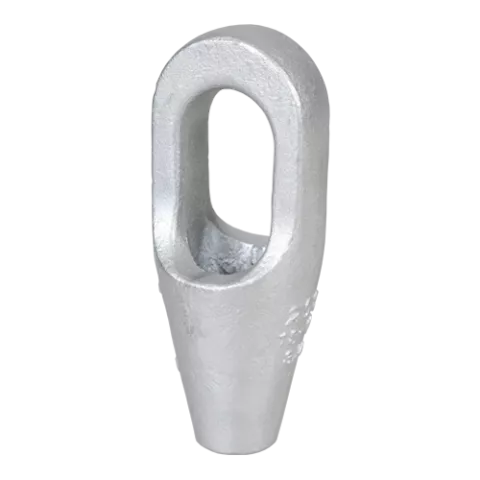

The Green Pin G-6411 Closed Spelter Socket provides a permanent wire rope termination with a closed (eye) body. The wire rope is splayed inside the socket cone and secured with molten zinc or resin, creating a termination rated at 100% of wire rope breaking strength. The closed body connects directly to shackles or pins.
Key Features
- Closed (eye) body for shackle and pin connections
- 100% wire rope efficiency when properly installed
- Forged steel body for consistent strength
- Hot-dip galvanized for corrosion protection
- Individually proof tested with certificate
- Suitable for zinc or resin socketing
Common Applications
- Crane wire rope terminations
- Structural cable systems and guy wires
- Offshore and marine wire rope assemblies
- Mining hoisting ropes
Why Green Pin?
Green Pin spelter sockets deliver 100% wire rope efficiency — the strongest permanent termination method available. Van Beest's forged construction and individual proof testing ensure consistent, reliable performance.
Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Socket basket length
- C Basket diameter
- D Shank width
- E Connection eye / pin dim
- F Clearance
- G Reference dim
- H Additional ref
Material & Product Specifications
| Material | Forged carbon steel |
| Safety Factor | Develops 100% of wire rope breaking strength when properly potted |
| Finish | Hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13411-4 / Federal Spec RR-S-550 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | Wire rope 1/4" through 4" (20 sizes) |
| Article | Rope Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGCS007 | 296 | 8 | 6 - 7 | 101 | 37 | 22 | 40 | 11 | 13 | 9 | 0.26 |
| SKGCS010 | 297 | 12 | 8 - 10 | 119 | 43 | 25 | 48 | 14 | 17,5 | 12 | 0.50 |
| SKGCS013 | 298 | 20 | 11 - 13 | 140 | 52 | 30 | 58 | 18 | 23,5 | 15 | 0.72 |
| SKGCS016 | 299 | 25 | 14 - 16 | 162 | 68 | 37 | 66 | 21 | 26 | 17,5 | 1.47 |
| SKGCS018 | 200 | 45 | 18 - 19 | 194 | 76 | 42 | 78 | 27 | 32 | 21,5 | 2.24 |
| SKGCS022 | 201 | 70 | 20 - 22 | 224 | 92 | 47 | 90 | 33 | 38 | 24 | 4.20 |
| SKGCS025 | 204 | 85 | 23 - 26 | 253 | 104 | 57 | 103 | 36 | 44 | 28 | 6.03 |
| SKGCS028 | 207 | 105 | 27 - 30 | 282 | 114 | 63 | 116 | 39 | 51 | 32 | 7.85 |
| SKGCS032 | 212 | 136 | 31 - 36 | 312 | 127 | 70 | 130 | 43 | 57 | 38 | 10.8 |
| SKGCS038 | 215 | 150 | 37 - 39 | 358 | 136 | 79 | 155 | 51 | 63 | 41 | 13.6 |
| SKGCS042 | 217 | 170 | 40 - 42 | 390 | 146 | 83 | 171 | 54 | 70 | 44 | 17.0 |
| SKGCS045 | 219 | 225 | 43 - 48 | 443 | 171 | 93 | 198 | 55 | 76 | 51 | 26 |
| SKGCS054 | 222 | 280 | 49 - 54 | 502 | 193 | 100 | 224 | 62 | 82 | 57 | 37.5 |
| SKGCS057 | 224 | 360 | 55 - 60 | 548 | 216 | 112 | 247 | 73 | 92 | 63 | 54.5 |
| SKGCS064 | 226 | 425 | 61 - 68 | 597 | 241 | 140 | 270 | 79 | 102 | 73 | 69.5 |
| SKGCS073 | 227 | 460 | 69 - 75 | 644 | 273 | 159 | 286 | 79 | 124 | 79 | 100 |
| SKGCS075 | 228 | 560 | 76 - 80 | 686 | 292 | 171 | 298 | 83 | 133 | 86 | 121 |
| SKGCS085 | 229 | 625 | 81 - 86 | 743 | 311 | 184 | 311 | 102 | 146 | 92 | 156 |
| SKGCS090 | 230 | 720 | 87 - 93 | 788 | 330 | 197 | 330 | 102 | 159 | 99 | 181 |
| SKGCS100 | 231 | 875 | 94 - 102 | 845 | 362 | 216 | 356 | 108 | 178 | 108 | 210 |
| SKGCS110 | 233 | 1200 | 108 - 115 | 1000 | 405 | 235 | 425 | 125 | 190 | 125 | 334 |
| SKGCS120 | 240 | 1300 | 120 - 130 | 1150 | 450 | 260 | 525 | 125 | 200 | 143 | 500 |
| Article | Rope Ø (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lb) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGCS007 | 296 | 8 | 1/4 | 3 31/32 | 1 15/32 | 7/8 | 1 19/16 | 7/16 | 1/2 | 11/32 | 0.56 |
| SKGCS010 | 297 | 12 | 3/8 | 4 11/16 | 1 11/16 | 31/32 | 1 7/8 | 9/16 | 11/16 | 15/32 | 1.10 |
| SKGCS013 | 298 | 20 | 7/16 - 1/2 | 5 1/2 | 2 1/16 | 1 3/16 | 2 9/32 | 23/32 | 15/16 | 19/32 | 1.59 |
| SKGCS016 | 299 | 25 | 9/16 - 5/8 | 6 3/8 | 2 11/16 | 1 15/32 | 2 19/32 | 13/16 | 1 1/32 | 11/16 | 3.24 |
| SKGCS018 | 200 | 45 | 3/4 | 7 5/8 | 3 | 1 21/32 | 3 1/16 | 1 1/16 | 1 1/4 | 27/32 | 4.94 |
| SKGCS022 | 201 | 70 | 7/8 | 8 13/16 | 3 5/8 | 1 27/32 | 3 17/32 | 1 5/16 | 1 1/2 | 15/16 | 9.27 |
| SKGCS025 | 204 | 85 | 1 | 9 31/32 | 4 3/32 | 2 1/4 | 4 1/16 | 1 13/32 | 1 23/32 | 1 3/32 | 13.3 |
| SKGCS028 | 207 | 105 | 1 1/8 | 11 3/32 | 4 1/2 | 2 15/32 | 4 9/16 | 1 17/32 | 2 | 1 1/4 | 17.3 |
| SKGCS032 | 212 | 136 | 1 1/4 - 1 3/8 | 12 9/32 | 5 | 2 3/4 | 5 1/8 | 1 11/16 | 2 1/4 | 1 1/2 | 23.7 |
| SKGCS038 | 215 | 150 | 1 1/2 | 14 3/32 | 5 11/32 | 3 1/8 | 6 3/32 | 2 | 2 15/32 | 1 5/8 | 30.0 |
| SKGCS042 | 217 | 170 | 1 5/8 | 15 11/32 | 5 3/4 | 3 9/32 | 6 23/32 | 2 1/8 | 2 3/4 | 1 23/32 | 37.5 |
| SKGCS045 | 219 | 225 | 1 3/4 - 1 7/8 | 17 7/16 | 6 23/32 | 3 21/32 | 7 25/32 | 2 5/32 | 3 | 2 | 57.3 |
| SKGCS054 | 222 | 280 | 2 - 2 1/8 | 19 3/4 | 7 19/32 | 3 15/16 | 8 13/16 | 2 7/16 | 3 7/32 | 2 1/4 | 82.7 |
| SKGCS057 | 224 | 360 | 2 1/4 - 2 3/8 | 21 9/16 | 8 1/2 | 4 13/32 | 9 23/32 | 2 7/8 | 3 5/8 | 2 15/32 | 120 |
| SKGCS064 | 226 | 425 | 2 1/2 - 2 5/8 | 23 1/2 | 9 1/2 | 5 1/2 | 10 5/8 | 3 1/8 | 4 1/32 | 2 7/8 | 153 |
| SKGCS073 | 227 | 460 | 2 3/4 - 2 7/8 | 25 11/32 | 10 3/4 | 6 1/4 | 11 1/4 | 3 1/8 | 4 7/8 | 3 1/8 | 221 |
| SKGCS075 | 228 | 560 | 3 - 3 1/8 | 27 | 11 1/2 | 6 23/32 | 11 23/32 | 3 9/32 | 5 1/4 | 3 3/8 | 266 |
| SKGCS085 | 229 | 625 | 3 1/4 - 3 3/8 | 29 1/4 | 12 1/4 | 7 1/4 | 12 1/4 | 4 1/32 | 5 3/4 | 3 5/8 | 344 |
| SKGCS090 | 230 | 720 | 3 1/2 - 3 5/8 | 31 1/32 | 13 | 7 3/4 | 13 | 4 1/32 | 6 1/4 | 3 29/32 | 399 |
| SKGCS100 | 231 | 875 | 3 3/4 - 4 | 33 9/32 | 14 1/4 | 8 1/2 | 14 1/32 | 4 1/4 | 7 | 4 1/4 | 463 |
| SKGCS110 | 233 | 1200 | 4 1/4 - 4 1/2 | 39 3/8 | 15 15/16 | 9 1/4 | 16 23/32 | 4 29/32 | 7 15/32 | 4 29/32 | 736 |
| SKGCS120 | 240 | 1300 | 4 3/4 - 5 | 45 9/32 | 17 23/32 | 10 1/4 | 20 21/32 | 4 29/32 | 7 7/8 | 5 5/8 | 1103 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 20 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7 mm (1/4") | SKGCS007 | $44.82 | ✓ In Stock | ||
| 10 mm (3/8") | SKGCS010 | $48.42 | ✓ In Stock | ||
| 13 mm (1/2") | SKGCS013 | $51.41 | ✓ In Stock | ||
| 16 mm (5/8") | SKGCS016 | $57.67 | ✓ In Stock | ||
| 18 mm (3/4") | SKGCS018 | $71.44 | ✓ In Stock | ||
| 22 mm (7/8") | SKGCS022 | $125.57 | ✓ In Stock | ||
| 25 mm (1") | SKGCS025 | $161.41 | ✓ In Stock | ||
| 28 mm (1-1/8") | SKGCS028 | $201.11 | ✓ In Stock | ||
| 32 mm (1-1/4") | SKGCS032 | $271.13 | ✓ In Stock | ||
| 38 mm (1-1/2") | SKGCS038 | $347.51 | ✓ In Stock | ||
| 42 mm (1-5/8") | SKGCS042 | $439.44 | ✓ In Stock | ||
| 45 mm (1-3/4") | SKGCS045 | $628.62 | ✓ In Stock | ||
| 54 mm (2-1/8") | SKGCS054 | $767.81 | ✓ In Stock | ||
| 57 mm (2-1/4") | SKGCS057 | $1,274.88 | ✓ In Stock | ||
| 64 mm (2-1/2") | SKGCS064 | $1,558.24 | ✓ In Stock | ||
| 73 mm | SKGCS073 | $2,533.79 | ✓ In Stock | ||
| 75 mm (3") | SKGCS075 | $2,740.02 | ✓ In Stock | ||
| 85 mm (3-1/4") | SKGCS085 | $4,491.17 | ✓ In Stock | ||
| 90 mm (3-1/2") | SKGCS090 | $5,327.65 | ✓ In Stock | ||
| 100 mm (4") | SKGCS100 | $6,901.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
