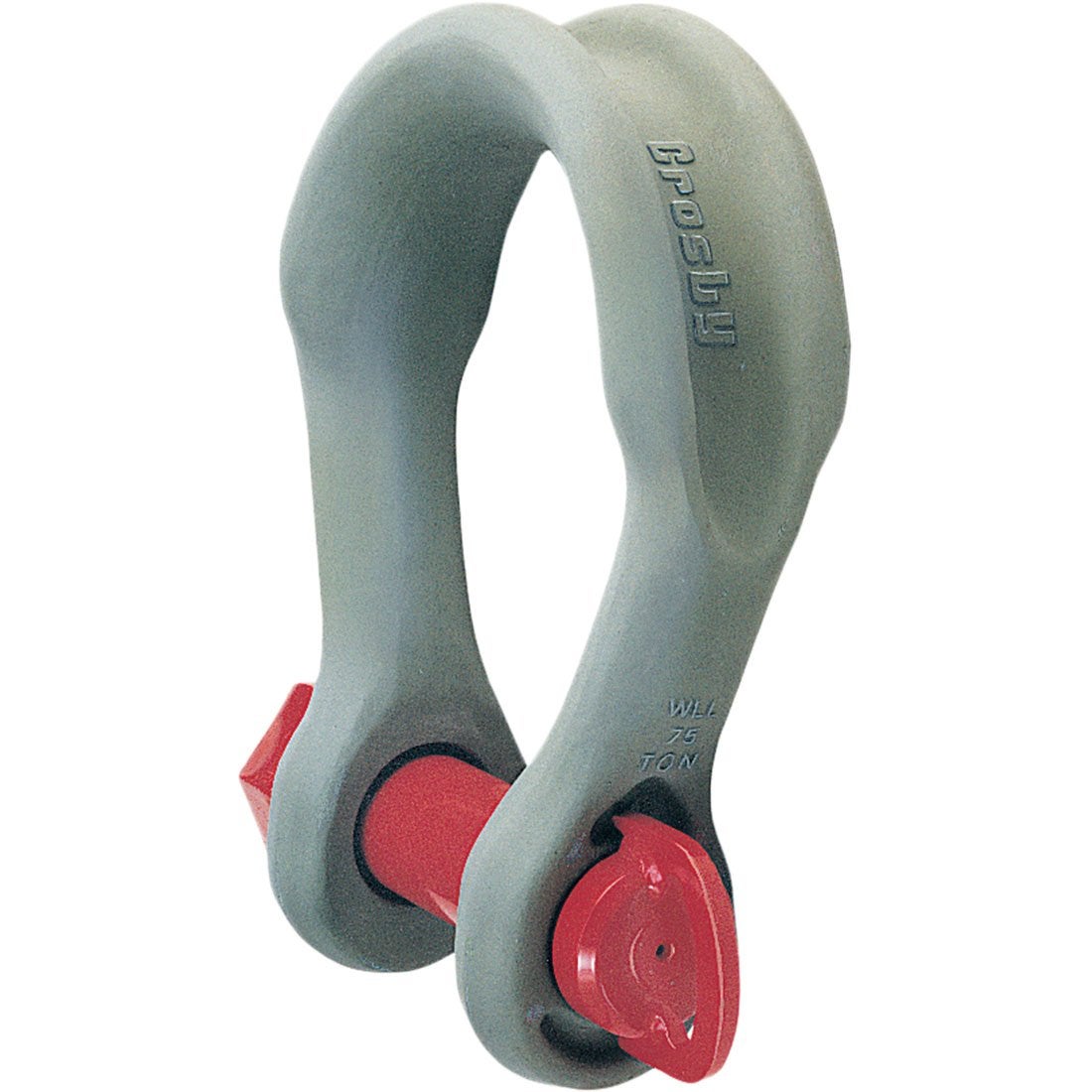

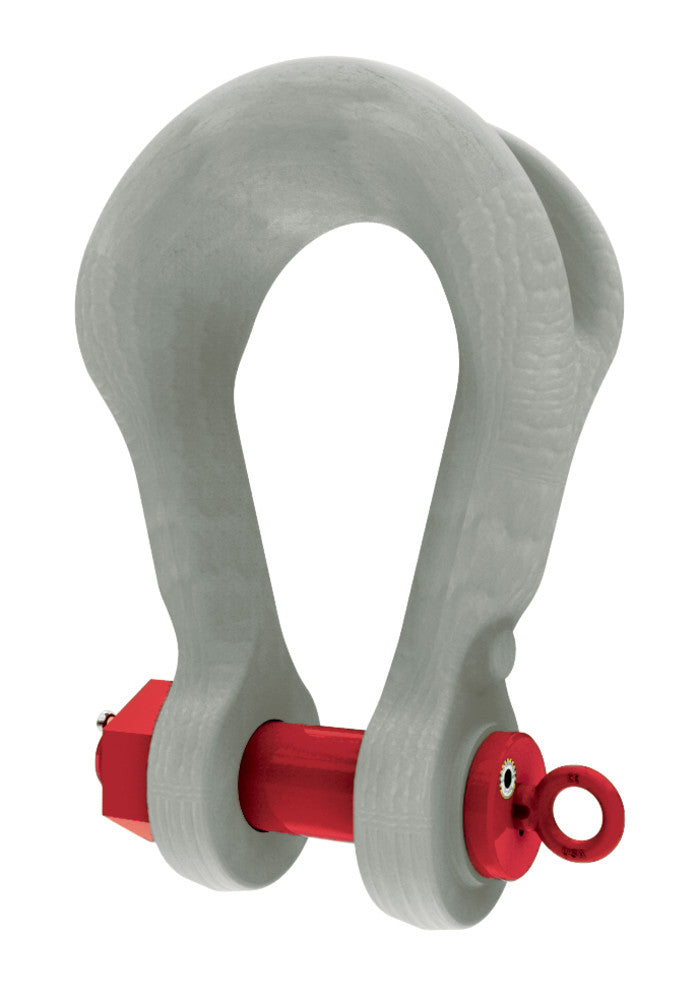

The Crosby G-2160 wide body bolt type sling shackle is engineered for synthetic web and round sling connections. The extra-wide jaw accommodates sling eyes without bunching or edge loading, protecting both the sling and the connection point. Bolt-and-nut pin with cotter ensures the connection stays secure.
Key Features

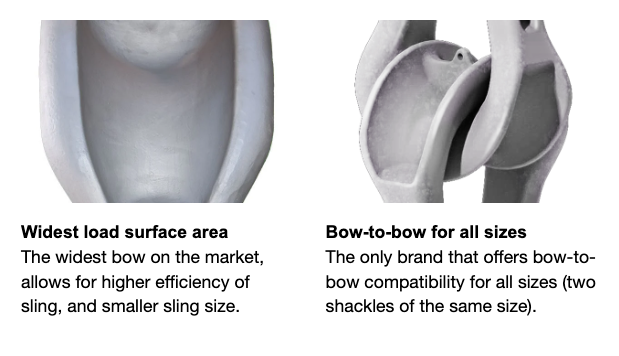

- Extra-wide body protects synthetic sling eyes from bunching

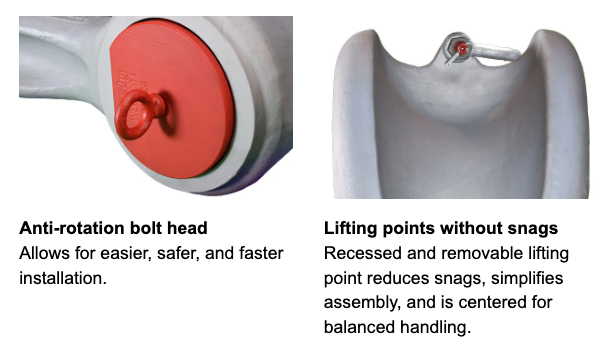

- Bolt, nut, and cotter pin for positive locking
- Forged carbon steel, quenched and tempered
- Hot-dip galvanized finish
- Proof tested at 2x WLL
- 5:1 design factor per ASME B30.26
Common Applications
- Synthetic web sling terminations
- Round sling connections
- Multi-leg sling assemblies

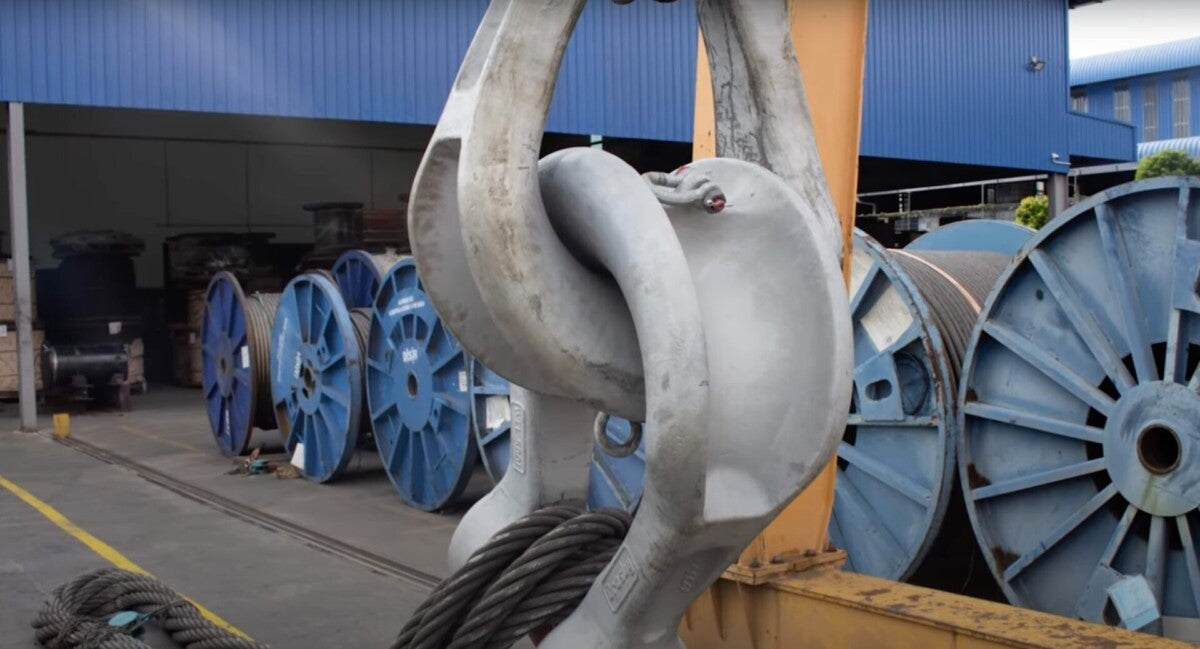

- Heavy lift rigging with wide-eye slings
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

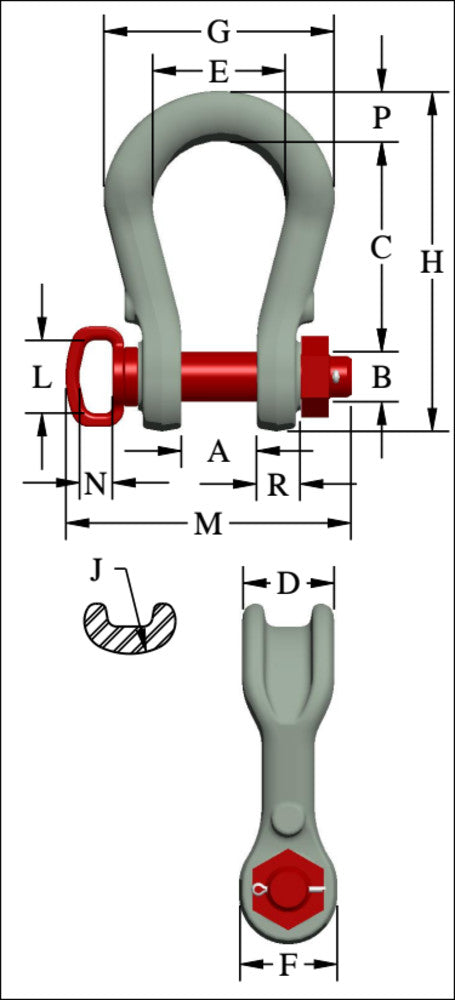

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | J (in)(mm) | M (in)(mm) | P (in)(mm) | R (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 t | 7 | 5:1 | 4.01.81 | 1.2531.8 | 0.8822.4 | 3.5690.4 | 1.640.6 | 2.563.5 | 1.8246.2 | 4.1104.1 | 5.87149.1 | 1.2531.8 | 4.14105.2 | 0.9624.4 | 0.6917.5 | 1021256 |
| 12.5 t | 12.5 | 5:1 | 8.83.99 | 1.6942.9 | 1.1328.7 | 4.63117.6 | 2.1354.1 | 3.2682.8 | 2.3860.5 | 5.51140.0 | 7.63193.8 | 1.3734.8 | 5.38136.7 | 1.2531.8 | 0.9223.4 | 1021265 |
| 18 t | 18 | 5:1 | 14.96.76 | 2.0351.6 | 1.3835.1 | 5.81147.6 | 2.563.5 | 4.0101.6 | 2.6968.3 | 6.76171.7 | 9.38238.3 | 1.538.1 | 6.69169.9 | 1.4135.8 | 1.1629.5 | 1021274 |
| 30 t | 30 | 5:1 | 26.311.93 | 2.7469.6 | 1.6341.4 | 6.94176.3 | 3.1379.5 | 5.0127.0 | 3.588.9 | 8.5215.9 | 11.38289.1 | 2.563.5 | 8.1205.7 | 1.7544.4 | 1.3835.1 | 1021276 |
| 40 t | 40 | 5:1 | 46.821.23 | 3.3885.9 | 2.050.8 | 8.06204.7 | 3.7595.2 | 6.0152.4 | 4.0101.6 | 10.62269.7 | 13.62345.9 | 1.7544.4 | 10.18258.6 | 2.3158.7 | 1.6942.9 | 1021278 |
| 55 t | 55 | 5:1 | 68.030.84 | 3.2582.5 | 2.2557.1 | 9.36237.7 | 4.5114.3 | 7.0177.8 | 4.63117.6 | 12.26311.4 | 15.63397.0 | 2.050.8 | 10.36263.1 | 2.6366.8 | 2.050.8 | 1021287 |
| 75 t | 75 | 5:1 | 11250.8 | 4.13104.9 | 2.7569.8 | 11.53292.9 | 5.0127.0 | 7.28184.9 | 5.34135.6 | 12.64321.1 | 18.66474.0 | 3.7595.2 | 15.04382.0 | 2.7569.8 | 2.3960.7 | 1022101 |
| 125 t | 125 | 5:1 | 19387.54 | 5.12130.0 | 3.1580.0 | 14.37365.0 | 5.91150.1 | 8.66220.0 | 6.5165.1 | 15.47392.9 | 23.0584.2 | 3.7595.2 | 18.32465.3 | 3.588.9 | 3.178.7 | 1022110 |
| 200 t | 200 | 5:1 | 420190.51 | 5.91150.1 | 4.12104.6 | 18.91480.3 | 8.56217.4 | 10.84275.3 | 8.41213.6 | 20.27514.9 | 30.44773.2 | 5.25133.3 | 19.35491.5 | 4.94125.5 | 3.3986.1 | 1022118 |
| 300 t | 300 | 5:1 | 805365.14 | 7.38187.5 | 5.25133.3 | 23.63600.2 | 10.38263.7 | 12.62320.5 | 10.5266.7 | 23.93607.8 | 37.66956.6 | 6.13155.7 | 22.61574.3 | 5.78146.8 | 4.3109.2 | 1022127 |
| 400 t | 400 | 5:1 | 1180535.24 | 8.66220.0 | 6.3160.0 | 24.41620.0 | 14.17359.9 | 14.76374.9 | 12.36313.9 | 26.3668.0 | 41.811062.0 | 7.2182.9 | 30.71780.0 | 8.07205.0 | 5.91150.1 | 1021336 |
| 500 t | 500 | 5:1 | 1754795.6 | 9.84249.9 | 7.09180.1 | 26.97685.0 | 17.13435.1 | 17.9454.7 | 13.39340.1 | 31.19792.2 | 46.851190.0 | 8.74222.0 | 33.98863.1 | 9.65245.1 | 6.46164.1 | 1021345 |
| 600 t | 600 | 5:1 | 22101002.43 | 10.83275.1 | 7.87199.9 | 29.13739.9 | 18.7475.0 | 19.26489.2 | 14.76374.9 | 32.13816.1 | 50.871292.1 | 9.57243.1 | 36.93938.0 | 10.43264.9 | 7.17182.1 | 1021354 |
| 800 t | 800 | 5:1 | 33841534.95 | 13.46341.9 | 9.06230.1 | 32.28819.9 | 21.1535.9 | 21.81554.0 | 17.32439.9 | 35.59904.0 | 57.561462.0 | 10.71272.0 | 42.441078.0 | 12.09307.1 | 8.35212.1 | 1021363 |
| 1000 t | 1000 | 5:1 | 49882262.51 | 15.91404.1 | 10.63270.0 | 33.46849.9 | 24.02610.1 | 25.2640.1 | 19.69500.1 | 43.941116.1 | 62.361583.9 | 13.31338.1 | 46.731186.9 | 13.74349.0 | 9.17232.9 | 1021381 |
| 1250 t | 1250 | 5:1 | 68023085.32 | 17.4442.0 | 11.81300.0 | 36.54928.1 | 26.57674.9 | 27.87707.9 | 22.44570.0 | 49.571259.1 | 68.861749.0 | 14.61371.1 | 52.051322.1 | 15.2386.1 | 9.8248.9 | 1021390 |
| 1550 t | 1550 | 5:1 | 83823801.99 | 18.5469.9 | 12.6320.0 | 39.761009.9 | 28.35720.1 | 29.72754.9 | 24.21614.9 | 51.731313.9 | 74.451891.0 | 15.63397.0 | 56.181427.0 | 16.26413.0 | 11.42290.1 | 1021399 |
| 2000 t | 2000 | 5:1 | 118685383.21 | 20.47519.9 | 15.16385.1 | 44.881140.0 | 30.31769.9 | 31.89810.0 | 26.77680.0 | 55.591412.0 | 83.462119.9 | 16.97431.0 | 62.871596.9 | 17.6447.0 | 12.7322.6 | 1021408 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 18 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7 t (WLL 7) | 1021256 | $167.40 | ✓ In Stock | ||
| 12.5 t (WLL 12.5) | 1021265 | $305.00 | ✓ In Stock | ||
| 18 t (WLL 18) | 1021274 | $382.00 | ✓ In Stock | ||
| 55 t (WLL 55) | 1021287 | $2,425.00 | ✓ In Stock | ||
| 75 t (WLL 75) | 1022101 | $2,939.00 | ✓ In Stock | ||
| 30 t (WLL 30) | 1021276 | $918.00 | Quote | ||
| 40 t (WLL 40) | 1021278 | $1,278.00 | Quote | ||
| 125 t (WLL 125) | 1022110 | $6,140.00 | Quote | ||
| 200 t (WLL 200) | 1022118 | $12,786.00 | Quote | ||
| 300 t (WLL 300) | 1022127 | $22,304.00 | Quote | ||
| 400 t (WLL 400) | 1021336 | $33,454.00 | Quote | ||
| 500 t (WLL 500) | 1021345 | $42,075.00 | Quote | ||
| 600 t (WLL 600) | 1021354 | $57,843.00 | Quote | ||
| 800 t (WLL 800) | 1021363 | $75,319.00 | Quote | ||
| 1000 t (WLL 1,000) | 1021381 | $121,990.00 | Quote | ||
| 1250 t (WLL 1,250) | 1021390 | $151,504.00 | Quote | ||
| 1550 t (WLL 1,550) | 1021399 | $204,023.00 | Quote | ||
| 2000 t (WLL 2,000) | 1021408 | $280,291.00 | Quote |
