The Green Pin G-4163BG Bow Shackle NS9415 is a safety bolt and nut bow shackle manufactured to NS9415 (NORSOK) specification for demanding offshore and subsea applications. The safety bolt closure prevents pin loosening under extreme vibration, while the NS9415 compliance ensures suitability for North Sea and global offshore operations.
Key Features
- Safety bolt and nut pin — cotter pin secured against loosening
- NS9415 (NORSOK) compliant for offshore certification
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for marine environments
- Individually proof tested at 2× WLL with certificate
- Full material traceability per DNV standards
Common Applications
- Offshore oil and gas platform rigging
- Subsea lifting and mooring operations
- North Sea and deepwater installations
- Any application requiring NS9415/NORSOK certification
Why Green Pin?
Green Pin's NS9415 shackles meet the strictest offshore certification requirements. Van Beest has been the trusted supplier to the global offshore industry for decades — delivering individually tested, fully traceable hardware that meets DNV and NORSOK standards.

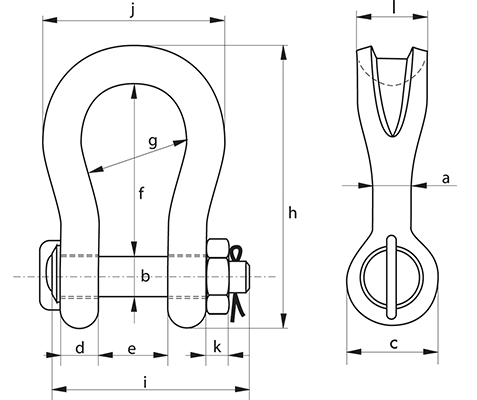

Dimension diagram applies to all sizes.
Dimension Legend
- A Inside width at pin
- B Eye thickness
- C Inside length
- D Pin diameter
- E Inside width top
- F Eye outside ø
- G Outside width top
- H Overall height
- L Pin head length
- M Outside width pin
- P Pin protrusion
Material & Product Specifications
| Material | Forged alloy steel |
| Safety Factor | MBL = 5 × WLL |
| Finish | Painted |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13889 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 7–200 tonnes |
| Article | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | P (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLGPF0007 | 7 | 0,99 | 22 | 22 | 46 | 19 | 32 | 96 | 64 | 153 | 115 | 110 | 19 | 41 | 1.91 |
| SLGPF0012 | 12,5 | 1,82 | 28 | 28 | 61 | 25 | 44 | 120 | 82 | 197 | 151 | 146 | 24 | 54 | 4.13 |
| SLGPF0018 | 18 | 2,35 | 35 | 35 | 69 | 30 | 54 | 148 | 102 | 239 | 171 | 180 | 29 | 64 | 7.63 |
| SLGPF0030 | 30 | 4,23 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 207 | 200 | 34 | 79 | 12.4 |
| SLGPF0040 | 40 | 4,32 | 55 | 51 | 109 | 45 | 84 | 199 | 140 | 331 | 252 | 235 | 38 | 97 | 21.7 |
| SLGPF0055 | 55 | 4,6 | 60 | 57 | 115 | 55 | 90 | 240 | 160 | 389 | 294 | 270 | 45 | 100 | 29.3 |
| SLGPF0075 | 75 | 11,39 | 68 | 70 | 126 | 54 | 110 | 290 | 185 | 473 | 317 | 331 | 40 | 120 | 49.0 |
| SLGPF0125 | 125 | 18,59 | 85 | 80 | 156 | 85 | 137 | 366 | 220 | 583 | 413 | 390 | 40 | 150 | 88.0 |
| SLGPF0150 | 150 | 27,25 | 94 | 95 | 181 | 89 | 147 | 391 | 253 | 648 | 445 | 449 | 50 | 170 | 125 |
| SLGPF0200 | 200 | 36,87 | 110 | 105 | 201 | 100 | 158 | 481 | 280 | 759 | 480 | 500 | 50 | 205 | 190 |
| SLGPF0250 | 250 | 54,3 | 126 | 120 | 229 | 110 | 179 | 542 | 300 | 860 | 535 | 552 | 60 | 240 | 264 |
| SLGPF0300 | 300 | 79,4 | 136 | 134 | 246 | 134 | 195 | 601 | 350 | 946 | 590 | 620 | 70 | 265 | 380 |
| SLGPF0400 | 400 | 109,65 | 160 | 160 | 295 | 145 | 231 | 576 | 370 | 995 | 687 | 710 | 80 | 320 | 598 |
| SLGPF0500 | 500 | 152,78 | 170 | 180 | 330 | 160 | 263 | 681 | 450 | 1161 | 762 | 850 | 90 | 340 | 862 |
| SLGPF0600 | 600 | 204,79 | 190 | 200 | 360 | 170 | 289 | 741 | 490 | 1264 | 827 | 930 | 100 | 370 | 1134 |
| SLGPF0700 | 700 | 255,54 | 200 | 215 | 392 | 190 | 315 | 751 | 540 | 1284 | 879 | 901 | 100 | 400 | 1360 |
| SLGPF0800 | 800 | 310,72 | 218 | 230 | 420 | 200 | 342 | 851 | 554 | 1426 | 942 | 947 | 110 | 420 | 1418 |
| SLGPF0900 | 900 | 413,49 | 242 | 255 | 466 | 220 | 368 | 851 | 580 | 1488 | 1023 | 1023 | 120 | 440 | 1810 |
| SLGPF1000 | 1000 | 500,56 | 260 | 270 | 490 | 240 | 399 | 851 | 614 | 1532 | 1103 | 1107 | 120 | 460 | 2970 |
| SLGPF1250 | 1250 | 685,48 | 285 | 300 | 510 | 260 | 452 | 931 | 650 | 1666 | 1227 | 1182 | 150 | 530 | 3700 |
| SLGPF1550 | 1550 | 833,42 | 285 | 320 | 550 | 280 | 483 | 950 | 680 | 1710 | 1300 | 1253 | 150 | 560 | 4000 |
| Article | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | L (in) | M (in) | P (in) | Weight (lb) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLGPF0007 | 7 | 2,18 | 7/8 | 7/8 | 1 13/16 | 3/4 | 1 9/32 | 3 25/32 | 2 17/32 | 6 | 4 17/32 | 4 5/16 | 3/4 | 1 5/8 | 4.20 |
| SLGPF0012 | 12,5 | 4 | 1 1/8 | 1 1/8 | 2 3/8 | 1 | 1 3/4 | 4 23/32 | 3 1/4 | 7 3/4 | 5 15/16 | 5 3/4 | 15/16 | 2 1/8 | 9.10 |
| SLGPF0018 | 18 | 5,18 | 1 3/8 | 1 3/8 | 2 23/32 | 1 3/16 | 2 1/8 | 5 13/16 | 4 1/32 | 9 13/32 | 6 23/32 | 7 3/32 | 1 5/32 | 2 17/32 | 16.8 |
| SLGPF0030 | 30 | 9,33 | 1 9/16 | 1 21/32 | 3 17/32 | 1 3/8 | 2 23/32 | 6 1/2 | 4 31/32 | 10 31/32 | 8 5/32 | 7 7/8 | 1 11/32 | 3 1/8 | 27.3 |
| SLGPF0040 | 40 | 9,52 | 2 5/32 | 2 | 4 9/32 | 1 25/32 | 3 5/16 | 7 27/32 | 5 1/2 | 13 1/32 | 9 29/32 | 9 1/4 | 1 1/2 | 3 13/16 | 47.9 |
| SLGPF0055 | 55 | 10,14 | 2 3/8 | 2 1/4 | 4 17/32 | 2 5/32 | 3 17/32 | 9 7/16 | 6 5/16 | 15 5/16 | 11 9/16 | 10 5/8 | 1 25/32 | 3 15/16 | 64.7 |
| SLGPF0075 | 75 | 25,11 | 2 11/16 | 2 3/4 | 4 31/32 | 2 1/8 | 4 11/32 | 11 13/32 | 7 9/32 | 18 5/8 | 12 15/32 | 13 1/32 | 1 9/16 | 4 23/32 | 108 |
| SLGPF0125 | 125 | 40,98 | 3 11/32 | 3 5/32 | 6 5/32 | 3 11/32 | 5 13/32 | 14 13/32 | 8 21/32 | 22 15/16 | 16 1/4 | 15 11/32 | 1 9/16 | 5 29/32 | 194 |
| SLGPF0150 | 150 | 60,08 | 3 11/16 | 3 3/4 | 7 1/8 | 3 1/2 | 5 25/32 | 15 13/32 | 9 31/32 | 25 1/2 | 17 17/32 | 17 11/16 | 1 31/32 | 6 11/16 | 276 |
| SLGPF0200 | 200 | 81,28 | 4 11/32 | 4 1/8 | 7 29/32 | 3 15/16 | 6 7/32 | 18 15/16 | 11 1/32 | 29 7/8 | 18 29/32 | 19 11/16 | 1 31/32 | 8 1/16 | 419 |
| SLGPF0250 | 250 | 119,71 | 4 31/32 | 4 23/32 | 9 1/32 | 4 11/32 | 7 1/16 | 21 11/32 | 11 13/16 | 33 27/32 | 21 1/16 | 21 23/32 | 2 3/8 | 9 7/16 | 582 |
| SLGPF0300 | 300 | 175,05 | 5 11/32 | 5 9/32 | 9 11/16 | 5 9/32 | 7 11/16 | 23 21/32 | 13 25/32 | 37 1/4 | 23 7/32 | 24 13/32 | 2 3/4 | 10 7/16 | 838 |
| SLGPF0400 | 400 | 241,73 | 6 5/16 | 6 5/16 | 11 5/8 | 5 23/32 | 9 3/32 | 22 11/16 | 14 9/16 | 39 3/16 | 27 1/16 | 27 15/16 | 3 5/32 | 12 19/32 | 1319 |
| SLGPF0500 | 500 | 336,81 | 6 11/16 | 7 3/32 | 13 | 6 5/16 | 10 11/32 | 26 27/32 | 17 23/32 | 45 11/16 | 30 | 33 15/32 | 3 17/32 | 13 3/8 | 1901 |
| SLGPF0600 | 600 | 451,48 | 7 15/32 | 7 7/8 | 14 3/16 | 6 11/16 | 11 3/8 | 29 3/16 | 19 9/32 | 49 3/4 | 32 9/16 | 36 5/8 | 3 15/16 | 14 9/16 | 2500 |
| SLGPF0700 | 700 | 563,38 | 7 7/8 | 8 15/32 | 15 7/16 | 7 15/32 | 12 13/32 | 29 9/16 | 21 1/4 | 50 9/16 | 34 19/32 | 35 15/32 | 3 15/16 | 15 3/4 | 2999 |
| SLGPF0800 | 800 | 685,03 | 8 19/32 | 9 1/16 | 16 17/32 | 7 7/8 | 13 15/32 | 33 1/2 | 21 13/16 | 56 5/32 | 37 3/32 | 37 9/32 | 4 11/32 | 16 17/32 | 3127 |
| SLGPF0900 | 900 | 911,59 | 9 17/32 | 10 1/32 | 18 11/32 | 8 21/32 | 14 1/2 | 33 1/2 | 22 27/32 | 58 19/32 | 40 9/32 | 40 9/32 | 4 23/32 | 17 5/16 | 3991 |
| SLGPF1000 | 1000 | 1103,55 | 10 1/4 | 10 5/8 | 19 9/32 | 9 7/16 | 15 23/32 | 33 1/2 | 24 3/16 | 60 5/16 | 43 7/16 | 43 19/32 | 4 23/32 | 18 1/8 | 6549 |
| SLGPF1250 | 1250 | 1511,22 | 11 7/32 | 11 13/16 | 20 3/32 | 10 1/4 | 17 25/32 | 36 21/32 | 25 19/32 | 65 19/32 | 48 5/16 | 46 17/32 | 5 29/32 | 20 7/8 | 8159 |
| SLGPF1550 | 1550 | 1837,37 | 11 7/32 | 12 19/32 | 21 21/32 | 11 1/32 | 19 1/32 | 37 13/32 | 26 25/32 | 67 5/16 | 51 3/16 | 49 11/32 | 5 29/32 | 22 1/16 | 8820 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
