Manufacturer Documents
- 📄 Catalog pages — imperial (PDF)
- 📄 Catalog pages — metric (PDF)
- ⚠ Applications & warnings (PDF)
- ↗ Manufacturer product page
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
This part already clears a 5:1 requirement. At 6:1 it is more conservative than the 5:1 commonly specified for wire rope and synthetic sling systems, so the published WLL above satisfies a 5:1 specification as it stands. We do not publish a higher WLL at 5:1, because that capacity is not certified by the manufacturer.

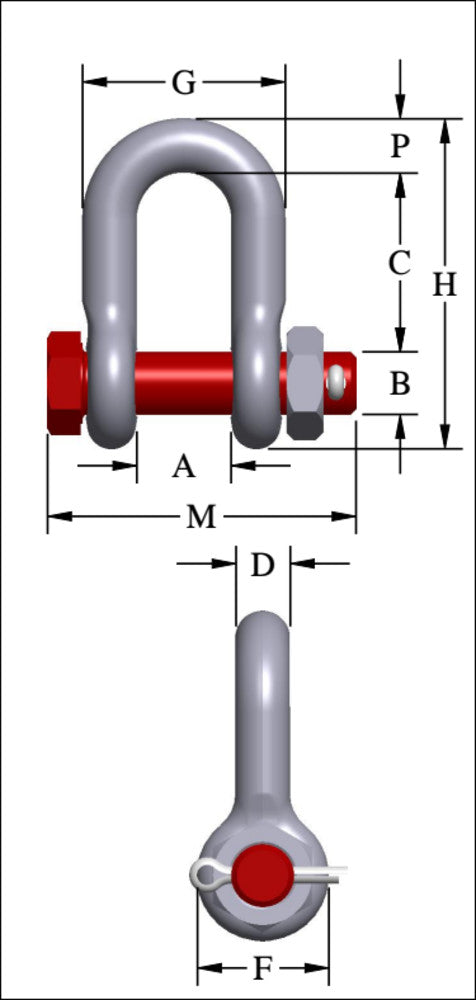

| Size | WLL (US tons) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | M (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 (6.3 mm) | 1/2 | 0.130.06 | 0.4712 | 0.328 | 0.8722 | 0.256 | 0.6216 | 0.9725 | 1.5940 | 1.5640 | 0.256 | 1019768 |
| 5/16 (7.9 mm) | 3/4 | 0.230.1 | 0.5314 | 0.3810 | 1.0426 | 0.318 | 0.7519 | 1.1529 | 1.9149 | 1.8246 | 0.318 | 1019770 |
| 3/8 (9.5 mm) | 1 | 0.330.15 | 0.6617 | 0.4411 | 1.2532 | 0.3810 | 0.9223 | 1.4236 | 2.3159 | 2.1755 | 0.3810 | 1019772 |
| 7/16 (11.1 mm) | 1-1/2 | 0.490.22 | 0.7519 | 0.513 | 1.4537 | 0.4411 | 1.0627 | 1.6341 | 2.6768 | 2.5164 | 0.4411 | 1019774 |
| 1/2 (12.7 mm) | 2 | 0.750.34 | 0.8121 | 0.6416 | 1.6241 | 0.513 | 1.1830 | 1.8146 | 3.0377 | 2.871 | 0.513 | 1019775 |
| 5/8 (15.9 mm) | 3-1/4 | 1.470.67 | 1.0627 | 0.7720 | 2.051 | 0.6316 | 1.538 | 2.3259 | 3.7696 | 3.5690 | 0.6316 | 1019793 |
| 3/4 (19 mm) | 4-3/4 | 2.521.14 | 1.2532 | 0.923 | 2.3861 | 0.7519 | 1.8146 | 2.7570 | 4.53115 | 4.15105 | 0.8121 | 1019819 |
| 7/8 (22.2 mm) | 6-1/2 | 3.851.75 | 1.4437 | 1.0226 | 2.8171 | 0.8822 | 2.153 | 3.281 | 5.33135 | 4.82122 | 0.9725 | 1019837 |
| 1 (25.4 mm) | 8-1/2 | 5.552.52 | 1.6943 | 1.1529 | 3.1881 | 125 | 2.3861 | 3.6994 | 5.94151 | 5.39137 | 125 | 1019855 |
| 1-1/8 (28.6 mm) | 9-1/2 | 7.63.45 | 1.8146 | 1.2532 | 3.5690 | 1.1329 | 2.6868 | 4.07103 | 6.78172 | 5.9150 | 1.2532 | 1019873 |
| 1-1/4 (31.8 mm) | 12 | 10.814.9 | 2.0352 | 1.4136 | 3.93100 | 1.2532 | 376 | 4.53115 | 7.5191 | 6.69170 | 1.3835 | 1019891 |
| 1-3/8 (34.9 mm) | 13-1/2 | 13.756.24 | 2.2557 | 1.5339 | 4.38111 | 1.3835 | 3.3184 | 5.01127 | 8.28210 | 7.21183 | 1.538 | 1019917 |
| 1-1/2 (38.1 mm) | 17 | 17.017.72 | 2.3861 | 1.6642 | 4.8122 | 1.538 | 3.6292 | 5.38137 | 9.05230 | 7.73196 | 1.6241 | 1019935 |
| 1-3/4 (44.4 mm) | 25 | 31.414.2 | 2.8873 | 2.0352 | 5.76146 | 1.7545 | 4.19106 | 6.38162 | 10.97279 | 9.63245 | 2.1254 | 1019953 |
| 2 (50.8 mm) | 35 | 46.7521.2 | 3.2583 | 2.3159 | 6.75171 | 2.153 | 5127 | 7.25184 | 12.74324 | 10.77274 | 2.3660 | 1019971 |
| 2-1/2 (63.5 mm) | 55 | 85.038.6 | 4.12105 | 2.8171 | 8.0203 | 2.6367 | 5.68144 | 9.38238 | 14.85377 | 13.53344 | 2.6367 | 1019999 |
| 3 (76.2 mm) | 85 | 124.2556.4 | 5.0127 | 3.384 | 8.5216 | 3.076 | 6.5165 | 11.0279 | 16.87428 | 15.13384 | 3.589 | 1020013 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Capacities are in US short tons (2,000 lb) as published by the manufacturer — not metric tonnes. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

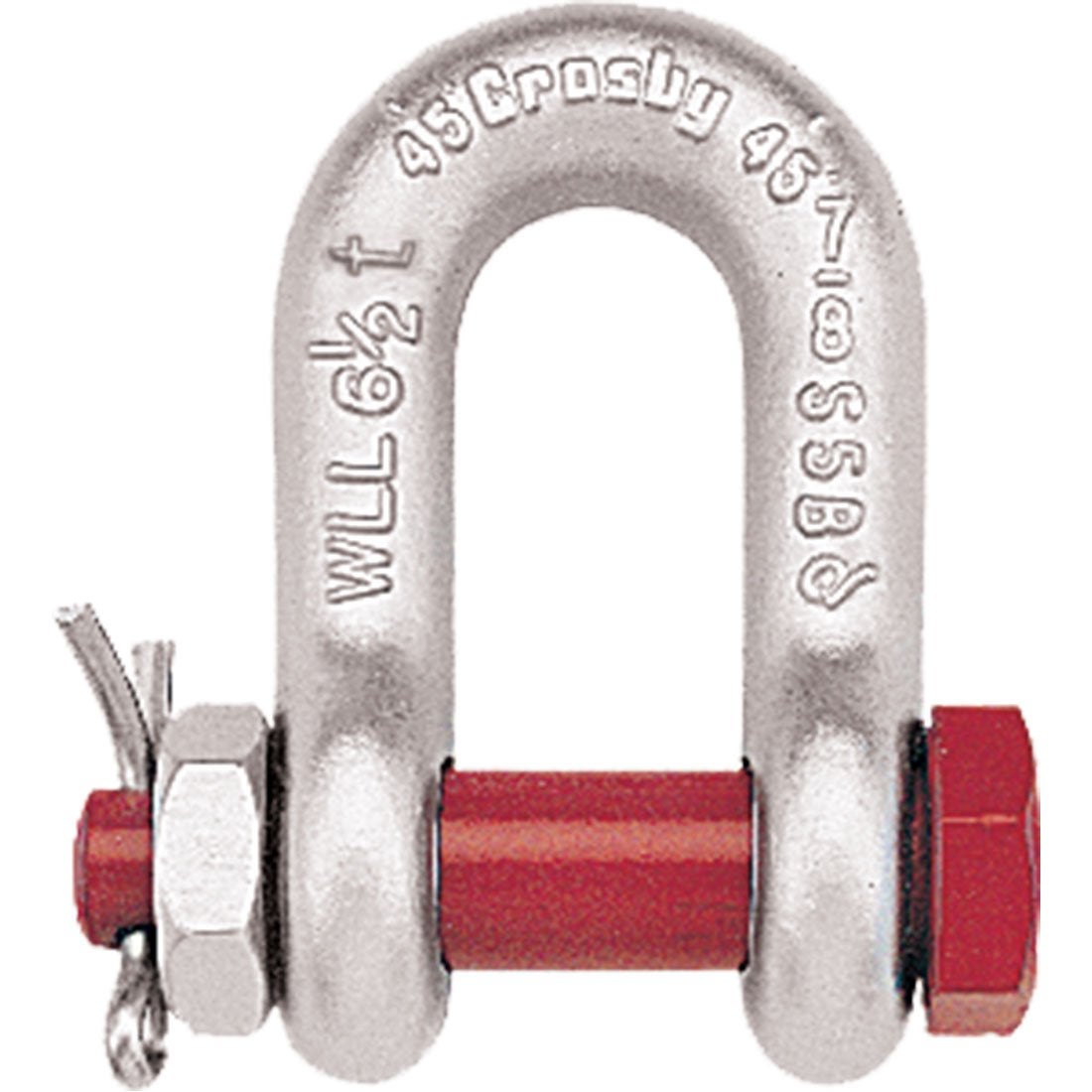

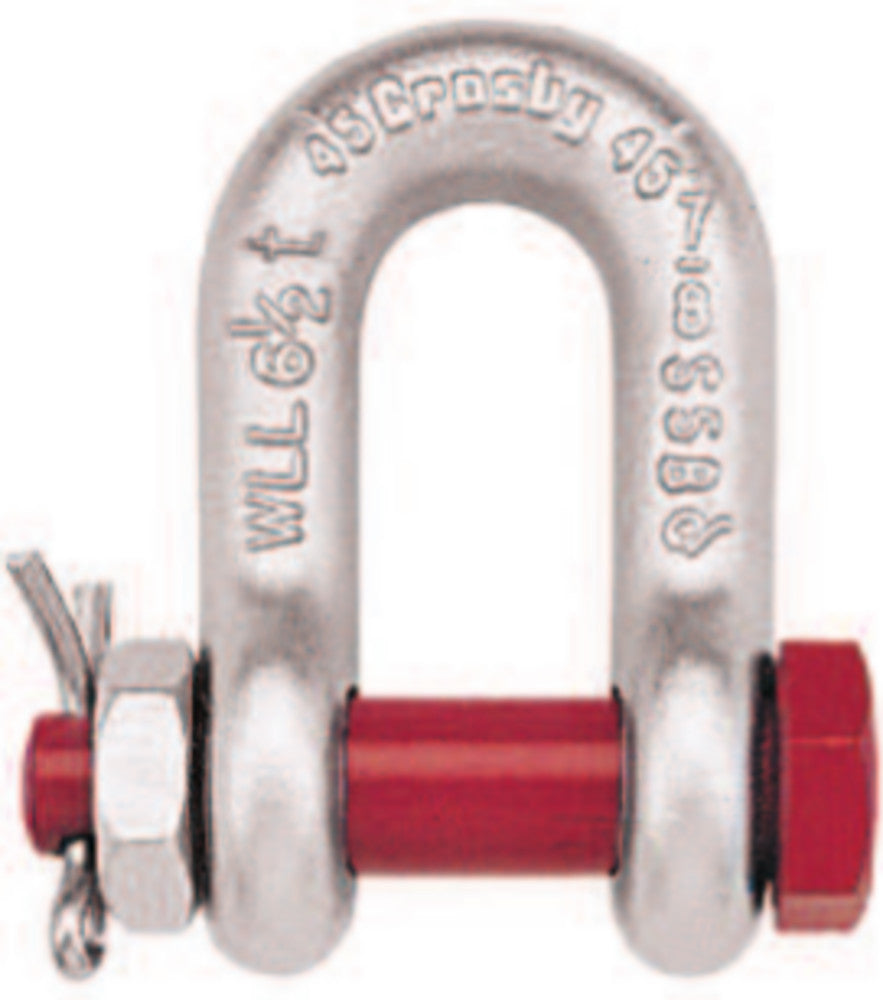

The Crosby G-2150 is a bolt type chain shackle (dee shackle) designed for permanent or semi-permanent in-line rigging connections where the pin must be secured against loosening from vibration or cyclic loads. The bolt, nut, and cotter pin configuration meets ASME B30.26 requirements for overhead lifting and is preferred when a screw pin shackle may work loose in service.
Key Features
- Bolt, nut, and cotter pin construction — prevents accidental opening
- Narrow dee bow for in-line (chain-shackle) loading
- Forged carbon steel — quenched and tempered
- Proof tested at 2x WLL
- Fatigue-rated per Crosby engineering standards

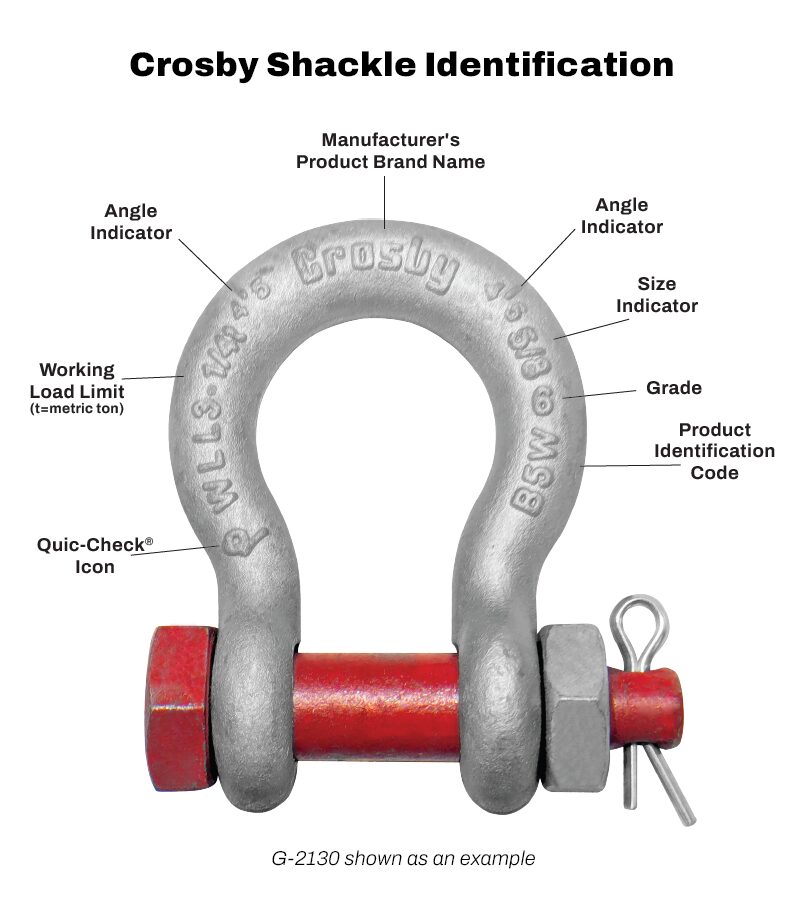

- Embossed WLL and traceability markings on every shackle
Common Applications
- Permanent rigging connections in crane and hoist systems
- Chain and wire rope terminations subject to dynamic loads
- Offshore and marine rigging assemblies
- Applications where vibration could loosen a screw pin
- Oil & gas field and industrial lifting
Standards & Compliance
Manufactured to ASME B30.26 with full traceability and individual proof test certificates. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Compare & save — Green Pin® (Van Beest) equivalent
Same Working Load Limit on every size matched below, from a manufacturer held to the same standards — at a lower price. From $26.40 against $45.60, saving 42–60%.
| Size | This item (Crosby) |
Green Pin (Van Beest) |
You save | |
|---|---|---|---|---|
| 1/4 (WLL 1/2) | $20.60 | not offered in this size | — | |
| 5/16 (WLL 3/4) | $23.34 | not offered in this size | — | |
| 3/8 (WLL 1) | $26.15 | not offered in this size | — | |
| 7/16 (WLL 1-1/2) | $33.65 | not offered in this size | — | |
| 1/2 (WLL 2) | $45.60 | $26.40 | 42% | |
| 5/8 (WLL 3-1/4) | $64.50 | $31.70 | 50% | |
| 3/4 (WLL 4-3/4) | $92.70 | $41.30 | 55% | |
| 7/8 (WLL 6-1/2) | $129.70 | $55.05 | 57% | |
| 1 (WLL 8-1/2) | $170.20 | $78.75 | 53% | |
| 1-1/8 (WLL 9-1/2) | $214.00 | $115.50 | 46% | |
| 1-1/4 (WLL 12) | $298.00 | $141.00 | 52% | |
| 1-3/8 (WLL 13-1/2) | $375.00 | $182.00 | 51% | |
| 1-1/2 (WLL 17) | $451.00 | $245.50 | 45% | |
| 1-3/4 (WLL 25) | $788.00 | $367.50 | 53% | |
| 2 (WLL 35) | $1,214.00 | $477.00 | 60% | |
| 2-1/2 (WLL 55) | $2,180.00 | not offered in this size | — | |
| 3 (WLL 85) | $6,130.00 | not offered in this size | — |
Green Pin G-4153 — identical WLL at every size, identical 6:1 design factor, same ASME B30. Prices and savings above are read from the live listings, so they stay correct as either price changes.Both parts are certified by their own manufacturer; we do not restate either rating. Green Pin does not make every size in this range; those rows are left without a comparison rather than matched to a size that may not fit the same eye or pin. View full Green Pin listing & specs →
Order Sheet — 17 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/4 (WLL 1/2) | 1019768 | $20.60 | ✓ In Stock | ||
| 5/16 (WLL 3/4) | 1019770 | $23.34 | ✓ In Stock | ||
| 3/8 (WLL 1) | 1019772 | $26.15 | ✓ In Stock | ||
| 7/16 (WLL 1-1/2) | 1019774 | $33.65 | ✓ In Stock | ||
| 1/2 (WLL 2) | 1019775 | $45.60 | ✓ In Stock | ||
| 5/8 (WLL 3-1/4) | 1019793 | $64.50 | ✓ In Stock | ||
| 3/4 (WLL 4-3/4) | 1019819 | $92.70 | ✓ In Stock | ||
| 7/8 (WLL 6-1/2) | 1019837 | $129.70 | ✓ In Stock | ||
| 1 (WLL 8-1/2) | 1019855 | $170.20 | ✓ In Stock | ||
| 1-1/8 (WLL 9-1/2) | 1019873 | $214.00 | ✓ In Stock | ||
| 1-1/4 (WLL 12) | 1019891 | $298.00 | ✓ In Stock | ||
| 1-3/8 (WLL 13-1/2) | 1019917 | $375.00 | ✓ In Stock | ||
| 1-1/2 (WLL 17) | 1019935 | $451.00 | ✓ In Stock | ||
| 1-3/4 (WLL 25) | 1019953 | $788.00 | ✓ In Stock | ||
| 2 (WLL 35) | 1019971 | $1,214.00 | ✓ In Stock | ||
| 2-1/2 (WLL 55) | 1019999 | $2,180.00 | ✓ In Stock | ||
| 3 (WLL 85) | 1020013 | $6,130.00 | ✓ In Stock |
