VanBeest Green Pin G-4153 Bolt Type Chain Shackle

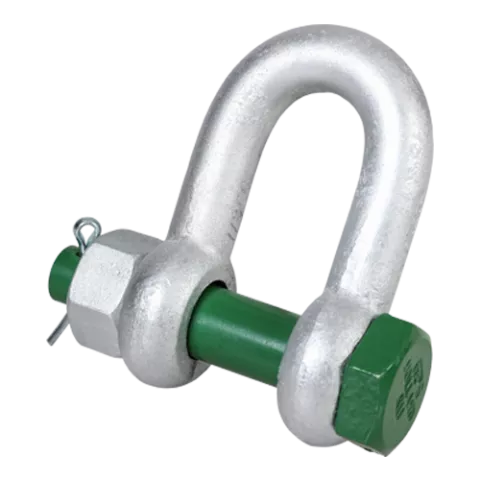

The Green Pin G-4153 Bolt Type Chain Shackle is a forged alloy steel chain shackle with a bolt, nut, and cotter pin closure for applications requiring a secure, non-rotating pin. The bolt-type design prevents the pin from backing out under vibration or multi-directional loading, making it the standard choice for permanent and semi-permanent rigging connections.

Key Features

• Forged alloy steel with bolt, nut, and cotter pin closure
• Positive locking prevents pin rotation under vibration
• Chain (D-shape) body for in-line connections
• Hot-dip galvanized for corrosion protection
• Individually proof tested and fully traceable

Common Applications

• Permanent rigging connections subject to vibration
• Multi-directional loading configurations
• Mooring and marine applications
• Any application where the pin must not rotate or back out

Why Green Pin?

Van Beest's Green Pin shackles set the global standard for quality and traceability. The G-4153 bolt-type chain shackle provides the positive locking security that critical rigging connections demand.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
