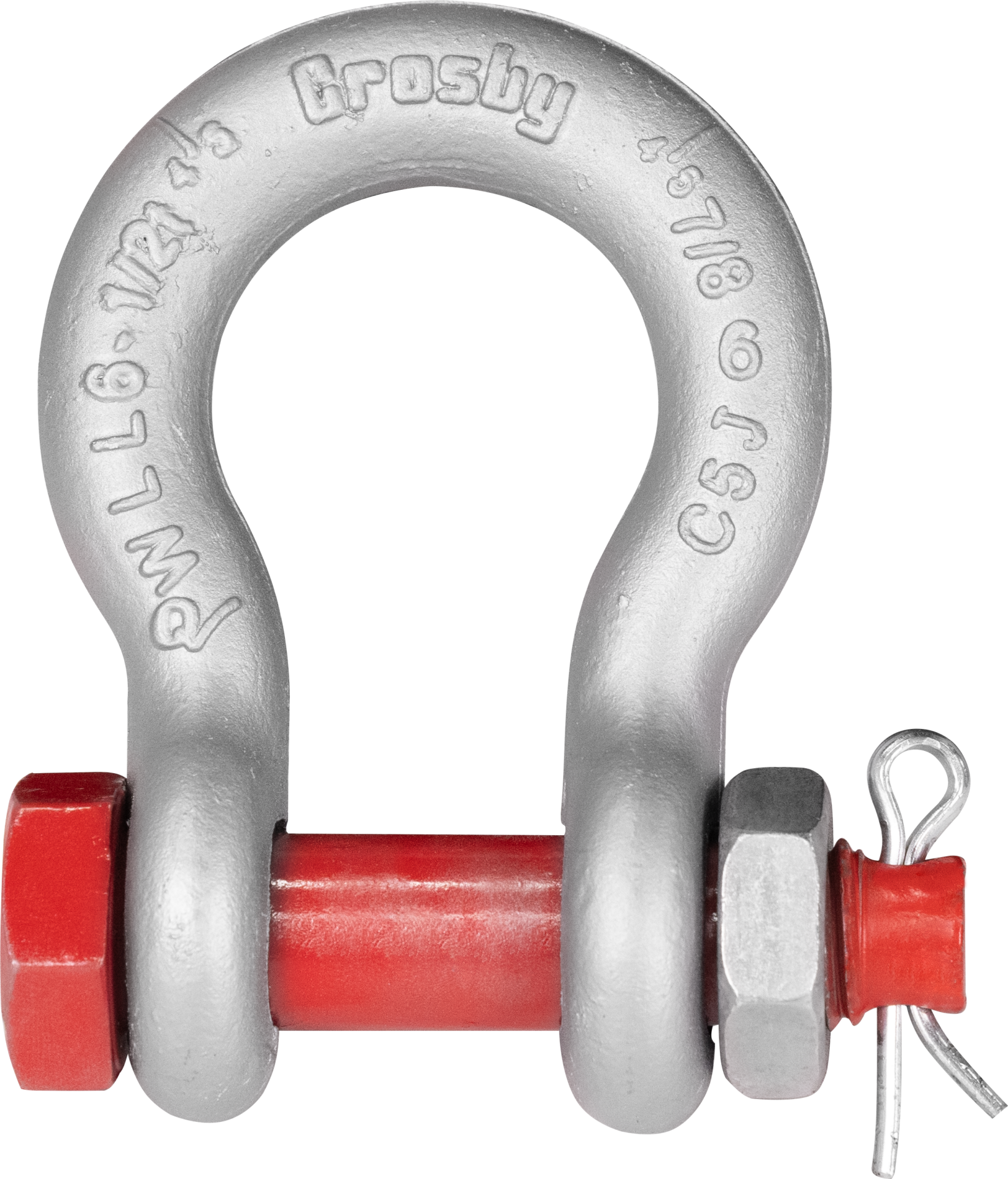

The Crosby G-2130 is a heavy-duty bolt type anchor shackle designed for permanent or semi-permanent rigging applications where the connection must remain secure without periodic re-tightening. The bolt, nut, and cotter pin configuration prevents the pin from working loose under shock loads or vibration, meeting the requirements of ASME B30.26 for overhead lifting.
Key Features
- Bolt, nut, and cotter pin construction prevents accidental opening
- Forged carbon steel — quenched and tempered for maximum toughness
- Fatigue-rated for cyclic loading per Crosby engineering standards
- Hot-dip galvanized finish for corrosion resistance
- Proof tested at 2x the Working Load Limit (WLL)

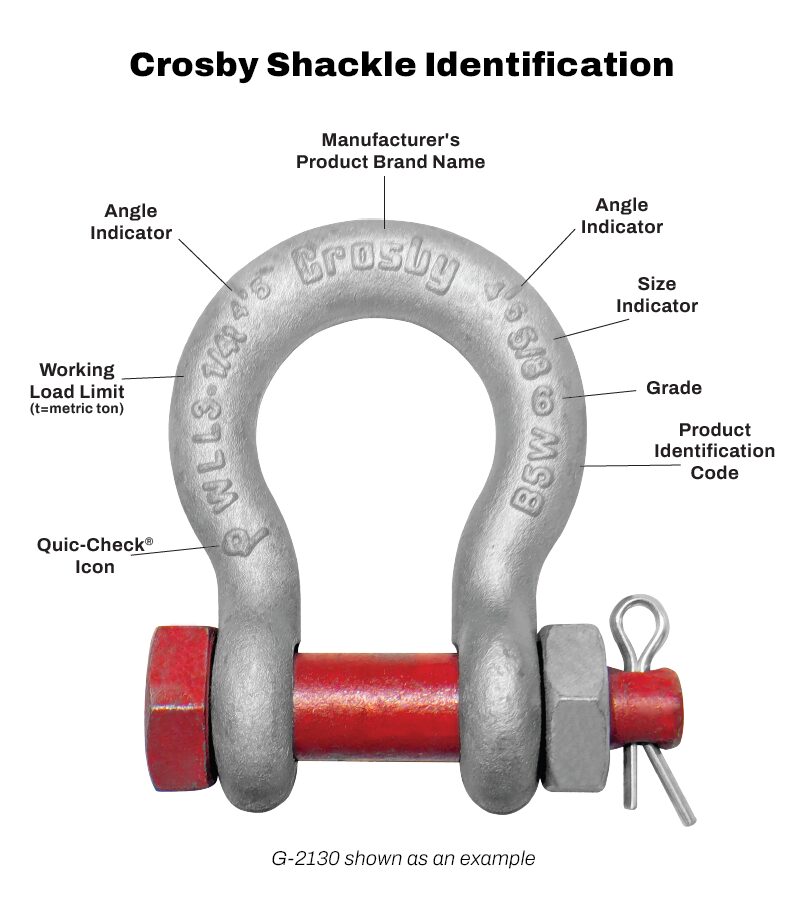

- Embossed WLL and traceability markings on every shackle
Common Applications
- Permanent rigging connections in crane and hoist systems
- Wire rope terminations subject to dynamic loads
- Offshore and marine rigging
- Oil & gas and industrial lifting
- Applications where vibration could loosen a screw pin
Standards & Compliance
Manufactured to ASME B30.26 with full traceability and individual proof test certificates. Made in the USA by Crosby.
Dimensional Specifications

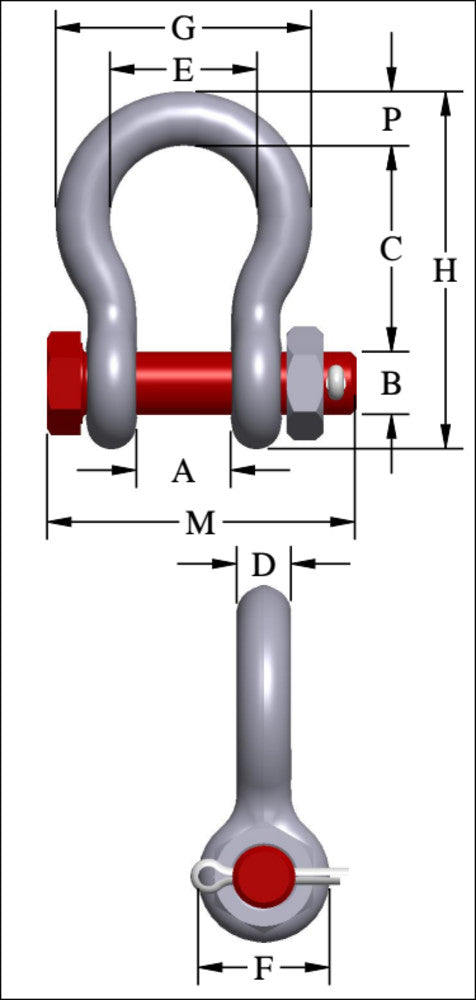

Dimensions are keyed to the Crosby G-2130 drawing shown in the product images. All dimensions in inches; weight in pounds. WLL listed for carbon steel (6:1 design factor per ASME B30.26).
| Size (in) | WLL (t) | Stock No. | Wt (lb) | A | A Tol ± | B | C | C Tol ± | D | E | F | G | H | M | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16 | 1/3 | 1019438 | .08 | .38 | .06 | .25 | .88 | .06 | .19 | .60 | .56 | .98 | 1.47 | 1.14 | .19 |
| 1/4 | 1/2 | 1019456 | .15 | .47 | .06 | .32 | 1.13 | .06 | .25 | .78 | .62 | 1.28 | 1.84 | 1.43 | .25 |
| 5/16 | 3/4 | 1019474 | .22 | .53 | .06 | .38 | 1.21 | .06 | .31 | .84 | .75 | 1.46 | 2.09 | 1.71 | .31 |
| 3/8 | 1 | 1019492 | .42 | .66 | .06 | .44 | 1.45 | .13 | .38 | 1.03 | .92 | 1.79 | 2.50 | 2.06 | .38 |
| 7/16 | 1-1/2 | 1019518 | .55 | .75 | .06 | .50 | 1.69 | .13 | .44 | 1.16 | 1.06 | 2.04 | 2.91 | 2.37 | .44 |
| 1/2 | 2 | 1019536 | .88 | .81 | .06 | .63 | 1.88 | .13 | .50 | 1.31 | 1.18 | 2.31 | 3.28 | 2.69 | .50 |
| 5/8 | 3-1/4 | 1019554 | 1.75 | 1.06 | .06 | .75 | 2.38 | .13 | .62 | 1.69 | 1.50 | 2.93 | 4.19 | 3.34 | .69 |
| 3/4 | 4-3/4 | 1019572 | 3.06 | 1.25 | .06 | .88 | 2.81 | .25 | .75 | 2.00 | 1.81 | 3.50 | 4.97 | 3.97 | .81 |
| 7/8 | 6-1/2 | 1019590 | 4.84 | 1.44 | .06 | 1.00 | 3.31 | .25 | .88 | 2.28 | 2.10 | 4.04 | 5.83 | 4.50 | .97 |
| 1 | 8-1/2 | 1019616 | 7.25 | 1.69 | .06 | 1.16 | 3.76 | .25 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 5.13 | 1.06 |
| 1-1/8 | 9-1/2 | 1019634 | 10.37 | 1.81 | .06 | 1.25 | 4.27 | .25 | 1.16 | 2.91 | 2.68 | 5.15 | 7.47 | 5.97 | 1.25 |
| 1-1/4 | 12 | 1019652 | 13.25 | 2.03 | .06 | 1.41 | 4.69 | .25 | 1.29 | 3.26 | 3.00 | 5.76 | 8.26 | 6.50 | 1.38 |
| 1-3/8 | 13-1/2 | 1019670 | 19.25 | 2.25 | .13 | 1.56 | 5.22 | .25 | 1.42 | 3.62 | 3.31 | 6.38 | 9.16 | 6.93 | 1.50 |
| 1-1/2 | 17 | 1019698 | 26.00 | 2.38 | .13 | 1.66 | 5.76 | .25 | 1.53 | 3.88 | 3.62 | 6.94 | 10.00 | 7.43 | 1.62 |
| 1-3/4 | 25 | 1019714 | 42.00 | 2.88 | .13 | 2.03 | 7.00 | .25 | 1.84 | 5.00 | 4.19 | 8.80 | 12.34 | 9.19 | 2.25 |
| 2 | 35 | 1019732 | 60.00 | 3.25 | .13 | 2.28 | 7.75 | .25 | 2.08 | 5.75 | 4.81 | 10.15 | 13.68 | 10.36 | 2.40 |
| 2-1/2 | 55 | 1019750 | 100.00 | 4.12 | .25 | 2.78 | 10.51 | .25 | 2.72 | 7.25 | 5.81 | 12.75 | 17.92 | 13.17 | 3.13 |
| 3 | 85 | 1019778 | 170.00 | 4.75 | .25 | 3.25 | 12.38 | .38 | 3.13 | 8.94 | 7.38 | 15.03 | 21.25 | 16.00 | 3.88 |
| 3-1/2 | 120 | 1019796 | 267.00 | 5.62 | .25 | 3.75 | 14.50 | .38 | 3.75 | 10.50 | 8.75 | 17.97 | 25.13 | 18.66 | 4.62 |
| 4 | 150 | 1019812 | 400.00 | 6.25 | .38 | 4.37 | 16.75 | .38 | 4.37 | 12.00 | 10.00 | 20.83 | 29.13 | 21.48 | 5.37 |
Source: Crosby G-2130/S-2130 catalog (Shackles), kitocrosby.com. Carbon steel shackles — 6:1 design factor per ASME B30.26. Dimensions in inches; weight in pounds. No L column for this model (no L dimension in Crosby drawing).
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | M (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/164.8 | 1/3 | 0.060.03 | 0.389.7 | 0.256.3 | 0.8822.4 | 0.194.8 | 0.615.2 | 0.5614.2 | 0.9824.9 | 1.4737.3 | —— | 1.2932.8 | 0.194.8 | 1019464 |
| 1/46.3 | 1/2 | 0.110.05 | 0.4711.9 | 0.328.1 | 1.1328.7 | 0.256.3 | 0.7819.8 | 0.6215.7 | 1.2832.5 | 1.8446.7 | —— | 1.5639.6 | 0.256.3 | 1019466 |
| 5/167.9 | 3/4 | 0.220.1 | 0.5313.5 | 0.389.7 | 1.2130.7 | 0.317.9 | 0.8421.3 | 0.7519.0 | 1.4637.1 | 2.0953.1 | —— | 1.8246.2 | 0.317.9 | 1019468 |
| 3/89.5 | 1 | 0.330.15 | 0.6616.8 | 0.4411.2 | 1.4536.8 | 0.389.7 | 1.0326.2 | 0.9223.4 | 1.7945.5 | 2.563.5 | —— | 2.1755.1 | 0.389.7 | 1019470 |
| 7/1611.1 | 1-1/2 | 0.490.22 | 0.7519.0 | 0.512.7 | 1.6942.9 | 0.4411.2 | 1.1629.5 | 1.0626.9 | 2.0451.8 | 2.9173.9 | —— | 2.5163.8 | 0.4411.2 | 1019471 |
| 1/212.7 | 2 | 0.790.36 | 0.8120.6 | 0.6416.3 | 1.8847.8 | 0.512.7 | 1.3133.3 | 1.1830.0 | 2.3158.7 | 3.2883.3 | —— | 2.871.1 | 0.512.7 | 1019472 |
| 5/815.9 | 3-1/4 | 1.680.76 | 1.0626.9 | 0.7719.6 | 2.3860.5 | 0.6215.7 | 1.6942.9 | 1.538.1 | 2.9374.4 | 4.19106.4 | —— | 3.5690.4 | 0.6917.5 | 1019490 |
| 3/419.0 | 4-3/4 | 2.721.23 | 1.2531.8 | 0.922.9 | 2.8171.4 | 0.7519.0 | 2.050.8 | 1.8146.0 | 3.588.9 | 4.97126.2 | —— | 4.15105.4 | 0.8120.6 | 1019515 |
| 7/822.2 | 6-1/2 | 3.951.79 | 1.4436.6 | 1.0225.9 | 3.3184.1 | 0.8822.4 | 2.2857.9 | 2.153.3 | 4.04102.6 | 5.83148.1 | —— | 4.82122.4 | 0.9724.6 | 1019533 |
| 125.4 | 8-1/2 | 5.662.57 | 1.6942.9 | 1.1529.2 | 3.7695.5 | 1.025.4 | 2.6968.3 | 2.3860.5 | 4.69119.1 | 6.56166.6 | —— | 5.39136.9 | 1.0626.9 | 1019551 |
| 1-1/828.6 | 9-1/2 | 8.273.75 | 1.8146.0 | 1.2531.8 | 4.27108.5 | 1.1629.5 | 2.9173.9 | 2.6868.1 | 5.15130.8 | 7.47189.7 | —— | 5.9149.9 | 1.2531.8 | 1019579 |
| 1-1/431.8 | 12 | 11.715.31 | 2.0351.6 | 1.4135.8 | 4.69119.1 | 1.2932.8 | 3.2682.8 | 3.076.2 | 5.76146.3 | 8.26209.8 | —— | 6.69169.9 | 1.3835.1 | 1019597 |
| 1-3/834.9 | 13-1/2 | 15.837.18 | 2.2557.1 | 1.5338.9 | 5.22132.6 | 1.4236.1 | 3.6291.9 | 3.3184.1 | 6.38162.1 | 9.16232.7 | —— | 7.21183.1 | 1.538.1 | 1019613 |
| 1-1/238.1 | 17 | 19.08.62 | 2.3860.5 | 1.6642.2 | 5.76146.3 | 1.5338.9 | 3.8898.6 | 3.6291.9 | 6.94176.3 | 10.0254.0 | —— | 7.73196.3 | 1.6241.1 | 1019631 |
| 1-3/444.4 | 25 | 33.9115.38 | 2.8873.2 | 2.0351.6 | 7.0177.8 | 1.8446.7 | 5.0127.0 | 4.19106.4 | 8.8223.5 | 12.34313.4 | —— | 9.63244.6 | 2.2557.1 | 1019659 |
| 250.8 | 35 | 52.2523.7 | 3.2582.5 | 2.3158.7 | 7.75196.8 | 2.0852.8 | 5.75146.0 | 4.81122.2 | 10.15257.8 | 13.69347.7 | —— | 10.77273.6 | 2.461.0 | 1019677 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 20 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|

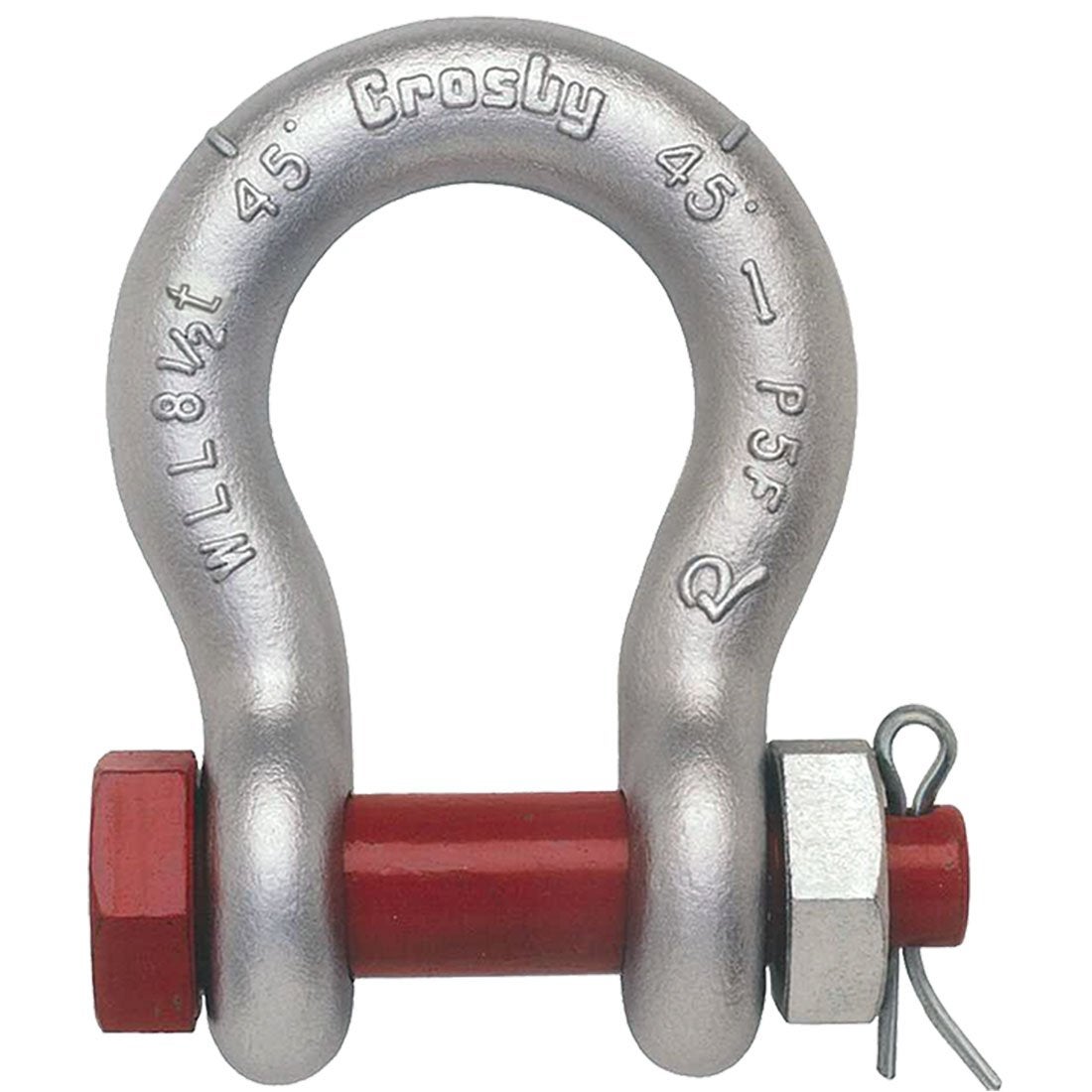

| 3/16" | 1019464 | $22.95 | ✓ In Stock | ||
| 1/4" | 1019466 | $23.95 | ✓ In Stock | ||
| 5/16" | 1019468 | $31.95 | ✓ In Stock | ||
| 3/8" | 1019470 | $32.95 | ✓ In Stock | ||
| 7/16" | 1019471 | $36.95 | ✓ In Stock | ||
| 1/2" | 1019472 | $56.95 | ✓ In Stock | ||
| 5/8" | 1019490 | $80.95 | ✓ In Stock | ||
| 3/4" | 1019515 | $116.95 | ✓ In Stock | ||
| 7/8" | 1019533 | $162.95 | ✓ In Stock | ||
| 1" | 1019551 | $219.95 | ✓ In Stock | ||
| 1-1/8" | 1019579 | $285.95 | ✓ In Stock | ||
| 1-1/4" | 1019597 | $388.95 | ✓ In Stock | ||
| 1-3/8" | 1019613 | $519.95 | ✓ In Stock | ||
| 1-1/2" | 1019631 | $631.95 | ✓ In Stock | ||
| 1-3/4" | 1019659 | $938.95 | ✓ In Stock | ||
| 2" | 1019677 | $1,351.95 | ✓ In Stock | ||
| 2-1/2" | 1019695 | $3,125.95 | ✓ In Stock | ||
| 3" | 1019711 | $4,265.95 | ✓ In Stock | ||
| 3-1/2" | 1019739 | $9,255.95 | ✓ In Stock | ||
| 4" | 1019757 | $11,410.95 | ✓ In Stock |
