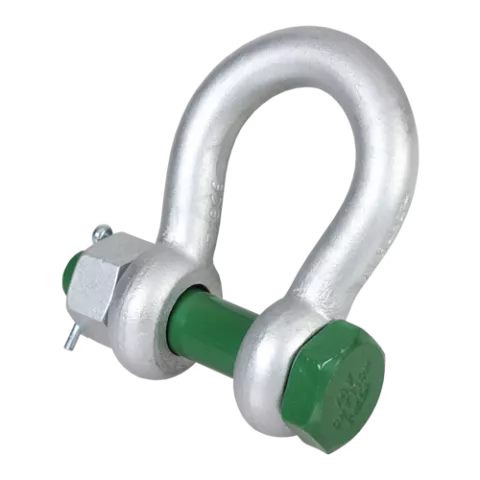

VanBeest Green Pin G-4163 Bolt Type Anchor Shackle

The Green Pin G-4163 Bolt Type Anchor Shackle is a forged alloy steel anchor shackle with bolt, nut, and cotter pin closure. Combining the wide bow shape of the anchor design with positive bolt-type locking, the G-4163 is the go-to shackle for permanent rigging, mooring, and applications where both clearance and pin security are essential.

Key Features

• Forged alloy steel with bolt, nut, and cotter pin
• Anchor (bow) shape for multi-sling clearance
• Positive locking prevents pin rotation and backing out
• Hot-dip galvanized for corrosion resistance
• Individually proof tested and fully traceable

Common Applications

• Permanent rigging and mooring connections
• Multi-leg sling assemblies with vibration or dynamic loads
• Offshore and marine applications
• Critical connections requiring both bow clearance and pin security

Why Green Pin?

The G-4163 bolt-type anchor shackle is the workhorse of heavy rigging worldwide. Van Beest's commitment to quality means every Green Pin shackle delivers consistent, certified performance.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
