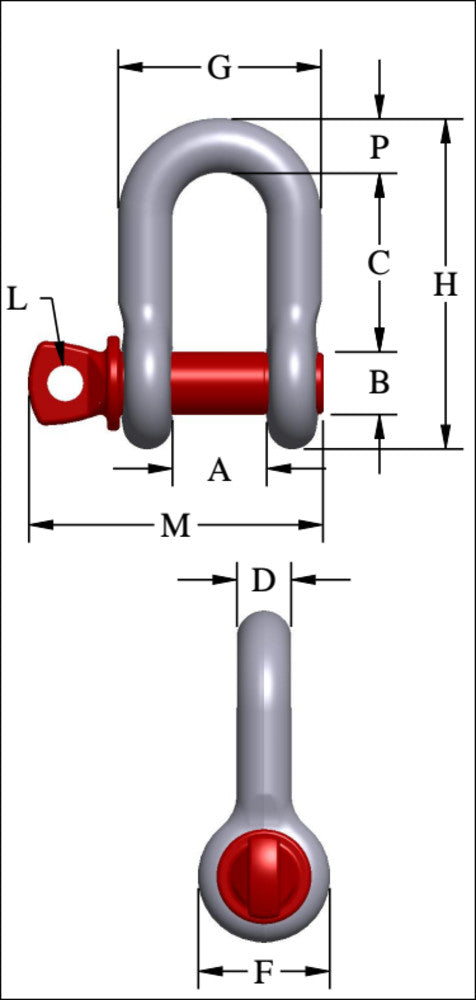

Specifications — Full Dimensions by Size
This part already clears a 5:1 requirement. At 6:1 it is more conservative than the 5:1 commonly specified for wire rope and synthetic sling systems, so the published WLL above satisfies a 5:1 specification as it stands. We do not publish a higher WLL at 5:1, because that capacity is not certified by the manufacturer.
| Size | WLL (US tons) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | M (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 (6.3 mm) | 1/2 | 0.110.05 | 0.4712 | 0.328 | 0.8722 | 0.256 | 0.6216 | 0.9725 | 1.5940 | 0.195 | 1.4336 | 0.256 | 1019150 |
| 5/16 (7.9 mm) | 3/4 | 0.170.08 | 0.5314 | 0.3810 | 1.0426 | 0.318 | 0.7519 | 1.1529 | 1.9148 | 0.226 | 1.7143 | 0.318 | 1019178 |
| 3/8 (9.5 mm) | 1 | 0.280.13 | 0.6617 | 0.4411 | 1.2532 | 0.3810 | 0.9223 | 1.4236 | 2.3159 | 0.256 | 2.0652 | 0.3810 | 1019196 |
| 7/16 (11.1 mm) | 1-1/2 | 0.430.2 | 0.7519 | 0.513 | 1.4537 | 0.4411 | 1.0627 | 1.6341 | 2.6768 | 0.318 | 2.3760 | 0.4411 | 1019212 |
| 1/2 (12.7 mm) | 2 | 0.650.29 | 0.8121 | 0.6316 | 1.6341 | 0.513 | 1.1830 | 1.8146 | 3.0377 | 0.3810 | 2.6968 | 0.513 | 1019230 |
| 5/8 (15.9 mm) | 3-1/4 | 1.250.57 | 1.0627 | 0.7519 | 251 | 0.6316 | 1.538 | 2.3259 | 3.7696 | 0.4411 | 3.3485 | 0.6316 | 1019258 |
| 3/4 (19 mm) | 4-3/4 | 2.261.03 | 1.2532 | 0.8822 | 2.3860 | 0.7519 | 1.8146 | 2.7570 | 4.53115 | 0.513 | 3.97101 | 0.8121 | 1019276 |
| 7/8 (22.2 mm) | 6-1/2 | 3.161.43 | 1.4437 | 125 | 2.8171 | 0.8822 | 2.153 | 3.281 | 5.33135 | 0.513 | 4.5114 | 0.9725 | 1019294 |
| 1 (25.4 mm) | 8-1/2 | 4.752.15 | 1.6943 | 1.1629 | 3.1981 | 125 | 2.3860 | 3.6994 | 5.94151 | 0.5614 | 5.13130 | 125 | 1019310 |
| 1-1/8 (28.6 mm) | 9-1/2 | 6.753.06 | 1.8146 | 1.2532 | 3.5690 | 1.1329 | 2.6868 | 4.07103 | 6.78172 | 0.6316 | 5.97152 | 1.2532 | 1019338 |
| 1-1/4 (31.8 mm) | 12 | 9.064.11 | 2.0352 | 1.4136 | 3.93100 | 1.2532 | 376 | 4.53115 | 7.5191 | 0.6918 | 6.5165 | 1.3835 | 1019356 |
| 1-3/8 (34.9 mm) | 13-1/2 | 11.635.28 | 2.2557 | 1.5640 | 4.36111 | 1.3835 | 3.3184 | 5.01127 | 8.28210 | 0.7519 | 6.93176 | 1.538 | 1019374 |
| 1-1/2 (38.1 mm) | 17 | 15.957.23 | 2.3860 | 1.6642 | 4.87124 | 1.538 | 3.6292 | 5.38137 | 9.05230 | 0.8121 | 7.43189 | 1.6241 | 1019392 |
| 1-3/4 (44.4 mm) | 25 | 26.7512.1 | 2.8873 | 2.0352 | 5.76146 | 1.7544 | 4.19106 | 6.38162 | 10.97279 | 125 | 9.19233 | 2.1254 | 1019418 |
| 2 (50.8 mm) | 35 | 42.3119.2 | 3.2583 | 2.2858 | 6.75171 | 2.153 | 5127 | 7.25184 | 12.74324 | 1.1329 | 10.36263 | 2.3660 | 1019436 |
| 2-1/2 (63.5 mm) | 55 | 71.7532.5 | 4.12105 | 2.7871 | 8203 | 2.6367 | 5.68144 | 9.38238 | 14.85377 | 1.3835 | 13.17335 | 2.6367 | 1019454 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Capacities are in US short tons (2,000 lb) as published by the manufacturer — not metric tonnes. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

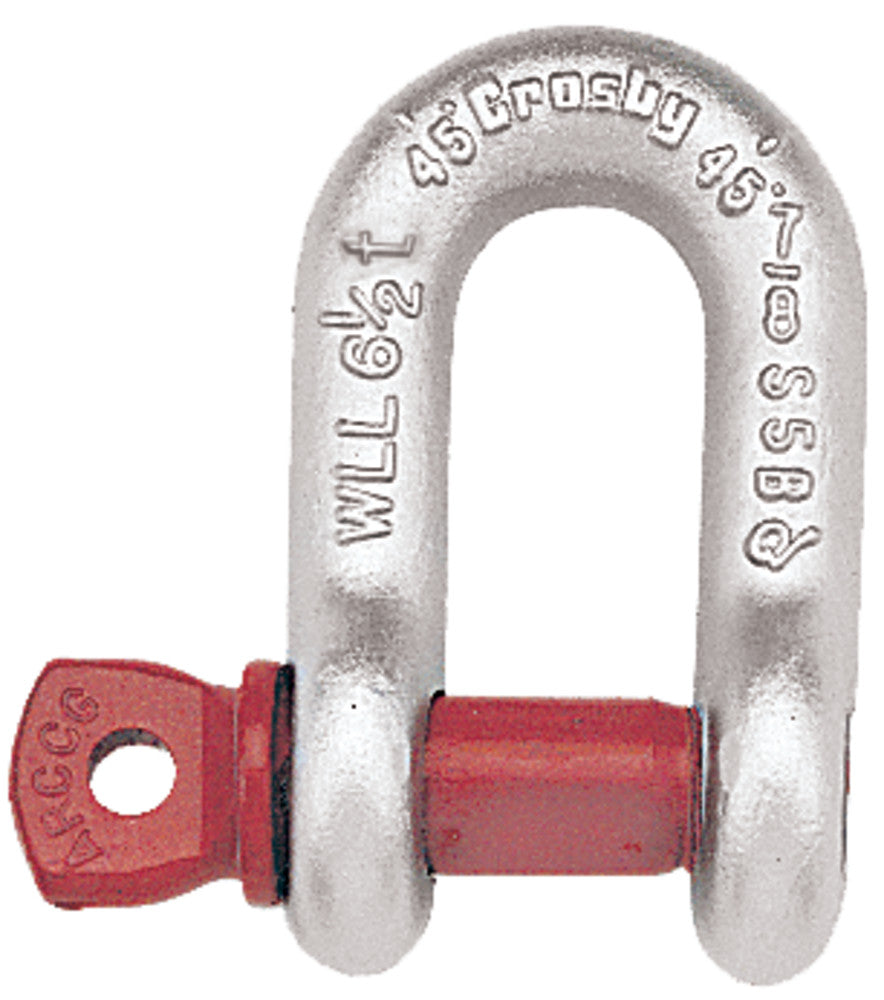

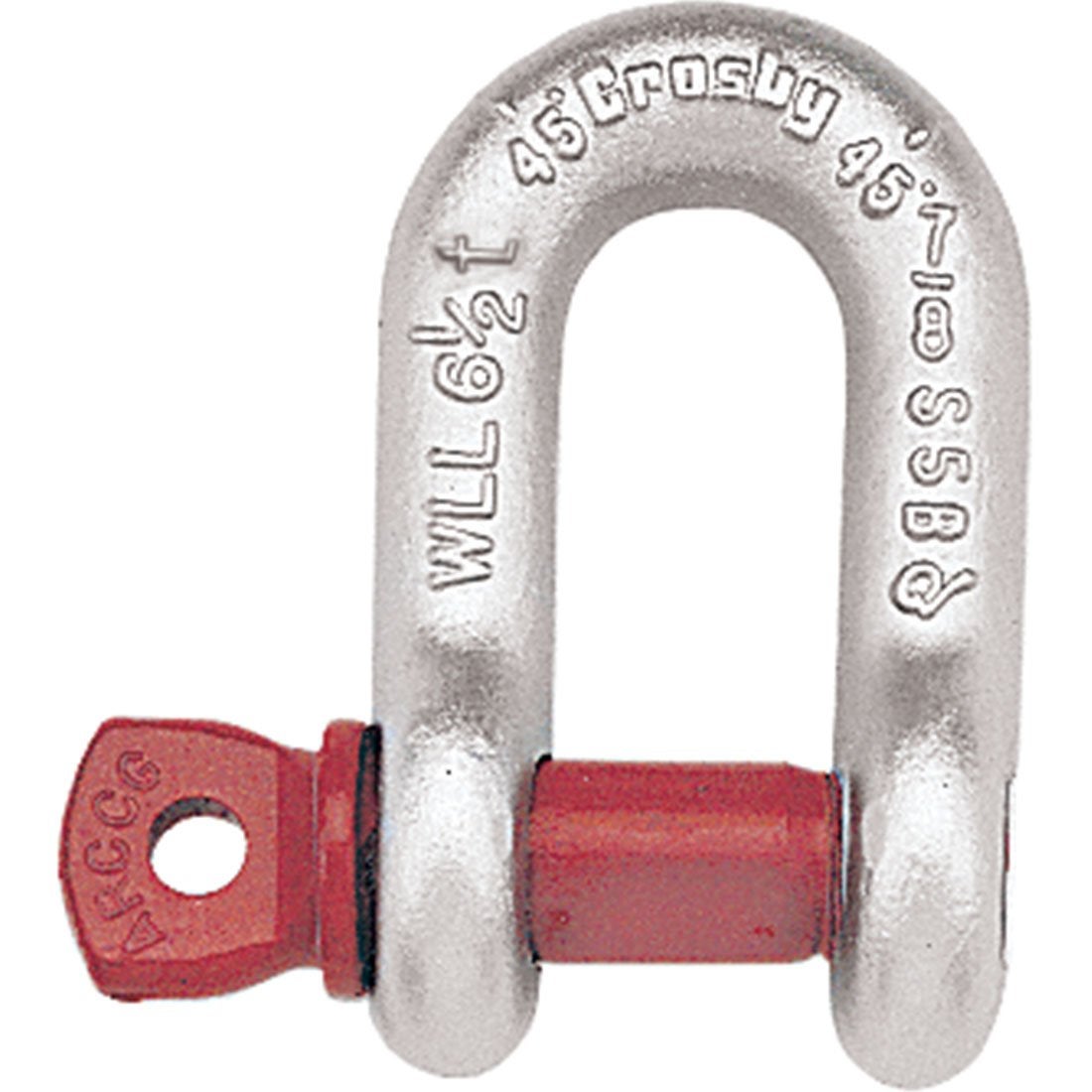

The Crosby G-210 is the industry-standard screw pin chain shackle (dee shackle) for general rigging and lifting applications. Its narrower bow is optimized for in-line loads along the axis of the pin, making it the preferred shackle for connecting chain links, wire rope, and sling ends in a straight pull. Forged from quenched and tempered carbon steel with a 6:1 design factor per ASME B30.26.
Key Features
- Narrow bow geometry for in-line (D-ring) loading
- Forged carbon steel — quenched and tempered
- Screw pin for quick attachment and removal
- Proof tested at 2x WLL
- Fatigue-rated per Crosby engineering standards

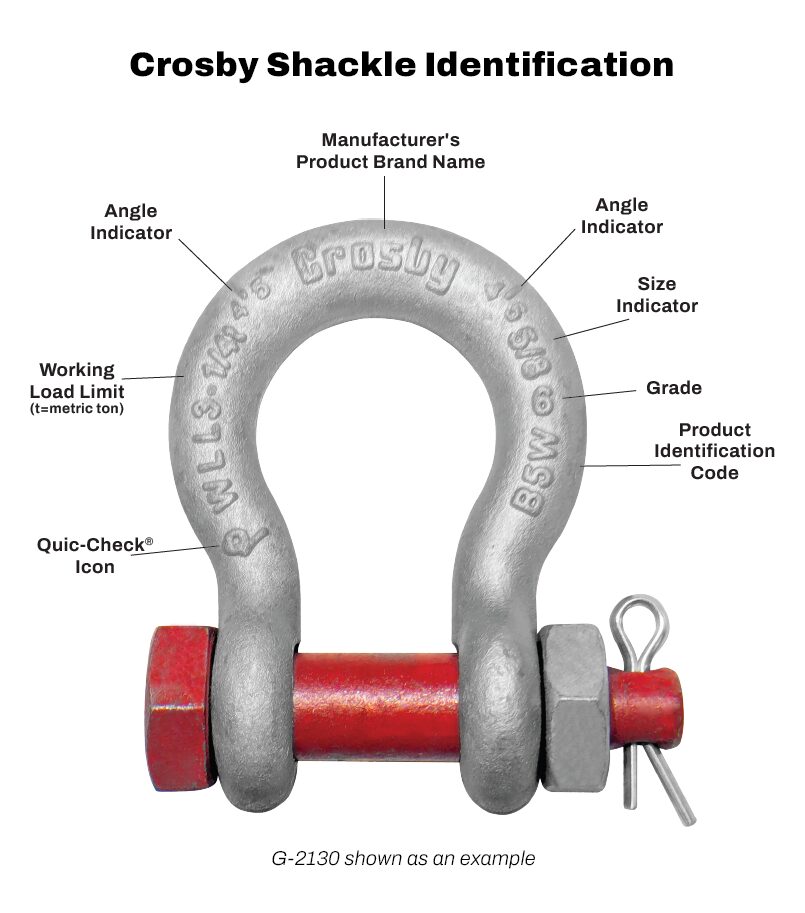

- Embossed WLL and traceability markings on every shackle
Common Applications
- Chain and sling end terminations
- Wire rope rigging assemblies
- Construction and material handling
- Marine and towing applications
- Temporary rigging connections requiring quick change-out
Standards & Compliance
Manufactured to ASME B30.26 with full traceability and individual proof test certificates. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Compare & save — Green Pin® (Van Beest) equivalent
Same Working Load Limit on every size matched below, from a manufacturer held to the same standards — at a lower price. From $7.10 against $13.66, saving 28–59%.
| Size | This item (Crosby) |
Green Pin (Van Beest) |
You save | |
|---|---|---|---|---|
| 1/4 (WLL 1/2) | $13.66 | $7.10 | 48% | |
| 5/16 (WLL 3/4) | $15.49 | $7.70 | 50% | |
| 3/8 (WLL 1) | $17.72 | $9.00 | 49% | |
| 7/16 (WLL 1-1/2) | $22.46 | $11.45 | 49% | |
| 1/2 (WLL 2) | $24.61 | $16.55 | 32% | |
| 5/8 (WLL 3-1/4) | $42.70 | $23.40 | 45% | |
| 3/4 (WLL 4-3/4) | $65.20 | $31.45 | 51% | |
| 7/8 (WLL 6-1/2) | $95.10 | $44.00 | 53% | |
| 1 (WLL 8-1/2) | $121.70 | $60.30 | 50% | |
| 1-1/8 (WLL 9-1/2) | $156.70 | $112.50 | 28% | |
| 1-1/4 (WLL 12) | $234.00 | $117.00 | 50% | |
| 1-3/8 (WLL 13-1/2) | $305.00 | $125.00 | 59% | |
| 1-1/2 (WLL 17) | $370.00 | $191.50 | 48% | |
| 1-3/4 (WLL 25) | $695.00 | not offered in this size | — | |
| 2 (WLL 35) | $929.00 | not offered in this size | — | |
| 2-1/2 (WLL 55) | $2,484.00 | not offered in this size | — |
Green Pin G-4151 — identical WLL at every size, identical 6:1 design factor, same ASME B30. Prices and savings above are read from the live listings, so they stay correct as either price changes.Both parts are certified by their own manufacturer; we do not restate either rating. Green Pin does not make every size in this range; those rows are left without a comparison rather than matched to a size that may not fit the same eye or pin. View full Green Pin listing & specs →
Order Sheet — 16 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/4 (WLL 1/2) | 1019150 | $13.66 | ✓ In Stock | ||
| 5/16 (WLL 3/4) | 1019178 | $15.49 | ✓ In Stock | ||
| 3/8 (WLL 1) | 1019196 | $17.72 | ✓ In Stock | ||
| 7/16 (WLL 1-1/2) | 1019212 | $22.46 | ✓ In Stock | ||
| 1/2 (WLL 2) | 1019230 | $24.61 | ✓ In Stock | ||
| 5/8 (WLL 3-1/4) | 1019258 | $42.70 | ✓ In Stock | ||
| 3/4 (WLL 4-3/4) | 1019276 | $65.20 | ✓ In Stock | ||
| 7/8 (WLL 6-1/2) | 1019294 | $95.10 | ✓ In Stock | ||
| 1 (WLL 8-1/2) | 1019310 | $121.70 | ✓ In Stock | ||
| 1-1/8 (WLL 9-1/2) | 1019338 | $156.70 | ✓ In Stock | ||
| 1-1/4 (WLL 12) | 1019356 | $234.00 | ✓ In Stock | ||
| 1-3/8 (WLL 13-1/2) | 1019374 | $305.00 | ✓ In Stock | ||
| 1-1/2 (WLL 17) | 1019392 | $370.00 | ✓ In Stock | ||
| 1-3/4 (WLL 25) | 1019418 | $695.00 | ✓ In Stock | ||
| 2 (WLL 35) | 1019436 | $929.00 | ✓ In Stock | ||
| 2-1/2 (WLL 55) | 1019454 | $2,484.00 | ✓ In Stock |
