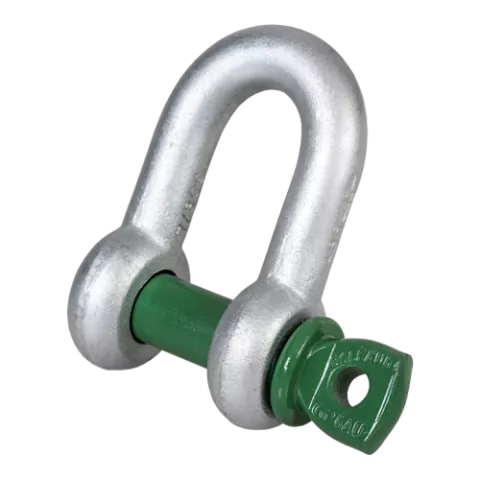

VanBeest Green Pin G-4151 Screw Pin Chain Shackle

The Green Pin G-4151 Screw Pin Chain Shackle is a high-quality forged alloy steel chain shackle (D-shape) with a screw pin closure. Manufactured by Van Beest in the Netherlands, Green Pin shackles are among the most trusted names in the global rigging industry. The chain shackle's narrower body is designed for in-line chain connections where space is limited.

Key Features

• Forged alloy steel, quenched and tempered
• Screw pin for easy installation and removal
• Chain (D-shape) body for in-line chain and wire rope connections
• Hot-dip galvanized for corrosion resistance
• Every shackle proof tested and individually traceable
• Green pin for instant brand identification

Common Applications

• Chain sling assembly and termination
• Wire rope and chain connections in overhead lifting
• Marine and offshore rigging
• Construction and industrial material handling

Why Green Pin?

Green Pin shackles by Van Beest are manufactured in the Netherlands to the highest European quality standards. Every shackle is individually proof tested, marked, and traceable — providing the documentation and confidence required for critical lifting operations worldwide.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
