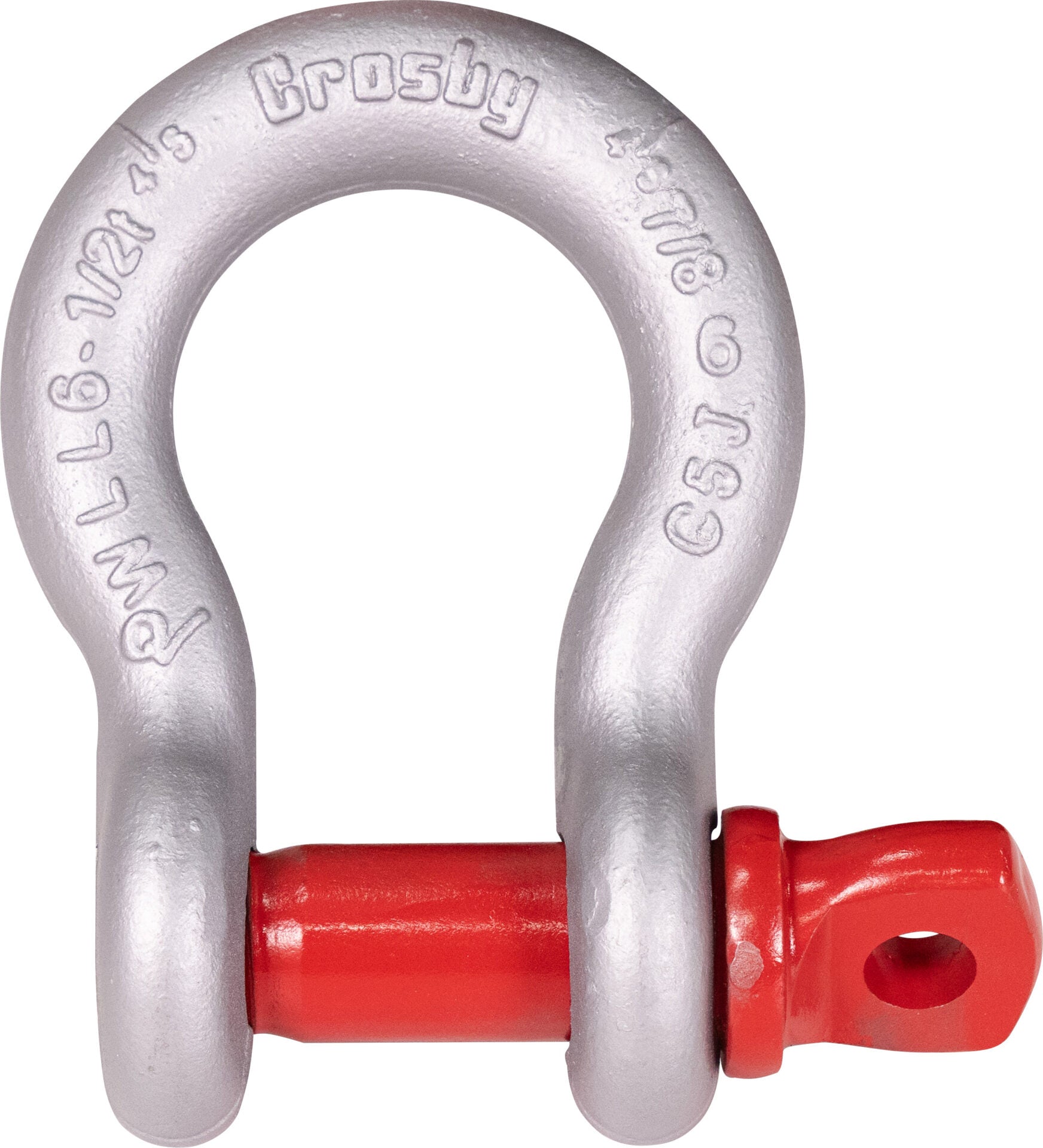

The Crosby G-209 is the industry-standard screw pin anchor shackle, trusted on jobsites worldwide for its reliability and ease of use. Forged from quenched and tempered carbon steel, it delivers exceptional strength in a compact design. The screw pin allows quick connection and disconnection, making it ideal for temporary rigging and frequently reconfigured lifts.
Key Features
- Forged carbon steel — quenched and tempered for maximum toughness
- Fatigue-rated for cyclic loading per Crosby engineering standards
- Hot-dip galvanized finish for corrosion resistance
- Proof tested at 2x the Working Load Limit (WLL)

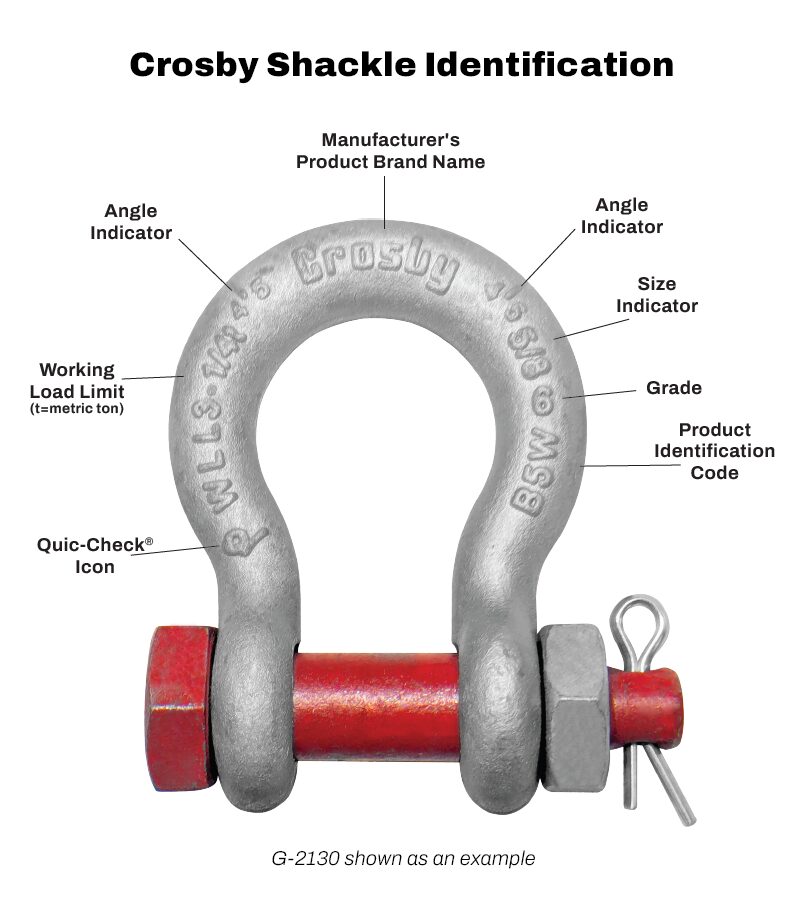

- Embossed WLL and traceability markings on every shackle
- 5:1 design factor per ASME B30.26
Common Applications

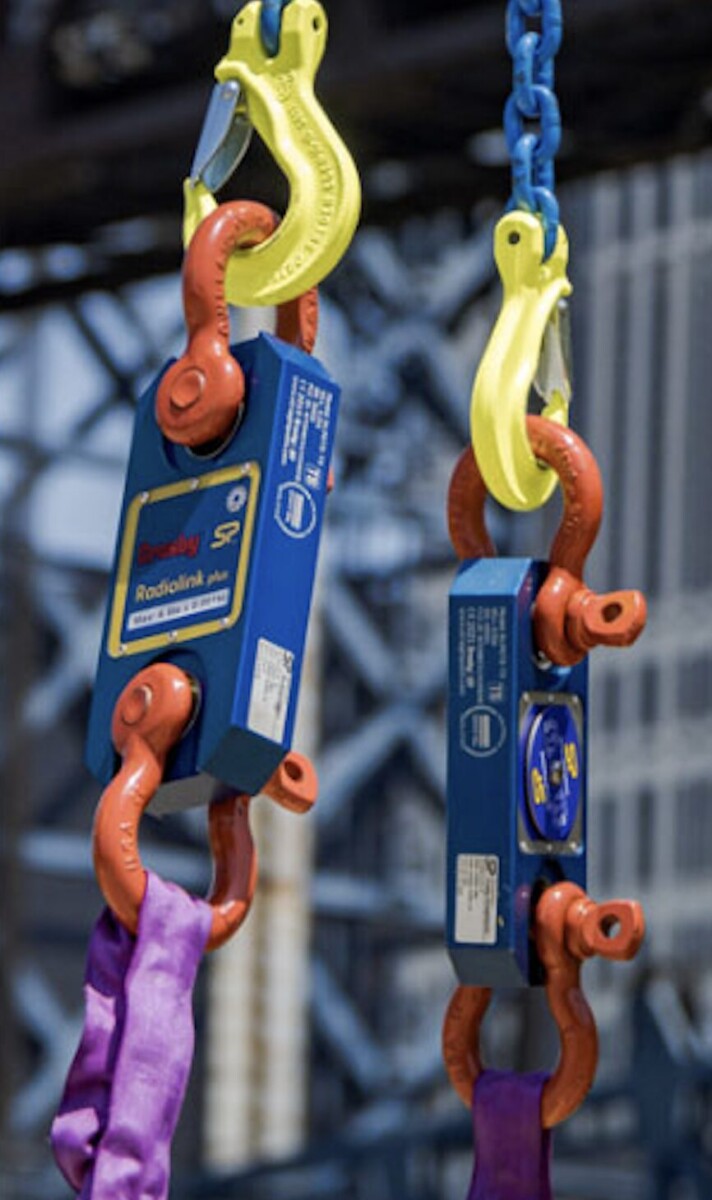

- General overhead lifting and rigging
- Wire rope and synthetic sling terminations
- Construction crane operations

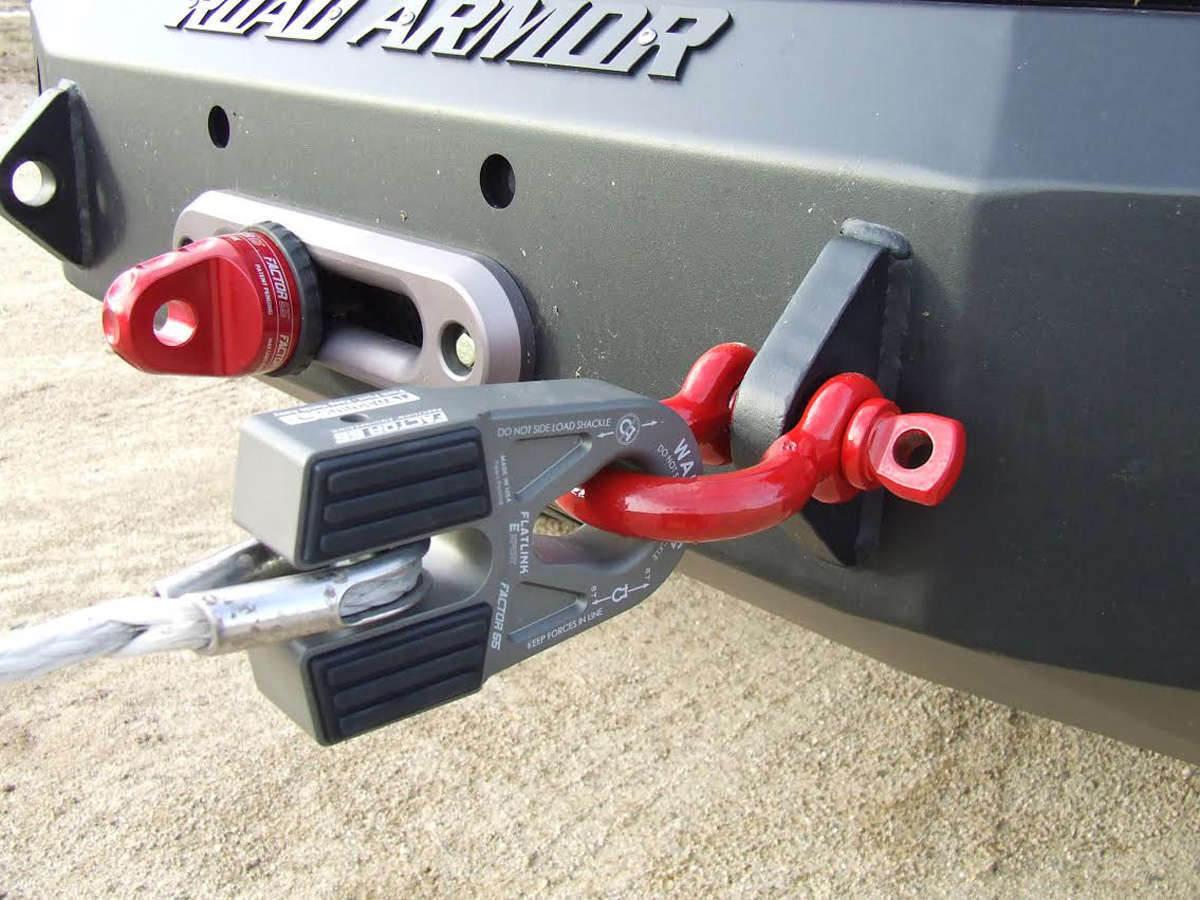

- Towing and marine applications
- Oil & gas field rigging
Standards & Compliance
Manufactured to ASME B30.26 with full traceability and individual proof test certificates. Made in the USA by Crosby.

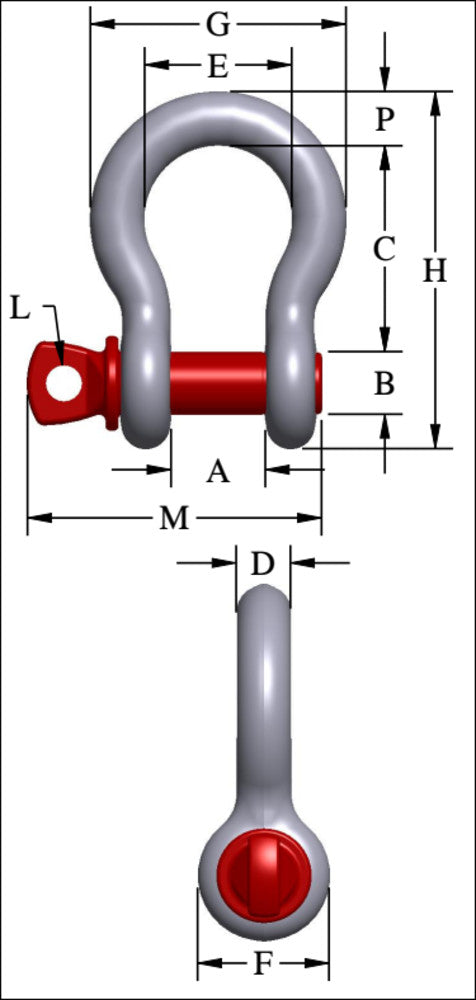

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | M (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/164.8 | 1/3 | 0.060.03 | 0.389.7 | 0.256.3 | 0.8822.4 | 0.194.8 | 0.615.2 | 0.5614.2 | 0.9824.9 | 1.4737.3 | 0.164.1 | 1.1429.0 | 0.194.8 | 1018357 |
| 1/46.3 | 1/2 | 0.10.05 | 0.4711.9 | 0.328.1 | 1.1328.7 | 0.256.3 | 0.7819.8 | 0.6215.7 | 1.2832.5 | 1.8446.7 | 0.194.8 | 1.4336.3 | 0.256.3 | 1018375 |
| 5/167.9 | 3/4 | 0.180.08 | 0.5313.5 | 0.389.7 | 1.2130.7 | 0.317.9 | 0.8421.3 | 0.7519.0 | 1.4637.1 | 2.0953.1 | 0.225.6 | 1.7143.4 | 0.317.9 | 1018393 |
| 3/89.5 | 1 | 0.310.14 | 0.6616.8 | 0.4411.2 | 1.4536.8 | 0.389.7 | 1.0326.2 | 0.9223.4 | 1.7945.5 | 2.563.5 | 0.256.3 | 2.0652.3 | 0.389.7 | 1018419 |
| 7/1611.1 | 1-1/2 | 0.380.17 | 0.7519.0 | 0.512.7 | 1.6942.9 | 0.4411.2 | 1.1629.5 | 1.0626.9 | 2.0451.8 | 2.9173.9 | 0.317.9 | 2.3760.2 | 0.4411.2 | 1018437 |
| 1/212.7 | 2 | 0.720.33 | 0.8120.6 | 0.6316.0 | 1.8847.8 | 0.512.7 | 1.3133.3 | 1.1830.0 | 2.3158.7 | 3.2883.3 | 0.389.7 | 2.6968.3 | 0.512.7 | 1018455 |
| 5/815.9 | 3-1/4 | 1.370.62 | 1.0626.9 | 0.7519.0 | 2.3860.5 | 0.6215.7 | 1.6942.9 | 1.538.1 | 2.9374.4 | 4.19106.4 | 0.4411.2 | 3.3484.8 | 0.6917.5 | 1018473 |
| 3/419.0 | 4-3/4 | 2.351.07 | 1.2531.8 | 0.8822.4 | 2.8171.4 | 0.7519.0 | 2.050.8 | 1.8146.0 | 3.588.9 | 4.97126.2 | 0.512.7 | 3.97100.8 | 0.8120.6 | 1018491 |
| 7/822.2 | 6-1/2 | 3.621.64 | 1.4436.6 | 1.025.4 | 3.3184.1 | 0.8822.4 | 2.2857.9 | 2.153.3 | 4.04102.6 | 5.83148.1 | 0.512.7 | 4.5114.3 | 0.9724.6 | 1018516 |
| 125.4 | 8-1/2 | 5.032.28 | 1.6942.9 | 1.1629.5 | 3.7695.5 | 1.025.4 | 2.6968.3 | 2.3860.5 | 4.69119.1 | 6.56166.6 | 0.5614.2 | 5.13130.3 | 1.0626.9 | 1018534 |
| 1-1/828.6 | 9-1/2 | 7.413.36 | 1.8146.0 | 1.2531.8 | 4.27108.5 | 1.1629.5 | 2.9173.9 | 2.6868.1 | 5.15130.8 | 7.47189.7 | 0.6316.0 | 5.97151.6 | 1.2531.8 | 1018552 |
| 1-1/431.8 | 12 | 9.54.31 | 2.0351.6 | 1.4135.8 | 4.69119.1 | 1.2932.8 | 3.2682.8 | 3.076.2 | 5.76146.3 | 8.26209.8 | 0.6917.5 | 6.5165.1 | 1.3835.1 | 1018570 |
| 1-3/834.9 | 13-1/2 | 13.536.14 | 2.2557.1 | 1.5639.6 | 5.22132.6 | 1.4236.1 | 3.6291.9 | 3.3184.1 | 6.38162.1 | 9.16232.7 | 0.7519.0 | 6.93176.0 | 1.538.1 | 1018598 |
| 1-1/238.1 | 17 | 17.27.8 | 2.3860.5 | 1.6642.2 | 5.76146.3 | 1.5338.9 | 3.8898.6 | 3.6291.9 | 6.94176.3 | 10.0254.0 | 0.8120.6 | 7.43188.7 | 1.6241.1 | 1018614 |
| 1-3/444.4 | 25 | 30.914.02 | 2.8873.2 | 2.0351.6 | 7.0177.8 | 1.8446.7 | 5.0127.0 | 4.19106.4 | 8.8223.5 | 12.34313.4 | 1.025.4 | 9.19233.4 | 2.1253.8 | 1018632 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 17 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3/16" | 1018357 | $12.00 | ✓ In Stock | ||
| 1/4" | 1018375 | $12.60 | ✓ In Stock | ||
| 5/16" | 1018393 | $16.04 | ✓ In Stock | ||
| 3/8" | 1018419 | $16.97 | ✓ In Stock | ||
| 7/16" | 1018437 | $19.23 | ✓ In Stock | ||
| 1/2" | 1018455 | $22.98 | ✓ In Stock | ||
| 5/8" | 1018473 | $42.97 | ✓ In Stock | ||
| 3/4" | 1018491 | $61.81 | ✓ In Stock | ||
| 7/8" | 1018516 | $85.12 | ✓ In Stock | ||
| 1" | 1018534 | $115.04 | ✓ In Stock | ||
| 1-1/8" | 1018552 | $167.22 | ✓ In Stock | ||
| 1-1/4" | 1018570 | $240.05 | ✓ In Stock | ||
| 1-3/8" | 1018598 | $311.95 | ✓ In Stock | ||
| 1-1/2" | 1018614 | $367.61 | ✓ In Stock | ||
| 1-3/4" | 1018632 | $636.66 | ✓ In Stock | ||
| 2" | 1018650 | $817.56 | ✓ In Stock | ||
| 2-1/2" | 1018678 | $2,016.66 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
