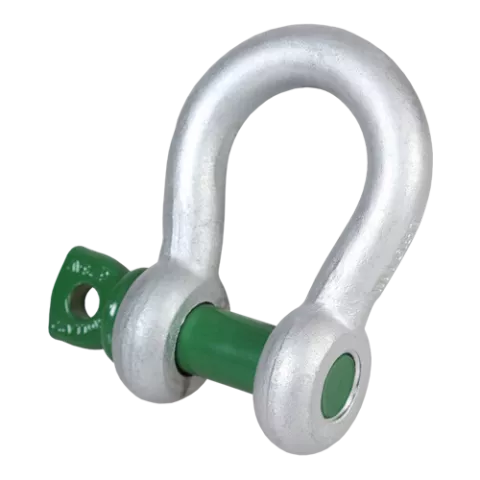

The Green Pin G-4161 Screw Pin Anchor Shackle is a forged alloy steel anchor shackle (bow-type) with a screw pin closure. The wider bow shape accommodates multiple sling legs and provides clearance for slings to move freely, making it the most versatile shackle type for general rigging applications.
Key Features
- Forged alloy steel, quenched and tempered
- Anchor (bow) shape accommodates multiple slings and hardware
- Screw pin for quick connection and disconnection
- Hot-dip galvanized for corrosion resistance
- Individually proof tested with full traceability
- Meets EN 13889 and Federal Specification RR-C-271
Common Applications
- Multi-leg sling connections at the load point
- General overhead lifting and rigging
- Construction, marine, and industrial applications
- Any application requiring the wider clearance of an anchor-type shackle
Why Green Pin?
The G-4161 is one of the most widely specified shackles in the world. Van Beest's reputation for consistent quality, complete traceability, and global availability makes Green Pin the preferred choice for riggers and engineers.

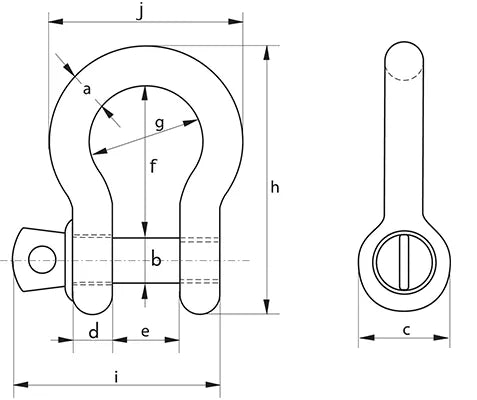

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | M (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16"5mm | 0.33 | 0.050.02 | 3/165 | 1/46 | 1/212 | 3/165 | 3/89.5 | 7/822 | 5/816 | 1 13/3236 | 1 5/3229.5 | 1 1/3226 | GPGHBB05 |
| 1/4"7mm | 0.5 | 0.110.05 | 1/47 | 5/168 | 5/816 | 9/327 | 15/3212 | 1 5/3229 | 25/3220 | 1 7/848 | 1 1/238 | 1 11/3234 | GPGHBB06 |
| 5/16"9mm | 0.75 | 0.220.10 | 5/169 | 3/810 | 3/420 | 11/329 | 17/3213.5 | 1 9/3232 | 7/822 | 2 7/3256 | 1 13/1646.5 | 1 9/1640 | GPGHBB08 |
| 3/8"10mm | 1 | 0.290.13 | 3/810 | 7/1611 | 29/3223 | 13/3210 | 21/3217 | 1 15/3237 | 1 1/3226 | 2 17/3264 | 2 1/854 | 1 7/848 | GPGHBB10 |
| 7/16"11mm | 1.5 | 0.400.18 | 7/1611 | 1/213 | 125 | 7/1611 | 3/419 | 1 11/1643 | 1 5/3229 | 2 7/873 | 2 11/3259.5 | 251 | GPGHBB11 |
| 1/2"13mm | 2 | 0.790.36 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 251 | 1 1/432 | 3 17/3290 | 2 7/873 | 2 5/1659 | GPGHBB13 |
| 5/8"16mm | 3.25 | 1.390.63 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 2 17/3264 | 1 11/1643 | 4 11/32110 | 3 1/289 | 2 15/1675 | GPGHBB16 |
| 3/4"19mm | 4.75 | 2.231.01 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 376 | 251 | 5 1/16129 | 4 1/16103 | 3 1/289 | GPGHBB19 |
| 7/8"22mm | 6.5 | 3.311.50 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 5/1683 | 2 5/1658 | 5 21/32144 | 4 11/16119 | 4102 | GPGHBB22 |
| 1"25mm | 8.5 | 4.872.21 | 125 | 1 3/3228 | 2 5/1659 | 125 | 1 11/1643 | 3 3/495 | 2 5/1658 | 6 15/32164 | 5 3/8137 | 4 5/8118 | GPGHBB25 |
| 1-1/8"28mm | 9.5 | 6.973.16 | 1 1/828 | 1 1/432 | 2 5/867 | 1 1/828 | 1 7/847 | 4 1/4108 | 2 15/1675 | 7 5/16186 | 6 1/32153 | 5 5/32131 | GPGHBB28 |
| 1-1/4"32mm | 12 | 9.504.31 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 6 11/16170 | 5 25/32147 | GPGHBB32 |
| 1-3/8"35mm | 13.5 | 12.245.55 | 1 3/835 | 1 1/238 | 3 5/3280 | 1 3/835 | 2 1/457 | 5 1/4133 | 3 5/892 | 8 15/16227 | 7 3/8187 | 6 3/8162 | GPGHBB35 |
| 1-1/2"38mm | 17 | 16.387.43 | 1 1/238 | 1 21/3242 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 8 1/32204 | 6 7/8175 | GPGHBB38 |
| 1-3/4"45mm | 25 | 28.3112.84 | 1 25/3245 | 1 31/3250 | 4 1/16103 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 9 7/16240 | 8 1/2216 | GPGHBB45 |
| 2"50mm | 35 | 40.0118.15 | 1 31/3250 | 2 1/457 | 4 3/8111 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 1/32331 | 10 1/2267 | 9 7/16240 | GPGHBB50 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 16 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3/16" (WLL 1/3 Ton) | GPGHBB05 | $7.95 | ✓ In Stock | ||
| 1/4" (WLL 1/2 Ton) | GPGHBB06 | $7.95 | ✓ In Stock | ||
| 5/16" (WLL 3/4 Ton) | GPGHBB08 | $8.95 | ✓ In Stock | ||
| 3/8" (WLL 1 Ton) | GPGHBB10 | $9.95 | ✓ In Stock | ||
| 7/16" (WLL 1.5 Ton) | GPGHBB11 | $11.95 | ✓ In Stock | ||
| 1/2" (WLL 2 Ton) | GPGHBB13 | $15.95 | ✓ In Stock | ||
| 5/8" (WLL 3.25 Ton) | GPGHBB16 | $25.95 | ✓ In Stock | ||
| 3/4" (WLL 4.75 Ton) | GPGHBB19 | $36.95 | ✓ In Stock | ||
| 7/8" (WLL 6.5 Ton) | GPGHBB22 | $48.95 | ✓ In Stock | ||
| 1" (WLL 8.5 Ton) | GPGHBB25 | $69.95 | ✓ In Stock | ||
| 1-1/8" (WLL 9.5 Ton) | GPGHBB28 | $105.95 | ✓ In Stock | ||
| 1-1/4" (WLL 12 Ton) | GPGHBB32 | $128.95 | ✓ In Stock | ||
| 1-3/8" (WLL 13.5 Ton) | GPGHBB35 | $180.95 | ✓ In Stock | ||
| 1-1/2" (WLL 17 Ton) | GPGHBB38 | $231.95 | ✓ In Stock | ||
| 1-3/4" (WLL 25 Ton) | GPGHBB45 | $371.95 | ✓ In Stock | ||
| 2" (WLL 35 Ton) | GPGHBB50 | $532.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
