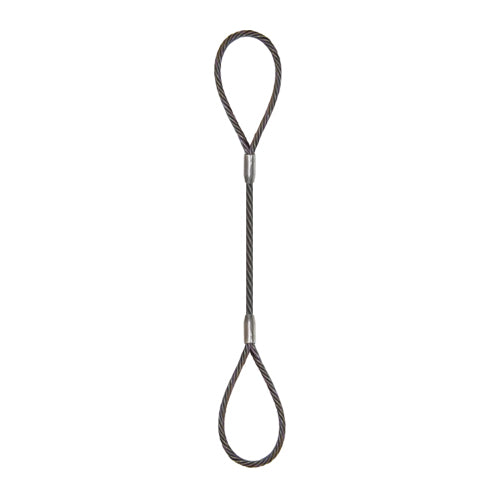

Wire Rope Sling / 1" Standard Eye & Eye

Made using EIPS wire rope, which is 15% stronger than IPS wire rope. This sling is manufactured using the flemish eye splice technique to form the eyes and is then mechanically swaged using a steel sleeve. The benefit of a flemish eye is that the integrity of the eye is not solely dependent on the sleeve. Should the sleeve become damaged during use, there is reserve strength in the eye. All slings come with a rating tag as per OSHA/ASME standards.

• Mechanical Spliced Sling
• Eye Length: 16"
• Construction: 6 x 19
• Grade: EIPS (Extra Improved Plow Steel) wire rope with an Independent Wire Rope Core (IWRC)

• Rated Capacities Basket Hitch Based On D/d Ratio Of 15
• Consider choosing Thimble Eyes to greatly improve sling longevity by protecting the rope at connection/bearing points.
• Specifications Met:  OSHA Compliant 29 CFR 1910.184, ASME B30.9

When wire rope is bent around a load, or diameter, the rope strength is decreased. The D/d ratio is the diameter of the object around which the rope is bent (D), divided by the diameter (d) of the rope. D/d affects slings used in basket hitches and must be taken into consideration. When the diameter of the load is 4 times the diameter of the wire rope sling the D/d ratio is 4/1 and the sling efficiency is 75% of the Basket WLL.

Product Specifications

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
