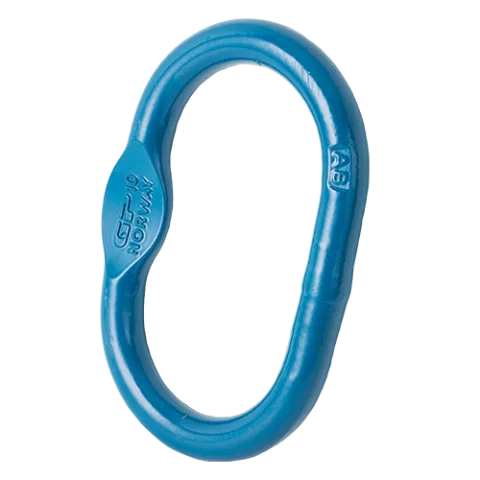

The Van Beest Green Pin UMS Grade 100 Welded Master Link delivers higher working load limits in a more compact profile than Grade 80 equivalents. Manufactured from Grade 100 alloy steel with precision flash-butt welding, this master link is the top choice for riggers who need maximum capacity with reduced weight and size.
Key Features
- Grade 100 alloy steel — 25% higher WLL than Grade 80 at equivalent size
- Flash-butt welded for uniform joint strength
- Compact dimensions reduce overall sling weight
- Individually proof tested at 2.5× WLL with certificate
- Compliant with EN 1677-4 standards
- Available in a full range of sizes for Grade 100 chain systems
Common Applications
- Grade 100 chain sling assemblies
- Weight-sensitive lifting where reduced sling mass matters
- Overhead crane rigging in manufacturing and construction
- High-capacity lifts in confined spaces
Why Van Beest?
Van Beest's Grade 100 master links let you achieve higher capacities without stepping up in physical size — saving weight, improving handling, and increasing efficiency. Backed by individual proof testing and full traceability, Green Pin components are trusted by sling makers and riggers worldwide.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

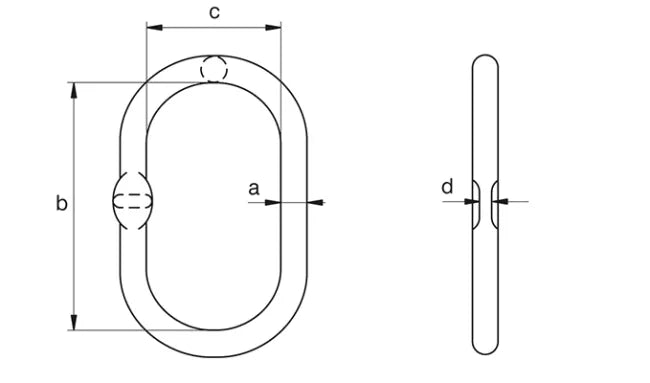

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL chain 4:1 (t)(t) | WLL — wire rope / web sling 5:1 (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| 1/2"13mm | 2 | 1.6 | 0.880.40 | 1/213 | 4 17/32115 | 2 3/860 | 9/327 | GPUMS13 |
| 5/8"16mm | 3.2 | 2.56 | 1.320.60 | 5/816 | 4 23/32120 | 2 3/470 | 9/327 | GPUMS16 |
| 11/16"18mm | 5.4 | 4.32 | 1.850.84 | 11/1618 | 5 5/16135 | 2 15/1675 | 11/329 | GPUMS18 |
| 7/8"22mm | 8.2 | 6.56 | 3.531.60 | 7/822 | 6 11/16170 | 3 17/3290 | 7/1611 | GPUMS22 |
| 1"25mm | 11.2 | 8.96 | 4.792.17 | 125 | 7 15/32190 | 4 1/16103 | 9/1614 | GPUMS25 |
| 1 3/16"30mm | 16 | 12.8 | 8.824.00 | 1 3/1630 | 7 1/2235 | 4 29/32125 | 21/3217 | GPUMS30 |
| 1 1/2"38mm | 27.6 | 22.08 | 15.77.10 | 1 1/238 | 9 27/32250 | 5 29/32150 | 7/822 | GPUMS38 |
The chain sling (4:1) column is the manufacturer’s published Working Load Limit. The wire rope / web sling (5:1) column applies the higher design factor the manufacturer specifies for non-chain slings (WLL reduced 20%). Ratings and dimensions are from the manufacturer catalog.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| GPUMS13 · 13mm dia · 2.0 t (4,409 lb) | GPUMS13 | $13.50 | ✓ In Stock | ||
| GPUMS16 · 16mm dia · 3.2 t (7,055 lb) | GPUMS16 | $16.30 | ✓ In Stock | ||
| GPUMS18 · 18mm dia · 5.4 t (11,905 lb) | GPUMS18 | $22.10 | ✓ In Stock | ||
| GPUMS22 · 22mm dia · 8.0 t (17,637 lb) | GPUMS22 | $32.65 | ✓ In Stock | ||
| GPUMS25 · 25mm dia · 11.2 t (24,692 lb) | GPUMS25 | $44.35 | ✓ In Stock | ||
| GPUMS30 · 30mm dia · 16.0 t (35,274 lb) | GPUMS30 | $71.75 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
