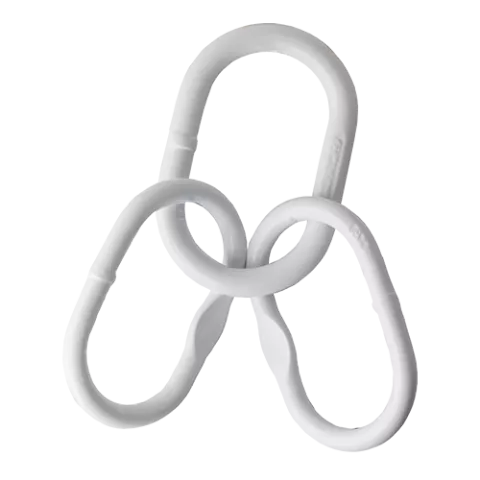

The Van Beest Green Pin MTS Grade 80 Welded Master Link Assembly is a pre-assembled master link set consisting of an oblong master link with two coupling links, ready to accept multi-leg chain sling connections. Built from Grade 80 alloy steel, this assembly simplifies sling fabrication by providing a complete, matched top-end connection.
Key Features
- Grade 80 alloy steel master link and coupling links
- Pre-assembled for faster sling fabrication
- Flash-butt welded construction on all components
- Coupling links sized to match master link capacity
- Individually proof tested at 2.5× WLL
- Compliant with EN 1677-4 standards
Common Applications
- Double and multi-leg chain sling assemblies
- Overhead crane and hoist rigging
- Heavy lift operations in construction, mining, and manufacturing
- Any application requiring a ready-to-use master link and coupling set
Why Van Beest?
Green Pin master link assemblies eliminate the guesswork of component matching — every piece is manufactured, tested, and certified together by Van Beest. This ensures dimensional compatibility, consistent WLL ratings, and full traceability from a single trusted source.

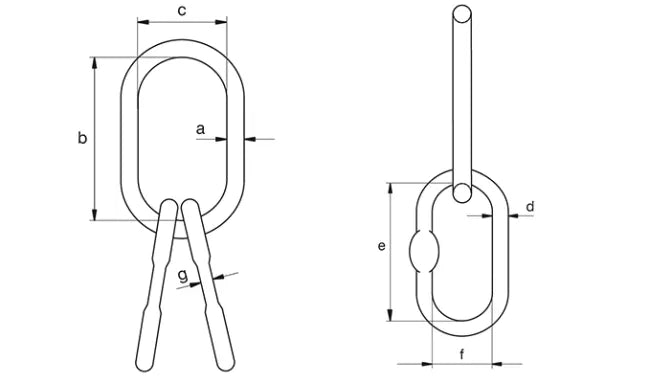

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 5/8"16mm | 2.5 | 2.651.20 | 5/816 | 4 23/32120 | 2 3/470 | 1/213 | 4 17/32115 | 2 3/860 | 9/327 | GPMTS16 |
| 11/16"18mm | 3.5 | 4.391.99 | 11/1618 | 5 5/16135 | 2 15/1675 | 5/816 | 4 23/32120 | 2 3/470 | 9/327 | GPMTS18 |
| 7/8"22mm | 6.5 | 7.283.30 | 7/822 | 6 11/16170 | 3 17/3290 | 23/3218 | 5 5/16135 | 375 | 11/329 | GPMTS22 |
| 1"25mm | 8.5 | 9.924.50 | 125 | 7 15/32190 | 4 1/16103 | 25/3220 | 5 29/32150 | 3 7/3282 | 7/1611 | GPMTS25 |
| 1 1/8"28mm | 10 | 11.95.40 | 1 1/828 | 8 7/32209 | 4 23/32120 | 25/3220 | 5 29/32150 | 3 7/3282 | 7/1611 | GPMTS28 |
| 1 3/16"30mm | 13 | 15.97.20 | 1 3/1630 | 9 1/4235 | 4 29/32125 | 7/822 | 6 11/16170 | 3 17/3290 | 9/1614 | GPMTS30 |
| 1 3/8"36mm | 17 | 24.711.2 | 1 3/836 | 10 5/8270 | 5 23/32145 | 31/3225 | 7 15/32190 | 4 1/16103 | 9/1614 | GPMTS36 |
| 1 1/2"38mm | 20.8 | 29.313.3 | 1 1/238 | 9 27/32250 | 5 29/32150 | 1 3/3228 | 8 7/32209 | 4 23/32120 | 21/3217 | GPMTS38 |
| 1 3/4"45mm | 30 | 55.825.3 | 1 3/445 | 11 13/16300 | 7 7/8200 | 1 13/3236 | 10 5/8270 | 5 23/32145 | 7/822 | GPMTS45 |
| 2"50mm | 40 | 71.032.2 | 250 | 14 31/32380 | 7 7/8200 | 1 1/238 | 9 27/32250 | 5 29/32150 | 7/822 | GPMTS50 |
| 2 3/16"55mm | 50 | 77.635.2 | 2 3/1655 | 14 3/16360 | 7 7/8200 | 1 1/238 | 9 27/32250 | 5 29/32150 | 7/822 | GPMTS55 |
| 2 3/8"60mm | 60 | 12054.2 | 2 3/860 | 16 15/16430 | 8 21/32220 | 1 25/3245 | 11 13/16300 | 7 7/8200 | -45 | GPMTS60 |
| 2 3/4"70mm | 80 | 19086.0 | 2 3/470 | 19 11/16500 | 9 27/32250 | 2 5/3255 | 14 3/16360 | 7 7/8200 | -55 | GPMTS70 |
| 3 1/8"80mm | 100 | 226103 | 3 1/880 | 19 13/16503 | 11 1/32280 | 2 9/3258 | 14 3/16360 | 7 7/8200 | 2 9/3258 | GPMTS80 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 13 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| GPMTS16 · 2.5 t (5,512 lb) | GPMTS16 | $39.95 | ✓ In Stock | ||
| GPMTS18 · 3.5 t (7,716 lb) | GPMTS18 | $47.95 | ✓ In Stock | ||
| GPMTS22 · 6.5 t (14,330 lb) | GPMTS22 | $64.95 | ✓ In Stock | ||
| GPMTS25 · 8.5 t (18,739 lb) | GPMTS25 | $72.95 | ✓ In Stock | ||
| GPMTS28 · 10.0 t (22,046 lb) | GPMTS28 | $87.95 | ✓ In Stock | ||
| GPMTS30 · 13.0 t (28,660 lb) | GPMTS30 | $94.95 | ✓ In Stock | ||
| GPMTS36 · 17.0 t (37,479 lb) | GPMTS36 | $146.95 | ✓ In Stock | ||
| GPMTS38 · 20.8 t (45,856 lb) | GPMTS38 | $216.95 | ✓ In Stock | ||
| GPMTS45 · 30.0 t (66,139 lb) | GPMTS45 | $380.95 | ✓ In Stock | ||
| GPMTS50 · 40.0 t (88,185 lb) | GPMTS50 | $486.95 | ✓ In Stock | ||
| GPMTS55 · 50.0 t (110,231 lb) | GPMTS55 | $611.95 | ✓ In Stock | ||
| GPMTS70 · 80.0 t (176,370 lb) | GPMTS70 | $2,995.95 | ✓ In Stock | ||
| GPMTS80 · 100.0 t (220,462 lb) | GPMTS80 | $3,740.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
