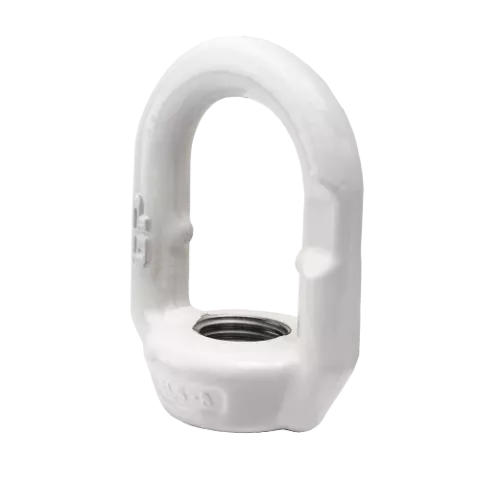

Van Beest Green Pin® Grade 80 Eye Nut


Thread Size: GPEL6 (M6 x 1.00)Ask for a different size
Price:
Sale price$32.40

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

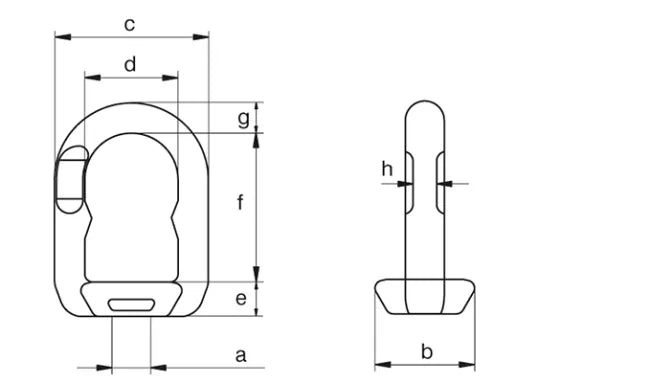

Van Beest Green Pin® Grade 80 Eye Nut dimensions
Dimension Legend
A
thread diameter
B
base diameter
C
width
D
inside width
E
base thickness
F
inside length
G
diameter
H
thickness
Stock #SizeWLL (lb)(t)Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)
GPEL6M6 (6mm mm)4400.20.330.15M6 X 1.0061 7/32312511 3/16309/16141 25/32457/16111/46
GPEL8M8 (8mm mm)8810.40.330.15M8 X 1.2581 7/32312511 3/16309/16141 25/32457/16111/46
GPEL10M10 (10mm mm)1,5430.70.330.15M10 X 1.50101 7/32312511 3/16309/16141 25/32457/16111/46
GPEL12M12 (12mm mm)2,20410.510.23M12 X 1.75121 17/32392 7/32561 1/43219/32151 7/84815/32121/46
GPEL14M14 (14mm mm)2,6451.20.510.23M14 X 2.00141 17/32392 7/32561 1/43219/32151 7/84815/32121/46
GPEL16M16 (16mm mm)3,3061.50.840.38M16 X 2.00161 23/32442 9/16651 15/32375/8162 3/8609/16145/168
GPEL18M18 (18mm mm)4,40920.830.38M18 X 2.50181 23/32442 9/16651 15/32375/8162 3/8609/161411/329
GPEL20M20 (20mm mm)5,5112.50.830.37M20 X 2.50201 23/32442 9/16651 15/32375/8162 3/8609/161411/329
GPEL22M22 (22mm mm)6,61331.390.63M22 X 2.50222 1/16523 1/8791 15/164913/16212 15/16755/8167/1611
GPEL24M24 (24mm mm)8,81841.390.63M24 X 3.00242 1/16523 1/8791 15/164913/16212 15/16755/8167/1611
GPEL27M27 (27mm mm)11,02351.390.63M27 X 3.00272 1/16523 1/8791 15/164913/16212 15/16755/8167/1611
GPEL30M30 (30mm mm)13,22762.451.11M30 X 3.50302 19/32663 25/32962 9/325815/16243 15/328813/16219/1614
GPEL33M33 (33mm mm)15,43272.451.11M33 X 3.50332 19/32663 25/32962 9/325815/16243 15/328813/16219/1614
GPEL36M36 (36mm mm)17,63684.902.22M36 X 4.00363 5/16844 3/41212 7/8731 17/32393 15/1610031/322521/3217
GPEL39M39 (39mm mm)19,84194.902.22M39 X 4.00393 5/16844 3/41212 7/8731 17/32393 15/1610031/322521/3217
GPEL42M42 (42mm mm)22,046104.902.22M42 X 4.50423 5/16844 3/41212 7/8731 17/32393 15/1610031/322521/3217
GPEL45M45 (45mm mm)33,069157.213.27M45 X 4.50453 17/32905 3/161323 7/32821 5/8414 13/1612231/32257/822
GPEL48M48 (48mm mm)39,683187.213.27M48 X 5.00483 17/32905 3/161323 7/32821 5/8414 13/1612231/32257/822

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

The Green Pin Grade 80 Eye Nut is a forged alloy steel lifting nut designed to provide a rated lifting point on threaded studs and bolts. The eye accepts shackles, hooks, and sling hardware, converting any properly rated threaded connection into a certified lifting point. Grade 80 construction provides high working load limits in a compact form.

Key Features

  • Grade 80 forged alloy steel for high working load capacity
  • Eye accepts shackles, hooks, and standard rigging hardware
  • Threads onto existing studs and bolts for instant lifting points
  • Individually proof tested and traceable
  • Manufactured to European quality standards by Van Beest

Common Applications

  • Creating lifting points on machinery and equipment with threaded holes
  • Mold and die lifting using existing mounting bolt holes
  • Equipment installation and maintenance lifting
  • Any application requiring a removable, rated lifting point on threads

Why Green Pin?

Green Pin eye nuts provide certified, traceable lifting points where they're needed most. Unlike generic hardware store eye nuts, every Green Pin unit is proof tested and rated for overhead lifting.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 18 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
GPEL6 (M6 x 1.00) GPEL6 $32.40 0.33 lb ✓ In Stock
GPEL8 (M8 x 1.25) GPEL8 $35.25 0.33 lb ✓ In Stock
GPEL10 (M10 x 1.50) GPEL10 $36.90 0.33 lb ✓ In Stock
GPEL12 (M12 x 1.75) GPEL12 $38.20 0.51 lb ✓ In Stock
GPEL14 (M14 x 2.00) GPEL14 $39.45 0.51 lb ✓ In Stock
GPEL16 (M16 x 2.00) GPEL16 $40.15 0.84 lb ✓ In Stock
GPEL18 (M18 x 2.50) GPEL18 $43.15 0.83 lb ✓ In Stock
GPEL20 (M20 x 2.50) GPEL20 $51.15 0.83 lb ✓ In Stock
GPEL22 (M22 x 2.50) GPEL22 $59.35 1.39 lb ✓ In Stock
GPEL24 (M24 x 3.00) GPEL24 $67.20 1.39 lb ✓ In Stock
GPEL27 (M27 x 3.00) GPEL27 $71.05 1.39 lb ✓ In Stock
GPEL30 (M30 x 3.50) GPEL30 $93.20 2.45 lb ✓ In Stock
GPEL33 (M33 x 3.50) GPEL33 $105.00 2.45 lb ✓ In Stock
GPEL36 (M36 x 4.00) GPEL36 $137.00 4.9 lb ✓ In Stock
GPEL39 (M39 x 4.00) GPEL39 $140.50 4.9 lb ✓ In Stock
GPEL42 (M42 x 4.50) GPEL42 $152.50 4.9 lb ✓ In Stock
GPEL45 (M45 x 4.50) GPEL45 $200.50 7.21 lb ✓ In Stock
GPEL48 (M48 x 5.00) GPEL48 $218.00 7.21 lb ✓ In Stock

Weights are approximate shipping weights.
