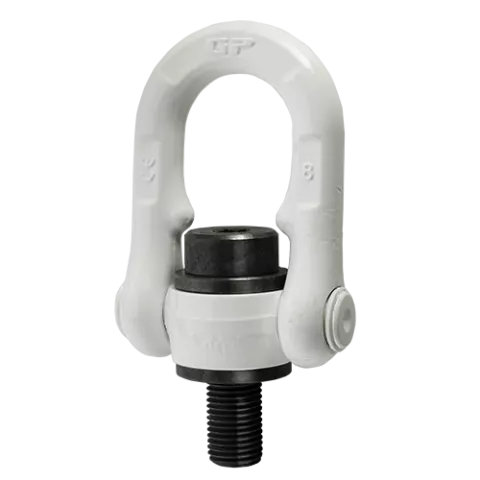

Van Beest Green Pin® ADAUNC Rotating Hoist Ring (UNC Threads)

Green Pin (Van Beest)SKU: GPADA08UNC

Thread Size: GPADA08UNC (5/16" UNC)Ask for a different size
Price:
Sale price$47.58

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

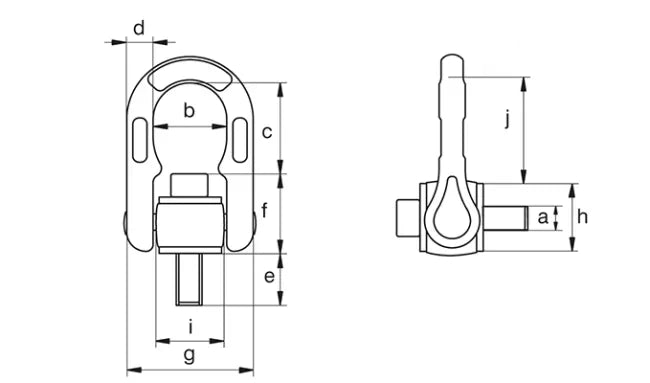

Van Beest Green Pin® ADAUNC Rotating Hoist Ring (UNC Threads) dimensions
Dimension Legend
A
Thread size
E
Thread/stud length
Stock #SizeWLL (lb)(t)Weight (lb)(kg)AB (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)I (in)(mm)J (in)(mm)K (in)(mm)
GPADA08UNC5/16" (8mm mm)8810.40.950.435/161 13/32361 21/324215/321223/32181 3/8352 23/32691 11/32341 3/8351 11/16431/46
GPADA10UNC3/8" (10mm mm)1,3220.60.970.443/81 13/32361 9/164015/321223/32181 15/32372 23/32691 11/32341 3/8351 11/16435/168
GPADA12UNC1/2" (12mm mm)2,20411.010.461/21 13/32361 1/23815/321215/16241 17/32392 23/32691 11/32341 3/8351 11/164313/3210
GPADA16UNC5/8" (16mm mm)3,7471.71.200.555/81 13/32361 11/164315/32121 7/32311 11/16432 23/32691 11/32341 3/8352 1/16521/213
GPADA20UNC3/4" (20mm mm)5,5112.51.210.553/41 13/32361 17/323915/32121 7/32311 27/32472 23/32691 11/32341 3/8352 1/16525/816
GPADA22UNC7/8" (22mm mm)7,7163.54.151.887/82 3/32532 1/4573/4191 3/8352 3/4704 3/321041 15/16492 1/16522 25/32713/419
GPADA24UNC1" (24mm mm)9,9204.54.261.9312 3/32532 1/8543/4191 5/8412 7/8734 3/321041 15/16492 1/16522 25/32713/419
GPADA32UNC1-1/4" (32mm mm)14,9916.84.652.111 1/42 3/32532 15/32623/4192 5/32552 17/32644 3/321041 15/16492 1/16522 25/32713/419
GPADA38UNC1-1/2" (38mm mm)23,80910.812.25.551 1/22 7/8733 5/8921 3/16302 15/16753 9/32835 3/41462 11/16682 27/32723 27/32983/419
GPADA50UNC2" (50mm mm)29,98213.613.76.2022 7/8733 25/32961 3/16302 15/16753 5/32805 3/41462 11/16682 27/32723 27/32983/419

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

The Van Beest Green Pin ADAUNC Rotating Hoist Ring features UNC (Unified National Coarse) threads for direct compatibility with North American bolt standards. Its full 360° swivel and 180° pivot action allows the load to self-align with the lifting force, eliminating dangerous side loads and maximizing working load limit.

Key Features

  • 360° swivel and 180° pivot for omnidirectional lifting
  • UNC thread pattern for seamless use with imperial fastener systems
  • Forged alloy steel body for superior strength-to-weight ratio
  • Spring-loaded ring stays upright for easy sling attachment
  • Individually proof tested at 2.5× working load limit
  • Compact, low-profile design minimizes interference

Common Applications

  • Machine shop and manufacturing lifting points
  • Mold, die, and fixture handling
  • Structural steel and construction rigging
  • Industrial maintenance and equipment positioning
  • Any application requiring a permanent, reusable lift point with UNC threads

Why Van Beest?

Van Beest's Green Pin hoist rings are trusted across heavy industry for their proven durability and consistent quality. Each unit ships with individual proof test certification and full material traceability — delivering the safety assurance professionals demand.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 7 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
GPADA08UNC (5/16" UNC) GPADA08UNC $47.58 0.95 lb ✓ In Stock
GPADA10UNC (3/8" UNC) GPADA10UNC $40.85 0.97 lb ✓ In Stock
GPADA12UNC (1/2" UNC) GPADA12UNC $41.90 1.01 lb ✓ In Stock
GPADA16UNC (5/8" UNC) GPADA16UNC $42.20 1.2 lb ✓ In Stock
GPADA20UNC (3/4" UNC) GPADA20UNC $57.40 1.21 lb ✓ In Stock
GPADA22UNC (7/8" UNC) GPADA22UNC $107.50 4.15 lb ✓ In Stock
GPADA24UNC (1" UNC) GPADA24UNC $108.50 4.25 lb ✓ In Stock

Weights are approximate shipping weights.

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
