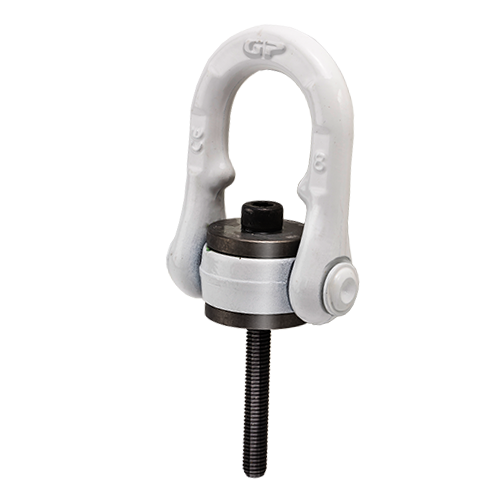

Van Beest Green Pin® ADAL Long Rotating Hoist Ring (Metric)

The Van Beest Green Pin ADAL Long Rotating Hoist Ring is a metric-thread rotating lifting point engineered for applications requiring extended bolt length. Its 360° swivel and 180° pivot design ensures the load aligns naturally with the direction of pull, reducing side loading on the bolt and maximizing rated capacity.

Key Features

• 360° swivel and 180° pivot for omnidirectional load alignment
• Extended bolt length for mounting on thick flanges and structures
• Metric thread sizes for international compatibility
• Forged alloy steel construction with high fatigue resistance
• Spring-loaded mechanism keeps ring upright when not under load
• Individually proof tested with certificate

Common Applications

• Heavy machinery and equipment lifting
• Mold and die handling in manufacturing
• Structural steel erection and rigging
• Thick flange mounting where standard bolt lengths are insufficient
• Offshore and industrial maintenance lifts

Why Van Beest?

Van Beest's Green Pin brand is recognized worldwide for premium lifting and rigging hardware. Every ADAL hoist ring is individually proof tested, backed by full traceability, and manufactured to meet the strictest international quality standards — giving riggers confidence in every lift.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
