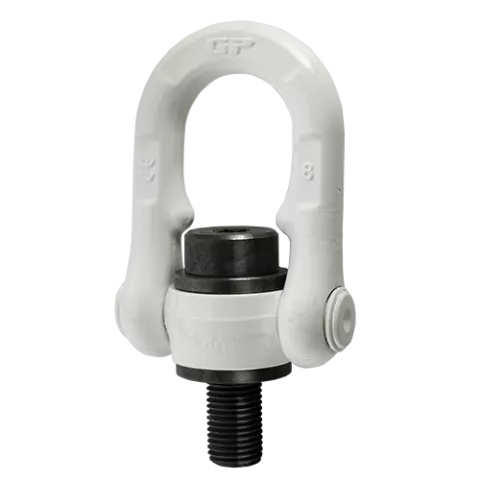

Van Beest Green Pin® ADA Rotating Hoist Ring (Metric)


Thread Size: GPADA08 (M8 x 1.25)Ask for a different size
Price:
Sale price$33.95

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

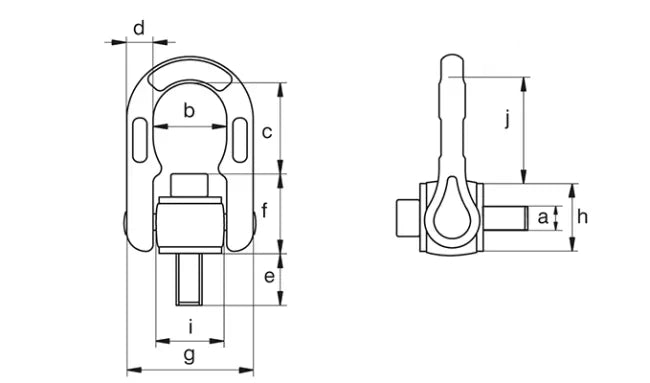

Van Beest Green Pin® ADA Rotating Hoist Ring (Metric) dimensions
Dimension Legend
A
Thread size
E
Thread/stud length
Stock #SizeWLL (lb)(t)Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)I (in)(mm)J (in)(mm)
GPADA08M8 (8mm mm)8810.40.950.43M881 13/32361 21/324215/321223/32181 3/8352 23/32691 11/32341 3/8351 11/1643
GPADA10M10 (10mm mm)1,5430.70.970.44M10101 13/32361 9/164015/321223/32181 15/32372 23/32691 11/32341 3/8351 11/1643
GPADA12M12 (12mm mm)2,20411.010.46M12121 13/32361 1/23815/321229/32231 17/32392 23/32691 11/32341 3/8351 11/1643
GPADA14M14 (14mm mm)2,8661.31.040.47M14141 13/32361 13/323615/321229/32231 5/8412 23/32691 11/32341 3/8351 11/1643
GPADA16M16 (16mm mm)3,5271.61.150.52M16161 13/32361 11/164315/32121 3/32281 11/16432 23/32691 11/32341 3/8352 1/1652
GPADA18M18 (18mm mm)4,40921.190.54M18181 13/32361 5/84115/32121 3/32281 25/32452 23/32691 11/32341 3/8352 1/1652
GPADA20M20 (20mm mm)5,5112.51.300.59M20201 13/32361 17/323915/32121 5/16331 27/32472 23/32691 11/32341 3/8352 1/1652
GPADA22M22 (22mm mm)6,61334.151.88M22222 3/32532 1/4573/4191 1/4322 3/4704 3/321041 15/16492 1/16522 25/3271
GPADA24M24 (24mm mm)8,81844.261.93M24242 3/32532 7/32563/4191 15/32372 27/32724 3/321041 15/16492 1/16522 25/3271
GPADA27M27 (27mm mm)11,02354.321.96M27272 3/32532 15/32633/4191 25/32452 17/32644 3/321041 15/16492 1/16522 25/3271
GPADA30M30 (30mm mm)13,8896.34.482.03M30302 3/32532 15/32633/4191 25/32452 17/32644 3/321041 15/16492 1/16522 25/3271
GPADA33M33 (33mm mm)15,432711.65.28M33332 7/8733 21/32931 3/16302 1/8543 9/32835 7/81492 11/16682 27/32723 27/3298
GPADA36M36 (36mm mm)22,0461011.85.35M36362 7/8733 21/32931 3/16302 1/8543 9/32835 7/81492 11/16682 27/32723 27/3298
GPADA39M39 (39mm mm)22,0461012.05.45M39392 7/8733 21/32931 3/16302 15/32633 9/32835 7/81492 11/16683 27/32723 27/3298
GPADA42M42 (42mm mm)27,55712.512.35.56M42422 25/32713 7/16871 3/16302 15/32633 5/16845 3/41462 11/16683 1/32773 27/3298

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

The Green Pin ADA Rotating Hoist Ring (Metric) is a bolt-on lifting point with 360° rotation and 180° pivot, designed for permanent installation on machinery and equipment. The self-aligning design automatically adjusts to the sling load direction, eliminating side-loading on the bolt and maintaining full rated capacity regardless of lifting angle.

Key Features

  • 360° rotation plus 180° pivot for complete directional freedom
  • Metric thread options for European and international equipment
  • Forged alloy steel, individually proof tested
  • Self-aligning eliminates side-loading on the mounting bolt
  • Fatigue rated for repeated lifting cycles
  • Manufactured by Van Beest to European quality standards

Common Applications

  • Permanent lifting points on molds, dies, and production tooling
  • Machinery installation and maintenance lifting
  • Equipment with metric-threaded mounting holes
  • Any application requiring a fixed, reusable, self-aligning lifting point

Why Green Pin?

Green Pin hoist rings combine Van Beest's reputation for quality with self-aligning design that maximizes capacity at every lifting angle. No capacity reduction for angular loads — a significant advantage over fixed eye bolts.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 14 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
GPADA08 (M8 x 1.25) GPADA08 $33.95 0.95 lb ✓ In Stock
GPADA10 (M10 x 1.50) GPADA10 $34.95 0.97 lb ✓ In Stock
GPADA12 (M12 x 1.75) GPADA12 $34.95 1.01 lb ✓ In Stock
GPADA14 (M14 x 2.00) GPADA14 $34.95 1.04 lb ✓ In Stock
GPADA16 (M16 x 2.00) GPADA16 $36.95 1.15 lb ✓ In Stock
GPADA18 (M18 x 2.50) GPADA18 $36.95 1.19 lb ✓ In Stock
GPADA20 (M20 x 2.50) GPADA20 $36.95 1.3 lb ✓ In Stock
GPADA24 (M24 x 3.00) GPADA24 $95.95 4.25 lb ✓ In Stock
GPADA27 (M27 x 3.00) GPADA27 $153.95 4.32 lb ✓ In Stock
GPADA30 (M30 x 3.50) GPADA30 $163.95 4.48 lb ✓ In Stock
GPADA33 (M33 x 3.50) GPADA33 $335.95 11.6 lb ✓ In Stock
GPADA36 (M36 x 4.00) GPADA36 $337.95 11.8 lb ✓ In Stock
GPADA39 (M39 x 4.00) GPADA39 $341.95 12.0 lb ✓ In Stock
GPADA42 (M42 x 4.50) GPADA42 $347.95 12.3 lb ✓ In Stock

Weights are approximate shipping weights.
