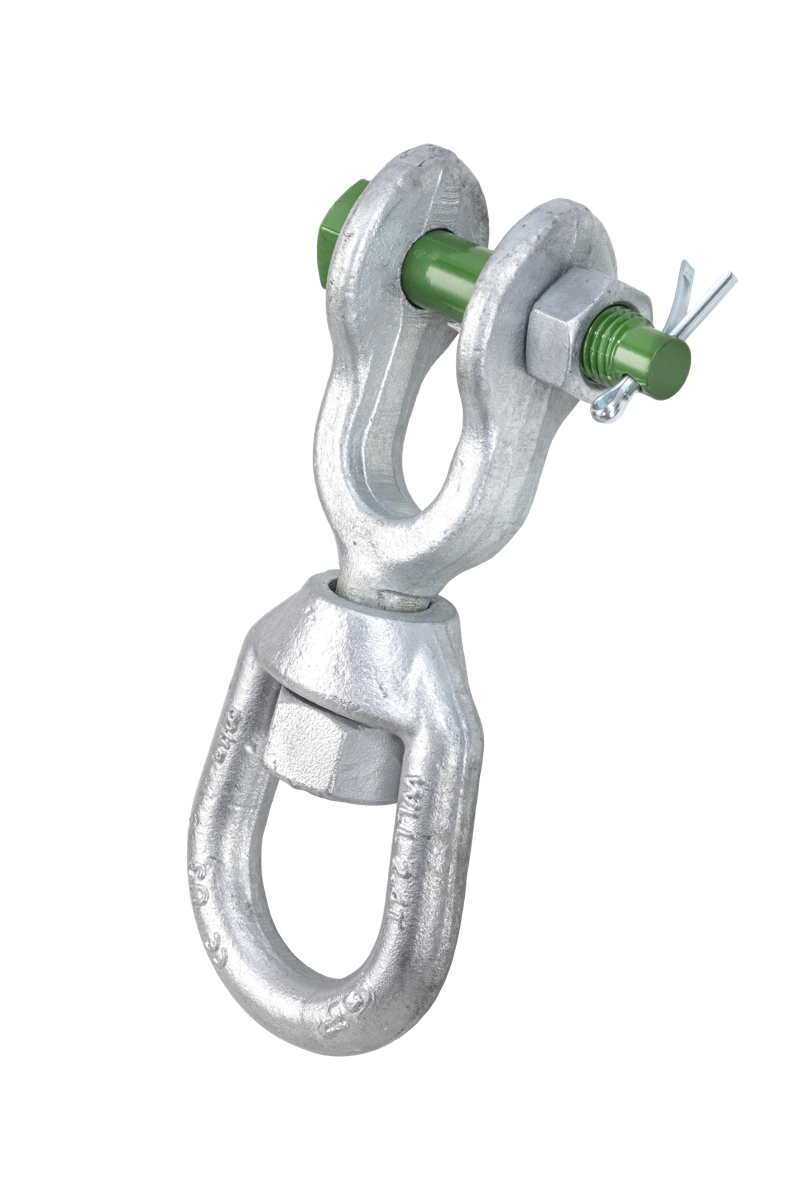

The Van Beest Green Pin® G-7733 JE Swivel BN is a jaw-and-eye swivel with safety bolt and nut — designed to relieve torque and rotation in wire rope, chain, and synthetic sling assemblies. The jaw end attaches directly to terminations or fittings; the eye end accepts hooks, shackles, or thimbles. Hot dip galvanized for marine and outdoor durability.
Key Features
- Jaw-and-eye configuration: jaw end connects to terminations, eye end accepts hooks or shackles
- Safety bolt with nut and split pin for secure assembly
- High-tensile steel construction, fully forged
- Hot dip galvanized finish for marine and outdoor use
- WLL from 0.6 t up to 5.7 t across the range
- Compliant with US Federal Specification RR-C-271 Type VII Class 3
Common Applications
- Wire rope sling assemblies requiring rotation relief
- Crane and hoist rigging where load may spin
- Marine, towing, and barge work
- Theatrical and stage rigging
- Tree care and arborist rigging
Specifications
- Product code: G-7733
- Material: High-tensile steel
- Finish: Hot dipped galvanized
- Design factor: 5:1
- Standards: US Fed. Spec. RR-C-271 Type VII Class 3
- Country of origin: Netherlands (EU)
Why Van Beest Green Pin?
Green Pin swivels are the global benchmark for rotation-relief hardware in rigging applications. Every G-7733 is fully forged with material traceability and 2.1/2.2/3.1 certificates available on request.

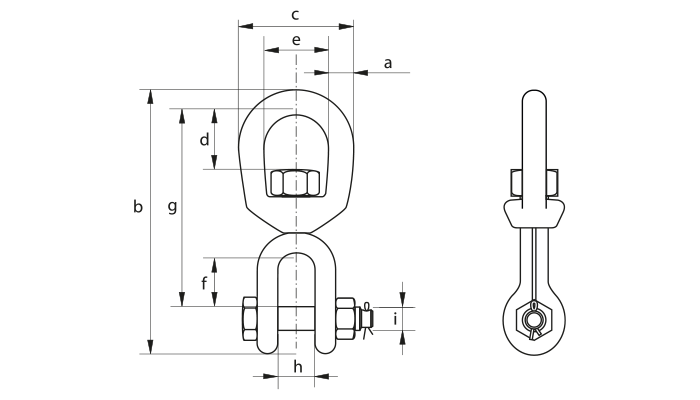

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16" (8mm) | 0.6 | 0.350.16 | 5/168 | 3 29/3299 | 1 5/841 | 13/1621 | 125 | 29/3223 | 2 15/1675 | 1/213 | 5/168 | WTGPGO08SB |
| 13/32" (10mm) | 1.12 | 0.710.32 | 13/3210 | 4 13/16122 | 251 | 15/1624 | 1 1/432 | 1 1/1627 | 3 5/892 | 5/816 | 13/3210 | WTGPGO10SB |
| 1/2" (13mm) | 1.63 | 1.260.57 | 1/213 | 6 1/16154 | 2 17/3264 | 1 5/1633 | 1 1/238 | 1 5/1633 | 4 17/32115 | 13/1621 | 1/213 | WTGPGO13SB |
| 5/8" (16mm) | 2.4 | 2.170.98 | 5/816 | 7 1/4184 | 376 | 1 9/1640 | 1 25/3245 | 1 1/238 | 5 5/16135 | 1 1/3226 | 5/816 | WTGPGO16SB |
| 3/4" (19mm) | 3.3 | 4.151.88 | 3/419 | 8 5/16211 | 3 1/289 | 1 25/3245 | 251 | 1 25/3245 | 6 1/16154 | 1 7/3231 | 3/419 | WTGPGO19SB |
| 7/8" (22mm) | 4.54 | 5.362.43 | 7/822 | 9 19/32244 | 4 1/32102 | 2 3/3252 | 2 1/457 | 2 1/1653 | 7178 | 1 7/3231 | 29/3222 | WTGPGO22SB |
| 1" (25mm) | 5.7 | 8.864.02 | 125 | 11 11/16297 | 4 1/2114 | 2 5/1659 | 2 17/3264 | 2 27/3272 | 8 19/32218 | 1 27/3247 | 1 5/3228 | WTGPGO25SB |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/16 in (8mm) · WLL 0.6 t | WTGPGO08SB | $28.95 | ✓ In Stock | ||
| 13/32 in (10mm) · WLL 1.12 t | WTGPGO10SB | $33.95 | ✓ In Stock | ||
| 1/2 in (13mm) · WLL 1.63 t | WTGPGO13SB | $39.95 | ✓ In Stock | ||
| 5/8 in (16mm) · WLL 2.4 t | WTGPGO16SB | $43.95 | ✓ In Stock | ||
| 3/4 in (19mm) · WLL 3.3 t | WTGPGO19SB | $55.95 | ✓ In Stock | ||
| 7/8 in (22mm) · WLL 4.54 t | WTGPGO22SB | $78.95 | ✓ In Stock | ||
| 1 in (25mm) · WLL 5.7 t | WTGPGO25SB | $178.95 | ✓ In Stock |
