The Van Beest Green Pin® G-6419 Open Long Wedge Socket CP is an open wedge socket with a long wedge and cotter (split) pin closure. A Green Pin® Wire Rope Clip can be connected to the long wedge to hold the wire rope securely in place, and the wedge's "GO/NO GO" holes let riggers verify the correct wire rope size on the job. Built from high-tensile, hot-dipped galvanized steel for long-term durability in marine, offshore, and heavy industrial environments.
Key Features
- Long wedge with attached wire rope clip — wedge cannot fall out of socket
- "GO / NO GO" holes verify correct wire rope size on the job
- Always-correct dead-end wire rope length (no measurement guesswork)
- No need for the extra piece of wire rope traditionally used to fill the clip's opening
- High-tensile steel, hot dip galvanized for long-term corrosion resistance
- Temperature range: -20°C to +200°C
- Compliant with ASME B30.26 and EN 13411-6
- Certifications: 2.1, 2.2, 3.1, CE
- Available for wire rope diameters from 3/8" (10mm) up to 1-1/4" (32mm)
Common Applications
- Wire rope crane assemblies and rigging terminations
- Offshore lifting and mooring
- Construction and structural steel erection
- Mining and heavy industrial wire rope applications
- Marine and tugboat rigging
Specifications
- Product code: G-6419
- Material: High-tensile steel
- Finish: Hot dipped galvanized
- Temperature range: -20°C to +200°C
- Design factor: 5:1 (MBL = 5× WLL)
- Standards: ASME B30.26, EN 13411-6
- Country of origin: Netherlands (EU)
Why Van Beest Green Pin?
Green Pin wedge sockets are the industry benchmark for wire rope terminations on cranes and rigging assemblies. Every G-6419 is forged, heat-treated, and proof-tested per ASME B30.26 with full material traceability.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

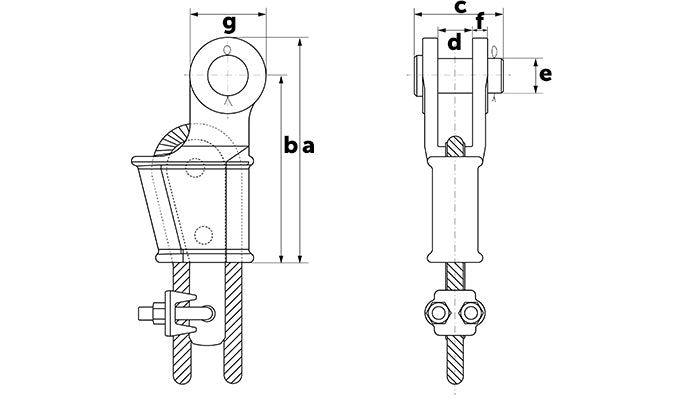

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/8"10mm | 3.311.50 | 6 1/2165 | 5 19/32142 | 2 7/1662 | 13/1620.5 | 13/1621 | 7/1611 | 1 13/1646 | SKGOW010L | |
| 1/2"13mm | 5.292.40 | 6 7/8175 | 5 3/4146 | 2 19/3266 | 31/3225 | 31/3225 | 15/3212 | 2 1/457 | SKGOW013L | |
| 5/8"16mm | 8.824.00 | 8 5/16211 | 6 15/16176 | 3 7/3282 | 1 7/3231 | 1 3/1630 | 19/3215 | 2 3/470 | SKGOW016L | |
| 3/4"19mm | 16.37.40 | 9 29/32252 | 8 11/32212 | 3 3/495 | 1 1/238 | 1 3/835 | 5/816 | 3 5/3280 | SKGOW019L | |
| 7/8"22mm | 24.311.0 | 11 11/32288 | 9 7/16240 | 4 11/32110 | 1 23/3244 | 1 5/841 | 3/419 | 3 3/495 | SKGOW022L | |
| 1"25mm | 35.316.0 | 12 15/16329 | 10 25/32274 | 5 1/8130 | 251 | 251 | 7/822 | 4 11/32110 | SKGOW025L | |
| 1-1/8"28mm | 48.522.0 | 14 3/4375 | 12 7/32310 | 5 21/32144 | 2 1/457 | 2 1/457 | 31/3225 | 5 1/8130 | SKGOW028L | |
| 1-1/4"32mm | 68.431.0 | 16 21/32423 | 13 25/32350 | 6 3/32155 | 2 15/3263 | 2 17/3264 | 1 3/3228 | 5 3/4146 | SKGOW032L |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3/8 in (10mm) wire · NO. 0.5 · 12 t MBL | SKGOW010L | $123.50 | ✓ In Stock | ||
| 1/2 in (13mm) wire · NO. 1 · 20 t MBL | SKGOW013L | $138.00 | ✓ In Stock | ||
| 5/8 in (16mm) wire · NO. 2 · 25 t MBL | SKGOW016L | $144.00 | ✓ In Stock | ||
| 3/4 in (19mm) wire · NO. 3 · 40 t MBL | SKGOW019L | $236.00 | ✓ In Stock | ||
| 7/8 in (22mm) wire · NO. 4 · 55 t MBL | SKGOW022L | $332.50 | ✓ In Stock | ||
| 1 in (25mm) wire · NO. 5 · 75 t MBL | SKGOW025L | $470.50 | ✓ In Stock | ||
| 1 1/8 in (28mm) wire · NO. 6 · 90 t MBL | SKGOW028L | $626.50 | ✓ In Stock | ||
| 1 1/4 in (32mm) wire · NO. 7 · 110 t MBL | SKGOW032L | $860.00 | ✓ In Stock |
