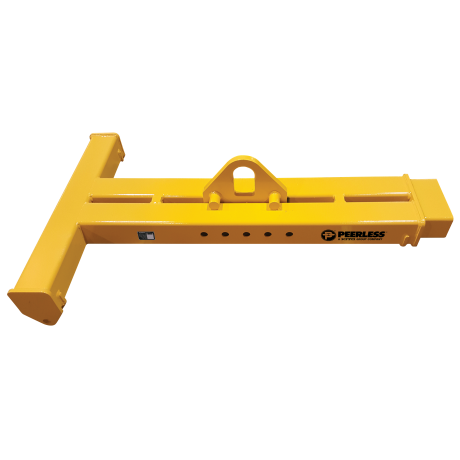

Peerless TPLB Three Point Lifting Beam

Overview

The Peerless TPLB Three Point Lifting Beam is a fully customized below-the-hook device used where headroom is limited and when lifting objects that require multiple lift points. Designed to meet your specific lifting requirements.

Manufactured by Peerless, a Kito Crosby brand.

Standards & Compliance

• ASME B30.20 — Below-the-Hook Lifting Devices
• ASME BTH-1 Design Category B, Class 2
• Proof-Tested to 125% of rated capacity
• Certificates supplied at no additional charge
• Made in USA

Standard Configurations

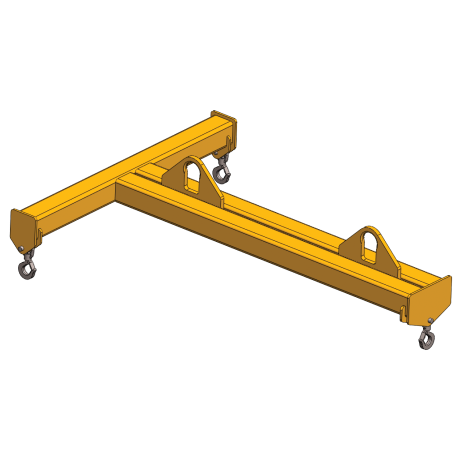

• (A) Dual bail — Utilizes multiple hoists to add stability to the lift

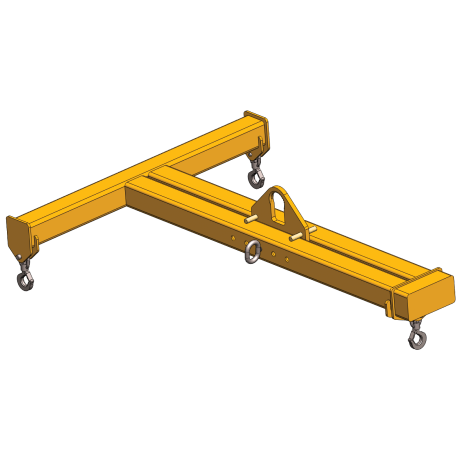

• (B) Adjustable bail option — Adjust bail for offset center of gravity

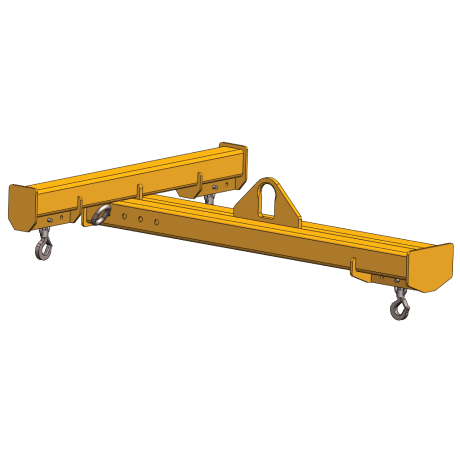

• (C) Adjustable lift points — Adjust lower lift points for different load lengths/widths

Custom Configuration (Quote Required)

This product is fully custom-engineered to your application. Specify in your quote request:

• Load weight & capacity required
• Headroom available
• Lift point spacing (three points)
• Center of gravity considerations
• Hoist/crane configuration

Available Options (Quote Required)

• Multiple lift points
• Dual bails
• Lower headroom bail
• Adjustable spread
• Adjustable bail
• Swivel hooks
• Shackle lugs
• Additional load pins
• Beam stand

How to Order

This is a fully custom-configured below-the-hook lifting device. Click "Request a Quote" to start your custom build. Our team will work with the manufacturer to confirm specifications, lead time, and freight before order placement.

Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
