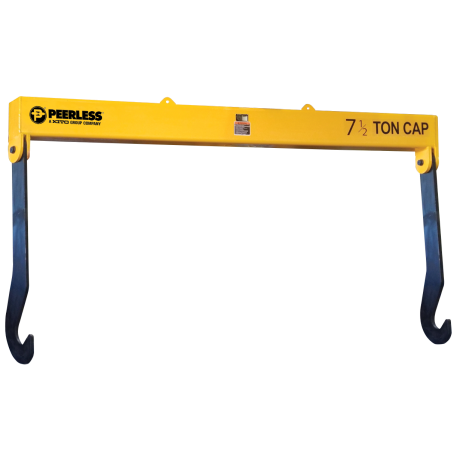

Peerless RLB Roll Lifting Beam

Overview

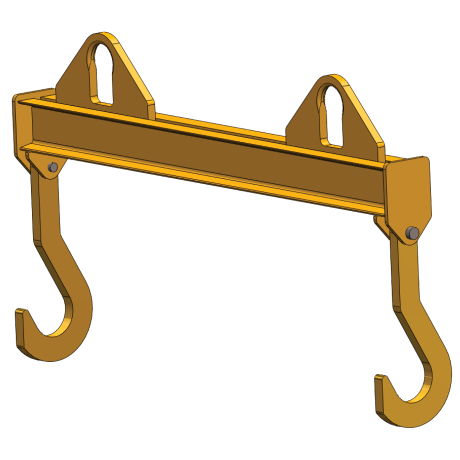

The Peerless RLB Roll Lifting Beam is a fully customized below-the-hook device designed to easily lift and position rolls by the mandrel/shaft (when it is through the center of the roll) with plate-style hooks. Used where headroom is limited. Comes standard with a pair of fixed or pivoting plate-style hooks.

Manufactured by Peerless, a Kito Crosby brand.

Standards & Compliance

• ASME B30.20 — Below-the-Hook Lifting Devices
• ASME BTH-1 Design Category B, Service Class 2
• 100% Proof-Tested to 125% of rated capacity
• Certificates supplied at no additional charge
• Made in USA

Standard Configurations

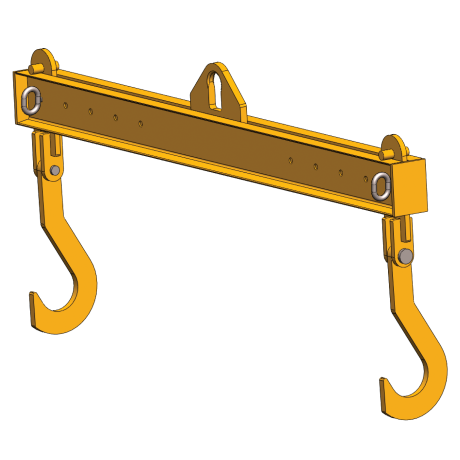

• Adjustable spread option — Allows the lifter to handle rolls of varying widths

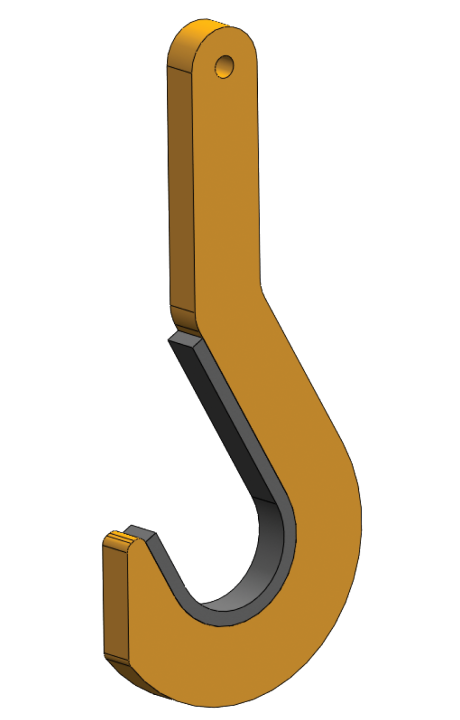

• Hook lining option — Utilizes bronze or urethane linings to provide additional protection to the mandrel or shaft
• Dual bail option — Utilizes multiple hoists to add stability to the lift

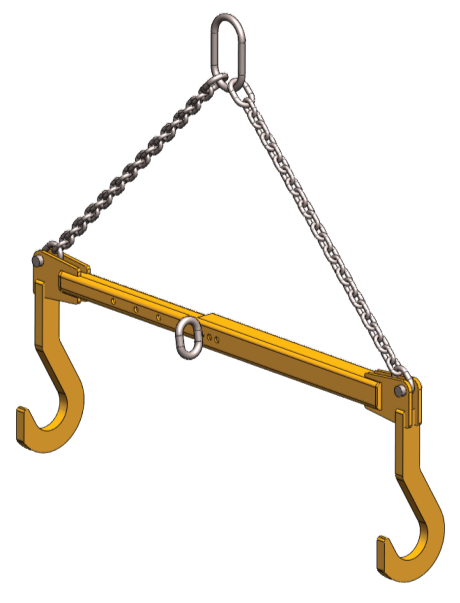

• Spreader beam design option — Provides greater stability when headroom is not limited

Custom Configuration (Quote Required)

This product is fully custom-engineered to your application. Specify in your quote request:

• Roll diameter range & weight
• Mandrel/shaft diameter
• Headroom available
• Number of lift points required
• Hook orientation (fixed or pivoting)

Available Options (Quote Required)

• Adjustable spread
• Higher capacities
• Additional lengths
• Lower headroom bail
• Twin bail design for two hoists
• Spreader beam design with top rigging
• Additional hooks
• Urethane or bronze hook linings
• Beam stand

How to Order

This is a fully custom-configured below-the-hook lifting device. Click "Request a Quote" to start your custom build. Our team will work with the manufacturer to confirm specifications, lead time, and freight before order placement.

Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
