Overview

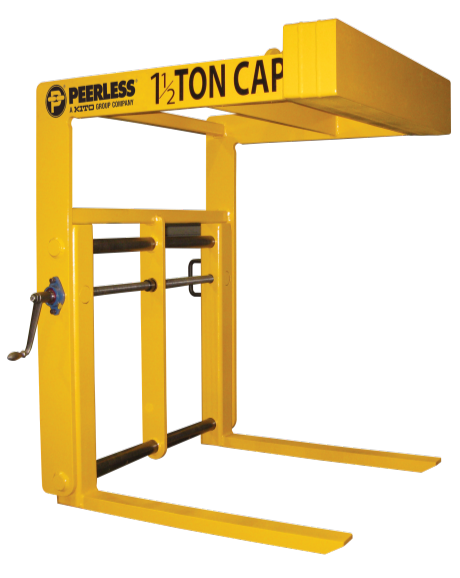

The Peerless PLAH Adjustable Fork Heavy Duty Pallet Lifter w/ Hand Wheel is engineered with a double frame and forged forks to lift and carry heavy palletized loads efficiently with an overhead crane. Supplied standard with a hand wheel to adjust forks to allow the lifter to handle various pallet sizes. Counter-balanced to hang level when unloaded. Easily maintained low headroom design. The bail is a lower headroom design and is positioned to avoid side loading the crane hook.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Options (Available on Quote)
- Larger throat openings
- Greater outside fork widths
- Additional sizes and capacities available
How to Order
Configurations and pricing for the PLAH are application-specific. Click "Request a Quote" to get accurate pricing, lead time, and freight for your application. Our team will work with you to spec the right capacity, throat opening, fork dimensions, and any options you need.
Specifications — 9 Configurations
| Product | Capacity(Tons) | Fork Length(in) | Fork Width(in) | Fork Height(in) | Outside Fork W Min/Max | Bail Center(in) | Headroom(in) | Throat Opening H(in) | Bail Height(in) | Bail Opening W(in) | Bail Opening H(in) | Bail Thickness(in) | Weight(Lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLAH-7.5-48 | 7.5 | 48 | 6 | 3 | 16/48 | 24 | 66 | 48 | 1.5 | 4 | 7 | 1.5 | 3350 |
| PLAH-7.5-60 | 7.5 | 60 | 8 | 3 | 20/48 | 30 | 77.5 | 60 | 1.5 | 4 | 7 | 1.5 | 4550 |
| PLAH-7.5-72 | 7.5 | 72 | 10 | 3 | 24/48 | 36 | 80 | 60 | 1.5 | 4 | 7 | 1.5 | 5050 |
| PLAH-10-48 | 10 | 48 | 8 | 3 | 20/48 | 24 | 65.5 | 48 | 2 | 5 | 9 | 1.75 | 3950 |
| PLAH-10-60 | 10 | 60 | 10 | 3 | 24/48 | 30 | 77.5 | 60 | 2 | 5 | 9 | 1.75 | 5750 |
| PLAH-10-72 | 10 | 72 | 10 | 3.5 | 24/48 | 36 | 82 | 60 | 2 | 5 | 9 | 1.75 | 6550 |
| PLAH-12.5-48 | 12.5 | 48 | 8 | 3 | 16/48 | 24 | 82 | 48 | 2 | 5 | 9 | 1.75 | 5250 |
| PLAH-12.5-60 | 12.5 | 60 | 10 | 3 | 24/48 | 30 | 82 | 60 | 2 | 5 | 9 | 1.75 | 6350 |
| PLAH-12.5-72 | 12.5 | 72 | 10 | 3.5 | 24/48 | 36 | 82 | 60 | 2 | 5 | 9 | 1.75 | 7350 |
Dimensions sourced directly from Peerless manufacturer catalog. Standards: ASME B30.20 · ASME BTH-1 Cat B Class 2 · 100% Proof-Tested to 125% · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Pricing by quote
This product is configured to order, or pricing varies with current vendor availability. Tell us what you need and we'll send a detailed quote within one business day.
Request a Quote →Or call (305) 767-3223 · email sales@slingcenter.com
