Overview

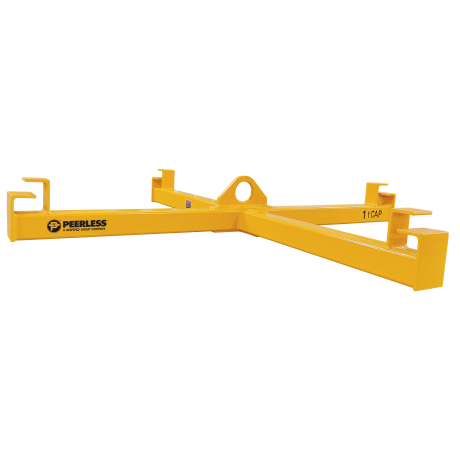

The Peerless FPSL Four Point Sack Lifter Beam is designed to lift bulk container sacks. Standard Sling Keeper design provides improved sling containment during the lift. Low-headroom design meets metric rating requirements, making it an ideal choice for lifting where headroom is limited. Smooth-edge design minimizes wear on lifting straps for long-term use.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Capacity Range
1 metric ton and 2 metric ton capacities with outside spreads of 36 in and 48 in. 4 standard configurations available — see the Technical Specifications tab below for the complete dimension chart.
Available Options (Quote Required)
- Sling spacers
- Low to negative headroom designs
- Additional sizes and styles available
How to Order
This is a custom-configured below-the-hook lifting device. Click "Request a Quote" to get accurate pricing, lead time, and freight. Our team will confirm specifications and any optional features with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.

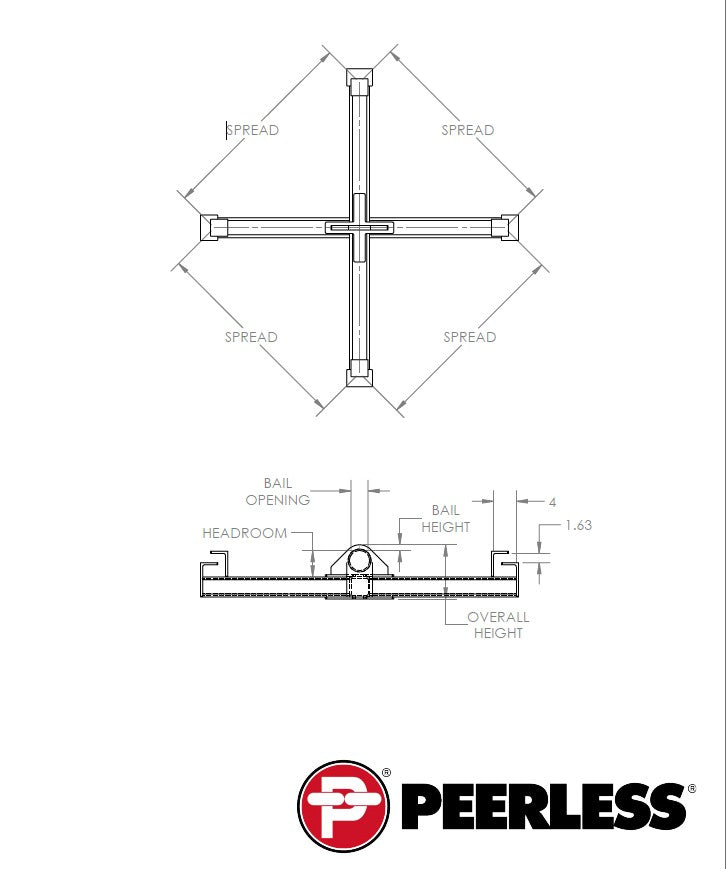

Specifications — All 4 Configurations
| SKU | Capacity(Metric Tons) | Outside Spread(in) | Headroom(in) | Bail Height(in) | Bail Opening W(in) | Overall Height(in) | Weight(Lbs) |
|---|---|---|---|---|---|---|---|
| FPSL-1-36SK | 1 | 36 | 4.63 | 1 | 3.5 | 9 | 120 |
| FPSL-1-48SK | 1 | 48 | 4.63 | 1 | 3.5 | 9 | 145 |
| FPSL-2-36SK | 2 | 36 | 4.63 | 1 | 3.5 | 9.5 | 140 |
| FPSL-2-48SK | 2 | 48 | 4.63 | 1 | 3.5 | 9.5 | 170 |
Dimensions sourced directly from Peerless manufacturer catalog. SK suffix = Standard Sling Keeper design for improved sling containment. Capacity rated in metric tons per bulk-bag industry convention. Smooth-edge design minimizes wear on lifting straps. Smooth-edge design minimizes wear on lifting straps. Standards: ASME B30.20 · ASME BTH-1 Design Category B Service Class 2 · Design Factor 3:1 · Proof-Tested to 125% of rated capacity · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
