Specifications — All Models by Capacity
| Model # | Capacity (US tons) | End Cap Model | Pipe Size | Outside Spread (ft) | Schedule 80 Wall Thickness (in) | Weight (lb) |
|---|---|---|---|---|---|---|
| ECP-5-6 | 25 | EC-5-25 | 5" SCH 80 | 6 | 0.375 | 72 |
| ECP-5-6 | 50 | EC-5-50 | 5" SCH 80 | 6 | 0.375 | 72 |
| ECP-5-8 | 25 | EC-5-25 | 5" SCH 80 | 8 | 0.375 | 114 |
| ECP-5-8 | 50 | EC-5-50 | 5" SCH 80 | 8 | 0.375 | 114 |
| ECP-5-10 | 25 | EC-5-25 | 5" SCH 80 | 10 | 0.375 | 155 |
| ECP-5-10 | 30 | EC-5-50 | 5" SCH 80 | 10 | 0.375 | 155 |
| ECP-5-12 | 25 | EC-5-25 | 5" SCH 80 | 12 | 0.375 | 197 |
| ECP-5-12 | 30 | EC-5-50 | 5" SCH 80 | 12 | 0.375 | 197 |
| ECP-5-16 | 25 | EC-5-25 | 5" SCH 80 | 16 | 0.375 | 280 |
| ECP-5-20 | 20 | EC-5-25 | 5" SCH 80 | 20 | 0.375 | 363 |
| ECP-5-24 | 15 | EC-5-25 | 5" SCH 80 | 24 | 0.375 | 446 |
| ECP-5-28 | 10 | EC-5-25 | 5" SCH 80 | 28 | 0.375 | 529 |
| ECP-8-8 | 80 | EC-8-80 | 8" SCH 80 | 8 | 0.500 | 224 |
| ECP-8-10 | 50 | EC-8-50 | 8" SCH 80 | 10 | 0.500 | 310 |
| ECP-8-10 | 80 | EC-8-80 | 8" SCH 80 | 10 | 0.500 | 310 |
| ECP-8-12 | 50 | EC-8-50 | 8" SCH 80 | 12 | 0.500 | 397 |
| ECP-8-12 | 80 | EC-8-80 | 8" SCH 80 | 12 | 0.500 | 397 |
| ECP-8-16 | 50 | EC-8-50 | 8" SCH 80 | 16 | 0.500 | 571 |
| ECP-8-16 | 80 | EC-8-80 | 8" SCH 80 | 16 | 0.500 | 571 |
| ECP-8-20 | 50 | EC-8-50 | 8" SCH 80 | 20 | 0.500 | 744 |
| ECP-8-20 | 60 | EC-8-80 | 8" SCH 80 | 20 | 0.500 | 744 |
| ECP-8-24 | 50 | EC-8-50 | 8" SCH 80 | 24 | 0.500 | 918 |
| ECP-8-24 | 60 | EC-8-80 | 8" SCH 80 | 24 | 0.500 | 918 |
| ECP-8-28 | 50 | EC-8-50 | 8" SCH 80 | 28 | 0.500 | 1092 |
| ECP-8-28 | 60 | EC-8-80 | 8" SCH 80 | 28 | 0.500 | 1092 |
| ECP-8-32 | 50 | EC-8-50 | 8" SCH 80 | 32 | 0.500 | 1265 |
| ECP-8-32 | 60 | EC-8-80 | 8" SCH 80 | 32 | 0.500 | 1265 |
| ECP-8-36 | 30 | EC-8-50 | 8" SCH 80 | 36 | 0.500 | 1439 |
| ECP-8-40 | 25 | EC-8-50 | 8" SCH 80 | 40 | 0.500 | 1612 |
| ECP-12-8 | 110 | EC-12-110 | 12" SCH 80 | 8 | 0.687 | 427 |
| ECP-12-8 | 130 | EC-12-130 | 12" SCH 80 | 8 | 0.687 | 427 |
| ECP-12-10 | 110 | EC-12-110 | 12" SCH 80 | 10 | 0.687 | 604 |
| ECP-12-10 | 130 | EC-12-130 | 12" SCH 80 | 10 | 0.687 | 604 |
| ECP-12-12 | 110 | EC-12-110 | 12" SCH 80 | 12 | 0.687 | 781 |
| ECP-12-12 | 130 | EC-12-130 | 12" SCH 80 | 12 | 0.687 | 781 |
| ECP-12-16 | 110 | EC-12-110 | 12" SCH 80 | 16 | 0.687 | 1135 |
| ECP-12-16 | 130 | EC-12-130 | 12" SCH 80 | 16 | 0.687 | 1135 |
| ECP-12-20 | 80 | EC-12-80 | 12" SCH 80 | 20 | 0.687 | 1489 |
| ECP-12-20 | 110 | EC-12-110 | 12" SCH 80 | 20 | 0.687 | 1489 |
| ECP-12-20 | 130 | EC-12-130 | 12" SCH 80 | 20 | 0.687 | 1489 |
| ECP-12-24 | 80 | EC-12-80 | 12" SCH 80 | 24 | 0.687 | 1844 |
| ECP-12-24 | 110 | EC-12-110 | 12" SCH 80 | 24 | 0.687 | 1844 |
| ECP-12-24 | 130 | EC-12-130 | 12" SCH 80 | 24 | 0.687 | 1844 |
| ECP-12-28 | 80 | EC-12-80 | 12" SCH 80 | 28 | 0.687 | 2198 |
| ECP-12-28 | 110 | EC-12-110 | 12" SCH 80 | 28 | 0.687 | 2198 |
| ECP-12-28 | 130 | EC-12-130 | 12" SCH 80 | 28 | 0.687 | 2198 |
| ECP-12-32 | 80 | EC-12-80 | 12" SCH 80 | 32 | 0.687 | 2552 |
| ECP-12-32 | 110 | EC-12-110 | 12" SCH 80 | 32 | 0.687 | 2552 |
| ECP-12-32 | 130 | EC-12-130 | 12" SCH 80 | 32 | 0.687 | 2552 |
| ECP-12-36 | 80 | EC-12-80 | 12" SCH 80 | 36 | 0.687 | 2906 |
| ECP-12-36 | 110 | EC-12-110 | 12" SCH 80 | 36 | 0.687 | 2906 |
| ECP-12-36 | 130 | EC-12-130 | 12" SCH 80 | 36 | 0.687 | 2906 |
| ECP-12-40 | 80 | EC-12-80 | 12" SCH 80 | 40 | 0.687 | 3260 |
| ECP-12-40 | 110 | EC-12-110 | 12" SCH 80 | 40 | 0.687 | 3260 |
| ECP-12-40 | 120 | EC-12-130 | 12" SCH 80 | 40 | 0.687 | 3260 |
Capacity in US tons. Dimensions in inches unless a column notes otherwise. Dimensions and ratings sourced directly from the manufacturer catalog.
Overview

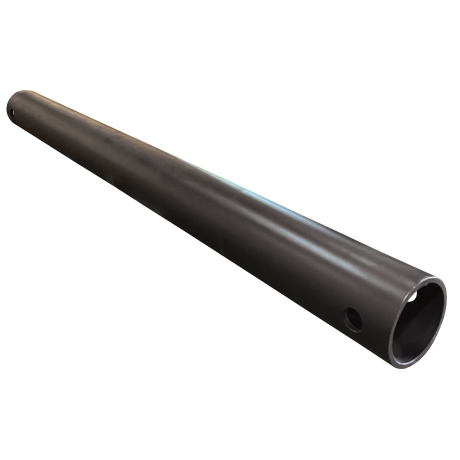

The Peerless ECP End Cap Pipe is a lifting component that allows the user to assemble their own spreader beam by attaching specified Peerless End Caps along with upper and lower rigging. When assembled, this style of spreader beam adds extra stability to the lift. Should be utilized where headroom is not limited.
Manufactured by Peerless, a Kito Crosby brand.
Complies with ASME B30.20 & BTH-1 when assembled per factory specifications. 100% of all Peerless End Cap Pipe is certified to the material specification supplied by the pipe manufacturer as well as the working load limit listed in the End Cap Pipe chart when used with the specified End Caps at the appropriate rigging angles.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Options (Available on Quote)
- Higher capacities
- Upper and lower shackles
- Chain or wire rope top rigging
- End Caps (sold separately)
How to Order
Configurations and pricing for the ECP are application-specific. Click "Request a Quote" to get accurate pricing, lead time, and freight for your application. Our team will work with you to spec the right capacity, throat opening, fork dimensions, and any options you need.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
