Overview

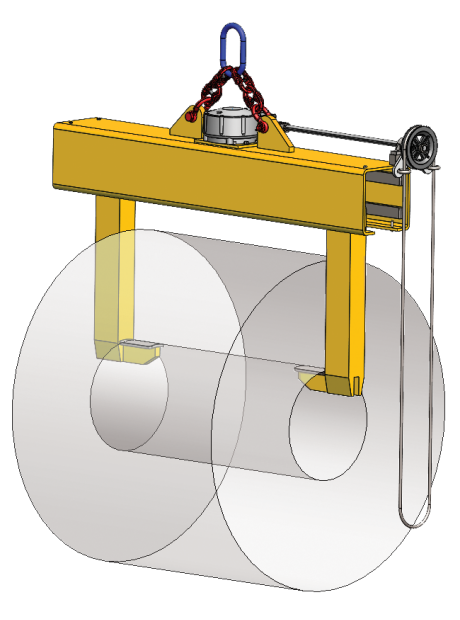

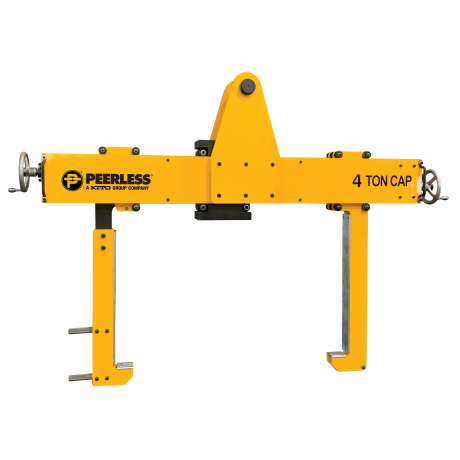

The Peerless CLT Coil Lifter Telescopic Two-Sided is designed to efficiently handle coils with the inside diameter. The manual adjusting legs adjust to the I.D. of the coil with the standard chain wheel or an optional motorized leg drive and require less aisle space for operation. The self-locking gear drive prevents the inadvertent opening of the legs, and the curved foot pad minimizes coil damage.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Options (Available on Quote)
- Higher capacities
- Additional lengths
- Protective padding
- Parking stands
- Motorized leg drive
How to Order
Configurations and pricing for the CLT are application-specific. Click "Request a Quote" to get accurate pricing, lead time, and freight for your application. Our team will work with you to spec the right capacity, throat opening, fork dimensions, and any options you need.

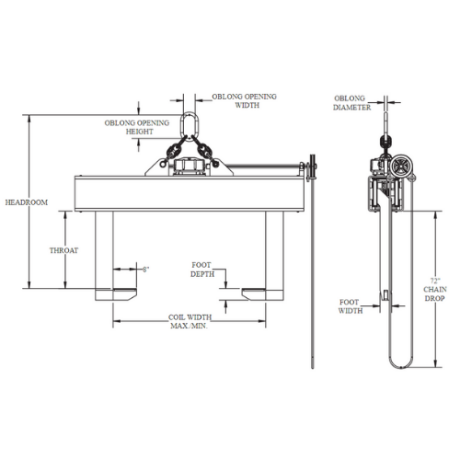

Specifications — 6 Configurations
| Product | Capacity(Tons) | Coil Width Max/Min | Headroom(in) | Foot Width(in) | Foot Thickness(in) | Throat Opening H(in) | Oblong ML Diameter(in) | Oblong ML Opening W(in) | Oblong ML Opening H(in) | Weight(Lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| CLT-5-48 | 5 | 16/48 | 51 | 4 | 4 | 26 | 1 | 3.5 | 7 | 679 |
| CLT-5-60 | 5 | 20/60 | 53 | 4 | 4 | 28 | 1 | 3.5 | 7 | 826 |
| CLT-10-48 | 10 | 16/48 | 62 | 4 | 5 | 30 | 1.25 | 4.38 | 8.75 | 1015 |
| CLT-10-60 | 10 | 20/60 | 64 | 4 | 5 | 32 | 1.25 | 4.38 | 8.75 | 1134 |
| CLT-15-60 | 15 | 20/60 | 68 | 4 | 6 | 32 | 1.5 | 5.25 | 10.5 | 1302 |
| CLT-15-72 | 15 | 24/72 | 70 | 4 | 6 | 34 | 1.5 | 5.25 | 10.5 | 1505 |
Dimensions sourced directly from Peerless manufacturer catalog. Standards: ASME B30.20 · ASME BTH-1 Cat B Class 2 · 100% Proof-Tested to 125% · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
