Specifications — All Models by Capacity

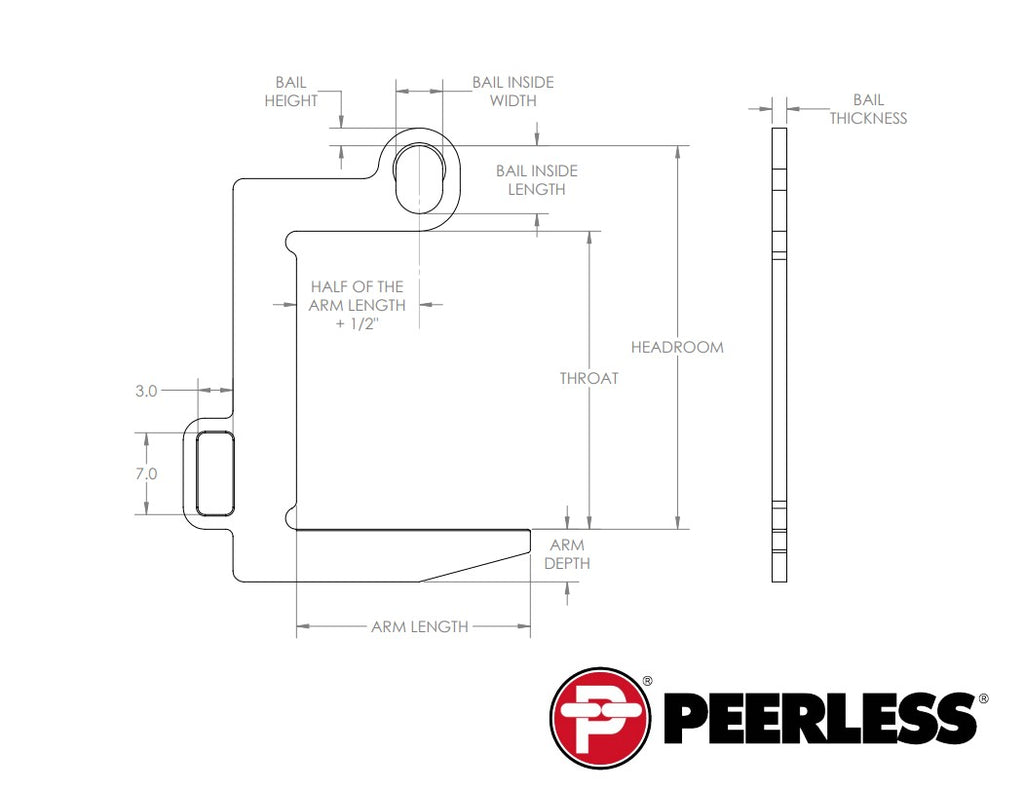

| Model # | Capacity (US tons) | Coil Width Max (in) | Headroom (in) | Lift Arm Length (in) | Lift Arm Height (in) | Throat Opening Height (in) | Bail Height (in) | Bail Opening Width (in) | Bail Opening Height (in) | Bail Thickness (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CLNC-1/2-8 | 1/2 | 8 | 18.6 | 8 | 2.25 | 14.5 | 0.75 | 2 | 3.25 | 0.5 | 13 |
| CLNC-1/2-12 | 1/2 | 12 | 18.6 | 12 | 2.25 | 14.5 | 0.75 | 2 | 3.25 | 0.5 | 14 |
| CLNC-1-8 | 1 | 8 | 21.6 | 8 | 2.25 | 17.5 | 0.81 | 2 | 3.25 | 0.5 | 15 |
| CLNC-1-16 | 1 | 16 | 21.6 | 16 | 3 | 17.5 | 0.81 | 2 | 3.25 | 0.5 | 22 |
| CLNC-2-8 | 2 | 8 | 24.5 | 8 | 2.5 | 19.5 | 1 | 2.63 | 4 | 0.75 | 27 |
| CLNC-2-16 | 2 | 16 | 24.5 | 16 | 3.25 | 19.5 | 1 | 2.63 | 4 | 0.75 | 41 |
| CLNC-3.5-12 | 3.5 | 12 | 28.2 | 12 | 3.25 | 21.5 | 1.19 | 3.63 | 5.5 | 1 | 57 |
| CLNC-3.5-16 | 3.5 | 16 | 28.2 | 16 | 3.75 | 21.5 | 1.19 | 3.63 | 5.5 | 1 | 69 |
| CLNC-5-16 | 5 | 16 | 33 | 16 | 4 | 25.5 | 1.5 | 4 | 6 | 1.25 | 105 |
| CLNC-5-20 | 5 | 20 | 33 | 20 | 4.5 | 25.5 | 1.5 | 4 | 6 | 1.25 | 121 |
Capacity in US tons. Dimensions in inches unless a column notes otherwise. Dimensions and ratings sourced directly from the manufacturer catalog.
Overview

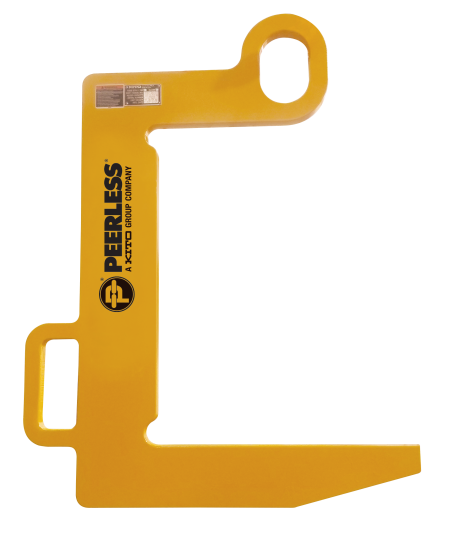

The Peerless CLNC Coil Lifter Narrow Coil is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil. Supplied with standard lifter guide handle and radius on lifting arm to minimize coil damage.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Capacity Range
1/2 ton through 5 ton vertical capacity with maximum coil widths from 8 in to 20 in. 10 standard configurations available — see the Technical Specifications tab below for the complete dimension chart.
Available Options (Quote Required)
- Higher capacities
- Additional lengths
- Higher throat sizes
- Protective padding
- Coil retainer cap
- Parking stands
How to Order
Priced and available to order. This item ships direct from the manufacturer. The optional features listed above are built to order and still need a quote — email sales@slingcenter.com for those. Heavier configurations ship by LTL freight; if your delivery site has no loading dock or forklift, tell us at checkout so lift-gate service is included and the carrier does not turn up unable to unload.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Part numbers
Looking for a specific CLNC part number? Every configuration on this page is listed below. Peerless prints some sizes as fractions and some as decimals — both forms are shown so either one finds this page.
CLNC-0.5-8 · CLNC-1/2-8 · CLNC-.5-8 · CLNC-0.5-12 · CLNC-1/2-12 · CLNC-.5-12 · CLNC-1-8 · CLNC-1-16 · CLNC-2-8 · CLNC-2-16 · CLNC-3.5-12 · CLNC-3-1/2-12 · CLNC-3.5-16 · CLNC-3-1/2-16 · CLNC-5-16 · CLNC-5-20
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/2 Ton / 8 in | CLNC-0.5-8 | $768.60 | ✓ In Stock | ||
| 1/2 Ton / 12 in | CLNC-0.5-12 | $804.30 | ✓ In Stock | ||
| 1 Ton / 8 in | CLNC-1-8 | $804.30 | ✓ In Stock | ||
| 1 Ton / 16 in | CLNC-1-16 | $927.15 | ✓ In Stock | ||
| 2 Ton / 8 in | CLNC-2-8 | $927.15 | ✓ In Stock | ||
| 2 Ton / 16 in | CLNC-2-16 | $1,084.65 | ✓ In Stock | ||
| 3.5 Ton / 12 in | CLNC-3.5-12 | $1,084.65 | ✓ In Stock | ||
| 3.5 Ton / 16 in | CLNC-3.5-16 | $1,260.00 | ✓ In Stock | ||
| 5 Ton / 16 in | CLNC-5-16 | $1,452.15 | ✓ In Stock | ||
| 5 Ton / 20 in | CLNC-5-20 | $1,627.50 | ✓ In Stock |
