Overview

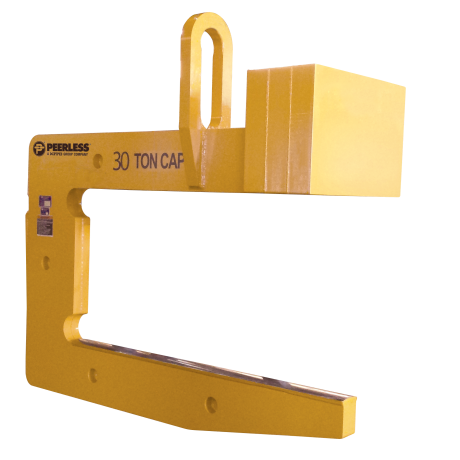

The Peerless CLCS Coil Lifter Close Stacking is a heavy-duty lifter designed with a recessed counterweight to allow for close coil stacking that maximizes floor space. Easily lifts and positions large heavy coils by placing the lifting arm securely through the I.D. of the coil. Supplied with standard lifter guide handle and curved saddle on lifting arm to minimize coil damage. Optional padding is available for additional coil protection. Counterbalanced to hang level when not loaded.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Options (Available on Quote)
- Higher capacities
- Additional lengths
- Larger throat sizes
- Protective padding
- Parking stands
How to Order
Configurations and pricing for the CLCS are application-specific. Click "Request a Quote" to get accurate pricing, lead time, and freight for your application. Our team will work with you to spec the right capacity, throat opening, fork dimensions, and any options you need.

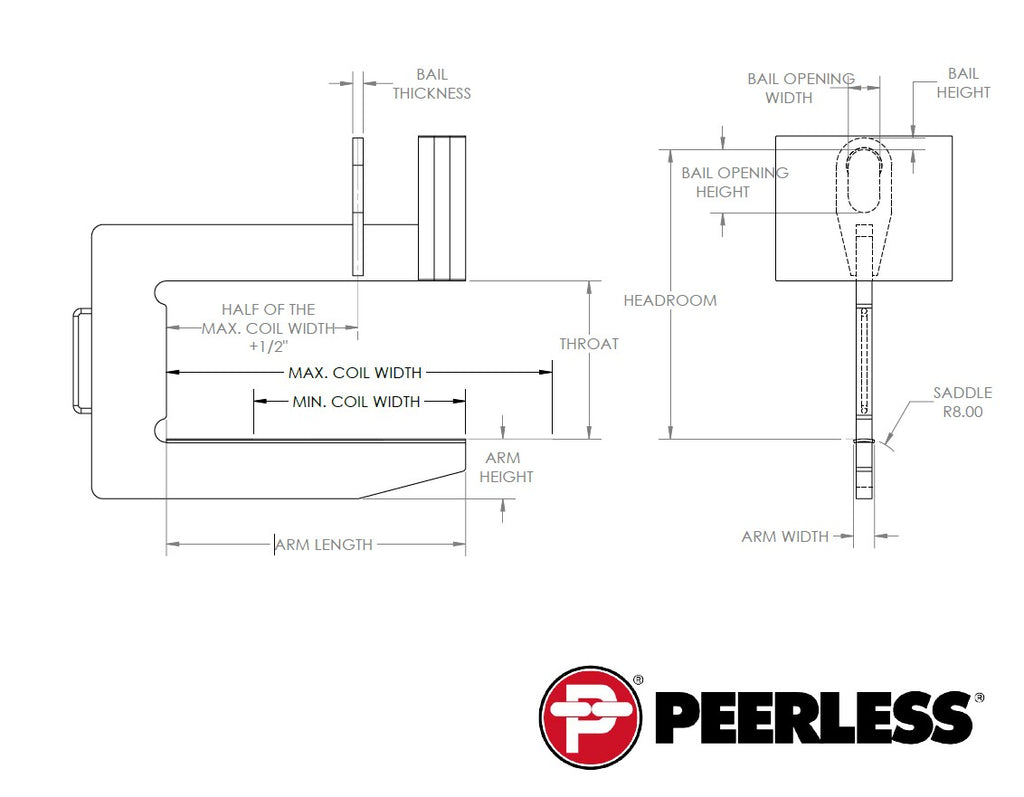

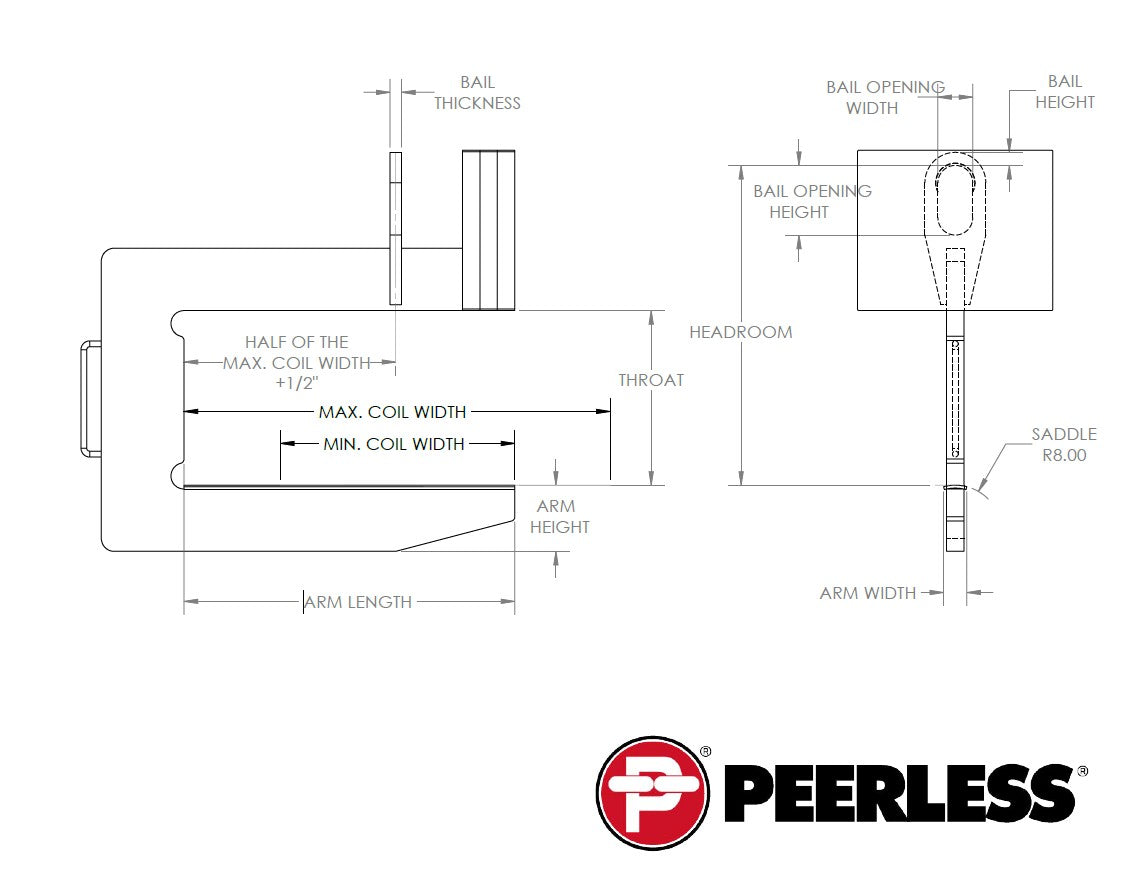

Specifications — All 19 Configurations
| SKU | Capacity(Tons) | Coil Width Max/Min(in) | Headroom(in) | Lift Arm Length(in) | Lift Arm Height(in) | Lift Arm Width(in) | Throat Opening H(in) | Bail Height(in) | Bail Opening W(in) | Bail Opening H(in) | Bail Thickness(in) | Weight(Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLCS-5-36 | 5 | 36/24 | 38 | 30 | 6.25 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 633 |
| CLCS-5-48 | 5 | 48/30 | 38 | 39 | 6.25 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 950 |
| CLCS-5-60 | 5 | 60/36 | 38.8 | 48 | 7 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 1150 |
| CLCS-7.5-36 | 7.5 | 36/24 | 38.3 | 30 | 6.5 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 950 |
| CLCS-7.5-48 | 7.5 | 48/30 | 39 | 39 | 7.25 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 1150 |
| CLCS-7.5-60 | 7.5 | 60/36 | 39.8 | 48 | 8 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 1385 |
| CLCS-10-48 | 10 | 48/30 | 42.5 | 39 | 8.25 | 4 | 24 | 2 | 5 | 9 | 1.75 | 1390 |
| CLCS-10-60 | 10 | 60/36 | 42.5 | 48 | 8.25 | 4 | 24 | 2 | 5 | 9 | 1.75 | 1905 |
| CLCS-10-72 | 10 | 72/42 | 43.3 | 57 | 9 | 4 | 24 | 2 | 5 | 9 | 1.75 | 2210 |
| CLCS-15-48 | 15 | 48/30 | 49.3 | 39 | 9 | 4 | 30 | 2 | 5 | 9 | 1.75 | 2210 |
| CLCS-15-60 | 15 | 60/36 | 50.3 | 48 | 10 | 4 | 30 | 2 | 5 | 9 | 1.75 | 2610 |
| CLCS-15-72 | 15 | 72/42 | 51 | 57 | 10.75 | 4 | 30 | 2 | 5 | 9 | 1.75 | 2990 |
| CLCS-20-60 | 20 | 60/36 | 54 | 48 | 10.5 | 4 | 30 | 2.25 | 6 | 12 | 2 | 3490 |
| CLCS-20-72 | 20 | 72/42 | 55 | 57 | 11.5 | 4 | 30 | 2.25 | 6 | 12 | 2 | 4045 |
| CLCS-25-60 | 25 | 60/36 | 61.5 | 48 | 11.75 | 4 | 34 | 2.5 | 6 | 14 | 2.25 | 3620 |
| CLCS-25-72 | 25 | 72/42 | 62.5 | 57 | 12.75 | 4 | 34 | 2.5 | 6 | 14 | 2.25 | 4250 |
| CLCS-30-60 | 30 | 60/36 | 62.75 | 48 | 12.75 | 4 | 34 | 2.75 | 6 | 14 | 2.5 | 4060 |
| CLCS-30-72 | 30 | 72/42 | 62 | 57 | 12 | 5 | 34 | 2.75 | 6 | 14 | 2.5 | 5360 |
| CLCS-40-72 | 40 | 72/42 | 72.3 | 57 | 13.75 | 5 | 38 | 3.25 | 7 | 18 | 3 | 6805 |
Dimensions sourced directly from Peerless manufacturer catalog. Recessed counterweight design allows close coil stacking to maximize floor space. Curved saddle on lifting arm minimizes coil damage. Standards: ASME B30.20 · ASME BTH-1 Design Category B Service Class 2 · Design Factor 3:1 · 100% Proof-Tested to 125% of rated capacity · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
