Overview

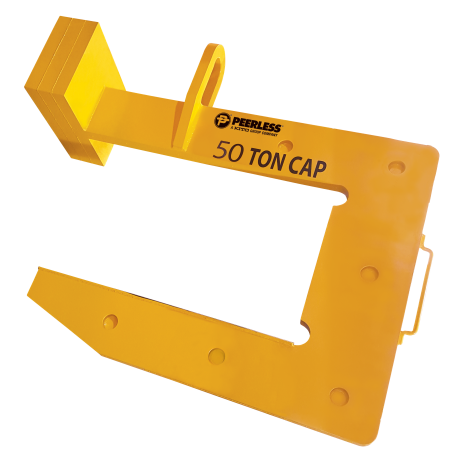

The Peerless CL Coil Lifter is a heavy-duty lifter designed to lift and position large heavy coils by placing the lifting arm securely through the I.D. of the coil. Supplied with standard lifter guide handle and curved saddle on lifting arm to minimize coil damage. Optional padding for additional coil protection. Counter-balanced to hang level when unloaded.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- 100% Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Capacity Range
5 ton through 50 ton vertical capacity with maximum coil widths from 36 in to 84 in. 20 standard configurations available — see the Technical Specifications tab below for the complete dimension chart.
Available Options (Quote Required)
- Higher capacities
- Additional lengths
- Larger throat sizes
- Protective padding
- Parking stands
How to Order
This is a custom-configured below-the-hook lifting device. Click "Request a Quote" to get accurate pricing, lead time, and freight. Our team will confirm specifications and any optional features with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.

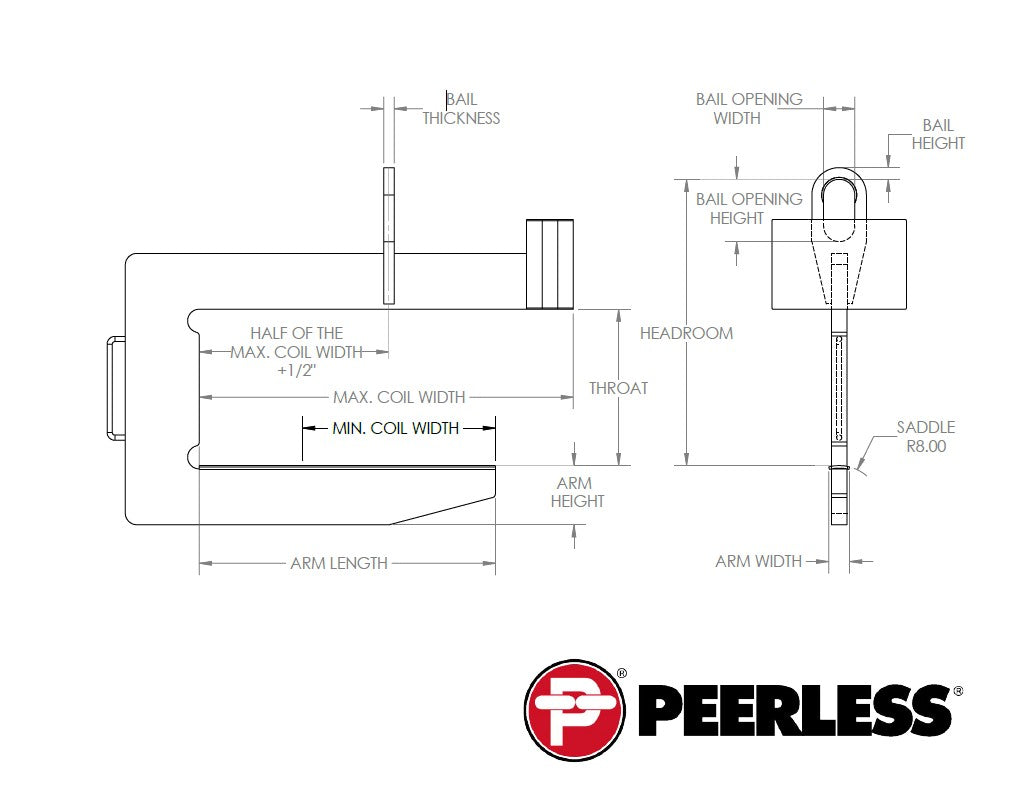

Specifications — All 20 Configurations
| SKU | Capacity(Tons) | Coil Width Max/Min(in) | Headroom(in) | Lift Arm Length(in) | Lift Arm Height(in) | Lift Arm Width(in) | Throat Opening H(in) | Bail Height(in) | Bail Opening W(in) | Bail Opening H(in) | Bail Thickness(in) | Weight(Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CL-5-36 | 5 | 36/24 | 38 | 30 | 6.25 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 500 |
| CL-5-48 | 5 | 48/30 | 38 | 39 | 6.25 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 730 |
| CL-5-60 | 5 | 60/36 | 38.8 | 48 | 7 | 4 | 24 | 1.5 | 4 | 7 | 1.25 | 885 |
| CL-7.5-36 | 7.5 | 36/24 | 38.3 | 30 | 6.5 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 725 |
| CL-7.5-48 | 7.5 | 48/30 | 39 | 39 | 7.25 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 875 |
| CL-7.5-60 | 7.5 | 60/36 | 39.8 | 48 | 8 | 4 | 24 | 1.5 | 4 | 7 | 1.5 | 1060 |
| CL-10-48 | 10 | 48/30 | 42.5 | 39 | 8.25 | 4 | 24 | 2 | 5 | 9 | 1.75 | 1060 |
| CL-10-60 | 10 | 60/36 | 42.5 | 48 | 8.25 | 4 | 24 | 2 | 5 | 9 | 1.75 | 1425 |
| CL-10-72 | 10 | 72/42 | 43.3 | 57 | 9 | 4 | 24 | 2 | 5 | 9 | 1.75 | 1670 |
| CL-15-48 | 15 | 48/30 | 49.3 | 39 | 9 | 4 | 30 | 2 | 5 | 9 | 1.75 | 1615 |
| CL-15-60 | 15 | 60/36 | 50.3 | 48 | 10 | 4 | 30 | 2 | 5 | 9 | 1.75 | 1925 |
| CL-15-72 | 15 | 72/42 | 51 | 57 | 10.75 | 4 | 30 | 2 | 5 | 9 | 1.75 | 2220 |
| CL-20-60 | 20 | 60/36 | 54 | 48 | 10.5 | 4 | 30 | 2.25 | 6 | 12 | 2 | 2520 |
| CL-20-72 | 20 | 72/42 | 55 | 57 | 11.5 | 4 | 30 | 2.25 | 6 | 12 | 2 | 2950 |
| CL-25-60 | 25 | 60/36 | 61.5 | 48 | 11.75 | 4 | 34 | 2.5 | 6 | 14 | 2.25 | 3060 |
| CL-25-72 | 25 | 72/42 | 62.5 | 57 | 12.75 | 4 | 34 | 2.5 | 6 | 14 | 2.25 | 3525 |
| CL-30-60 | 30 | 60/36 | 62.75 | 48 | 12.75 | 4 | 34 | 2.75 | 6 | 14 | 2.5 | 3425 |
| CL-30-72 | 30 | 72/42 | 62 | 57 | 12 | 5 | 34 | 2.75 | 6 | 14 | 2.5 | 4525 |
| CL-40-72 | 40 | 72/42 | 72.3 | 57 | 13.75 | 5 | 40 | 3.25 | 7 | 18 | 3 | 5730 |
| CL-50-84 | 50 | 84/48 | 77.5 | 66 | 16.5 | 5 | 40 | 3.75 | 7 | 18 | 3 | 7550 |
Dimensions sourced directly from Peerless manufacturer catalog. Curved saddle on lifting arm minimizes coil damage. Counter-balanced to hang level when unloaded. Optional protective padding available via quote. Standards: ASME B30.20 · ASME BTH-1 Design Category B Service Class 2 · Design Factor 3:1 · 100% Proof-Tested to 125% of rated capacity · Made in USA.
