Peerless CGV Coil Grab Vertical

Description

Overview

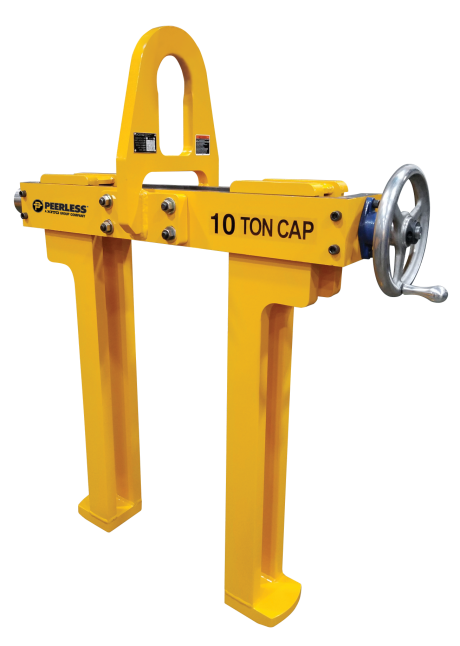

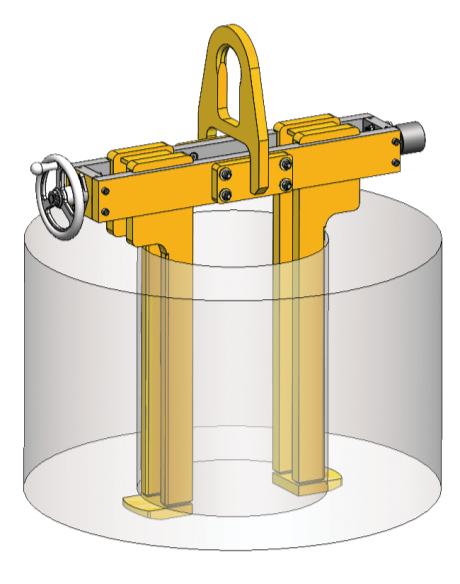

The Peerless CGV Coil Grab Vertical is designed to handle coils that are stacked vertically. Supplied with manual adjusting legs that adjust to the I.D. of the coil with the standard hand wheel or optional chain wheel. Can be supplied with optional motorized leg drive.

Manufactured by Peerless, a Kito Crosby brand.

Standards & Compliance

ASME B30.20 — Below-the-Hook Lifting Devices
ASME BTH-1 Design Category B, Service Class 2
100% Proof-Tested to 125% of rated capacity
Certificates supplied at no additional charge
Made in USA

Options (Available on Quote)

Higher & lower capacities
Additional lengths
Protective padding
Parking stands
Motorized leg drive

How to Order

Configurations and pricing for the CGV are application-specific. Click "Request a Quote" to get accurate pricing, lead time, and freight for your application. Our team will work with you to spec the right capacity, throat opening, fork dimensions, and any options you need.

Technical Specifications

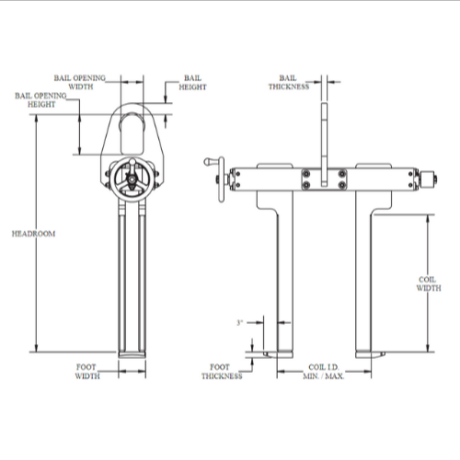

Specifications — 4 Configurations

Product	Capacity(Tons)	Coil ID Min/Max(in)	Coil Width Max(in)	Headroom(in)	Foot Width(in)	Foot Thickness(in)	Foot Length(in)	Bail Height(in)	Bail Opening W(in)	Bail Opening H(in)	Bail Thickness(in)	Weight(Lbs.)
CGV-2.5-24	2.5	16/24	20	36	5	0.75	15.5	1.5	3	5	0.75	275
CGV-5-24	5	16/24	24	41	6	1	15.5	2	4	7	1	385
CGV-7.5-24	7.5	16/24	24	42	6	1	15.5	2	4	7	1	468
CGV-10-24	10	16/24	30	50	6	1.5	15.5	2.5	5	9	1.25	550

Dimensions sourced directly from Peerless manufacturer catalog. Standards: ASME B30.20 · ASME BTH-1 Cat B Class 2 · 100% Proof-Tested to 125% · Made in USA.

Safety & Standards

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
ASME B30.10 — hooks
OSHA 1910.184 and 1926.251 — general industry and construction sling safety
WSTDA WS-2 and RS-1 — web and round sling design
49 CFR 393.102 to 393.130 — DOT cargo tie-down
NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
