Overview

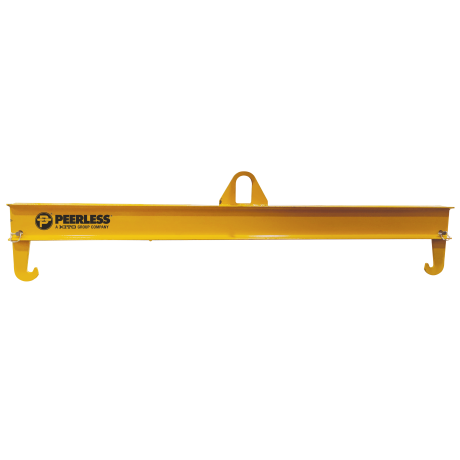

The Peerless CGCLB Chlorine Gas Cylinder Lifting Beam is designed specifically to lift chlorine gas cylinders. Features a low-headroom design and smooth-edge construction to minimize wear on lifting straps — ideal for long-term use in water treatment, chemical handling, and similar applications where headroom is limited.
Manufactured by Peerless, a Kito Crosby brand.
Standards & Compliance
- ASME B30.20 — Below-the-Hook Lifting Devices
- ASME BTH-1 Design Category B, Service Class 2
- Proof-Tested to 125% of rated capacity
- Certificates supplied at no additional charge
- Made in USA
Configuration
2 ton capacity with adjustable outside spread (80.5 in to 82.25 in) for standard chlorine cylinder dimensions. 1 standard configuration — see the Technical Specifications tab below for full dimensions.
Available Options (Quote Required)
- Fork lift pockets available
How to Order
This is a specialty below-the-hook lifting device. Click "Request a Quote" to get accurate pricing, lead time, and freight. Our team will confirm specifications and any optional features with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications

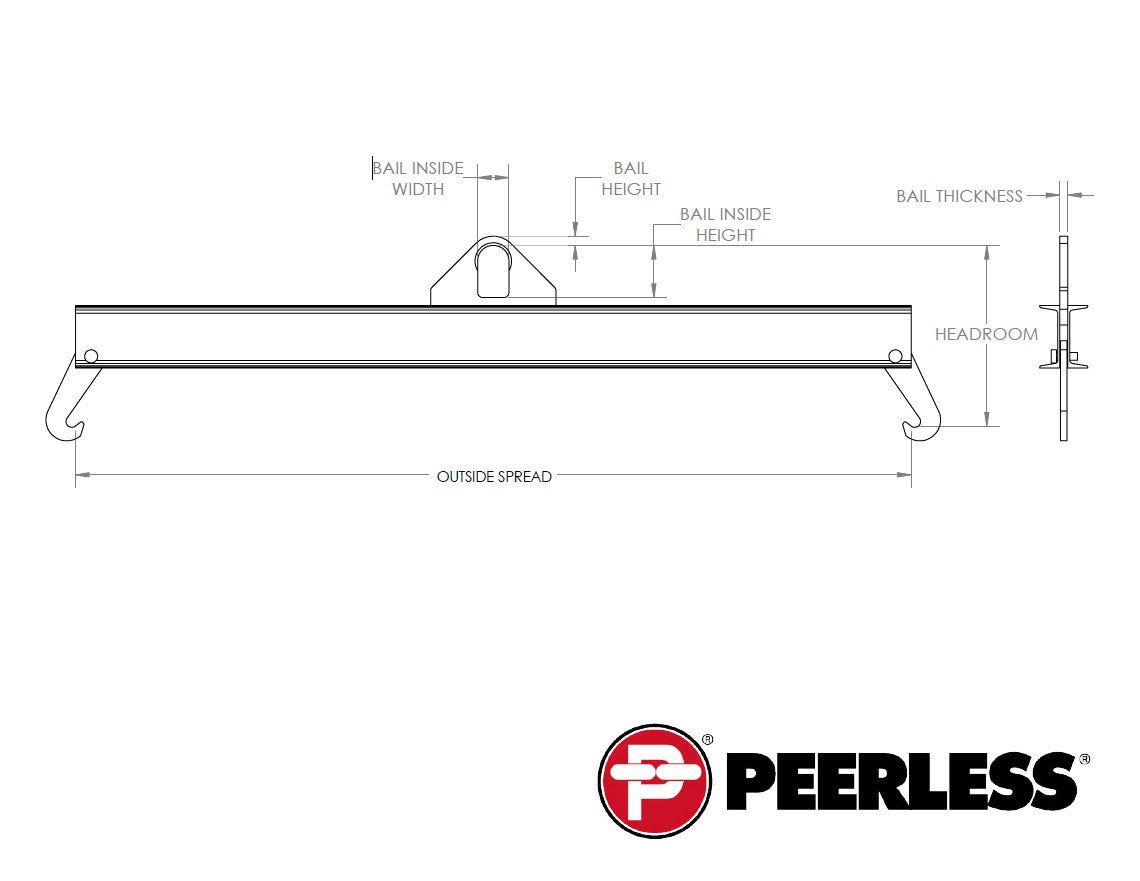

| SKU | Capacity(Tons) | Outside Spread(in) | Headroom(in) | Bail Height(in) | Bail Opening W(in) | Bail Opening H(in) | Bail Thickness(in) | Weight(Lbs) |
|---|---|---|---|---|---|---|---|---|
| CGCLB-2-80/82 | 2 | 80.5 - 82.25 | 18.5 - 17.5 | 0.88 | 3 | 5 | 0.75 | 125 |
Dimensions sourced directly from Peerless manufacturer catalog. Designed for chlorine gas cylinders — commonly used in water treatment, chemical processing, and pulp/paper applications. Smooth-edge design minimizes wear on lifting straps. SKU note: Peerless uses slash (CGCLB-2-80/82); SlingCenter SKUs use 'x' (CGCLB-2-80x82) for system compatibility. Standards: ASME B30.20 · ASME BTH-1 Design Category B Service Class 2 · Design Factor 3:1 · Proof-Tested to 125% of rated capacity · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
