Single Leg Web Bridle Sling | Pro-Edge® Polyester

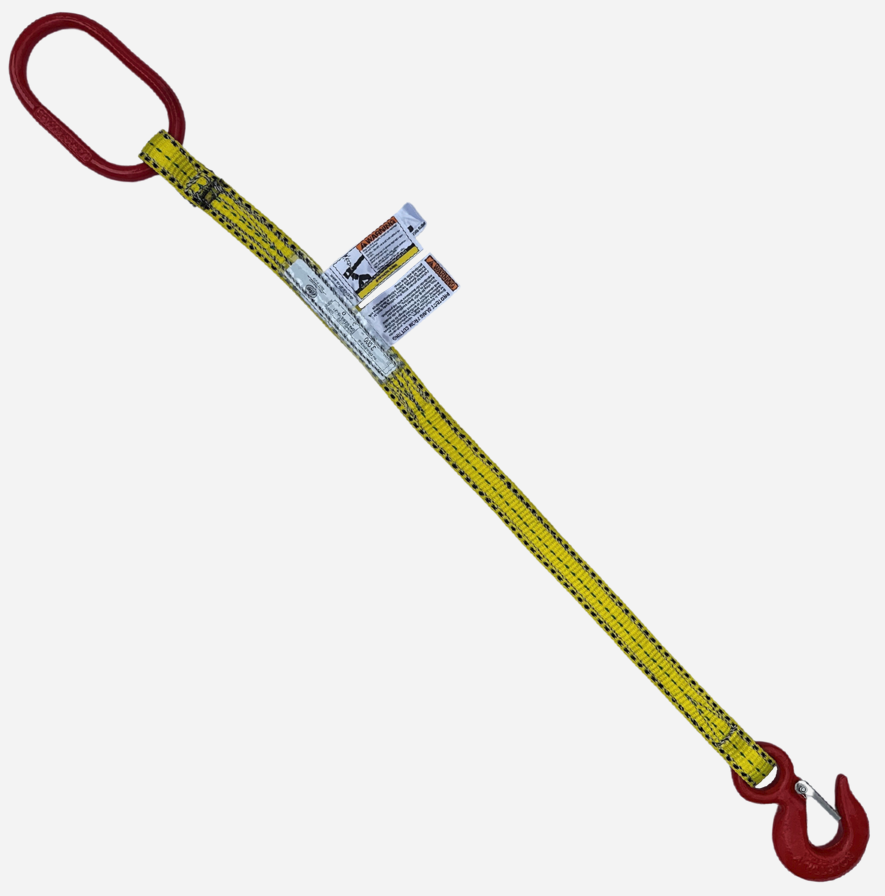

Liftex® single leg web bridle slings provide a secure, single-point connection between the load and the crane hook. Built with Pro-Edge® polyester webbing and alloy steel fittings, these bridles are ideal for controlled vertical lifts where a single attachment point is sufficient.
Available Configurations
| Code | Top Fitting | Bottom Fitting |
|---|---|---|
| SOS | Oblong Master Link | Sling Eye Hook |
| SOO | Oblong Master Link | Oblong Master Link |
| SSS | Sling Eye Hook | Sling Eye Hook |
Capacity Chart — Single Leg (Vertical)
| Leg Type | Ply | Width | Vertical WLL |
|---|---|---|---|
| EE191 | 1-Ply | 1" | 1,600 lbs |
| EE192 | 1-Ply | 2" | 3,000 lbs |
| EE291 | 2-Ply | 1" | 3,000 lbs |
| EE292 | 2-Ply | 2" | 6,000 lbs |
Hardware Options — Choose Your Origin
All bridle slings are assembled with alloy steel fittings (master links, hooks). You choose the hardware origin that fits your budget and project requirements — all options meet the same safety standards.
| Hardware Origin | Brands | Price Level |
|---|---|---|
| Domestic (USA) | Crosby | $$$ |
| European (EU) | Pewag, Weisner | $$ |
| Import | Alloy steel import | $ |
Specify your preferred hardware when requesting a quote. Not sure which to choose? We'll quote all available options so you can compare.
How to Order
Select your leg type below, then request a quote specifying your fitting configuration (SOS, SOO, or SSS), sling length, and preferred hardware origin. We'll provide pricing for all available options.
Specifications
| Specification | Value |
|---|---|
| Type | Single Leg Bridle |
| Material | Pro-Edge® Polyester |
| Design Factor | 5:1 |
| Standard | ASME B30.9 |
| Made in | U.S.A. |
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
This bridle is built to order
Pricing depends on the leg length, hardware (master links, hooks, shackles), and capacity you need. Use our Bridle Sling Builder to spec the exact configuration — we'll send a detailed quote with lead time within one business day.
Build a custom bridle →Or call (305) 767-3223 · email sales@slingcenter.com
