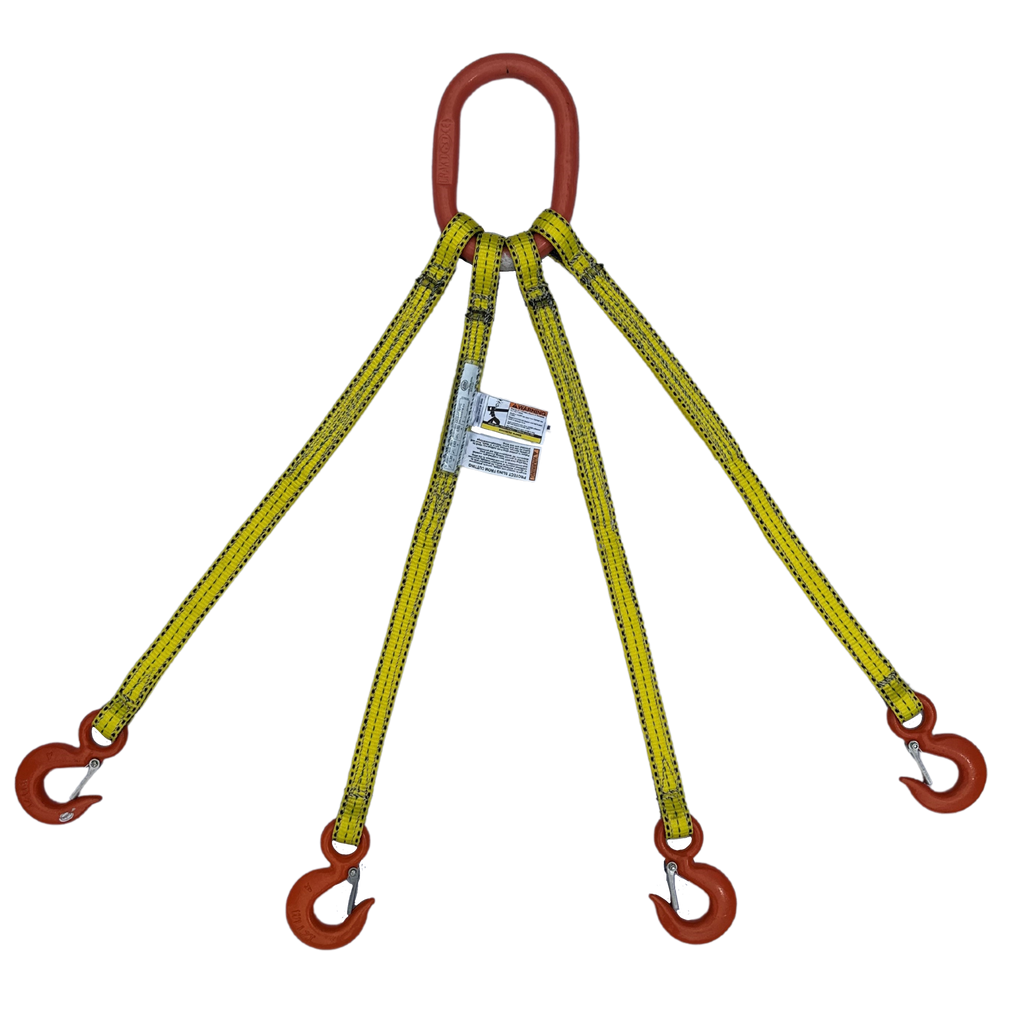

Quad Leg Web Bridle Sling | Pro-Edge® Polyester
Liftex® quad leg web bridle slings deliver four-point lifting capability for maximum load stability and balance. Built with Pro-Edge® polyester webbing and alloy steel fittings for superior durability and rated capacities.
Fitting Configurations
| Code | Top Fitting | Bottom Fitting |
|---|---|---|
| QOS | Oblong Master Link | Sling Eye Hooks |
| QOO | Oblong Master Link | Oblong Master Links |
Rated Capacities — Quad Leg at 60° Sling Angle
| Leg Type | Width | Ply | Capacity @ 60° |
|---|---|---|---|
| EE191 | 1" | 1-Ply | 5,500 lbs |
| EE192 | 2" | 1-Ply | 10,300 lbs |
| EE291 | 1" | 2-Ply | 10,300 lbs |
| EE292 | 2" | 2-Ply | 20,700 lbs |
Hardware Options — Choose Your Origin
All bridle slings are assembled with alloy steel fittings (master links, hooks). You choose the hardware origin that fits your budget and project requirements — all options meet the same safety standards.
| Hardware Origin | Brands | Price Level |
|---|---|---|
| Domestic (USA) | Crosby | $$$ |
| European (EU) | Pewag, Weisner | $$ |
| Import | Alloy steel import | $ |
Specify your preferred hardware when requesting a quote. Not sure which to choose? We'll quote all available options so you can compare.
How to Order
Select your leg type above, then request a quote specifying your fitting configuration (QOS or QOO), sling length, and preferred hardware origin. We'll provide pricing for all available options.
Specifications
| Specification | Value |
|---|---|
| Type | Quad Leg Bridle |
| Material | Pro-Edge® Polyester |
| Legs | 4 |
| Design Factor | 5:1 |
| Standard | ASME B30.9 / WSTDA-WS-1 |
| Made in | U.S.A. |
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
