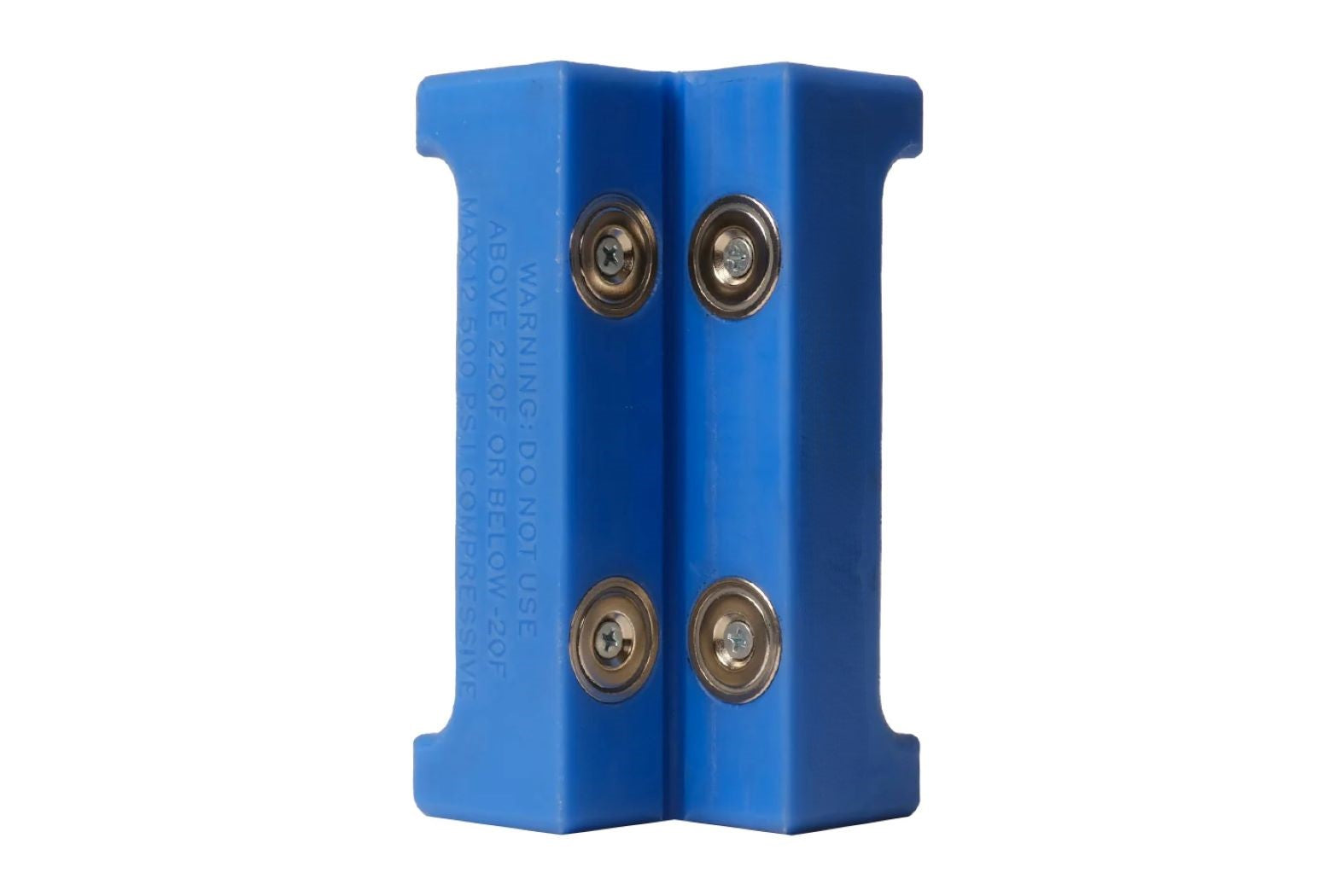

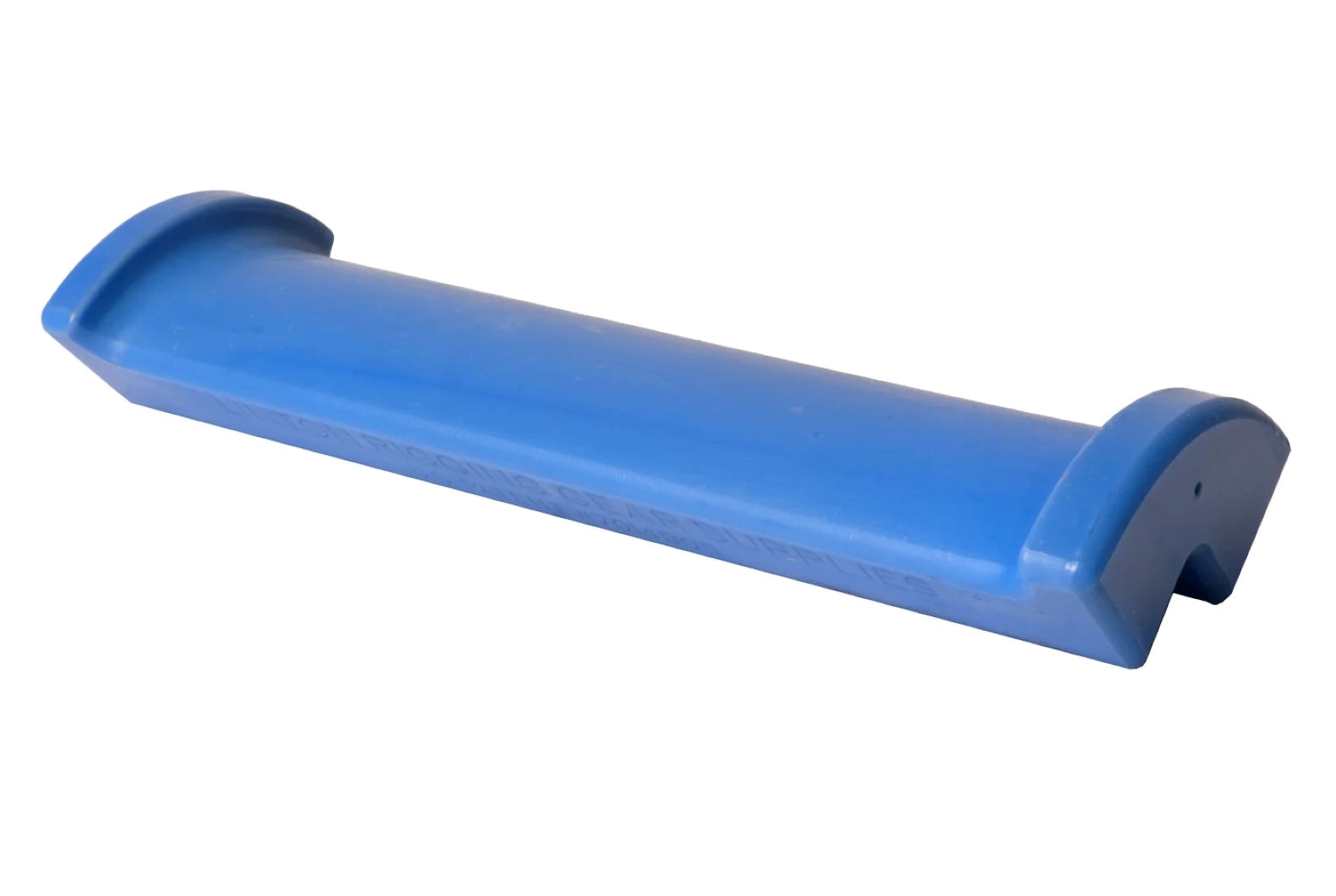

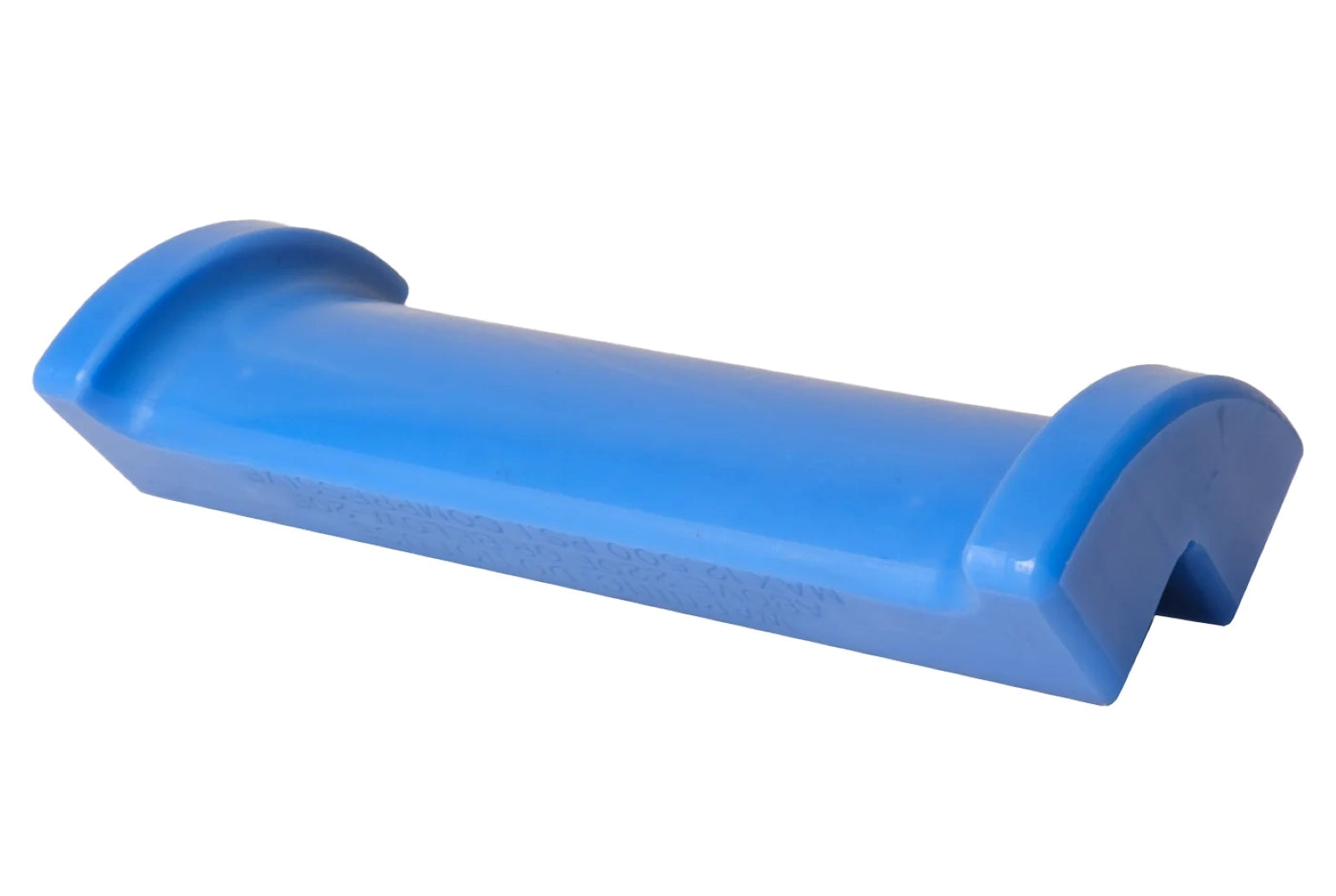

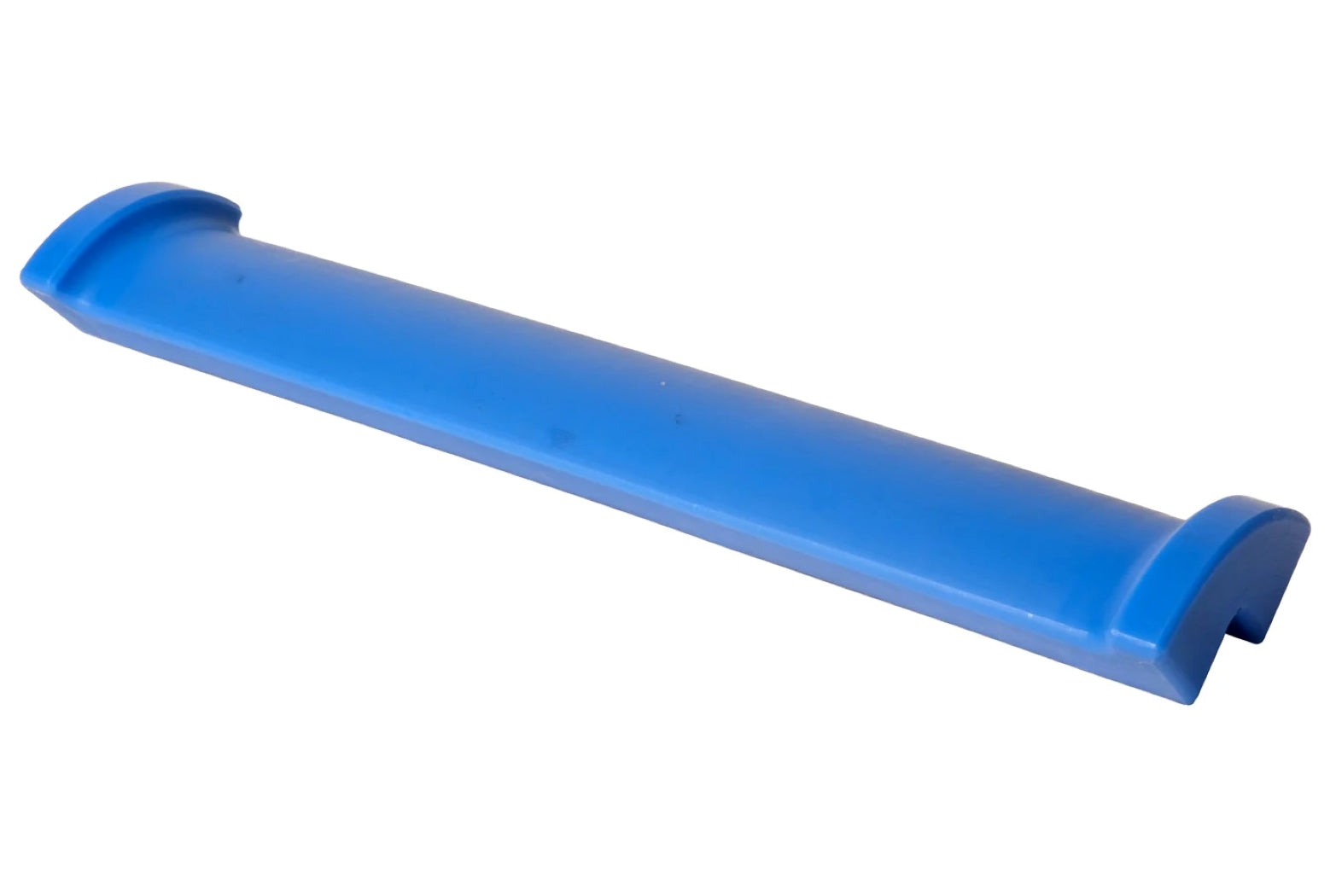

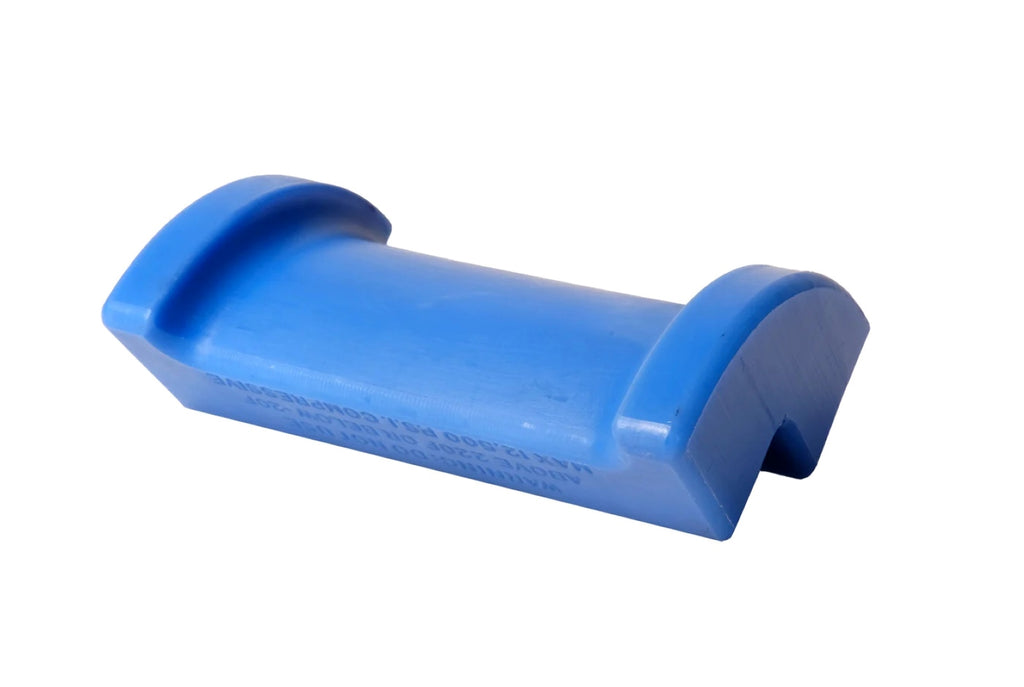

DICA LiftGuard® / Magnetic Sling Protector / Medium Duty

Product Description

When lifting heavy loads with synthetic slings, sharp edges can cause significant wear and damage. DICA LiftGuard® Magnetic Sling Protectors are engineered to protect your lifting slings from abrasion and cuts when working around sharp corners or rough surfaces. Manufactured by DICA USA, these durable protectors increase the lifespan of your slings and enhance workplace safety — a must-have for any lifting operation.

OSHA & ASME Compliance

LiftGuard® Sling Protectors help ensure compliance with federal and industry standards:

• OSHA 1926.251(c)(9): "Slings shall be padded or protected from the sharp edges of their loads."
• ASME B30.9: "Slings in contact with edges, corners, or protrusions should be protected with a material of sufficient strength, thickness, and construction to prevent damage to the sling."

Key Features

• Premium Edge Protection: Designed to safeguard synthetic slings from edge-related damage, preventing costly replacements. Also protects the load from being marred by the lifting slings.
• Powerful Magnetic Attachment: 90 lbs of magnetic pull force keeps protectors securely in place — hands-free protection without straps or ties.
• Non-Metallic Cast Nylon: High-performance material that won't scratch or damage load surfaces.
• Heat Stabilized: Allows for safe operations at higher temperatures.
• Recessed Magnets: Slightly recessed to ensure magnetic connection without scratching painted surfaces.
• Patented Design: Made in the USA by DICA (Est. 1988).

⚠️ Important: Medium Duty = Synthetic Slings Only

Never use wire rope slings with Medium Duty LiftGuard units. For wire rope or chain sling protection, use the Heavy Duty LiftGuard (270 lbs pull force, 3 magnets).

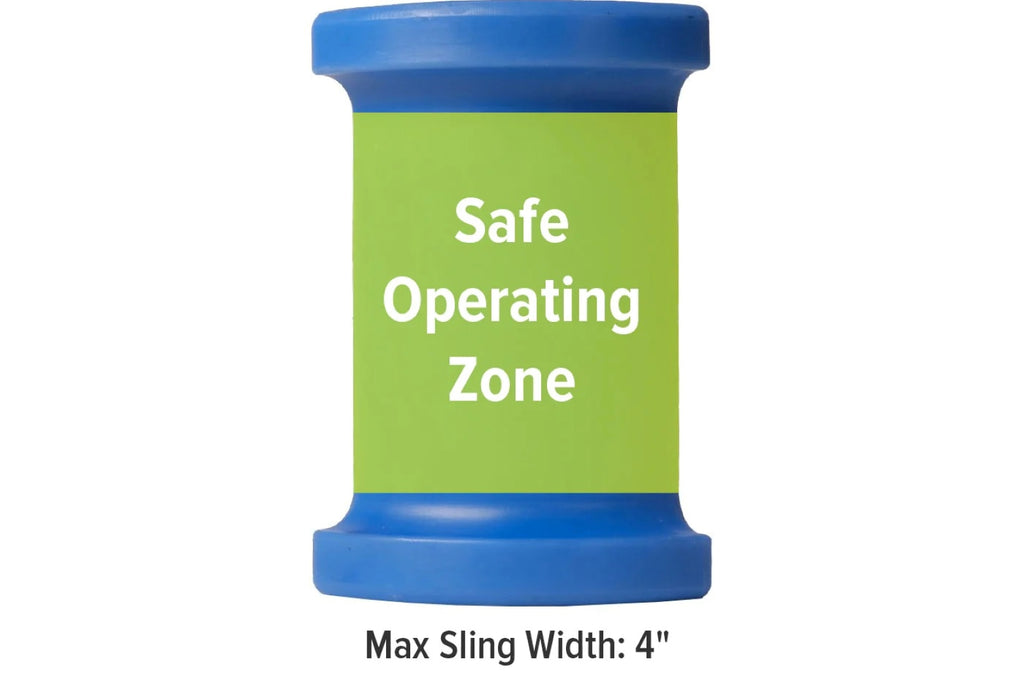

Sling Compatibility by Protector Size

Capacity

• Compression capacity: 12,500 psi/in of sling contact
• Capacity is calculated by multiplying 12,500 x the contact area of the sling
• Contingent upon vertical and horizontal edges of the sling protectors being in 100% contact with the load

Specifications

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
