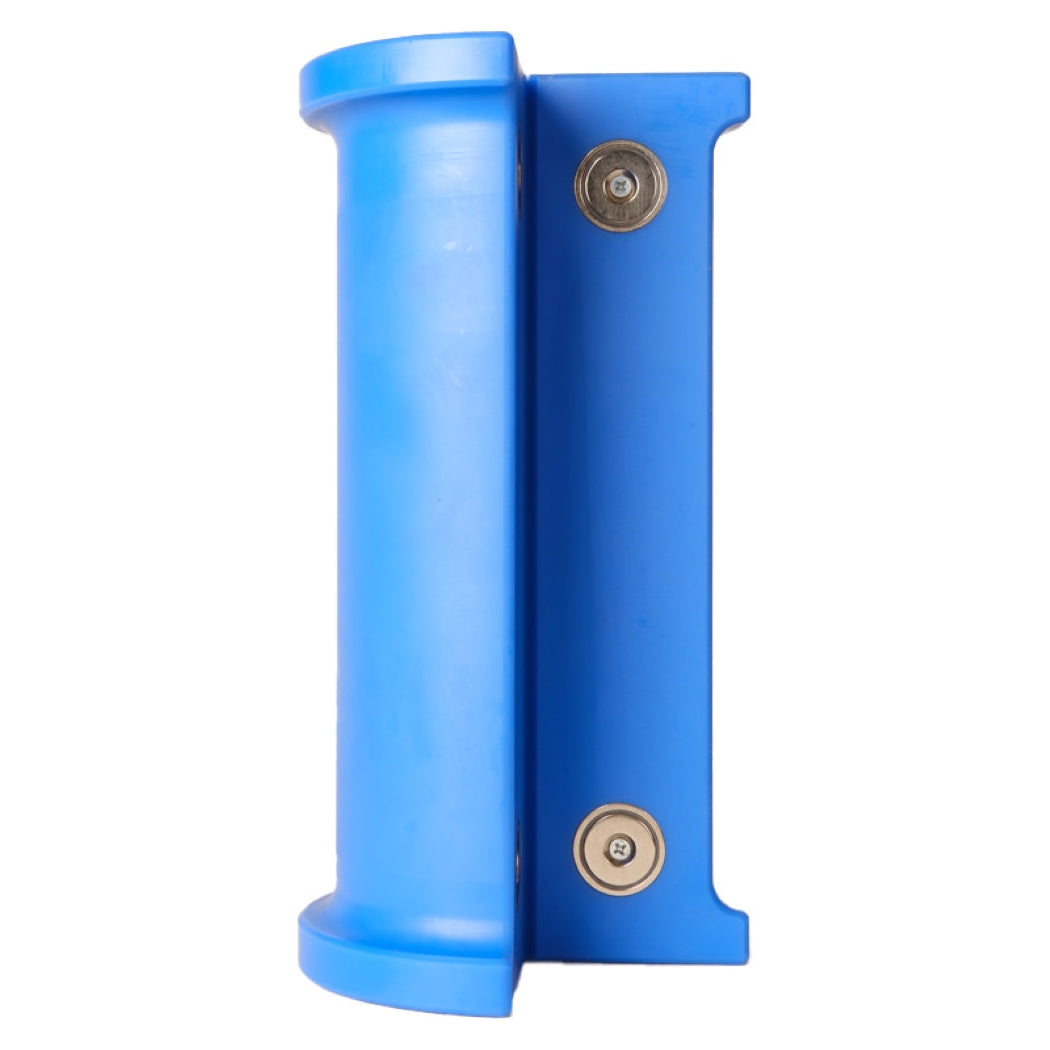

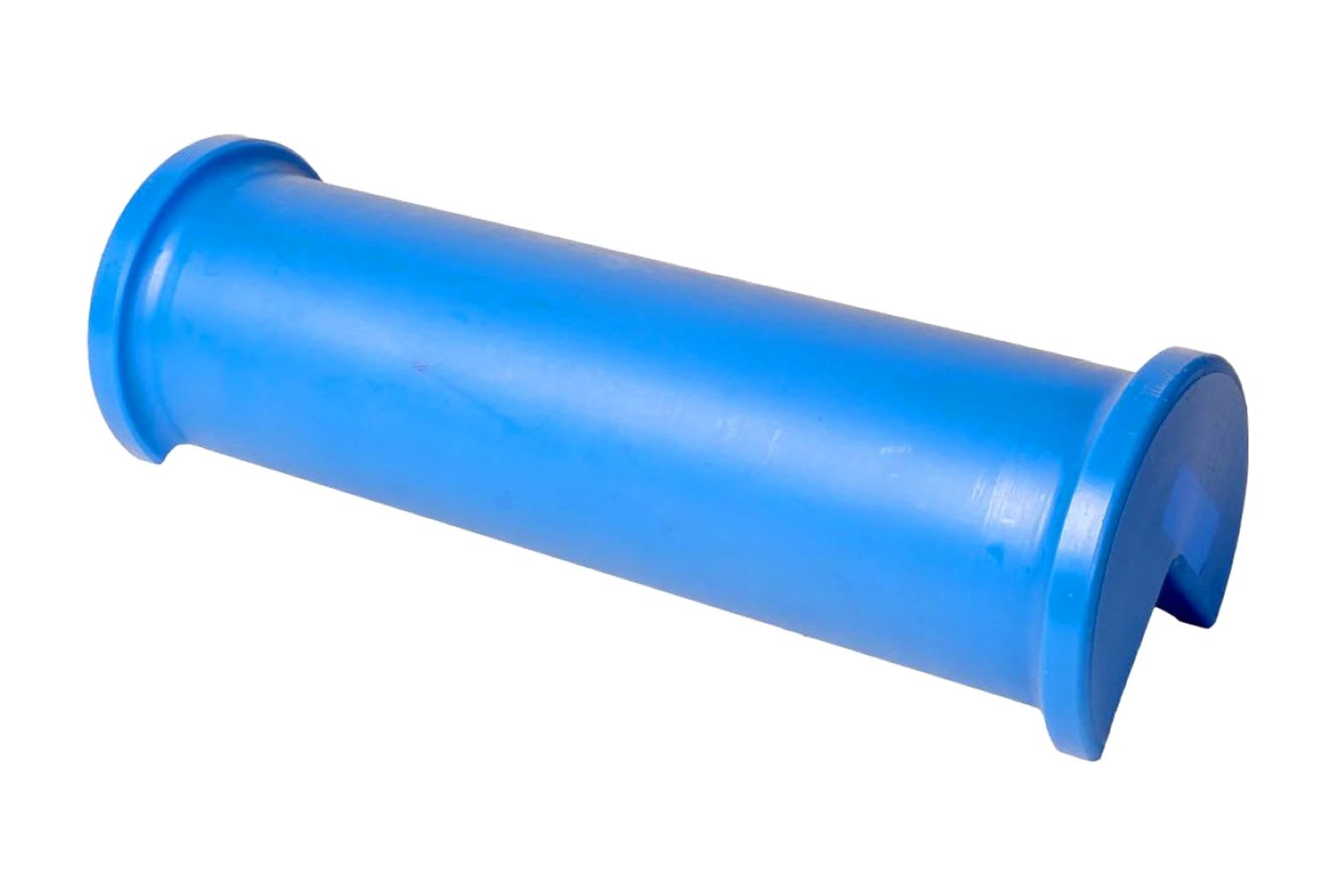

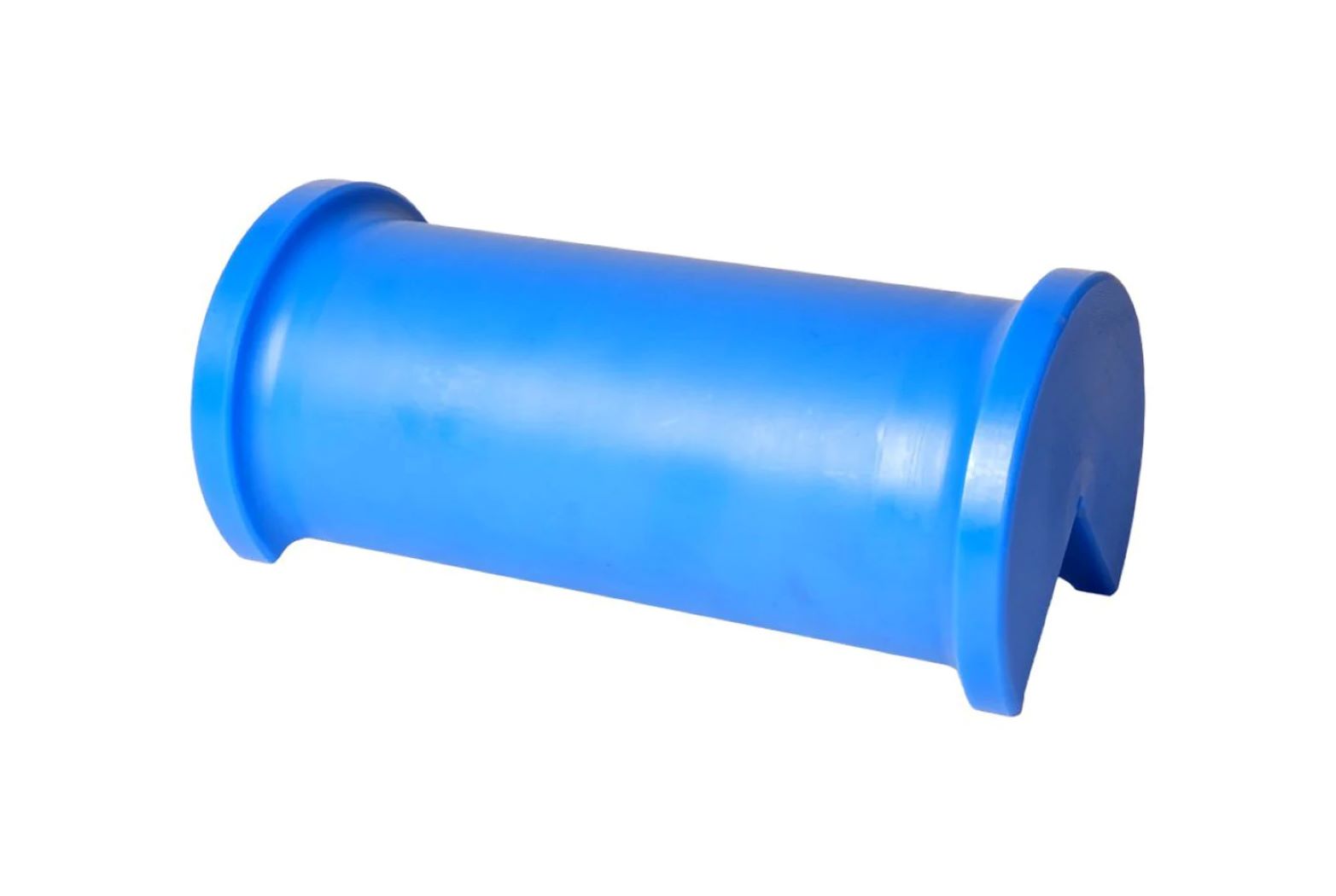

DICA LiftGuard® / Magnetic Sling Protector / Heavy Duty

Product Description

When lifting heavy loads with wire rope or chain slings, sharp edges can cause significant wear and damage. DICA LiftGuard® Heavy Duty Magnetic Sling Protectors are engineered with enhanced durability to withstand high-pressure loading from more abrasive wire rope and chain slings. Manufactured by DICA USA, these heavy-duty protectors provide superior edge protection for your most demanding lifting operations.

OSHA & ASME Compliance

LiftGuard® Sling Protectors help ensure compliance with federal and industry standards:

• OSHA 1926.251(c)(9): "Slings shall be padded or protected from the sharp edges of their loads."
• ASME B30.9: "Slings in contact with edges, corners, or protrusions should be protected with a material of sufficient strength, thickness, and construction to prevent damage to the sling."

Key Features

• Heavy Duty Construction: Enhanced durability to withstand high-pressure loading from wire rope and chain slings.
• Powerful Magnetic Attachment: Rare-earth magnets keep the protectors securely in place, providing hands-free protection without the need for additional straps or ties.
• Non-Metallic Cast Nylon: Made from high-performance cast nylon that won't scratch or damage load surfaces.
• Heat Stabilized: Allows for safe operations at higher temperatures.
• Recessed Magnets: All magnets are slightly recessed to prevent damage and ensure a connection without scratching the load surface.
• Patented Design: Made in the USA by DICA (Est. 1988).

Heavy Duty Details

• Designed for wire rope, chain, AND synthetic sling applications
• Enhanced durability allows for use with all sling types
• Available in 6", 9", 12", and 18" protector widths
• 270 lbs magnetic pull force

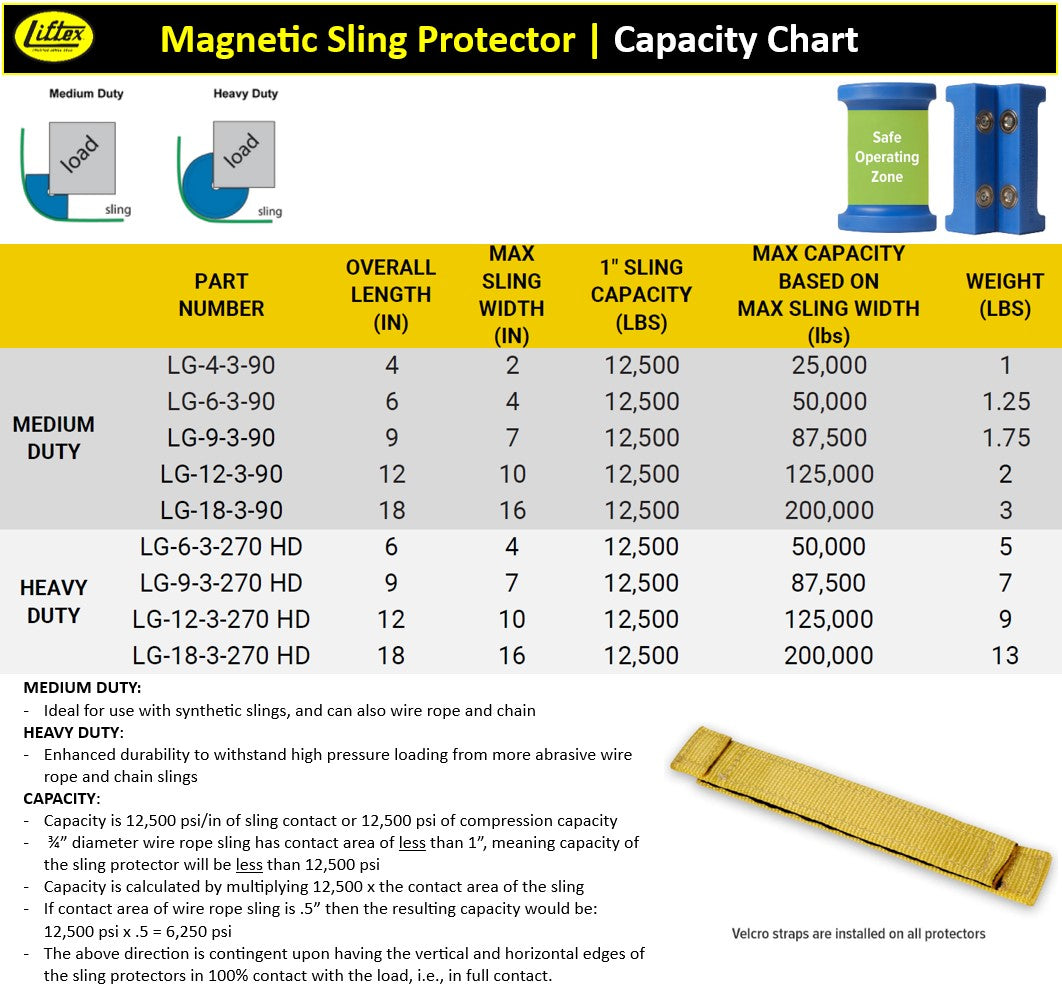

Sling Compatibility Guide

Use this table to select the right protector size for your sling. Heavy Duty protectors work with all sling types — synthetic web slings, round slings, wire rope slings, and chain slings.

Tip: When in doubt, size up. The protector should be at least as wide as your sling to provide full edge coverage. For twin-path or multi-leg configurations, measure the total bearing width at the contact point.

Capacity

• Compression capacity: 12,500 psi/in of sling contact
• Capacity is calculated by multiplying 12,500 x the contact area of the sling
• Contingent upon vertical and horizontal edges of the sling protectors being in 100% contact with the load

Specifications

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
