Liftex® / EER5 / Red Eye & Eye RoundUp® Round Sling / 13,200 lbs WLL

Liftex®SKU: EER5X06PD

Specifications

BrandLiftex®
TypeEye & Eye Round Sling
MaterialPolyester
CorePolyester
CoverPolyester
Core diameter1.375"
Vertical WLL13,200 lbs.
Choker WLL10,600 lbs.
Vertical basket WLL26,400 lbs.
Max temperature194°F (90°C)
Design factor ?A design factor of 5:1 means breaking strength ÷ 5 = WLL. Never lift above the WLL.5:1
Weight1.0 lbs./ft.
Minimum hardware diameter1" vertical/choker · 1-3/8" basket (WSTDA)
StandardsASME B30.9, ASME B30.26, WSTDA
Country of originU.S.A

Capacities are for a single sling at the stated design factor. Basket ratings assume vertical legs; reduce for sling angle. Inspect before every use per ASME B30.9. Weights are approximate shipping weights.

Sizes & part numbers

Part numberSize / lengthVertical WLLWeightPriceQtyAdd to cart
EER5X06PD6 ft13,200 lb6.0 lb$69.35
EER5X08PD8 ft13,200 lb8.0 lb$89.20
EER5X10PD10 ft13,200 lb10.0 lb$118.38
EER5X12PD12 ft13,200 lb12.0 lb$118.38
EER5X14PD14 ft13,200 lb14.0 lb$165.00
EER5X15PD15 ft13,200 lb15.0 lb$178.00
EER5X16PD16 ft13,200 lb16.0 lb$184.94
EER5X18PD18 ft13,200 lb18.0 lb$215.00
EER5X20PD20 ft13,200 lb20.0 lb$244.01
EER5X30PD30 ft13,200 lb24.0 lb$365.00
Using this sling in a bridle or a basket? Work out the leg length, headroom, sling angle and tension in each leg with our free Sling Calculator — it also shows the smallest sling and the shackle that fit the lift.Leg lengths are bearing point to bearing point and do not include master links or other in-line hardware.

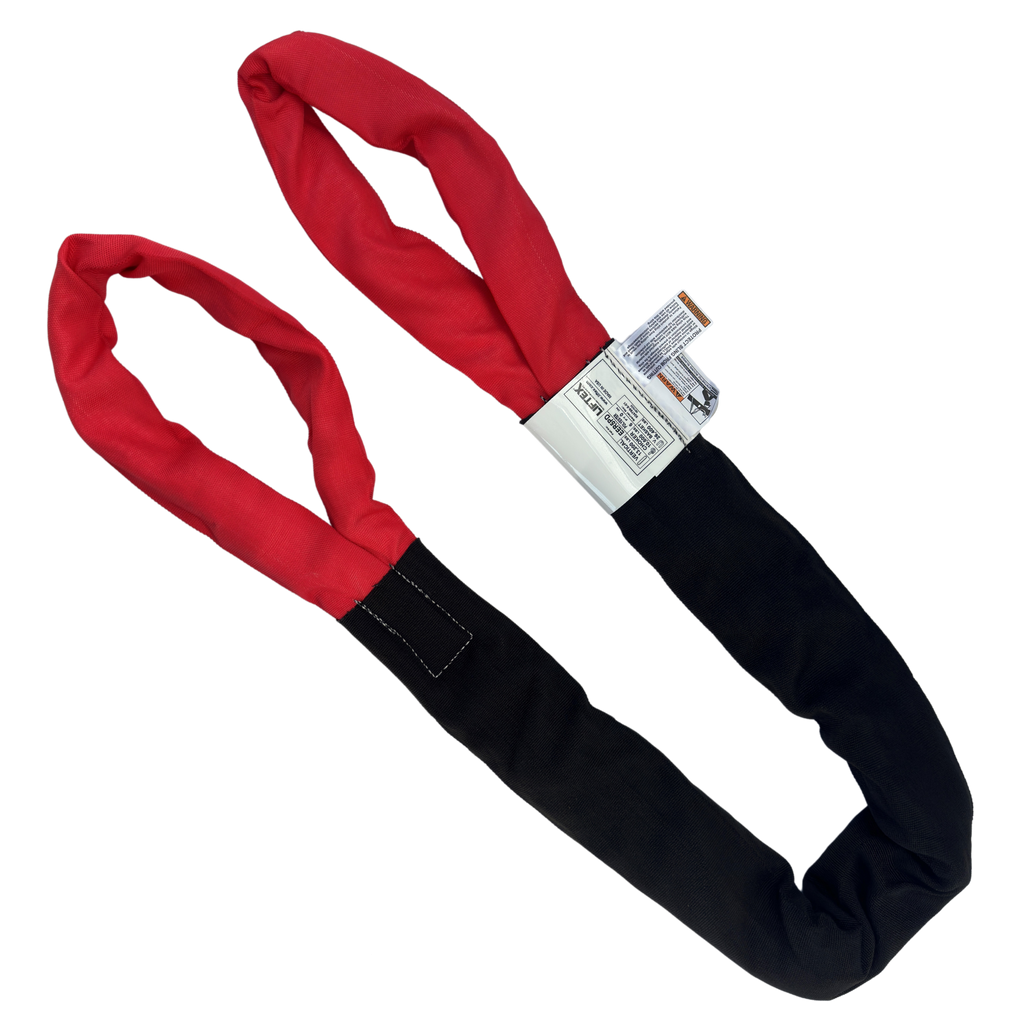

Liftex® Eye & Eye Round Slings are designed for applications where sling abrasion is a concern. A tough, abrasion-resistant sleeve is sewn onto the body of an endless roundsling, creating reinforced eyes at each end for secure connections.

Compared to traditional wire rope or chain, Eye & Eye roundslings are lighter, more flexible, and easier to handle, reducing operator fatigue and increasing efficiency. They can be used in vertical, choker, and basket hitches, offering the same versatility as endless roundslings—while providing the added benefit of easy-to-use eyes.

Note: Unlike endless slings, Eye & Eye styles cannot be rotated to distribute wear across multiple bearing points.

Features

  • Heavy-duty, abrasion-resistant protective sleeve in addition to the outer cover
  • Compatible with vertical, choker, and basket hitches
  • High-strength synthetic polyester core
  • Meets or exceeds OSHA, ASME B30.9, and WSTDA standards

Benefits

  • Protective sleeve extends sling service life in abrasive environments
  • Provides secure, reinforced connection points for hooks and hardware
  • Easier to rig and handle compared to heavy steel slings
  • Lighter and safer to use than wire rope or chain alternatives
  • Maintains versatility for multiple hitch types
  • Ensures compliance and peace of mind with safety standards

Specifications

Specification Value
Type Endless Round Sling
Material Polyester
Color Code Red
Vertical WLL 13,200 lbs
Choker WLL 10,600 lbs
Basket WLL 26,400 lbs
Design Factor 5:1
Standard ASME B30.9, WSTDA
Made in U.S.A.
Max temperature 194°F (90°C)
Minimum Hardware Diameter1" vertical/choker · 1-3/8" basket (WSTDA)
Using this sling in a bridle or a basket? Work out the leg length, headroom, sling angle and tension in each leg with our free Sling Calculator — it also shows the smallest sling and the shackle that fit the lift.Leg lengths are bearing point to bearing point and do not include master links or other in-line hardware.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Recommended Shackles for This Sling

Matched to this sling's vertical rated capacity (13200 lb WLL). Every shackle below meets or exceeds the sling's vertical WLL.

For this polyester roundsling, each shackle's bow is also at least the WSTDA RS-1 minimum stock diameter for its size (0.95″), so it can be one size larger than capacity alone would need.

⚠ These picks are for a vertical hitch. A basket or choker hitch carries more load per leg — step up a size or ask a rigger.

Recommended Shackle SKU Size Price Add
Screw-Pin Anchor Shackle (Green Pin G-4161) Screw-Pin Anchor Shackle (Green Pin G-4161) GPGHBB25 1" (WLL 8.5 Ton) $61.78
Bolt-Type Anchor Shackle (Green Pin G-4163) Bolt-Type Anchor Shackle (Green Pin G-4163) GPGHMB25 1" (WLL 8.5 Ton) $80.66
Web / Sling Shackle (Green Pin P-5461) Web / Sling Shackle (Green Pin P-5461) POPWBB22 6.5 t $77.30

Need a different finish (stainless, bolt-nut-cotter) or a larger size? Email sales@slingcenter.com.

Order Sheet — 10 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
6 ft EER5X06PD $69.35 6.0 lb ✓ In Stock
8 ft EER5X08PD $89.20 8.0 lb ✓ In Stock
10 ft EER5X10PD $118.38 10.0 lb ✓ In Stock
12 ft EER5X12PD $118.38 12.0 lb ✓ In Stock
14 ft EER5X14PD $165.00 14.0 lb ✓ In Stock
15 ft EER5X15PD $178.00 15.0 lb ✓ In Stock
16 ft EER5X16PD $184.94 16.0 lb ✓ In Stock
18 ft EER5X18PD $215.00 18.0 lb ✓ In Stock
20 ft EER5X20PD $244.01 20.0 lb ✓ In Stock
30 ft EER5X30PD $365.00 24.0 lb ✓ In Stock

Weights are approximate shipping weights.

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
