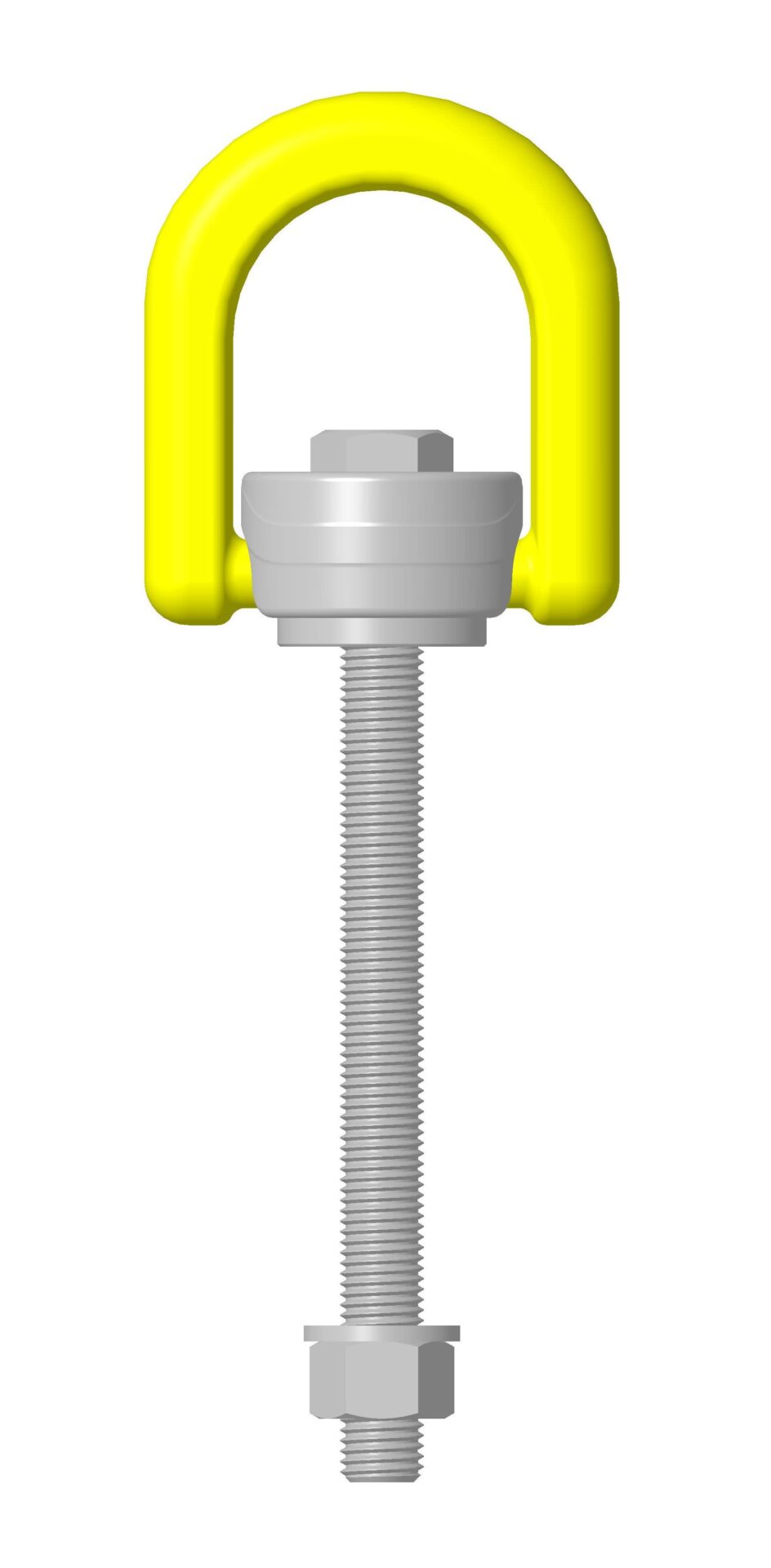

Gunnebo RLP V2 Metric Standard Bolt

The Gunnebo RLP V2 Metric Standard Bolt is a rotating lifting point with 360° rotation and a standard-length metric bolt. The RLP V2 second-generation design provides a compact, high-capacity lifting point that self-aligns with the sling direction, eliminating side-loading on the mounting bolt and maintaining full rated capacity at any lifting angle.

Key Features

• 360° rotation for automatic sling alignment
• V2 second-generation compact design with improved load path
• Metric thread with standard bolt length
• Forged alloy steel, individually proof tested and traceable
• Fatigue rated for high-cycle lifting applications

Common Applications

• Permanent lifting points on machinery, molds, dies, and tooling
• Equipment with metric-threaded mounting holes
• Repetitive lifting operations in manufacturing environments
• Any application requiring a compact, self-aligning metric lifting point

Why RLP V2?

The V2 design delivers a more compact profile with an optimized internal load path, fitting into tighter spaces while maintaining the same rated capacity and fatigue performance as the original RLP.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
