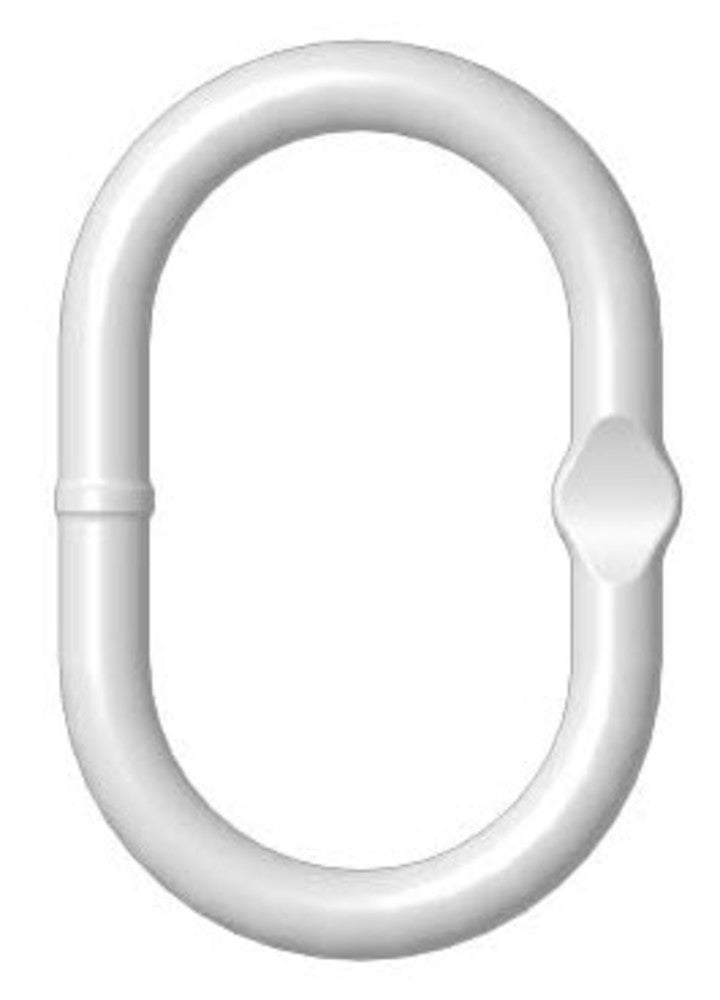

The Gunnebo MF Oblong Master Link is a Grade 100 forged master link designed as the top gathering point for multi-leg GrabiQ chain sling assemblies. The oblong shape accommodates 2, 3, and 4-leg configurations while connecting to the crane hook overhead. Every MF link is individually proof tested and traceable.
Key Features
- Grade 100 forged alloy steel for maximum rated capacity
- Oblong shape accommodates multi-leg sling configurations
- Smooth internal radius prevents chain binding and wear
- Connects to crane hooks and GrabiQ components via coupling links
- Individually proof tested with full traceability
Common Applications
- Top link for 2, 3, and 4-leg GrabiQ chain sling assemblies
- Central gathering point for crane hook connection
- Heavy industrial, construction, and offshore lifting
- GrabiQ system sling fabrication
Why Gunnebo GrabiQ?
The MF master link integrates with GrabiQ coupling links for fully modular sling assembly. Need to add a leg or swap a damaged link? Do it on-site in minutes without welding.
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | D (in)(mm) | E (in)(mm) | L (in)(mm) | Stock # |
|---|---|---|---|---|---|---|
| 2 | 1.10.36 | 0.5113 | 2.3660 | 4.72120 | BG14489 | |
| 3.2 | 1.760.76 | 0.6717 | 3.1580 | 5.51140 | BG14482 | |
| 5.4 | 3.311.5 | 0.8722 | 3.7495 | 6.3160 | BG14483 | |
| 8.2 | 6.173.9 | 1.128 | 4.33145 | 7.48275 | BG14484 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| MF-108-8 HDG | 7202125 | $61.60 | ✓ In Stock | ||
| MF-1310-8 HDG | 7202134 | $97.61 | ✓ In Stock | ||
| MF-1613-8 HDG | 7202143 | $146.85 | ✓ In Stock | ||
| 3/8 MF-6-10 V2 MSTRLNK 4400WL | Z200060 | $29.63 | ✓ In Stock | ||
| 1/2 MF-86-10 V2 MSTRLNK 7055WL | Z200086 | $35.78 | ✓ In Stock | ||
| 5/8 MF-108-10 V2 MSTRLNK 11900WL | Z200108 | $42.37 | ✓ In Stock | ||
| 1-1/4 MF-2016-10 V2 MSTRLNK 45400WLL | Z202016 | $191.65 | ✓ In Stock | ||
| 1-9/16 MF-2220-10 V2 MSTRLNK 70500WLL | Z202220 | $234.21 | ✓ In Stock | ||
| 7/8 MF-1310-10 V2 MSTRLNK 18000WLL | Z2111310 | $65.41 | ✓ In Stock | ||
| 1-1/8 MF-1613-10 V2 MSTRLNK 29900WLL | Z211613 | $74.32 | ✓ In Stock |
