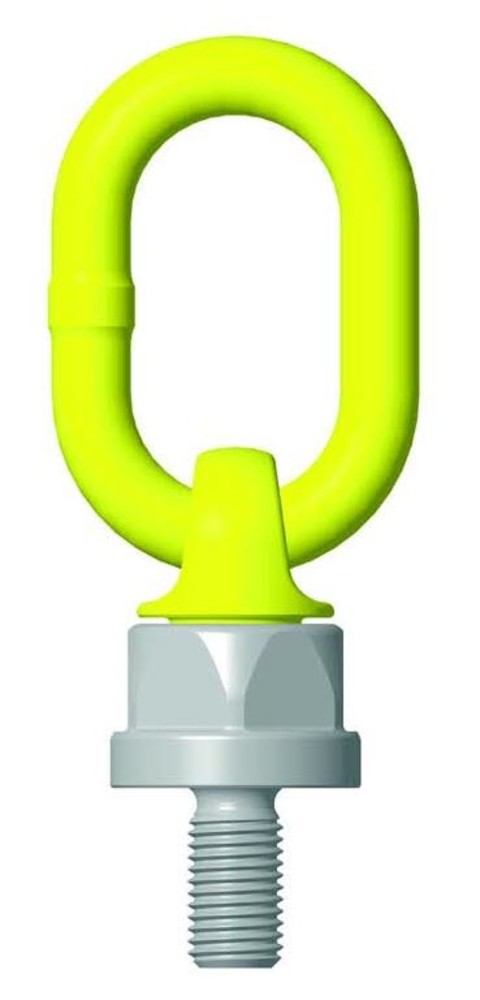

Gunnebo BLP Lifting Point

The Gunnebo BLP Lifting Point is a swiveling bolt-on lifting point designed for permanent installation on machinery, equipment, and structural steel. The 360° swivel and 180° pivot allows the lifting point to align with the sling direction automatically, eliminating side-loading and reducing stress on the bolt and mounting surface.

Key Features

• 360° swivel plus 180° pivot for automatic sling alignment
• Forged alloy steel construction with high working load limits
• Bolt-on installation — no welding required
• Available in metric and UNC thread sizes
• Each unit individually proof tested and traceable
• Fatigue rated for repeated lifting cycles

Common Applications

• Permanent lifting points on molds, dies, and tooling
• Machine installation and maintenance lifting
• Structural steel erection and equipment positioning
• Any application requiring a fixed, reusable lifting point

Why Gunnebo?

The BLP's self-aligning swivel design means the load always pulls in-line with the bolt axis, maximizing capacity and protecting the mounting surface. Unlike fixed eye bolts, there's no capacity reduction at lifting angles.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
