Forged by Van Beest
Green Pin® quality
100% MPI tested
Traceable, magenta-coded
Green Pin XLO Self-Locking Hook (Eye) EN 1677-3 Grade 8 — Grade 8 eye self-locking hook per EN 1677-3. Drop-forged, heat-treated, proof-tested at 2× WLL, CE marked, 100% magnetic particle inspected. Authorized Van Beest distributor.
📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog
💡 Full technical data, dimension diagrams, and per-size charts coming soon. For specifications in the meantime, see the Green Pin product page above or email sales@slingcenter.com.

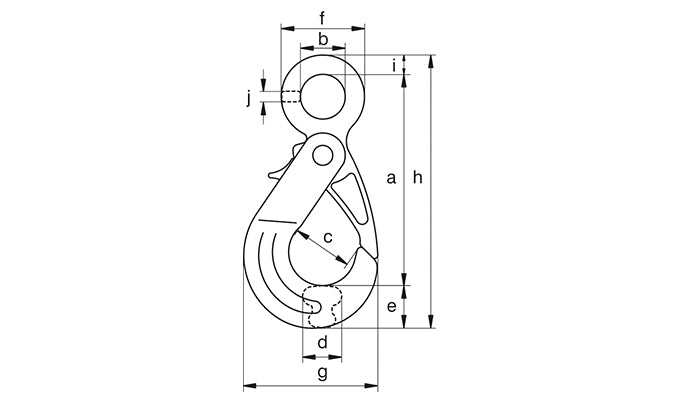

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.12 | 1.130.51 | 4 7/16113 | 15/1624 | 1 1/432 | 5/816 | 15/1624 | 1 27/3247 | 2 15/1675 | 5 13/16148 | 7/1611 | 1/46 | GPXLO0 | |
| 2 | 2.010.91 | 5 11/32136 | 1 3/1630 | 1 11/1643 | 15/1624 | 1 3/3228 | 2 1/457 | 3 19/3291 | 7178 | 9/1614 | 5/168 | GPXLO1 | |
| 3.2 | 3.951.79 | 6 5/8168 | 1 13/3236 | 1 7/848 | 1 1/432 | 1 11/3234 | 2 11/1668 | 4 3/8111 | 8 19/32218 | 5/816 | 13/3210 | GPXLO2 | |
| 5.4 | 7.413.36 | 7 29/32201 | 1 27/3247 | 2 15/3263 | 1 15/3237 | 1 11/1643 | 3 7/1687 | 5 9/16141 | 10 13/32264 | 25/3220 | 1/213 | GPXLO3 | |
| 8.2 | 15.47.00 | 9 7/8251 | 2 3/860 | 2 15/1675 | 1 11/1643 | 2 7/3256 | 4 3/8111 | 7 5/32182 | 13 1/16332 | 1 1/3226 | 5/816 | GPXLO4 | |
| 12.8 | 20.39.22 | 11 5/32283 | 2 3/470 | 3 17/3290 | 2 1/1652 | 2 7/1662 | 4 31/32126 | 8203 | 14 11/16373 | 1 3/3228 | 13/1621 | GPXLO5 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/6 mm | GPXLO0 | $92.64 | ✓ In Stock | ||
| 7/8 mm | GPXLO1 | $108.82 | ✓ In Stock | ||
| 10 mm (3/8") | GPXLO2 | $142.91 | ✓ In Stock | ||
| 13 mm (1/2") | GPXLO3 | $204.80 | ✓ In Stock | ||
| 16 mm (5/8") | GPXLO4 | $351.51 | ✓ In Stock | ||
| 18/20 mm | GPXLO5 | $467.33 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
