Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

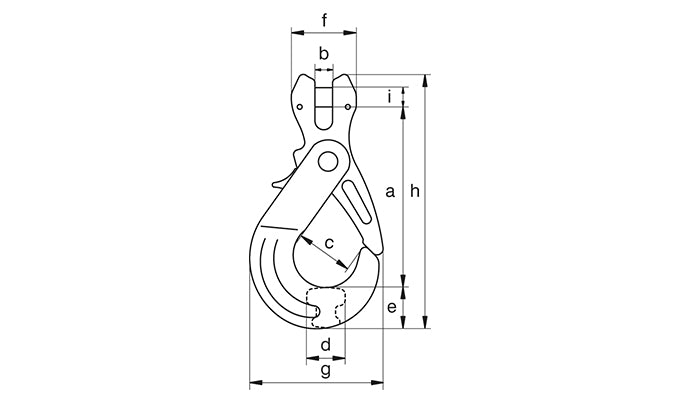

| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,4691.12 | 1,9840.9 | 1.080.49 | 7/326 | 3 21/3293 | 9/327 | 1 1/432 | 21/3217 | 15/1624 | 1 3/3228 | 2 15/1675 | 5 1/8130 | 5/168 | GPXLC0 |
| 4,4092 | 3,5271.6 | 2.010.91 | 1/4 - 5/167 - 8 | 4 9/16116 | 11/329 | 1 11/1643 | 15/1624 | 1 3/3228 | 1 1/432 | 3 19/3291 | 6 11/32161 | 11/329 | GPXLC1 |
| 7,0543.2 | 5,6432.56 | 3.901.77 | 3/810 | 5 21/32144 | 15/3212 | 1 7/848 | 1 1/432 | 1 3/834 | 1 11/3242 | 4 13/32112 | 7 29/32201 | 1/213 | GPXLC2 |
| 11,9045.4 | 9,5234.32 | 7.343.33 | 1/213 | 6 21/32169 | 19/3215 | 2 15/3263 | 1 15/3237 | 1 23/3244 | 2 1/854 | 5 9/16141 | 9 17/32242 | 5/816 | GPXLC3 |
| 18,0778.2 | 14,4626.56 | 14.96.75 | 5/816 | 8 1/32204 | 23/3218 | 2 15/1675 | 1 11/1643 | 2 7/3256 | 2 11/1668 | 7 5/32182 | 11 21/32296 | 25/3220 | GPXLC4 |
| 28,21912.8 | 22,57510.24 | 21.19.57 | 3/418 - 20 | 9 7/32234 | 7/822 | 3 17/3290 | 2 1/1652 | 2 7/1662 | 3 7/3282 | 8 1/16205 | 13 7/16341 | 15/1624 | GPXLC5 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.
Forged by Van Beest
Green Pin® quality
100% MPI tested
Traceable, magenta-coded
Green Pin XLC Self-Locking Hook (Clevis) EN 1677-3 Grade 8 — Grade 8 clevis self-locking hook per EN 1677-3. Drop-forged, heat-treated, proof-tested at 2× WLL, CE marked, 100% magnetic particle inspected. Authorized Van Beest distributor.
📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog
💡 Full technical data, dimension diagrams, and per-size charts coming soon. For specifications in the meantime, see the Green Pin product page above or email sales@slingcenter.com.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 mm (1/4") | GPXLC0 | $132.00 | ✓ In Stock | ||
| 5 mm (3/16") | GPXLC05 | $51.00 | ✓ In Stock | ||
| 7/8 mm | GPXLC1 | $153.00 | ✓ In Stock | ||
| 10 mm (3/8") | GPXLC2 | $188.00 | ✓ In Stock | ||
| 13 mm (1/2") | GPXLC3 | $270.00 | ✓ In Stock | ||
| 16 mm (5/8") | GPXLC4 | $431.50 | ✓ In Stock | ||
| 18/20 mm | GPXLC5 | $597.50 | ✓ In Stock |
