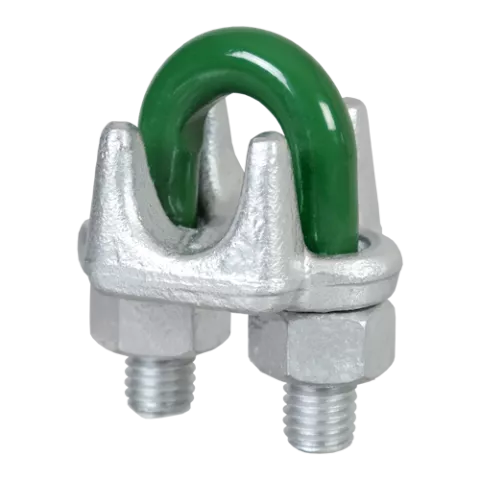

Green Pin Wire Rope Clip G-6240


Wire Rope Size: 1/8" (3-4mm)Ask for a different size
Price:
Sale price$1.06

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Design factor not published by the manufacturer for this item. Confirm the required design factor for your application before use, or email sales@slingcenter.com and we will obtain it from the manufacturer.

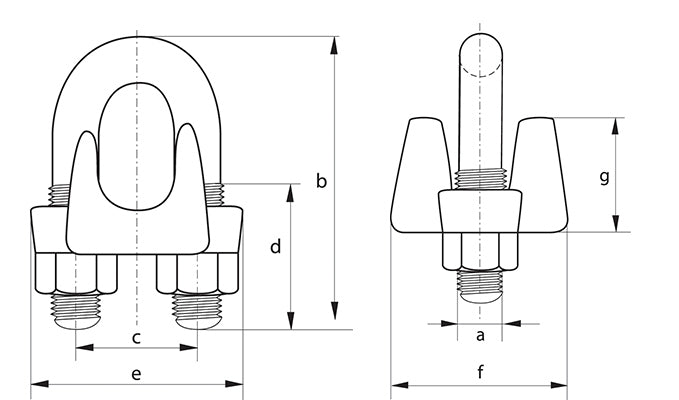

Green Pin Wire Rope Clip G-6240 dimensions
Dimension Legend
a
Diameter bow
b
Length bow
c
Width inside
d
Length thread
e
Length base
f
Thickness base
g
Height base
Stock #SizeWeight (lb)(kg)a (in)(mm)b (in)(mm)c (in)(mm)d (in)(mm)e (in)(mm)f (in)(mm)g (in)(mm)
CLGRP031/8" (3 - 4mm mm)0.070.033/16515/162415/32127/161115/162413/162113/3210
CLGRP053/16" (5mm mm)0.150.071/461 7/323119/32151/2131 5/322915/16241/213
CLGRP061/4" (6 - 7mm mm)0.190.085/1681 11/32343/4191/2131 15/32371 3/163023/3218
CLGRP085/16" (8mm mm)0.270.1213/32101 25/32457/8223/4191 11/16431 5/16333/419
CLGRP103/8" (9 - 10mm mm)0.460.217/16111 15/16491 1/32263/4191 15/16491 21/324231/3225
CLGRP117/16" (11mm mm)0.730.3315/32122 3/8601 3/163031/32252 9/32581 13/16461 1/3226
CLGRP121/2" (12 - 13mm mm)0.730.331/2132 13/32611 3/163031/32252 9/32581 7/8481 7/3231
CLGRP149/16" (14 - 15mm mm)1.010.469/16142 27/32721 5/16331 1/4322 15/32632 1/16521 7/3231
CLGRP165/8" (16mm mm)1.010.469/16142 29/32741 5/16331 1/4322 17/32642 1/8541 13/3236
CLGRP193/4" (18 - 20mm mm)1.420.645/8163 3/8861 1/2381 15/32372 27/32722 1/4571 1/238
CLGRP227/8" (22mm mm)2.130.963/4193 27/32981 25/32451 5/8413 5/32802 7/16621 9/1640
CLGRP251" (24 - 26mm mm)2.541.153/4194 1/41081 7/8481 13/16463 15/32882 5/8671 7/847
CLGRP281 1/8" (28 - 30mm mm)2.811.273/4194 19/321172512513 19/32912 7/8731 7/848
CLGRP321 1/4" (32 - 34mm mm)4.351.977/8225 1/81302 5/16592 1/8544 1/81053 1/8792 7/3256
CLGRP351 3/8" (36mm mm)4.552.077/8225 1/21402 3/8602 5/16594 1/41083 1/8792 9/3258
CLGRP381 1/2" (38 - 40mm mm)5.592.547/8225 25/321472 19/32662 3/8604 13/321123 11/32852 17/3264
CLGRP421 5/8" (41 - 42mm mm)7.113.2231/32256 11/321612 3/4702 5/8674 3/41213 5/8922 5/867
CLGRP451 3/4" (44 - 46mm mm)9.214.181 5/32296 27/321743 1/16782 3/4705 9/321343 13/1697376
CLGRP502" (48 - 52mm mm)13.36.021 1/4327 11/161953 3/8863 1/16785 29/321504 7/161133 11/3285
CLGRP562 1/4" (56 - 58mm mm)17.17.761 1/4328 3/82133 27/32983 3/16816 3/81624 9/161163 15/16100
CLGRP642 1/2" (62 - 65mm mm)19.08.621 1/4328 15/162274 1/81053 7/16876 5/81684 11/161194 7/16113
CLGRP692 3/4" (68 - 72mm mm)22.410.21 1/4329 9/162434 13/321123 19/32916 27/3217451274 7/16124
CLGRP753" (75 - 78mm mm)28.012.71 1/23810 21/322714 3/41213 27/32987 5/81945 5/161355 11/32136

This fitting does not carry a Working Load Limit of its own — it is rated by the efficiency of the termination it forms with the rope, so the governing figure is a percentage of the rope’s breaking strength. Size the assembly from the rope, not from the fitting. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

🇪🇺 Made in Netherlands
Forged by Van Beest
Wire Rope Clip
For 3/16"–3" rope
EN 13411-5 Type B
80% efficiency
CE + 3.1 Certified
100% inspected

Why You'd Buy This & How You'd Use It

The Green Pin® G-6240 is the drop-forged wire rope clip — forms eye loops in wire rope, backs up splices. Ribbed saddle prevents slippage. Drop-forged for strength.

Three features that matter:

  1. Ribbed saddle. Grips wire rope, prevents slippage.
  2. Drop-forged construction. Not cast; consistent strength.
  3. EN 13411-5 Type B. European/Federal spec equivalent.

Use it for: Wire rope eye loops (winch lines, guy wires) · backing up Flemish splices.

Don't use for: Permanent lift with 100% strength (use spelter sockets).

👉 For full technical data: see the Technical Specifications tab above.

📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog

❓ Need help selecting?

Ask our AI rigging specialist or email sales@slingcenter.com.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 12 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
1/8" (3-4mm) CLGRP03 $1.06 0.07 lb ✓ In Stock
3/16" (5mm) CLGRP05 $1.84 0.15 lb ✓ In Stock
1/4" (6-7mm) CLGRP06 $2.08 0.18 lb ✓ In Stock
5/16" (8mm) CLGRP08 $3.14 0.26 lb ✓ In Stock
3/8" (9-10mm) CLGRP10 $4.48 0.46 lb ✓ In Stock
7/16" (11mm) CLGRP11 $6.10 0.73 lb ✓ In Stock
1/2" (13mm) CLGRP13 $6.74 0.73 lb ✓ In Stock
5/8" (16mm) CLGRP16 $10.00 1.01 lb ✓ In Stock
3/4" (19mm) CLGRP19 $13.10 1.42 lb ✓ In Stock
7/8" (22mm) CLGRP22 $19.88 2.12 lb ✓ In Stock
1" (26mm) CLGRP26 $23.08 2.54 lb ✓ In Stock
1-1/8" (28mm) CLGRP28 $26.34 2.81 lb ✓ In Stock

Weights are approximate shipping weights.

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
